128x64 Low Power Backlit LCD

Part Number: CFAG12864Q1-TFH

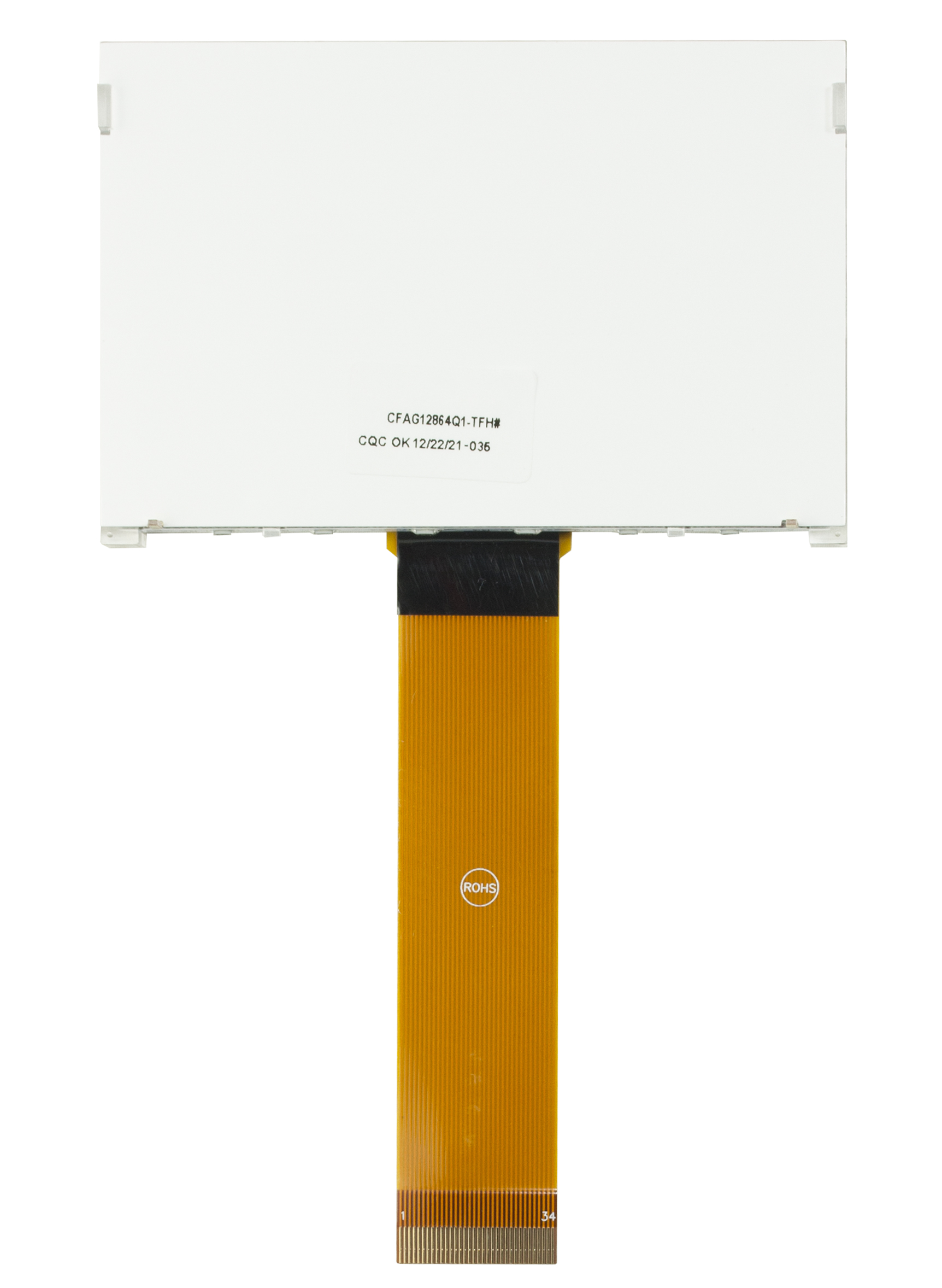

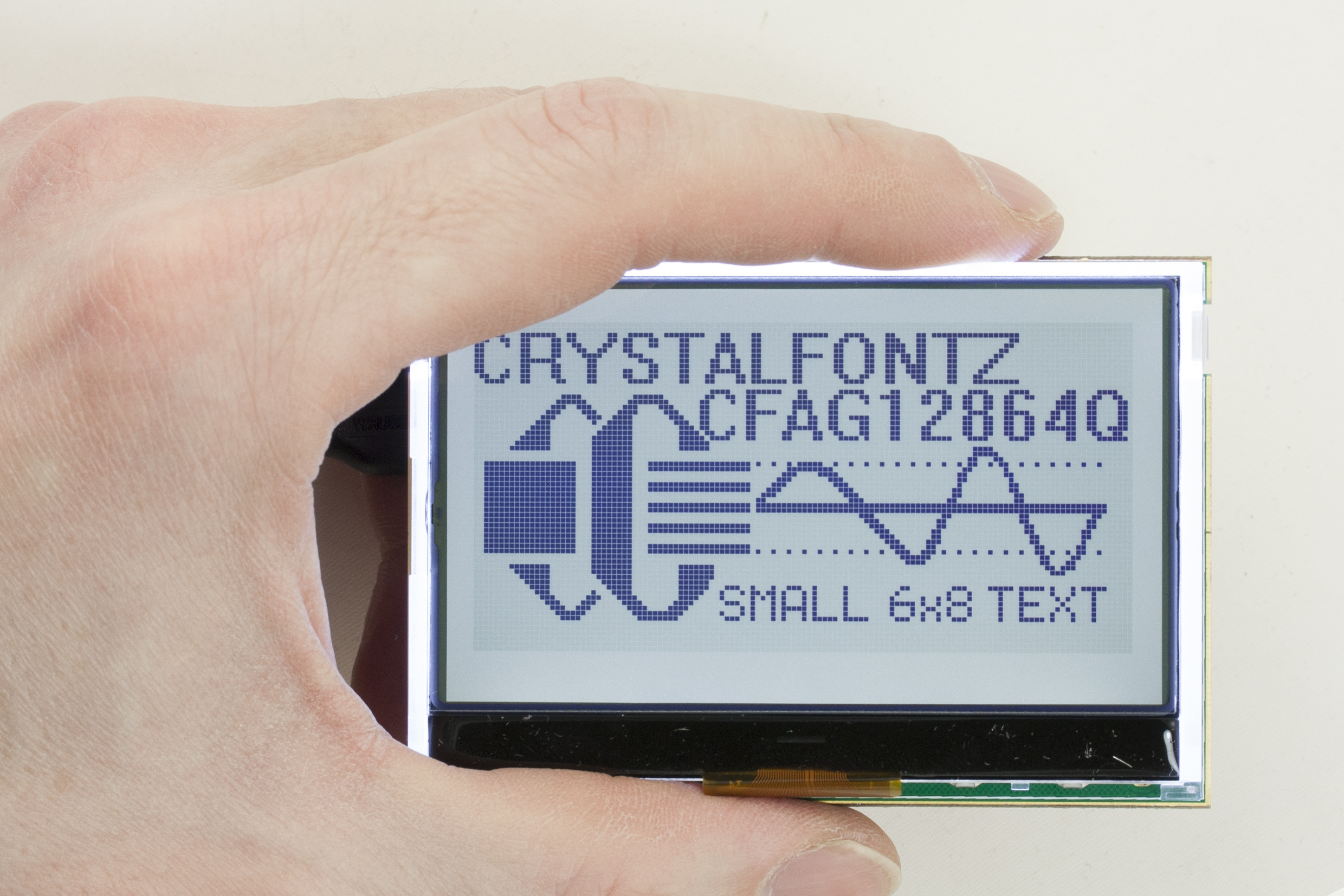

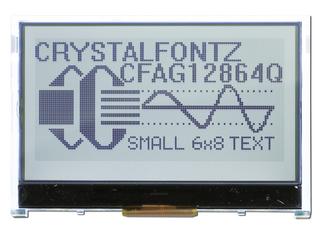

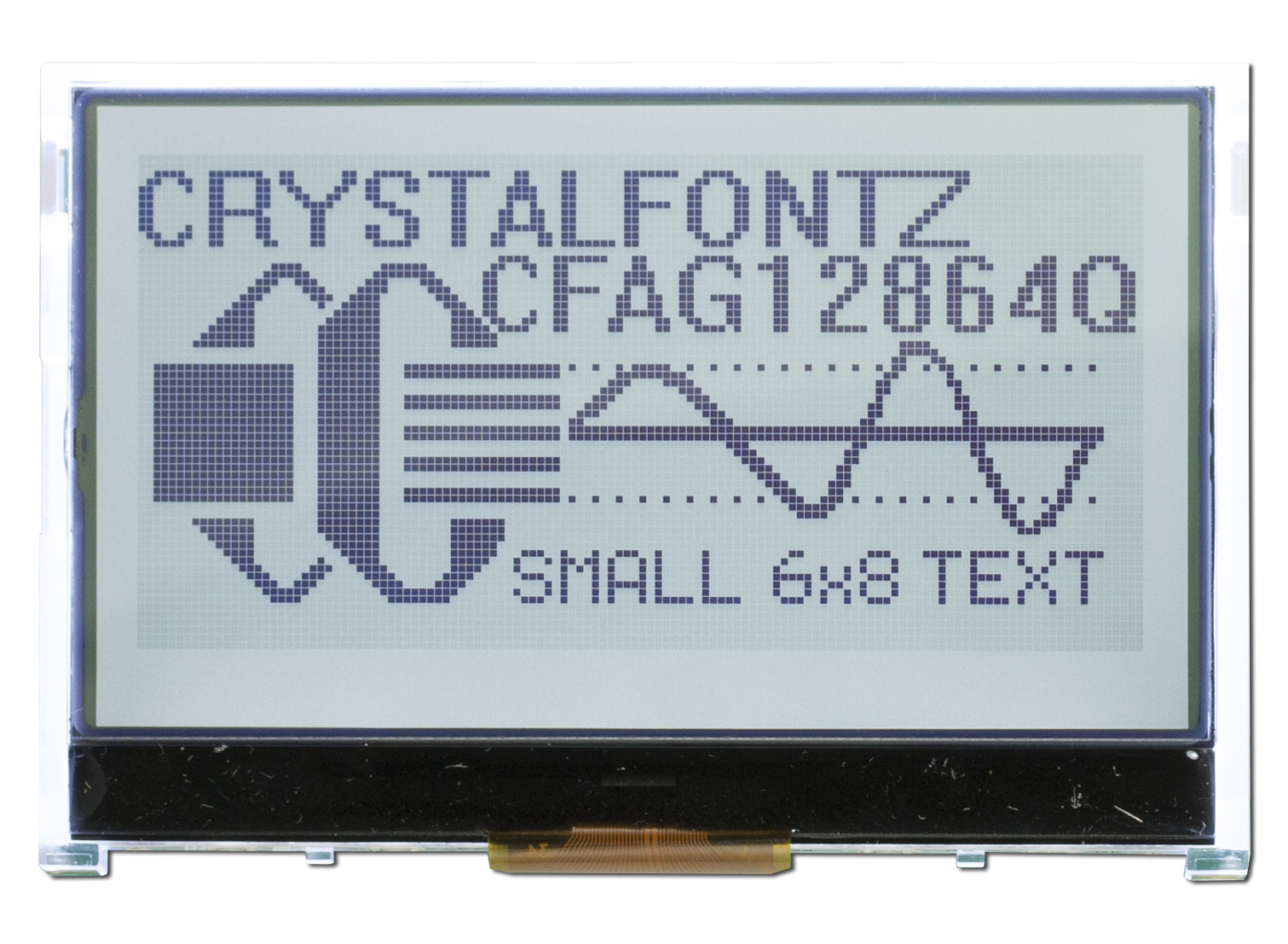

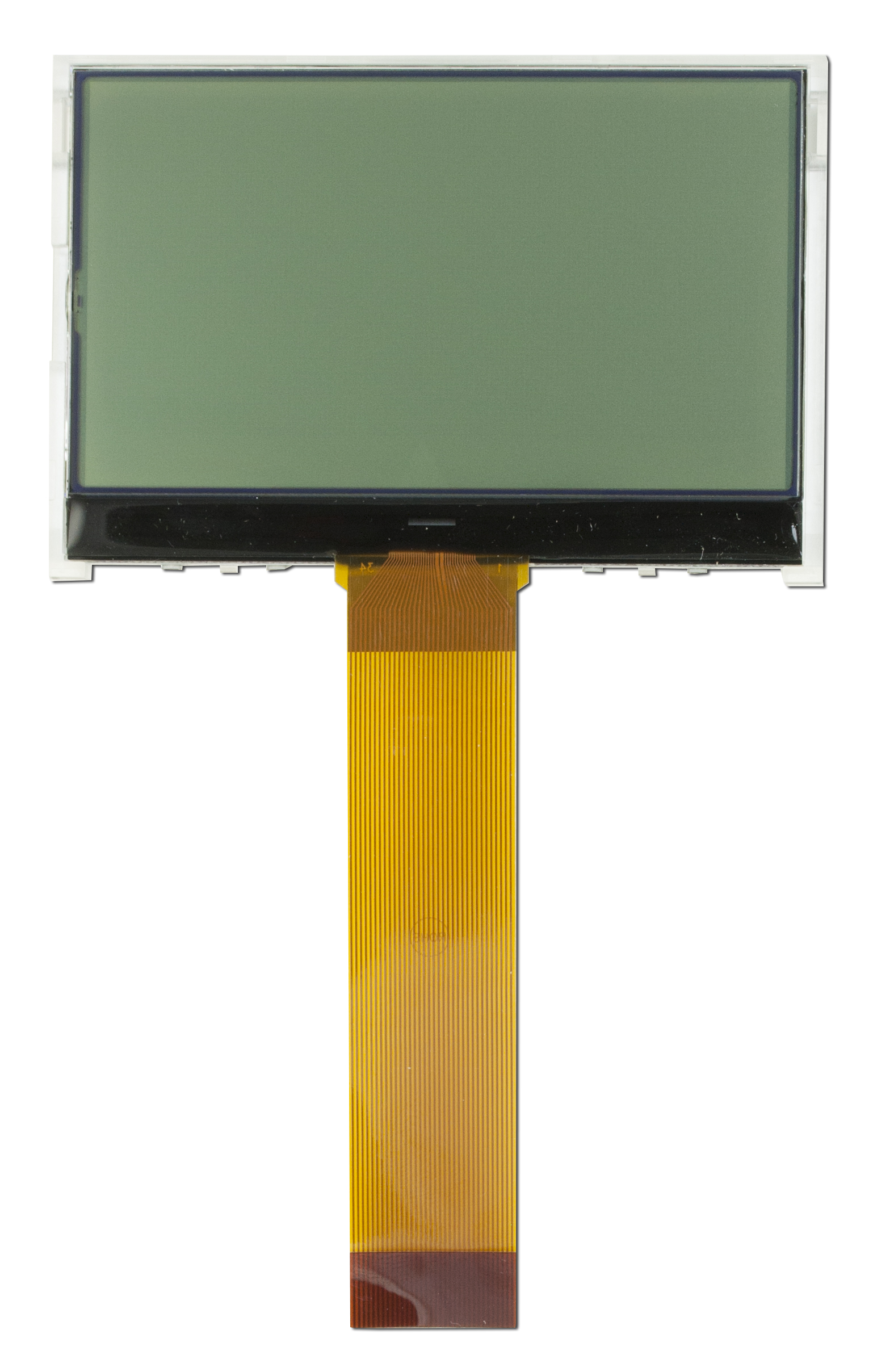

A graphic LCD display with 128x64 dark pixels on a light gray background. This display is approximately 2.9" on the diagonal but requires less than 1mA to drive the display. The white LED backlight is driven by separate inputs on the frame and can be powered off to maintain the lowest possible power requirements, or powered on to make this display visible in dark environments. This display is a great choice for power-conscious designs that need to be seen in sunlight and in dark rooms.

The integrated ST7567 LCD controller supports communications in SPI or 8-bit parallel (either 6800 or 8080).

Prefer a different color? We also offer this display in light (near white) pixels on a blue background. Other sizes of graphic LCDs are also available.

To get started, download the free sample code and detailed datasheet in the Datasheets & Files section.

Compatible ZIF sockets (34-pin, 0.5 mm) are: 34 Position, 0.50mm Pitch. A carrier board for this display is also available.

This display replaced the CFAO12864D3-TFH. See the PCN for more information.

Questions? Contact our knowledgeable technical support team.

Qty:
Quantity Price
1 $20.63
5 $19.01
10 $16.78
20 $16.20
50 $15.64
100 $15.41
200 $15.30
300 $14.51
500 * $14.41
1000 * $13.29
* For quantites over this amount the lead time may be up to 90 Days. Contact us about potential lead times.
Components worth considering
4636 34 Position, 0.50mm Pitch, Gold, FCC FPC ZIF Connector
Add 5 ZIF Connectors $1.06 ea.
4832 40-Position ZIF Breakout Board
Add a 40-pin ZIF Breakout Board? $6.43 ea.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAG12864Q1-TFH or RSS RSS feed for changes to CFAG12864Q1-TFH for CFAG12864Q1-TFH

Video Demonstrations

See how this graphic LCD display looks in this video demonstration.

TECHNICAL SPECS

Physical Characteristics

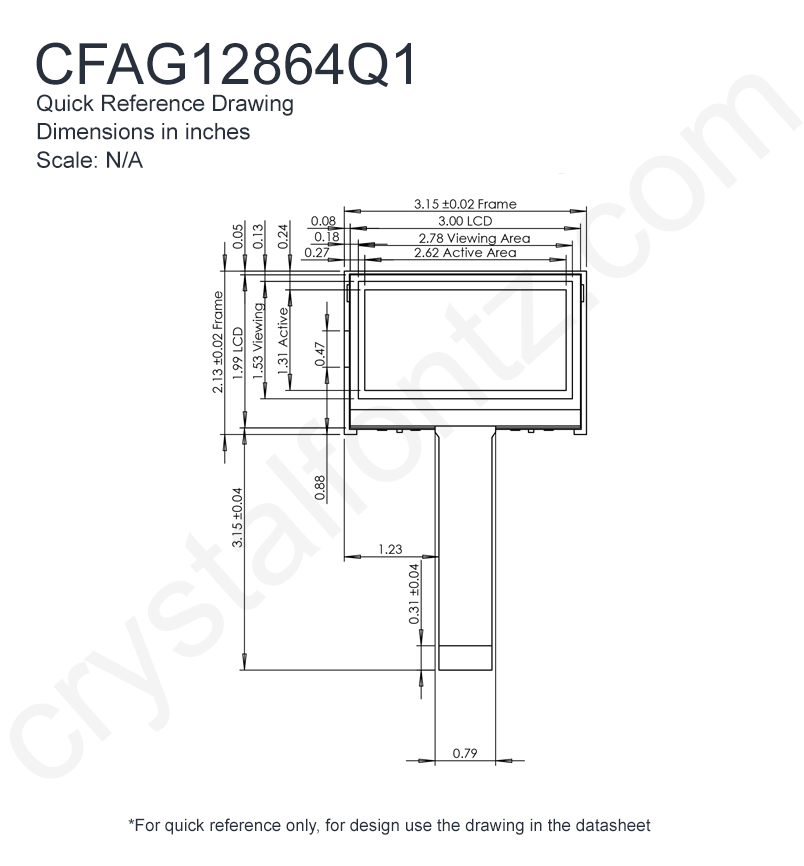

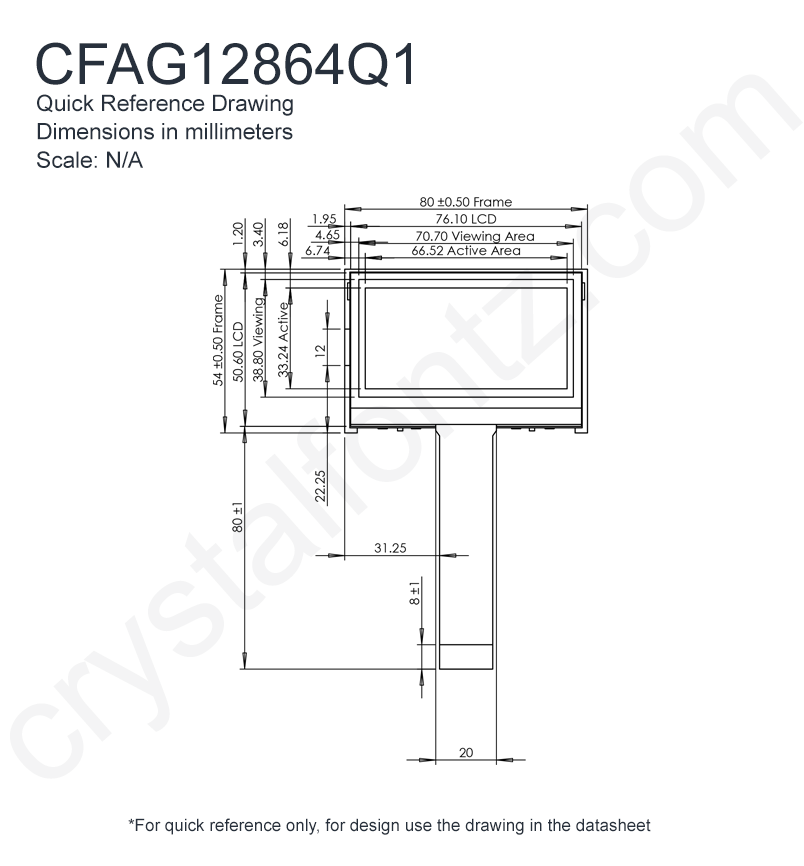

Column Dots x Row Dots 128 x 64
Module Overall width height depth
millimeters 80 54 9.5
inches 3.150 2.126 0.374
Diagonal Dimension 2.9"
Viewing Area width height
millimeters 70.7 38.8
inches 2.783 1.528
Active Area width height
millimeters 66.52 33.24
inches 2.619 1.309
Dot Size width height
millimeters 0.48 0.48
inches 0.019 0.019
Dot Pitch width height
millimeters 0.52 0.52
inches 0.020 0.020
Weight 40g
Pin Count 34

Optical Characteristics

Polarizer Transflective
View Direction 6 o'clock
Sunlight Readable Yes
Backlight Color White
Backlight Type LED
Foreground Color Dark
Background Color Gray

Electrical Specifications

Supply Voltage for Logic Minimum 2.7V
Supply Voltage for Logic Maximum 3.3V
Supply Voltage for Logic Typical 3V
Supply Voltage for Driving Panel Typical 9.9V
Supply Current Minimum 0.3mA
Supply Current Maximum 120mA
Supply Current Typical 96mA

Backlight Electrical Specifications

Forward Voltage Minimum 3.4V
Forward Voltage Maximum 3.6V
Forward Voltage Typical 3.5V
Forward Current Maximum 120mA
Forward Current Typical 96mA

Environmental

Operating Temperatures min max
Celsius -20° 70°
Fahrenheit -4° 158°
Storage Temperatures min max
Celsius -30° 80°
Fahrenheit -22° 176°

Electronics

Controller Documents Sitronix ST7567
ST7567
65 x 132 Dot Matrix LCD Controller/Driver
Interface 8-bit Parallel, SPI

Miscellaneous

Nits 1050

Additional Options

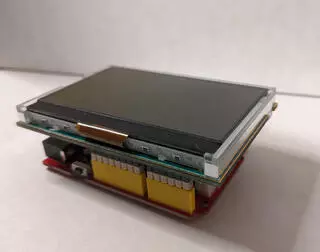

Purchase this display on an Arduino shield or as a complete development kit.
