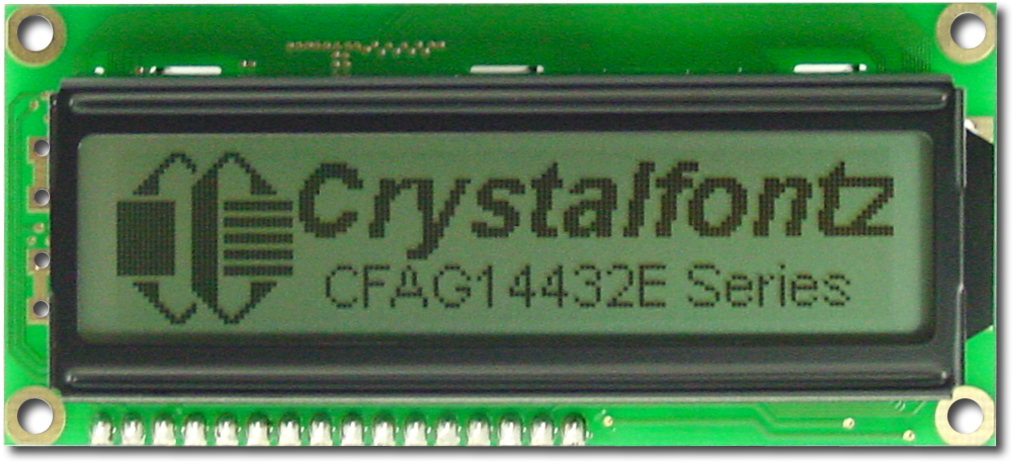

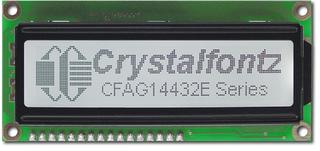

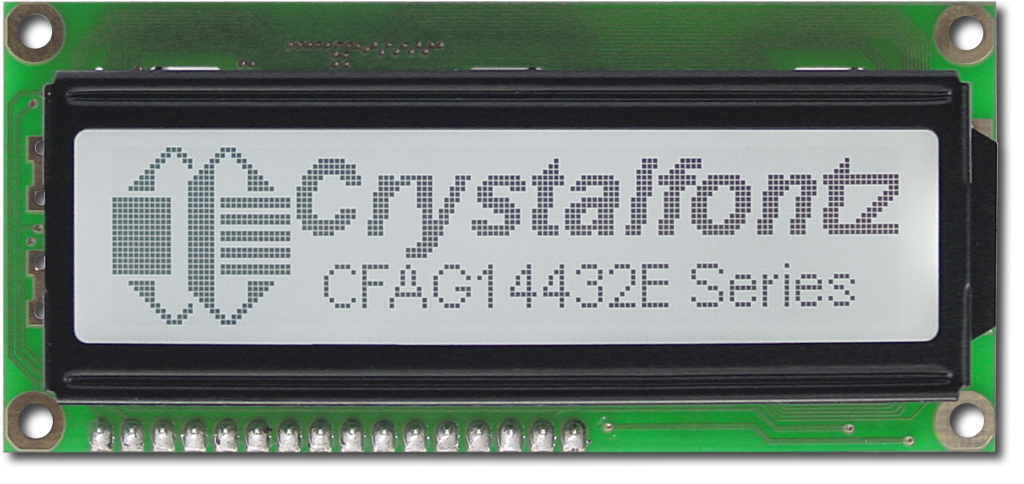

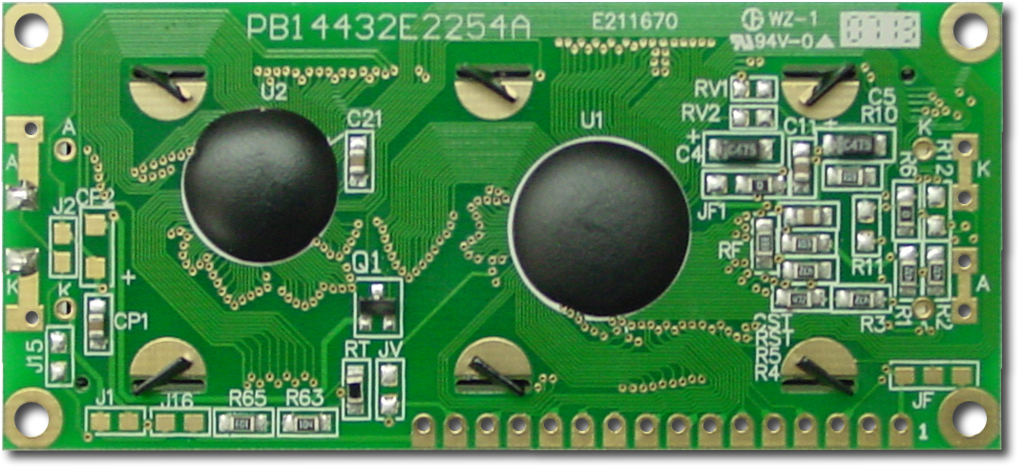

Gray Sunlight Readable 144x32 Graphic LCD

Part Number: CFAG14432E-TFH-TT

Sunlight readable 144x32 graphic LCD with temperature compensation and negative voltage generator

  • Resolution: 144x32 pixels
  • Optics: 6:00 viewing direction
  • Backlight: White Edge LED
  • Glass: FSTN Positive, Transflective
  • Controller: Sitronix ST7920 (Hitachi HD44780 Compatible)
  • Character Generator: Chinese and English
  • Operating Temp: -20°C to +70°C
  • Compliance: REACH & RoHS Compliant

Product Variants


4-bit Parallel / 8-bit Parallel

CFAG14432E-TFH-TTGray Sunlight Readable 144x32 Graphic LCD
CFAG14432E-TMI-TTWhite on blue 144x32 Graphic LCD
CFAG14432E-TTI-TTWhite on Black 144x32 Parallel Graphic LCD
CFAG14432E-YYH-TTYellow-Green Transflective 144x32 Graphic LCD
Gray Sunlight Readable 144x32 Graphic LCD (CFAG14432E-TFH-TT)
Qty:
Quantity Price
1 $17.19
10 * $14.97
20 * $14.75
50 * $14.54
100 * $14.19
200 * $13.98
500 * $12.48
1000 * $11.53
* Pricing is subject to change. Contact us about potential lead times.
Components worth considering
4694 LCD Starter Kit with Potentiometer
Everything you need to connect $12.59 ea.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Datasheet

Files

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAG14432E-TFH-TT or RSS RSS feed for changes to CFAG14432E-TFH-TT for CFAG14432E-TFH-TT

Compliance Documents

TECHNICAL SPECS

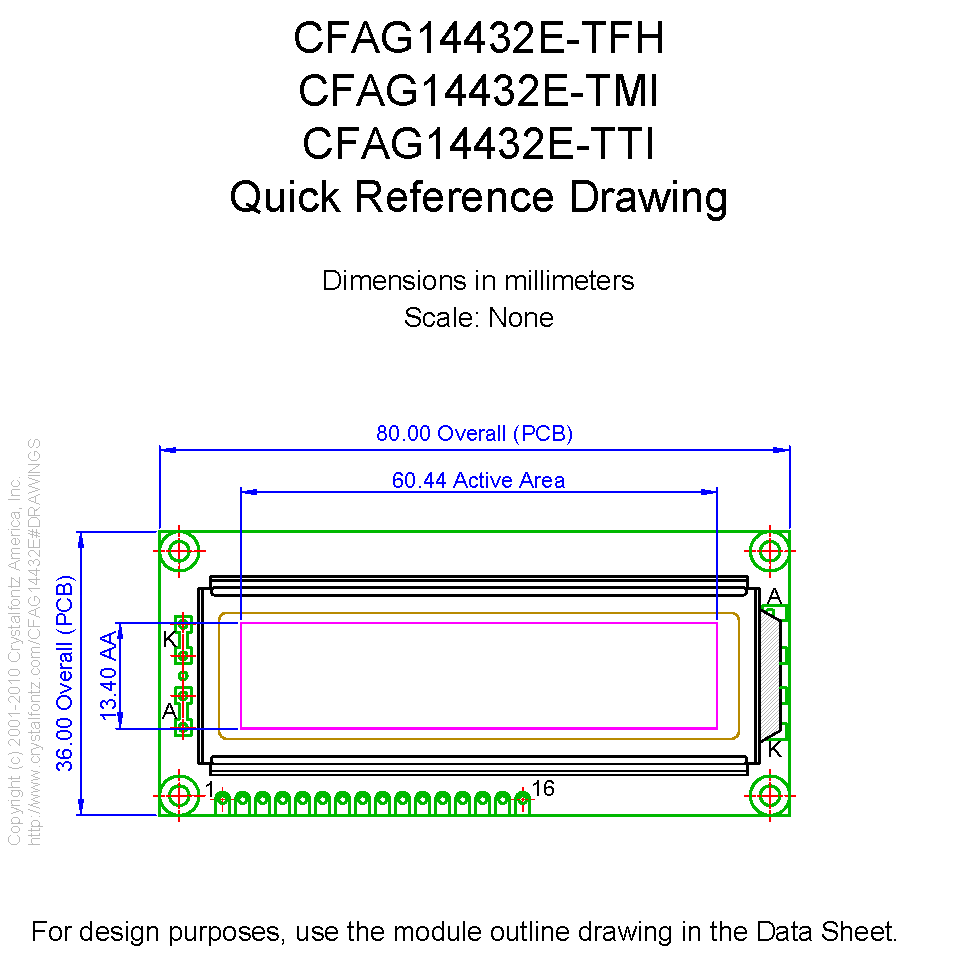

Physical Characteristics

Column Dots x Row Dots 144 x 32
Module Overall width height depth
millimeters 80 36 13.5
inches 3.150 1.417 0.531
PCB Outline width height depth
millimeters 80 36 13.5
inches 3.150 1.417 0.531
Diagonal Dimension 2.44"
Viewing Area width height
millimeters 66 16
inches 2.598 0.630
Active Area width height
millimeters 60.44 13.4
inches 2.380 0.528
Dot Size width height
millimeters 0.38 0.38
inches 0.015 0.015
Dot Pitch width height
millimeters 0.42 0.42
inches 0.017 0.017
Weight 33g

Optical Characteristics

Glass Type/Glass Color FSTN/Light Gray
Polarizer Transflective
View Direction 6 o'clock
Sunlight Readable Yes
Backlight Color White
Backlight Type LED
Mode Positive
Foreground Color Dark
Background Color White

Electrical Specifications

Supply Voltage for Logic Minimum 4.5V
Supply Voltage for Logic Maximum 5.5V
Supply Voltage for Logic Typical 5V
Supply Voltage for Driving Panel Typical 4.8V
Supply Current Maximum 3mA
Supply Current Typical 1.5mA
Module Connector Pitch 0.1mm

Backlight Electrical Specifications

Forward Voltage Minimum 3.4V
Forward Voltage Maximum 3.6V
Forward Voltage Typical 3.5V
Forward Current Minimum 10mA
Forward Current Maximum 40mA
Forward Current Typical 32mA

Environmental

Operating Temperatures min max
Celsius -20° 70°
Fahrenheit -4° 158°
Storage Temperatures min max
Celsius -30° 80°
Fahrenheit -22° 176°
Humidity min max
Non-condensing 0% 90%

Electronics

Controller Documents Sitronix ST7920
ST7920
Chinese Fonts built in LCD controller/driver
Interface 4-bit Parallel, 8-bit Parallel
For reference only. For design purposes, please use the specifications in the datasheet.
