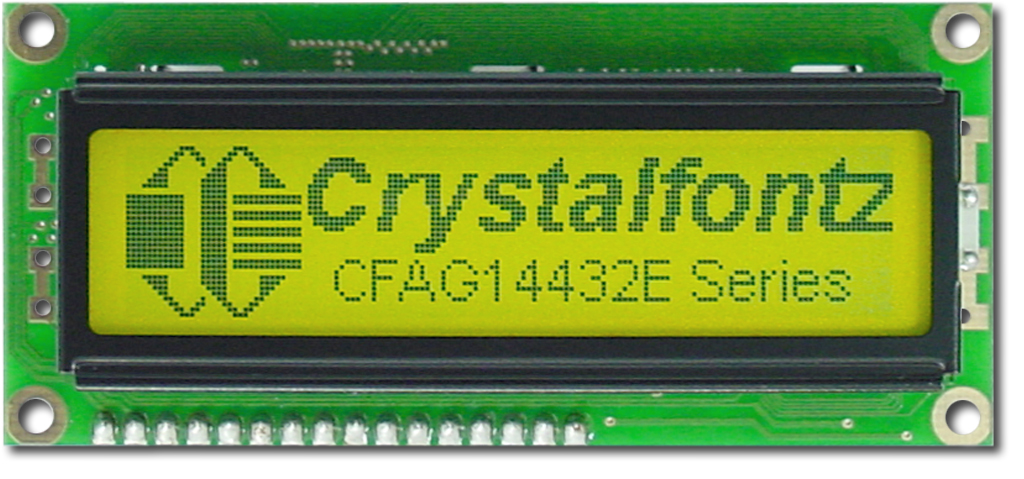

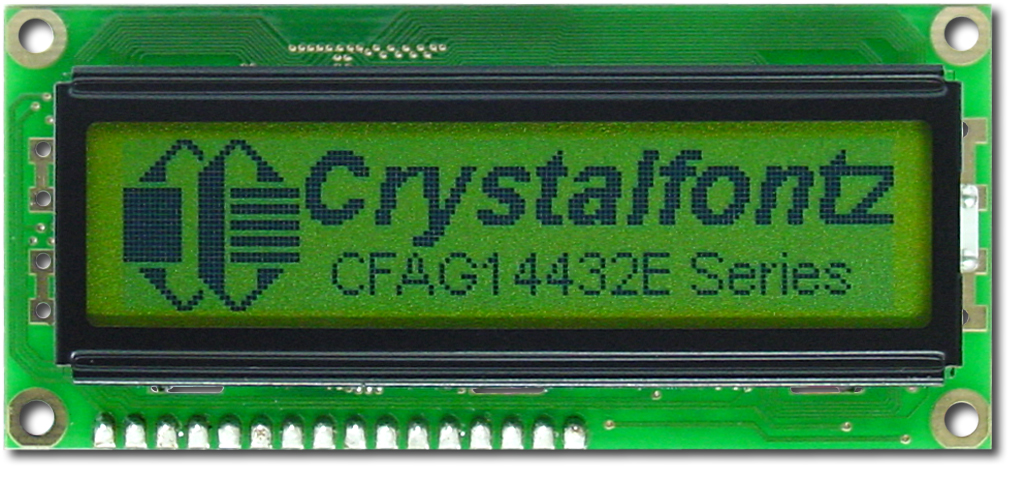

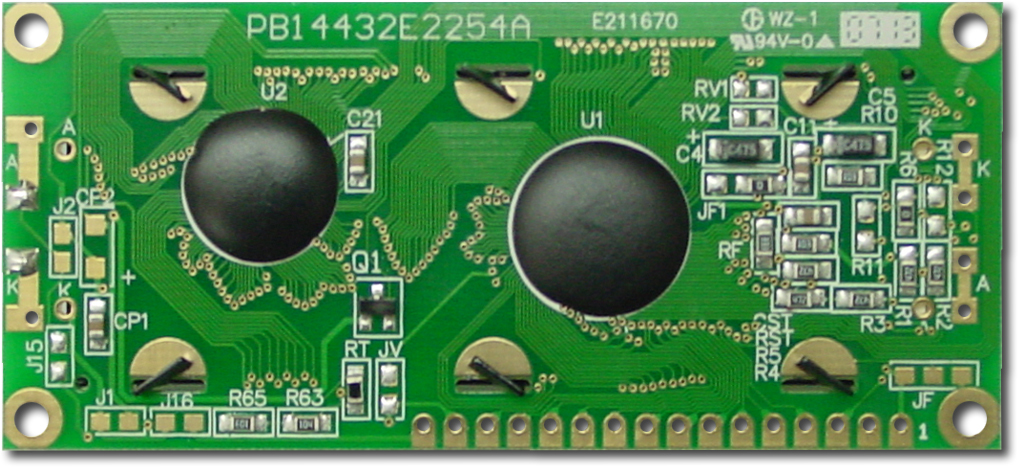

Yellow-Green Transflective 144x32 Graphic LCDPart Number: CFAG14432E-YYH-TT144x32 Sunlight readable graphic LCD with negative voltage generator and temperature compensation
Resolution: 144x32 pixels
Optics: 6:00 viewing direction
Backlight: Yellow-green LED
Glass: STN Positive, Transflective
Controller: Sitronix ST7920 (Hitachi HD44780 Compatible)
Character Generator: Chinese and English
Operating Temp:  -20°C to +70°C
Compliance: RoHS Compliant
Product VariationsColorsDark on Yellow-Green
Yellow-Green LED BacklightWhite on Dark
White LED BacklightWhite on Blue
White LED BacklightDark on White
White LED Backlight

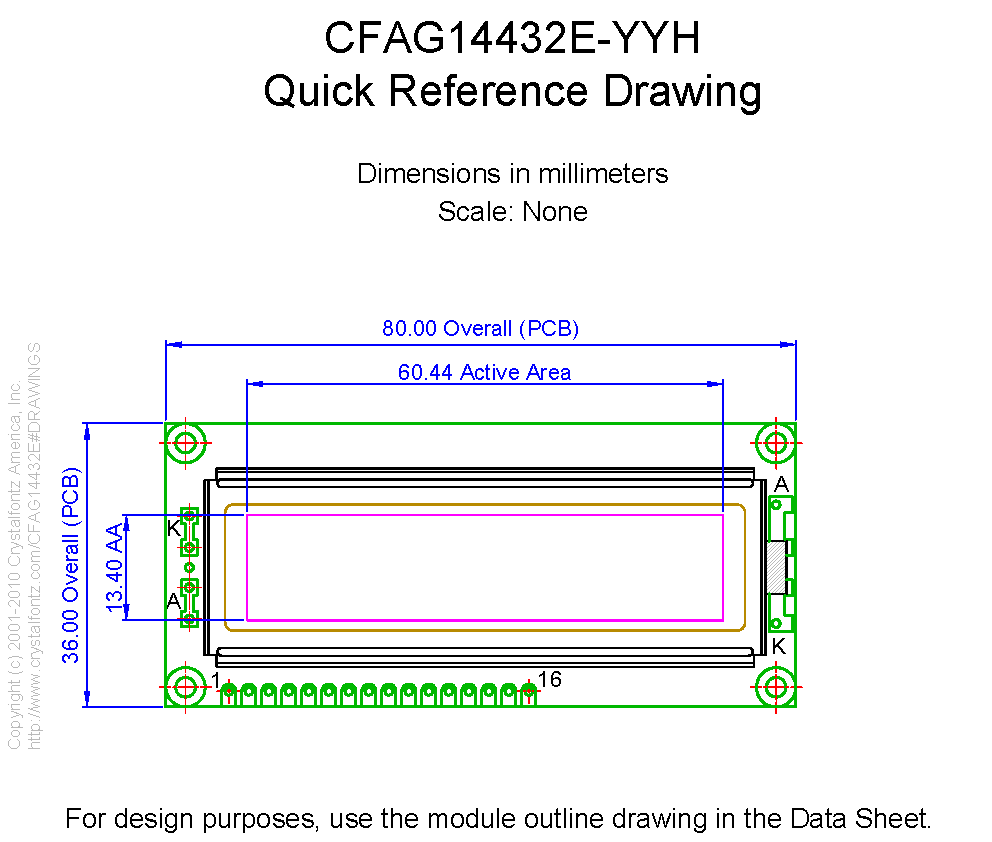

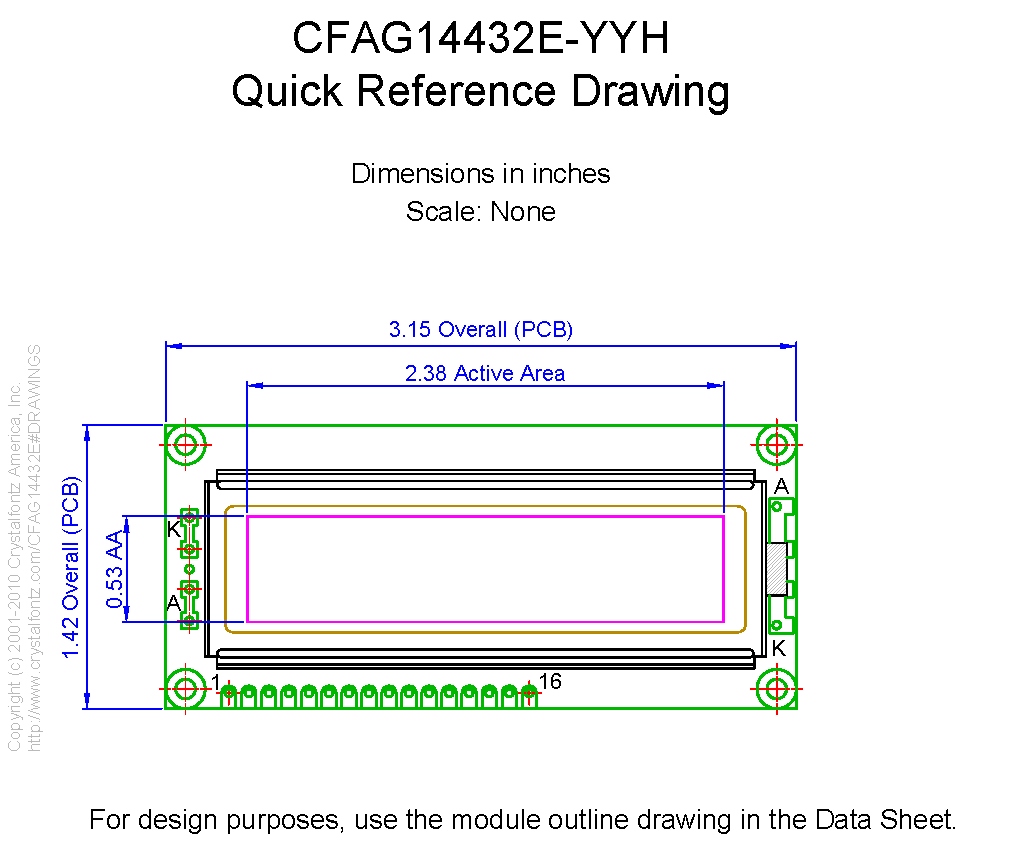

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            144 x 32


    Module Overall        width
        height
        depth


        millimeters
        80
        36
        13.2


        inches
        3.15
        1.42
        0.52



    PCB Outline        width
        height
        depth


        millimeters
        80
        36
        13.2


        inches
        3.15
        1.42
        0.52



        Diagonal Dimension
            2.44"


    Viewing Area        Width
        Height


        millimeters
        66
        16


        inches
        2.60
        0.63



    Active Area        Width
        Height


        millimeters
        60.44
        13.4


        inches
        2.38
        0.53



    Dot Size        Width
        Height


        millimeters
        0.38
        0.38


        inches
        0.015
        0.015



    Dot Pitch        Width
        Height


        millimeters
        0.42
        0.42


        inches
        0.017
        0.017



        Weight
            31g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Yellow-Green
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes


        Backlight Color
            Yellow-Green
Backlight Type
            LED
Mode
            Positive
Foreground Color
            Dark
Background Color
            Yellow-Green

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            4.5V
Supply Voltage for Logic Maximum
            5.5V
Supply Voltage for Logic Typical
            5V


        Supply Current Maximum
            3mA
Supply Current Typical
            1.5mA
Module Connector Pitch
            0.1mm

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Minimum
            4V
Forward Voltage Maximum
            4.4V
Forward Voltage Typical
            4.2V


        Forward Current Maximum
            120mA
Forward Current Typical
            100mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7920
ST7920

Chinese Fonts built in LCD controller/driver
Interface
            4-bit Parallel, 8-bit Parallel

picture_as_pdf Datasheets
picture_as_pdfCFAG14432EYYHTT Datasheet

download Files and Downloads
folder_zip Software Source - ATMEGA2561 w/ SPI interface
folder_zip CAD Export - CFAG14432E-YYH 2D CAD
picture_as_pdf 1 to 1 Template - CFAG14432E-YYH 1 TO 1.PDF
picture_as_pdf Other Document - UniCode to ST7920-0C CGROM Mapping
assured_workload Compliance Documents

picture_as_pdf Declaration
                                    of Conformity RoHS2
picture_as_pdf Declaration
                                    of Conformity REACH














Need a written quote? Add to cart, then enter
                            your email address in the "request a quote" box.
Quantity:


Price:



            Quantity
            Unit Price


            1
            $22.63

            10
            $19.92

            20
            $19.33

            50 *
            $18.63

            100 *
            $18.39

            200 *
            $18.28

            300 *
            $17.26

            500 *
            $17.14

            1000 *
            $16.23

26 Units In-Stock & Ready To Ship
