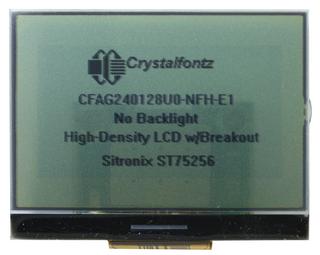

240x128 High Density Low Power LCD with Breakout Board

Part Number: CFAG240128U0-NFH-E1

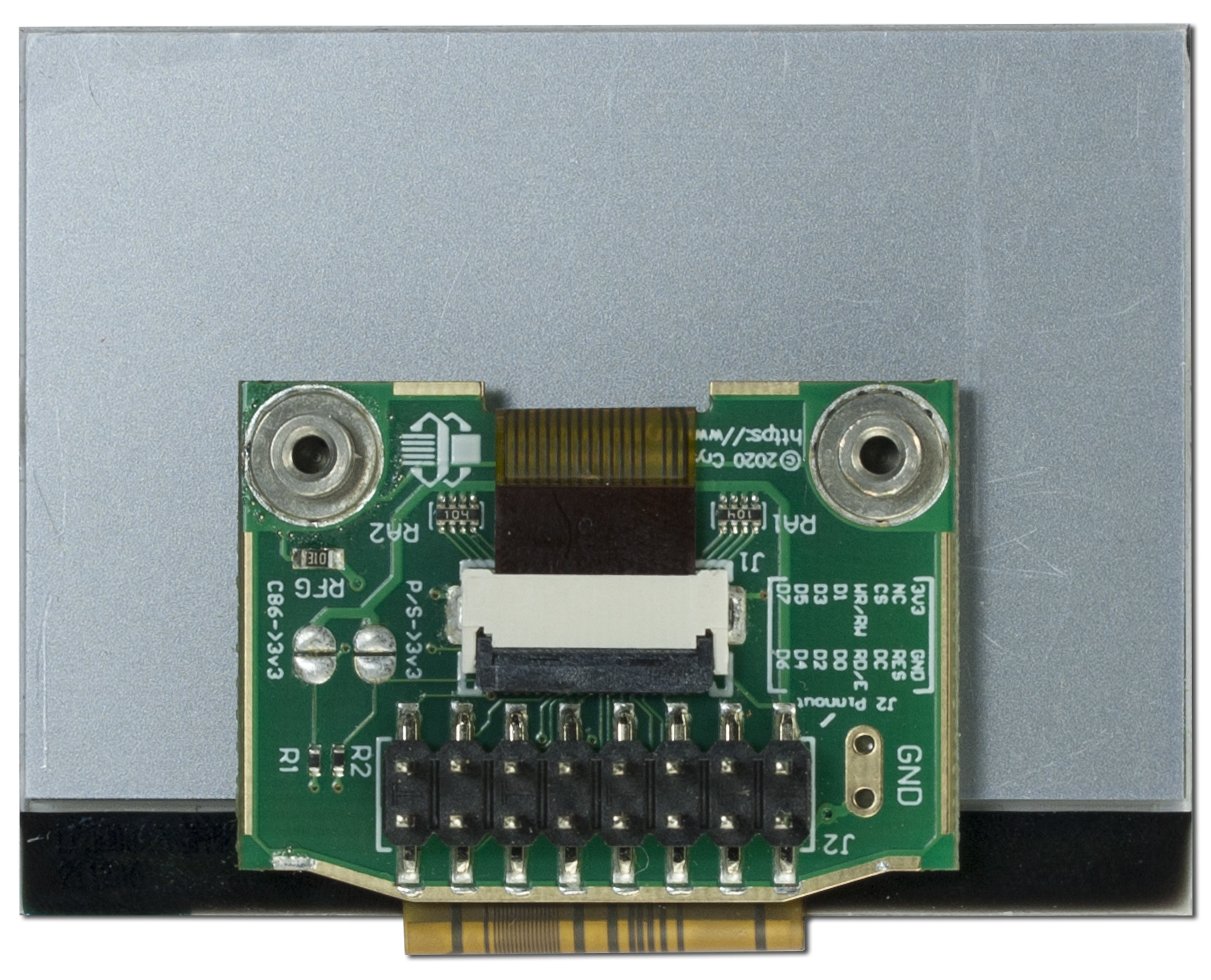

This LCD display module takes our high-density graphic LCD and adds a breakout board. The breakout board enables this display to be connected to a 3.3v MCU using just jumper wires and the 16-position 0.1" header. This makes wiring the display simple and solder-free. The 2x2-56 threaded standoffs on the adapter board enable the entire assembly to be mounted into a final design.

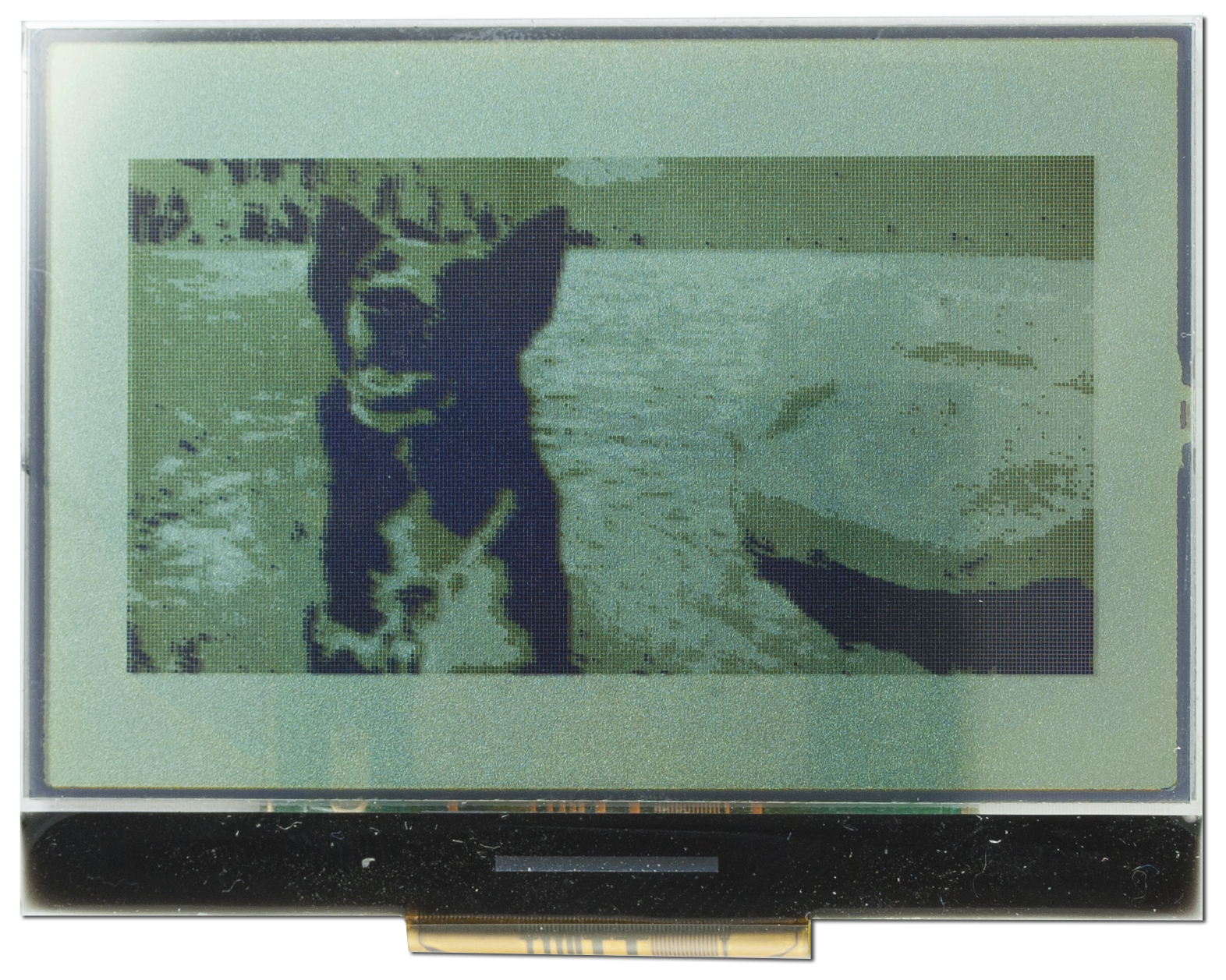

The display itself is a low-power, 4-shade grayscale display. With 240x128 pixels in this 2.2" diagonal display, this LCD is a great choice when detail is important.

Part Number:
CFA- Crystalfontz America
G- Graphic LCD
240128- 240x128 pixels
U0- Family and version number
N- No backlight
F- FSTN Positive
H- Transflective, 6:00 viewing angle
E1- Includes a breakout board and board revision

Product Variants

CFAG240128U0-TFH-E1240x128 Grayscale LCD with Breakout Board
CFAG240128U0-NFH-E1240x128 High Density Low Power LCD with Breakout Board
240x128 High Density Low Power LCD with Breakout Board (CFAG240128U0-NFH-E1)
Qty:
Quantity Price
1 $29.29
5 $23.97
10 $23.35
20 $22.57
50 * $21.80
100 * $21.51
200 * $21.34
300 * $21.19
500 * $21.05
1000 * $20.88
* Pricing is subject to change. Contact us about potential lead times.
Components worth considering
1303 USB-A to Micro-B Cable
Add a 6ft USB Cable? $5.75 ea.
4718 10 Foot USB Cable
Add a 10ft USB Cable? $6.90 ea.
4583 Seeeduino 4.3
Need a microcontroller? $20.67 ea.
1872 3-inch Female to Female Jumper Wires
Need jumper wires? $3.14 ea.
4761 Low Power 240x128 Graphic LCD Display
Add another display? $17.40 ea.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Datasheet

Files

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAG240128U0-NFH-E1 or RSS RSS feed for changes to CFAG240128U0-NFH-E1 for CFAG240128U0-NFH-E1

Compliance Documents

Video Demonstrations

2.2 Inch LCD Development Kits

Video demonstration of our 2.2 inch LCD Development kits.


TECHNICAL SPECS

Physical Characteristics

Weight 15g

Additional Options

Purchase this module in a complete development kit, or as an individual display

Low Power 240x128 Graphic LCD Display

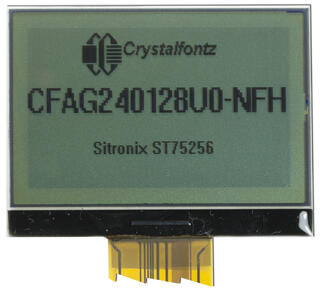

Part Number: CFAG240128U0-NFH

This high-density graphical LCD display is a great choice when both detail and power savings are important. This display packs 240x128 pixels into a 2.2" diagonal display and supports a 2-bit (4-color) grayscale.

This display is readable in bright light but does not have a backlight, so external light is required. If you need a backlight, this display is identical but includes a backlight.

Our popular low-power 128x64 graphic display has the same outline and similar pinout as this display but does have a different controller. This LCD breakout board will work with this 240x128 display.

Part Number:
CFA- Crystalfontz America
G- Graphic LCD
240128- 240x128 pixels
U0- Family and version number
N- No backlight
F- FSTN Positive
H- Transflective, 6:00 viewing angle

Details
Quantity 1 5 10 20 50 100 200 300 500 * 1000 *
Price $17.40 $14.52 $14.15 $13.66 $13.19 $13.00 $12.90 $12.81 $12.71 $12.62
Quantity:

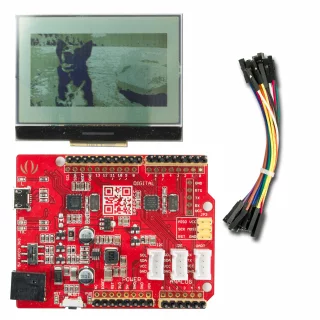

240x128 Low-Power LCD Development Kit
Part Number: CFAG240128U0-NFH-E1-2

A development kit for a low-power, graphic, high-density, 4-shade grayscale LCD, this kit includes everything needed to see this display up and running. This kit is a great jumping-off point for developing your project.

Kit Includes:



Part Number:
CFA- Crystalfontz America
G- Graphic LCD
240128- 240x128 pixels
U0- Family and version number
N- No backlight
F- FSTN Positive
H- Transflective, 6:00 viewing angle
E1- Includes a breakout board and board revision
2- Includes Seeeduino, wires, code

Details
Quantity 1
Price $51.12
Quantity:

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAG240128U0-NFH-E1 or RSS RSS feed for changes to CFAG240128U0-NFH-E1

Product Update #11165: 240x128 High-Density Low-Power LCD with Breakout Board is now available.

New Product: CFAG240128U0-NFH-E1
Date Issued: January 9, 2023
Summary: 240x128 High-Density Low-Power LCD with Breakout Board is now available.

Description: CFAG240128U0-NFH-E1 has been released on our website (https://www.crystalfontz.com/product/cfag240128u0nfhe1-240x128-low-power-lcd-with-breakout-board) and is now available for sale. Orders can be placed directly from our website or by submitting a purchase order to sales@crystalfontz.com. Contact support@crystalfontz.com for any technical questions.
For reference only. For design purposes, please use the specifications in the datasheet.
