240x128 Low-Power LCD Development Kit

Part Number: CFAG240128U0-NFH-E1-2

A development kit for a low-power, graphic, high-density, 4-shade grayscale LCD, this kit includes everything needed to see this display up and running. This kit is a great jumping-off point for developing your project.

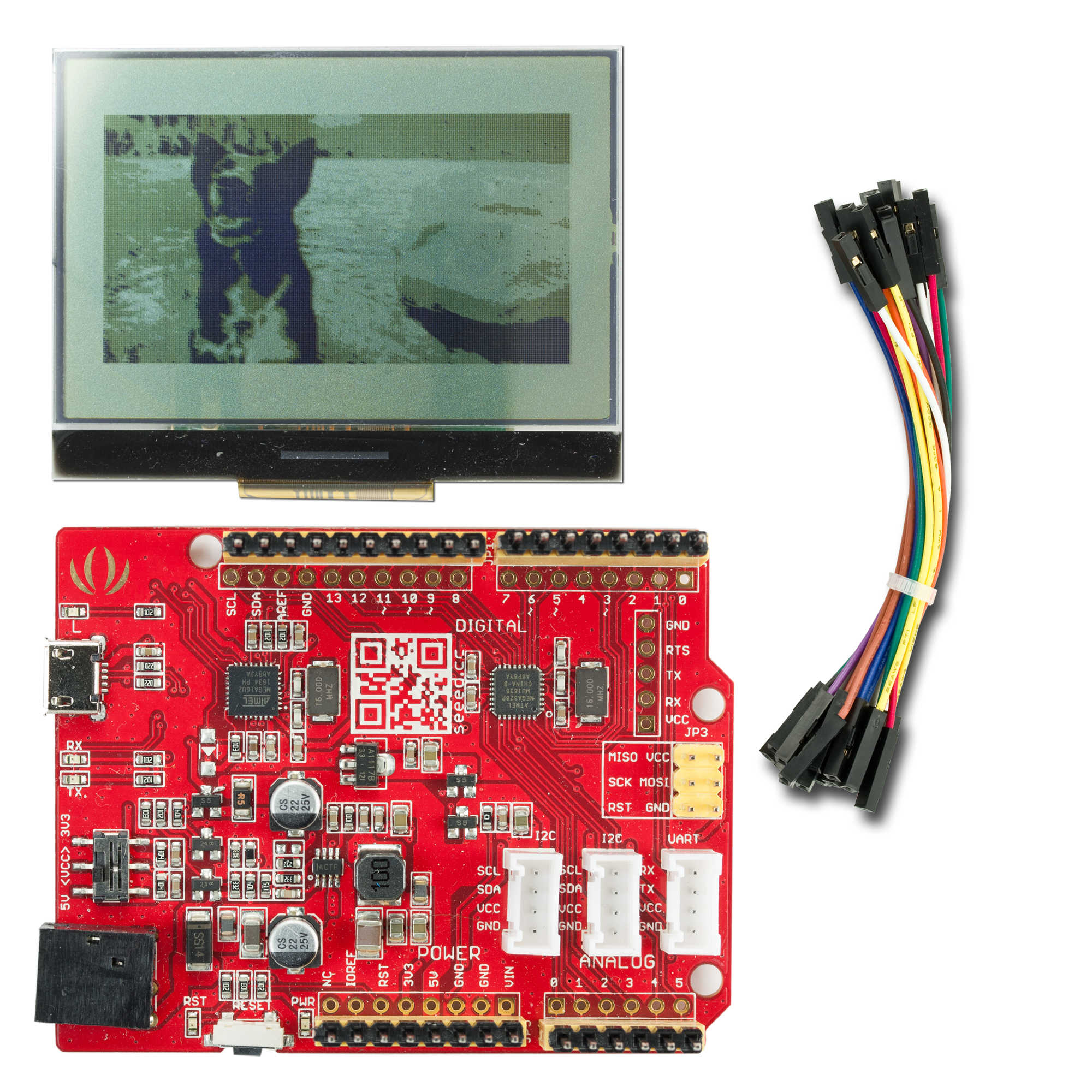

Kit Includes:

Part Number:
CFA- Crystalfontz America
G- Graphic LCD
240128- 240x128 pixels
U0- Family and version number
N- No backlight
F- FSTN Positive
H- Transflective, 6:00 viewing angle
E1- Includes a breakout board and board revision
2- Includes Seeeduino, wires, code

Product Variants

CFAG240128U0-TFH-E1-2240x128 High-Density Grayscale LCD Development Kit
CFAG240128U0-NFH-E1-2240x128 Low-Power LCD Development Kit
240x128 Low-Power LCD Development Kit (CFAG240128U0-NFH-E1-2)
Qty:
Quantity Price
1 $51.12
* Pricing is subject to change. Contact us about potential lead times.
Components worth considering
1871 6-inch Female to Female Jumper Wires
Add 6in Jumper Wires? $3.38 ea.
4665 Assorted Imperial Screws
Need mounting screws? $3.08 ea.
4583 Seeeduino 4.3
Need a microcontroller? $20.67 ea.
1872 3-inch Female to Female Jumper Wires
Need 3in Jumper Wires? $3.14 ea.
4769 240x128 High Density Low Power LCD with Breakout Board
Want an additional display with an adapter board? $29.29 ea.
4761 Low Power 240x128 Graphic LCD Display
Need another display? $17.40 ea.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Datasheet

Files

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAG240128U0-NFH-E1-2 or RSS RSS feed for changes to CFAG240128U0-NFH-E1-2 for CFAG240128U0-NFH-E1-2

Compliance Documents

Video Demonstrations

2.2 Inch LCD Development Kits

Video demonstration of our 2.2 inch LCD Development kits.


TECHNICAL SPECS

Physical Characteristics

Weight 41.6g

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAG240128U0-NFH-E1-2 or RSS RSS feed for changes to CFAG240128U0-NFH-E1-2

Part Change Notice #11197: New Seeeduino Version 4.3 Now Shipping

Products Affected: CFAG4265A0-TFK-E1-2, CFAF240320X0-020T-E1-2, CFAP128296C0-E2-2, CFAP152152C0-E2-2, CFAP600448A0-E2-2, CFAP640384A0-E2-2, CFAF240400A0-E1-2, CFAL9664BFB1-E1-2, CFAL9664BFB2-E1-2, CFAPN15062, CFAF320240F-035T-TS-A1-2, CFAL12864D-0154M-W-E1-2, CFAL12856A0-0151-B-E1-2, CFAF320240F-035T-A1-2, CFAF480128A0-039TN-A1-2, CFAG12864T3-NFH-E1-2, CFAG12864T3-TFH-E1-2, CFAG12864U3-NFH-E1-2, CFAG12864U3-TFH-E1-2, CFAL12864D1-0154MY-E1-2, CFAP400300B1-E2-2, CFAP122250A2-E2-2, CFAL32128A0-0171WC-E1-2, CFAL64128B0-0096WC-E1-2, CFAF1024600B0-070SC-A1-2, CFAG12864Q1-TFH-E1-2, CFAG12864Q1-TMI-E1-2, CFAF240240A3-013TN-E1-2, CFA240320E0-024SC-KIT, CFA240320E0-024SN-KIT, CFAL12832C0-091BW-E1-2, CFAL12832C0-091BY-E1-2, CFAL4864A-071BW-E1-2, CFAL6448A-066BW-E1-2, CFA480128E0-039TC-KIT, CFA240400E1-030TC-KIT, CFA240400E1-030TN-KIT, CFAG240128U0-TFH-E1-2, CFAG240128U0-NFH-E1-2, CFAP200200A5-E2-2
Date Issued: May 15, 2023
Summary: New Seeeduino Version 4.3 Now Shipping
Description: We are now releasing products as stated in PCN11190.
https://www.crystalfontz.com/news/pcn.php?id=11190

Part Change Notice #11190: Part Change - Seeeduino 4.2 ->4.3

Products Affected: CFAG4265A0-TFK-E1-2, CFAF240320X0-020T-E1-2, CFAP128296C0-E2-2, CFAP152152C0-E2-2, CFAP600448A0-E2-2, CFAP640384A0-E2-2, CFAF240400A0-E1-2, CFAL9664BFB1-E1-2, CFAL9664BFB2-E1-2, CFAPN15062, CFAF320240F-035T-TS-A1-2, CFAL12864D-0154M-W-E1-2, CFAL12856A0-0151-B-E1-2, CFAF320240F-035T-A1-2, CFAF480128A0-039TN-A1-2, CFAG12864T3-NFH-E1-2, CFAG12864T3-TFH-E1-2, CFAG12864U3-NFH-E1-2, CFAG12864U3-TFH-E1-2, CFAL12864D1-0154MY-E1-2, CFAP400300B1-E2-2, CFAP122250A2-E2-2, CFAL32128A0-0171WC-E1-2, CFAL64128B0-0096WC-E1-2, CFAF1024600B0-070SC-A1-2, CFAG12864Q1-TFH-E1-2, CFAG12864Q1-TMI-E1-2, CFAF240240A3-013TN-E1-2, CFA240320E0-024SC-KIT, CFA240320E0-024SN-KIT, CFAL12832C0-091BW-E1-2, CFAL12832C0-091BY-E1-2, CFAL4864A-071BW-E1-2, CFAL6448A-066BW-E1-2, CFA480128E0-039TC-KIT, CFA240400E1-030TC-KIT, CFA240400E1-030TN-KIT, CFAG240128U0-TFH-E1-2, CFAG240128U0-NFH-E1-2, CFAP200200A5-E2-2
Date Issued: April 13, 2023
Summary: Part Change - Seeeduino 4.2 ->4.3
Last revision: 4.2
Description: Seeed Studios has updated the Seeeduino from v4.2 to v4.3. This change switches from the ATMEGA328P-MU to the ATMEGA328P-AU, and replaces the serial chip. This causes the Seeeduino to identify differently when connected to a computer.
Reason: Supplier has changed their offering
Impact: Kits using the Seeeduino will no longer be named "USB Serial Device"
Availability: Immediate

Product Update #11166: 240x128 Low-Power LCD Development Kit is now available.

New Product: CFAG240128U0-NFH-E1-2
Date Issued: January 9, 2023
Summary: 240x128 Low-Power LCD Development Kit is now available.
Description: CFAG240128U0-NFH-E1-2 has been released on our website (https://www.crystalfontz.com/product/cfag240128u0nfhe12-240x128-low-power-development-kit) and is now available for sale. Orders can be placed directly from our website or by submitting a purchase order to sales@crystalfontz.com. contact support@crystalfontz.com for any technical questions.
For reference only. For design purposes, please use the specifications in the datasheet.
