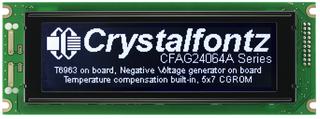

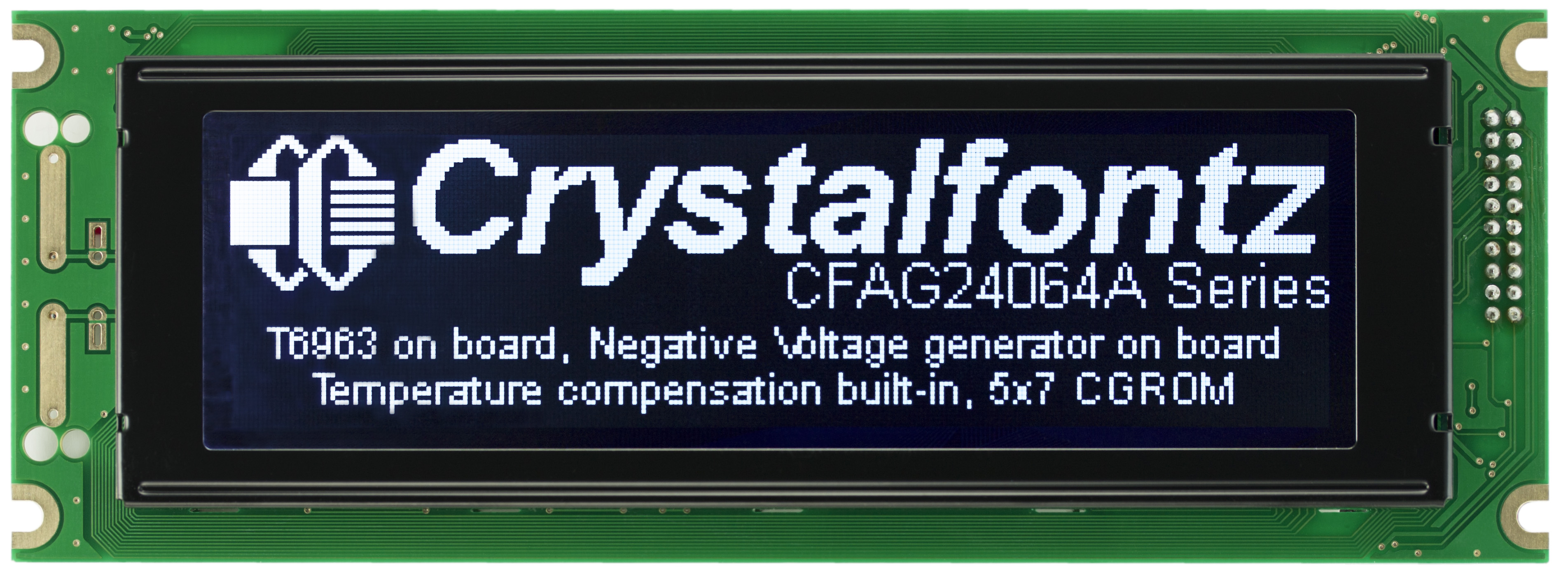

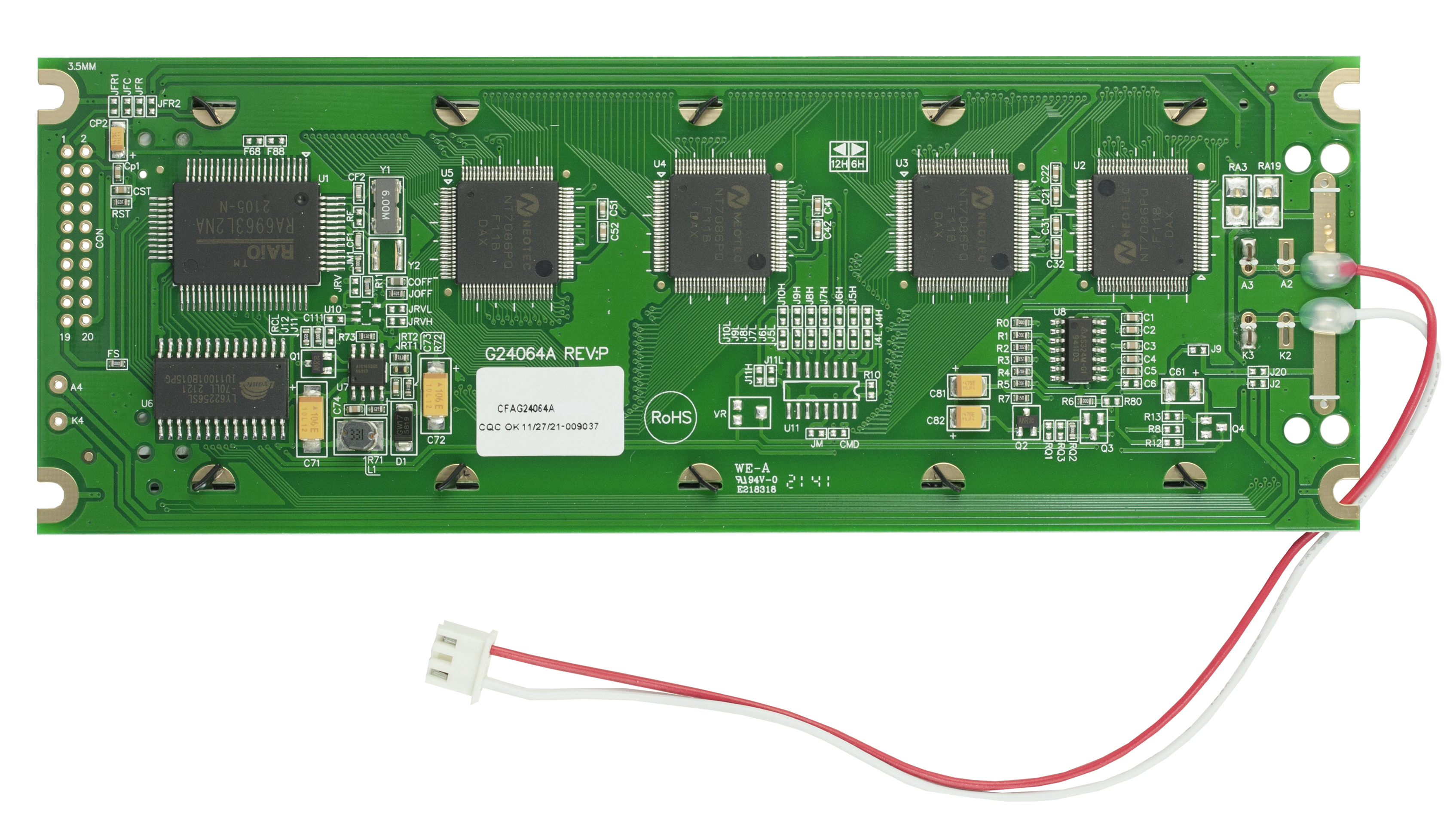

White on Black 240x64 Graphic LCD

Part Number: CFAG24064A-TTI-TZ

White on black 240x64 graphic LCD with negative voltage generator and temperature compensation.

  • Resolution: 240x64 pixels
  • Optics: 6:00 viewing direction
  • Backlight: White LED
  • Glass: STN Negative, Transmissive
  • Controller: RAiO Technology RA6963 (Toshiba T6963C Compatible) Controller
  • Operating Temp: -20°C to +70°C
  • Compliance: REACH & RoHS Compliant
Qty:
Quantity Price
1 $77.44
5 $71.32
10 $62.96
20 $60.84
50 $58.71
100 * $57.86
200 * $57.43
300 * $54.49
500 * $54.07
1000 * $51.19
* Pricing is subject to change. Contact us about potential lead times.
Components worth considering
4694 LCD Starter Kit with Potentiometer
Everything you need to connect $12.59 ea.
4716 72 Pin Header
Add (5) 72-pin headers? $0.66 ea.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAG24064A-TTI-TZ or RSS RSS feed for changes to CFAG24064A-TTI-TZ for CFAG24064A-TTI-TZ

TECHNICAL SPECS

Physical Characteristics

Column Dots x Row Dots 240 x 64

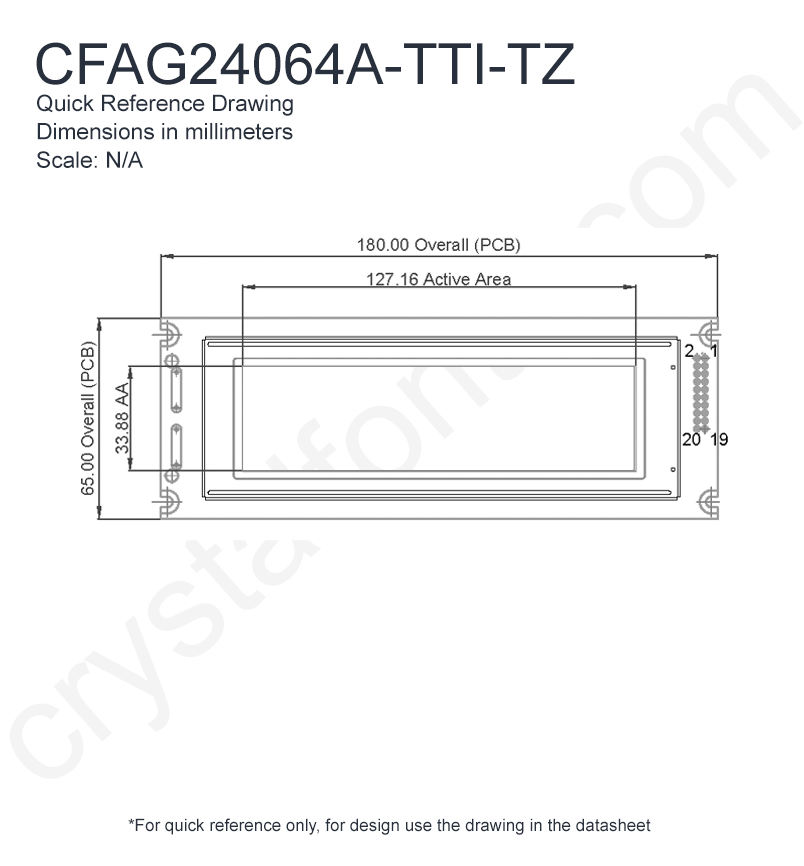

Module Overall width height depth
