Sunlight Readable 320x240 Graphic LCD

Part Number: CFAG320240CX-TFH-T


Quantity Price
1 $99.92
10 $86.89
20 $85.60
50 $84.32
100 $82.38
200 $81.10
500 * $77.64
1000 * $72.78
* Contact us about potential lead times.

Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

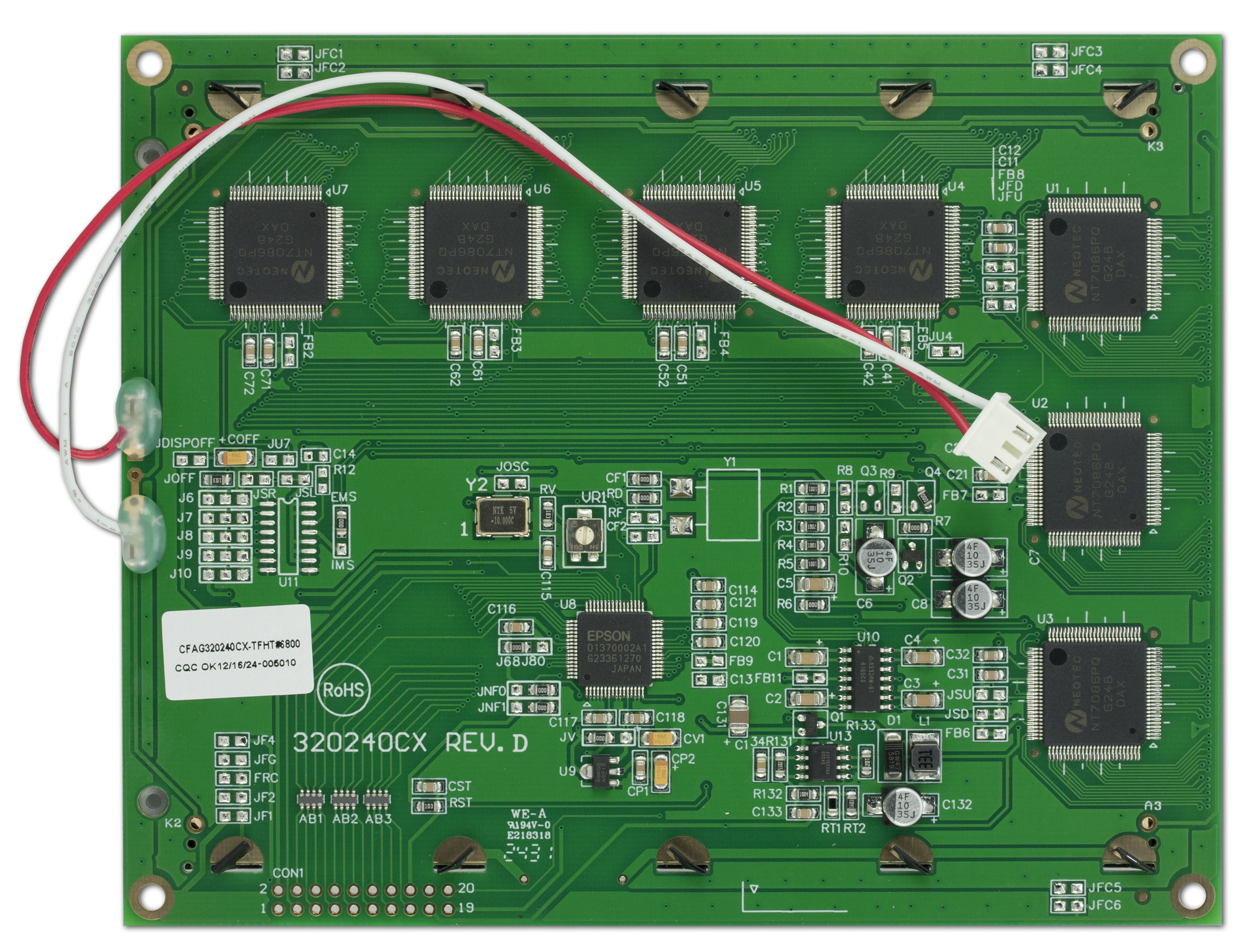

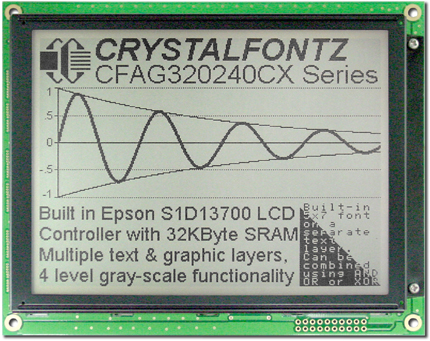

Sunlight readable 320x240 graphic LCD with negative voltage generator and temperature compensation.

  • Resolution: 320x240 pixels
  • Optics: 6:00 viewing direction

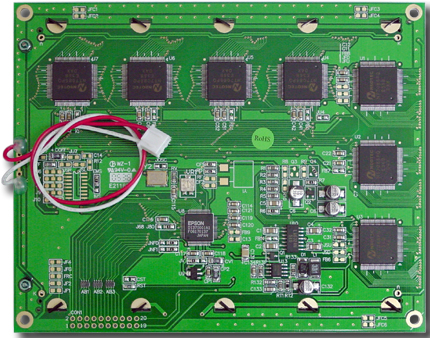

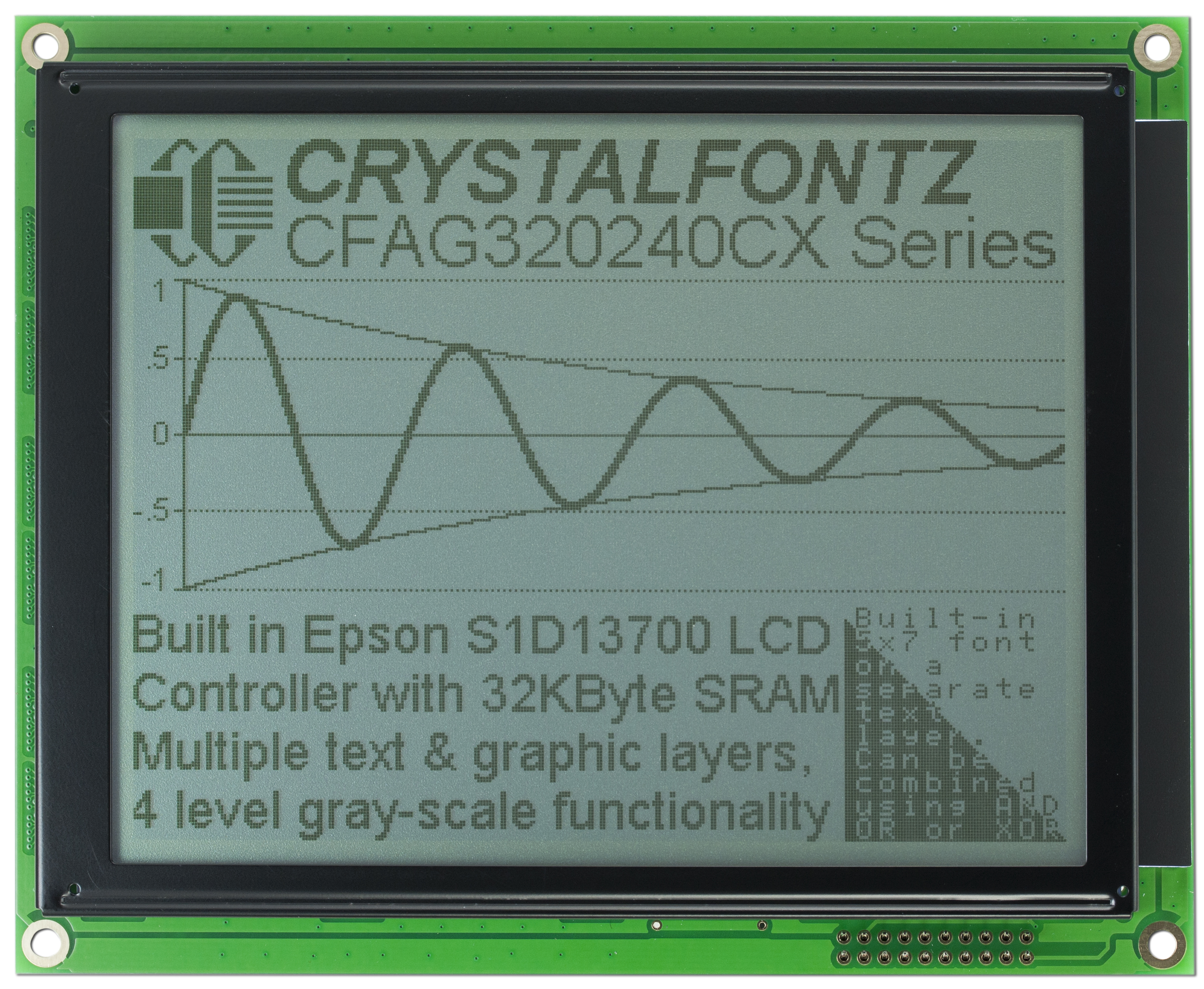

  • Backlight: White Edge LED

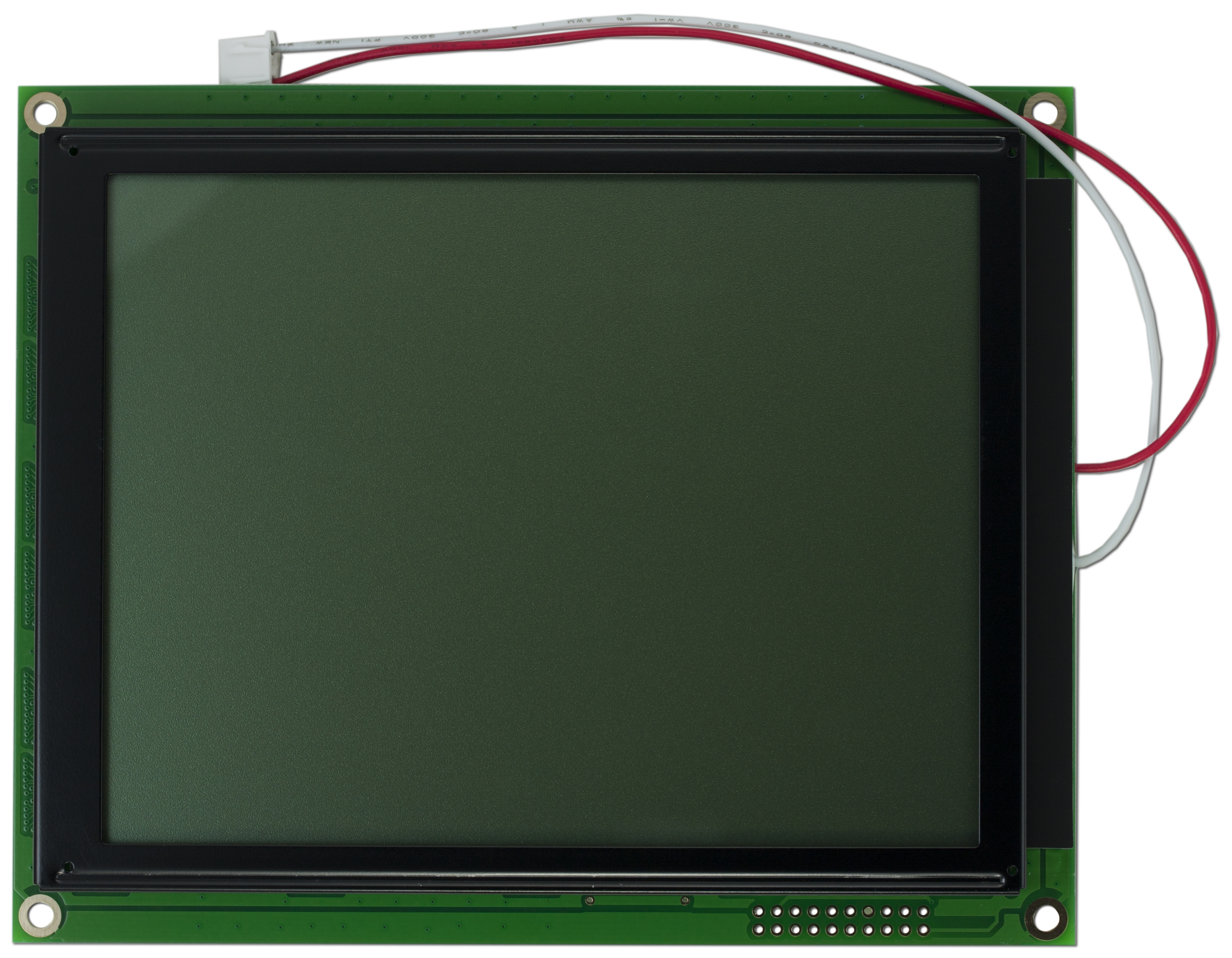

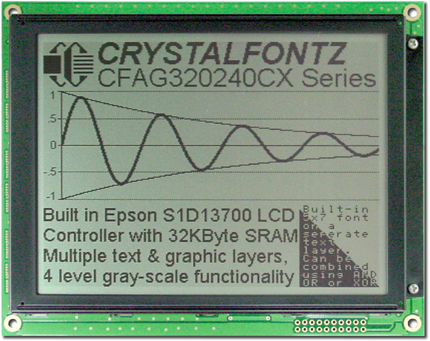

  • Glass: STN Positive, Transflective
  • Controller: Epson S1D13700
  • Operating Temp: -20°C to +70°C
  • Compliance: REACH & RoHS Compliant

An Arduino library can be found here: CFAG320240CX Arduino Library.


For reference only. For design purposes, please use the specifications in the datasheet.

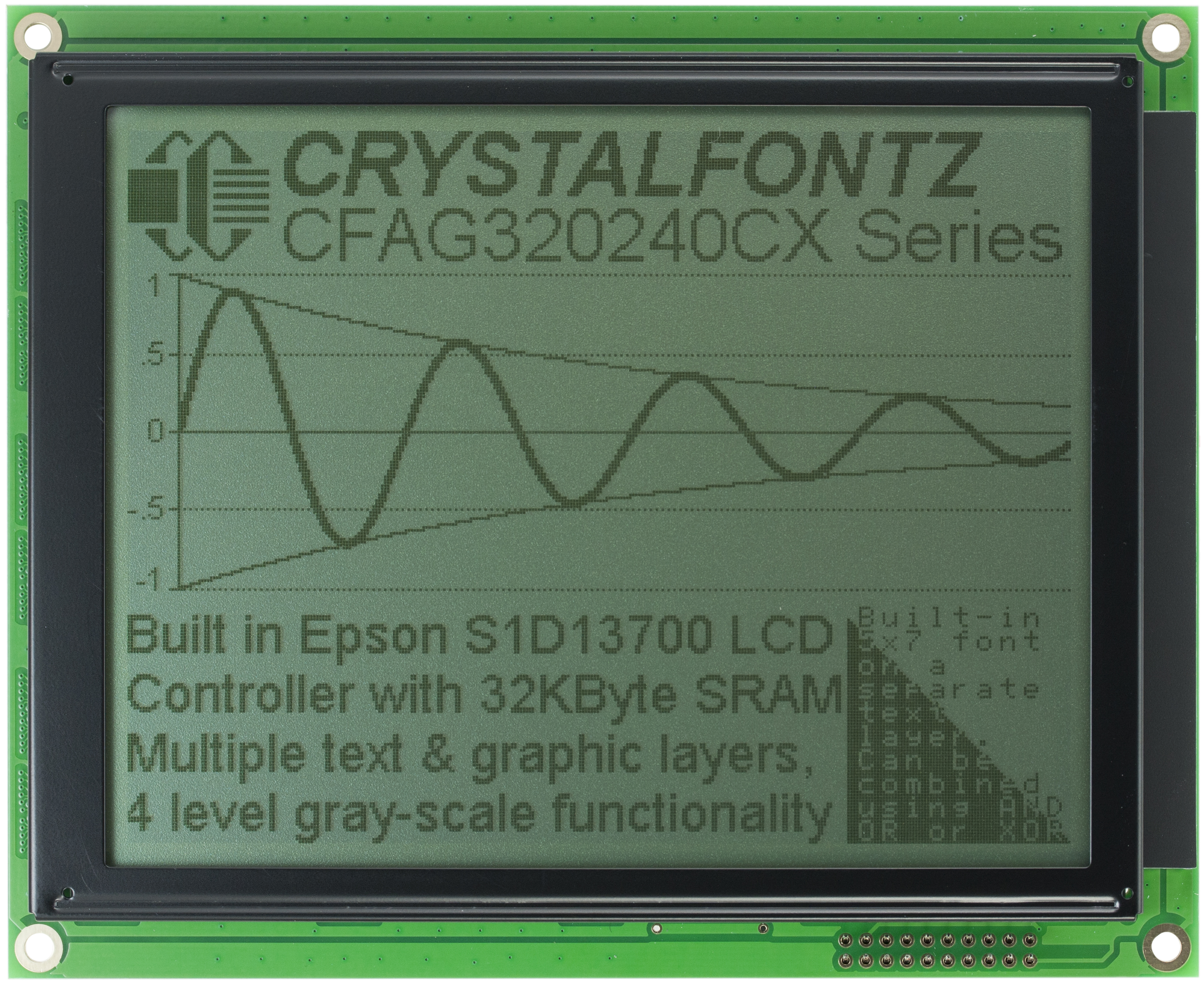

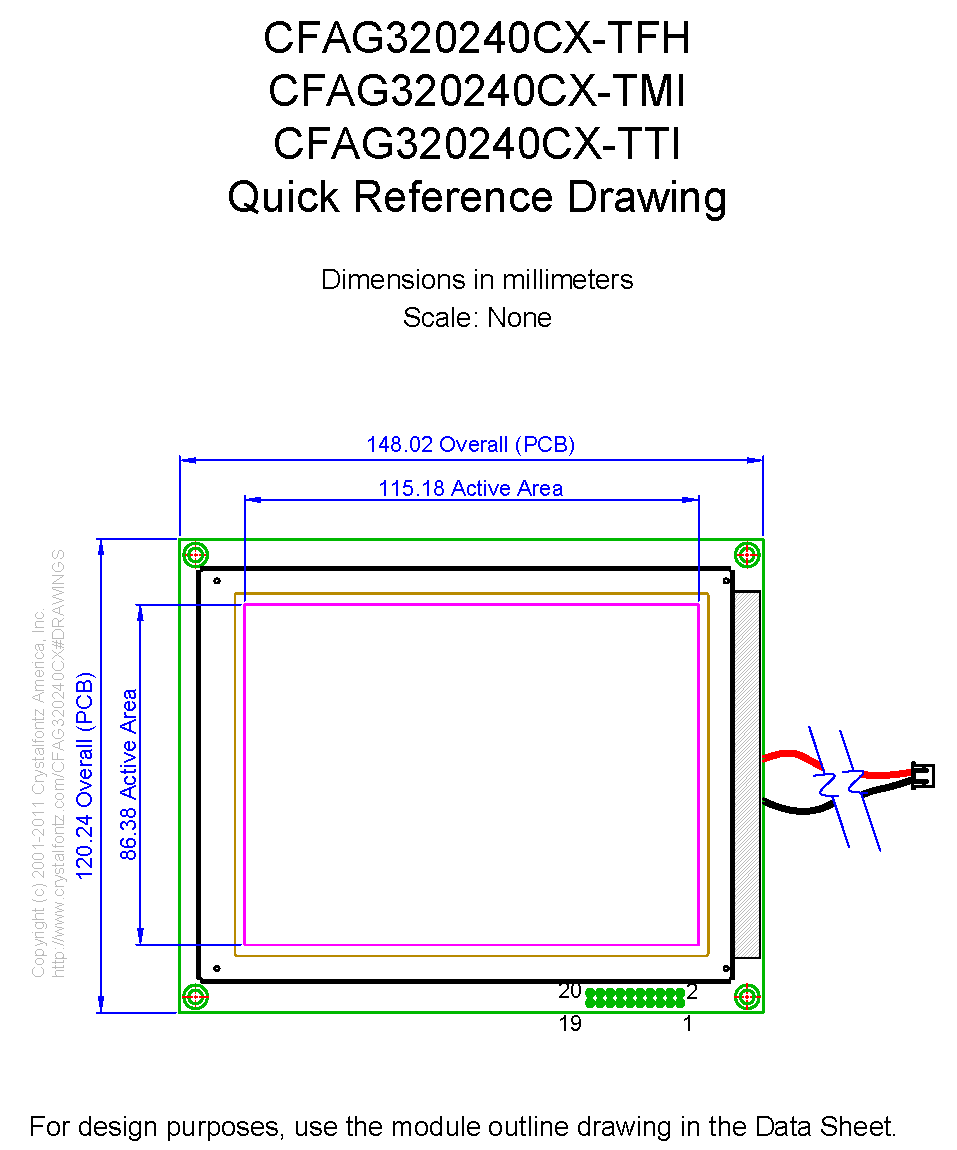

Physical Characteristics

Column Dots x Row Dots 320 x 240
Module Overall width height depth
millimeters 148.02 120.24 15.6
inches 5.828 4.734 0.614
PCB Outline width height depth
millimeters 148.02 120.24 15.6
inches 5.828 4.734 0.614
Viewing Area width height
millimeters 120.14 92.14
inches 4.730 3.628
Active Area width height
millimeters 115.18 86.38
inches 4.535 3.401
Dot Size width height
millimeters 0.34 0.34
inches 0.013 0.013
Dot Pitch width height
millimeters 0.36 0.36
inches 0.014 0.014
Weight 229g

Optical Characteristics

Glass Type/Glass Color FSTN/Light Gray
Polarizer Transflective
View Direction 6 o'clock
Sunlight Readable Yes
Backlight Color White
Backlight Type LED
Mode Positive
Foreground Color Dark
Background Color White

Electrical Specifications

Supply Voltage for Logic Minimum 4.5V
Supply Voltage for Logic Maximum 5.5V
Supply Voltage for Logic Typical 5V
Supply Current Minimum 65mA
Supply Current Maximum 85mA
Supply Current Typical 75mA
Module Connector Pitch 0.1mm

Backlight Electrical Specifications

Forward Voltage Minimum 3.4V
Forward Voltage Maximum 3.6V
Forward Voltage Typical 3.5V
Forward Current Minimum 40mA
Forward Current Maximum 160mA
Forward Current Typical 128mA


Operating Temperatures min max
Celsius -20° 70°
Fahrenheit -4° 158°
Storage Temperatures min max
Celsius -30° 80°
Fahrenheit -22° 176°
Humidity min max
Non-condensing 0% 90%


Controller Epson S1D13700
Interface 8-bit Parallel

*Suggest a Correction

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAG320240CX-TFH-T or RSS RSS feed for changes to CFAG320240CX-TFH-T

Part Change Notice #10897: Sunplus Controller Change

Products Affected: CFAG320240CX-TFH-T, CFAG320240CX-TMI-T, CFAG320240CX-YYH-T
Date Issued: November 14, 2017
Summary: Sunplus Controller Change
Description: The Sunplus controller used in the parts listed has been discontinued by the manufacturer. It is being replaced by a compatible controller.

The new controller requires a revision to the PCB. The revised PCB with the new controller will be an exact replacement for the current parts using the Sunplus controller.
Reason: The Sunplus controller is no longer available.
Impact: The current part numbers will not change. The PCBs will be marked with a new board revision letter.
Recommendation: No changes are required.
Availability: The revised parts will be available as current stocks of the Sunplus controller are depleted.
Price Change: To be determined.
Response: None required.
For reference only. For design purposes, please use the specifications in the datasheet.
