This product is discontinued and has been replaced by CFAH0802A-TMI-JT

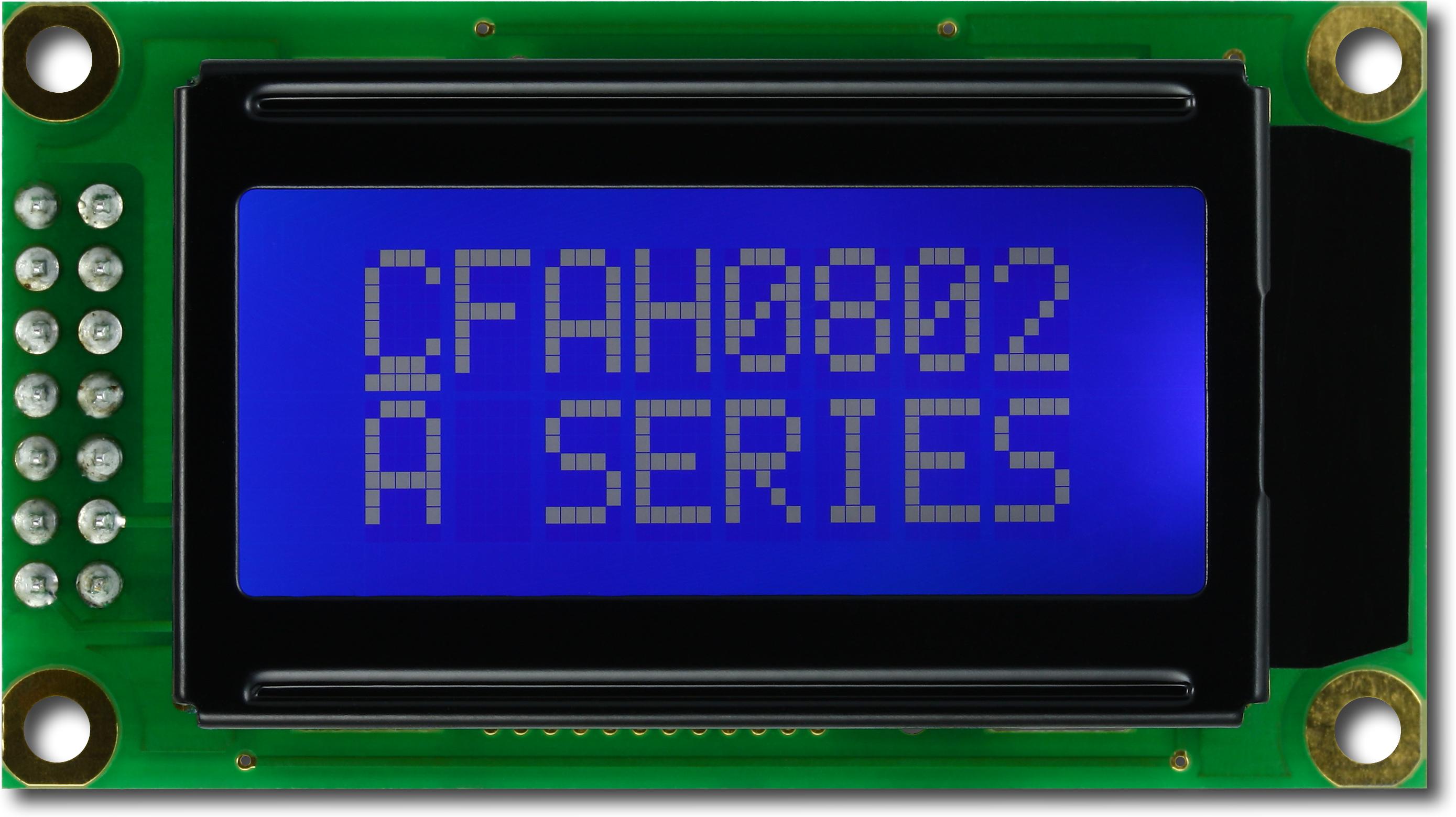

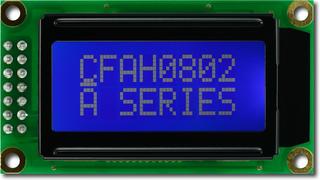

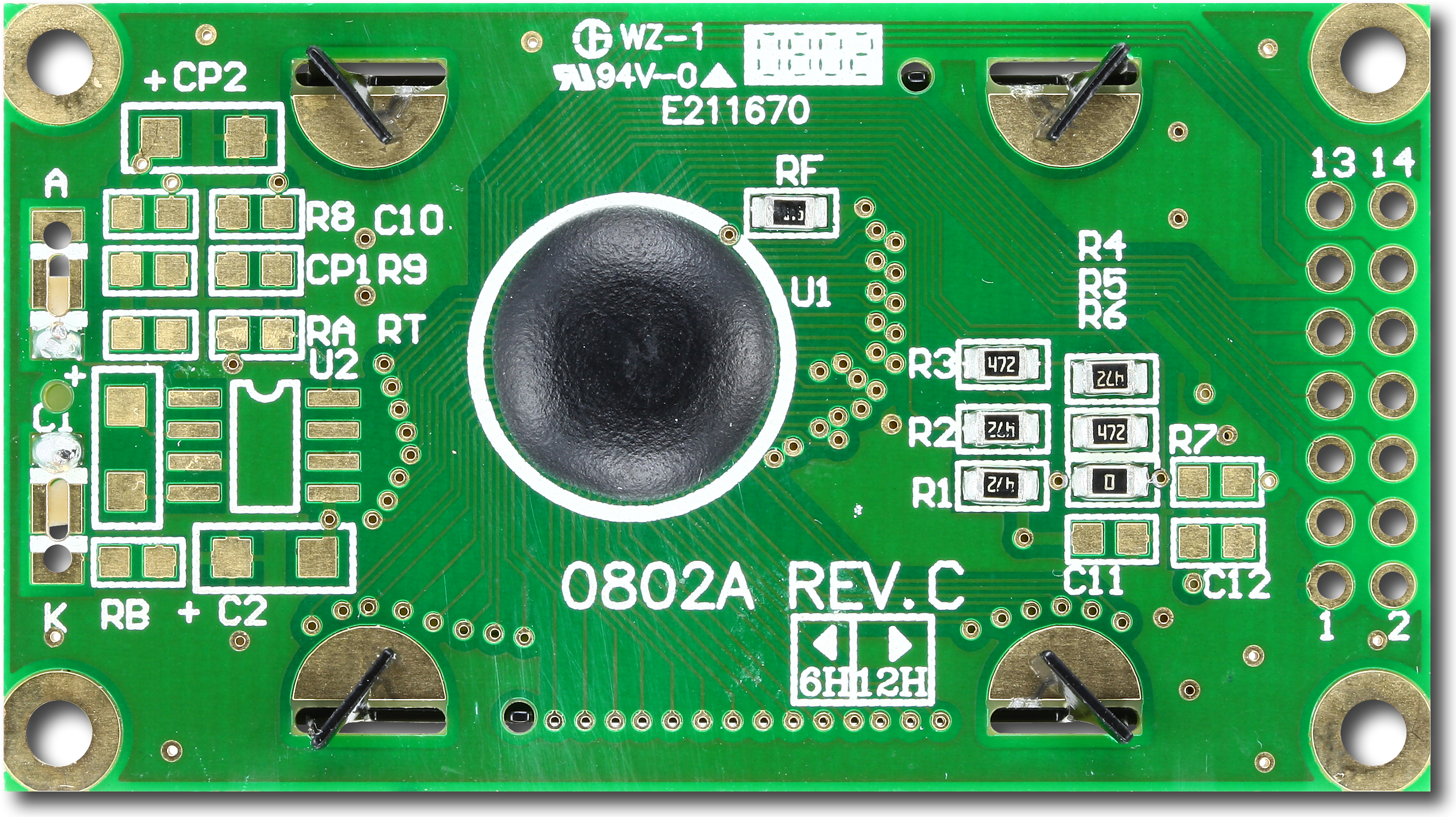

8x2 Parallel Character LCD

Part Number: CFAH0802A-TMI-JP

Datasheets

CFAH0802ATMIJP v2.0.pdf
(Jul 2008, Datasheet 2.0, Hardware A)
CFAH0802ATMIJP.pdf
(Mar 2008, Datasheet 1.0, Hardware A)


Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAH0802A-TMI-JP or RSS RSS feed for changes to CFAH0802A-TMI-JP for CFAH0802A-TMI-JP


Description

Parallel Character LCD 8x2, RoHS Compliant, White Edge LED Backlight, STN Negative, Blue, Transmissive -20°C to +70°C 6:00

  • Available in several variations of backlight and polarizer (minimum order may be required)
  • 8-bit or 4-bit parallel interface
  • Industry-standard HD44780 compatible controller

TECHNICAL SPECS

For reference only. For design purposes, please use the specifications in the datasheet.

Physical Characteristics

Characters x Lines 8 x 2
Module Overall width height depth
millimeters 58 32 13.5
inches 2.283 1.260 0.531
PCB Outline width height depth
millimeters 58 32 13.5
inches 2.283 1.260 0.531
Viewing Area width height
millimeters 38 16
inches 1.496 0.630
Active Area width height
millimeters 27.81 11.5
inches 1.095 0.453
Character Size width height
millimeters 2.96 5.56
inches 0.117 0.219
Character Pitch width height
millimeters 3.55 5.94
inches 0.140 0.234
Dot Size width height
millimeters 0.56 0.66
inches 0.022 0.026
Dot Pitch width height
millimeters 0.6 0.7
inches 0.024 0.028
Weight 21g

Optical Characteristics

Glass Type/Glass Color STN/Blue
Polarizer Transmissive
View Direction 6 o'clock
Backlight Color White
Backlight Type LED
Mode Negative
Foreground Color White
Background Color Blue

Environmental

Operating Temperatures min max
Celsius -20° 70°
Fahrenheit -4° 158°
Storage Temperatures min max
Celsius -30° 80°
Fahrenheit -22° 176°
Humidity min max
Non-condensing 0% 90%

Electronics

Controller Sunplus SPLC780D
Interface 4-bit Parallel, 8-bit Parallel

*Suggest a Correction
For reference only. For design purposes, please use the specifications in the datasheet.
