White on Blue 8x2 Character LCD

Part Number: CFAH0802A-TMI-JT

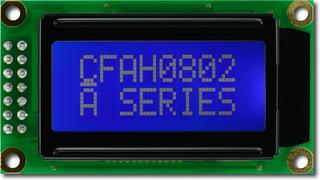

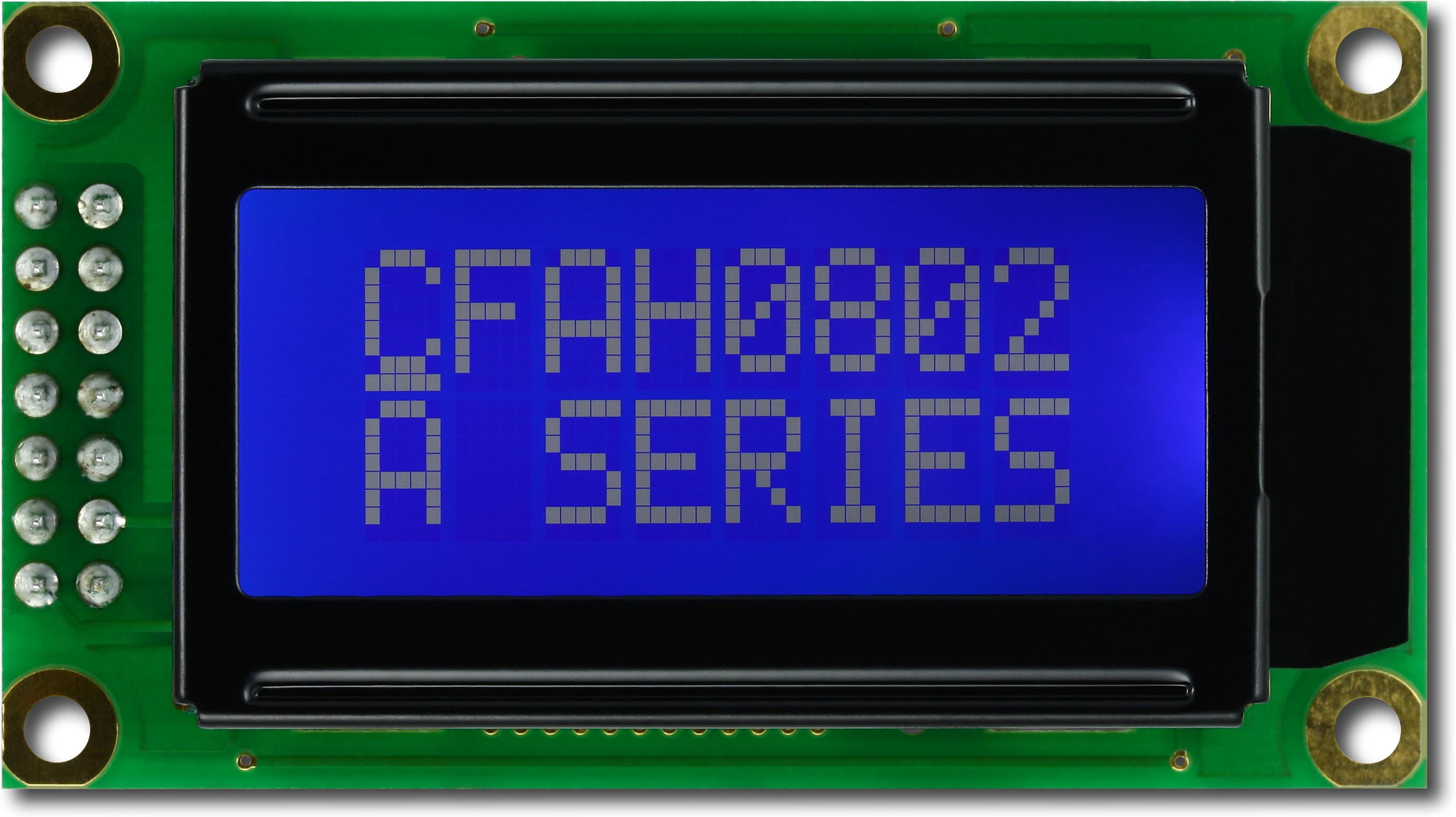

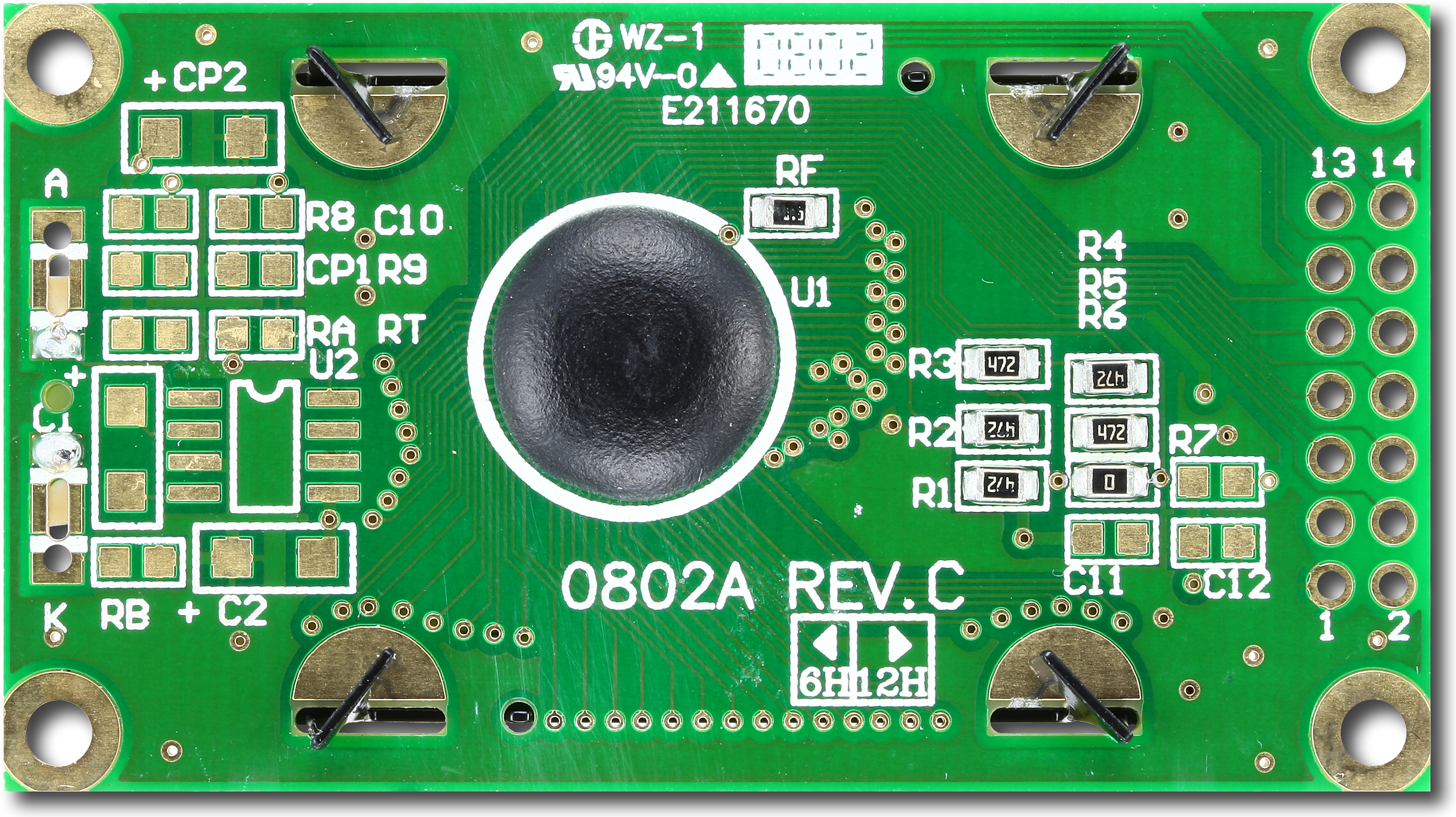

White on blue 8x2 character LCD.

• Characters / Columns: 8x2
• Optics: 6:00 viewing direction
• Backlight: White LED
• Glass: STN Negative, Transmissive
• Controller: Sitronix ST7066U (HD44780 compatible)
• Operating Temp: -20°C to +70°C
• Interfaces: 4 & 8 bit parallel
• Compliance: REACH & RoHS Compliant

• square_foot Physical Characteristics

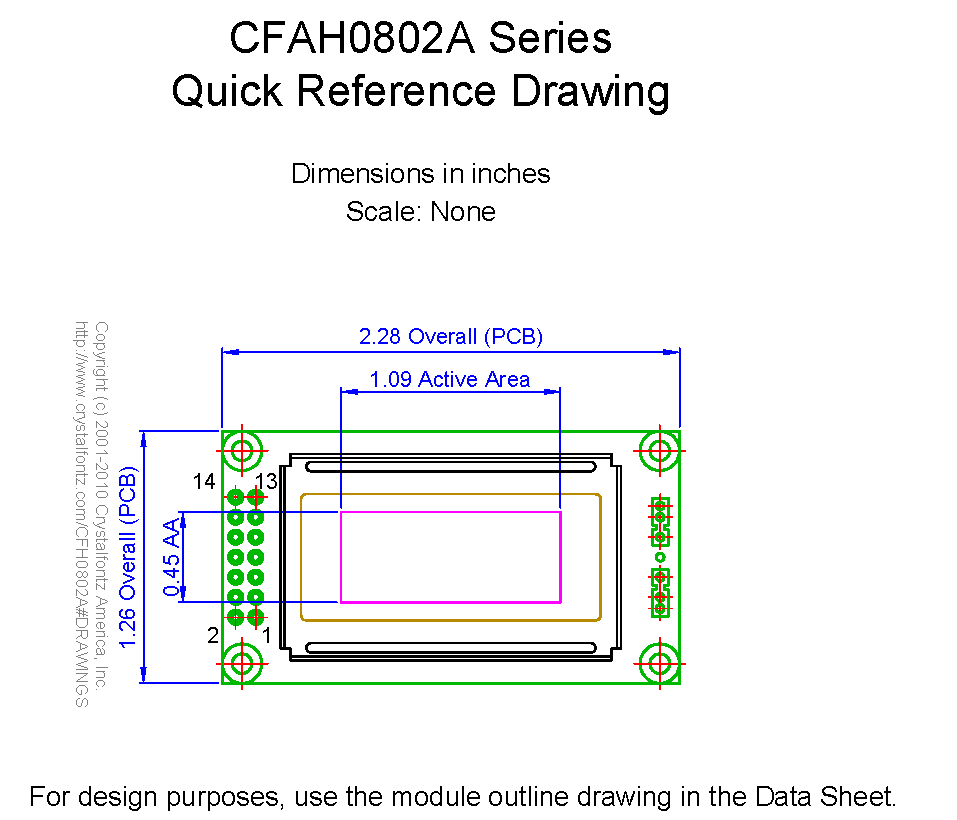

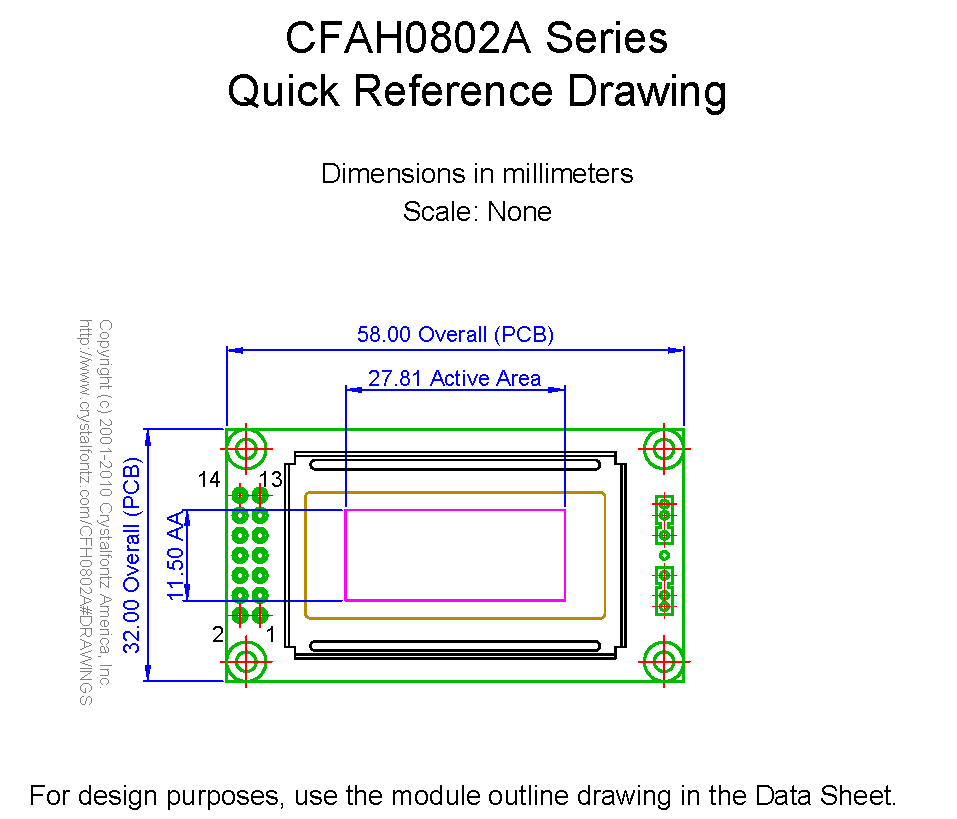

  Physical Characteristics

  Characters x Lines

  8 x 2

  Module Overall	width	height	depth
  millimeters	58	32	13.2
  inches	2.28	1.26	0.52

  PCB Outline	width	height	depth
  millimeters	58	32	13.2
  inches	2.28	1.26	0.52

  Diagonal Dimension

  1.18"

  Viewing Area	Width	Height
  millimeters	38	16
  inches	1.50	0.63

  Active Area	Width	Height
  millimeters	27.81	11.5
  inches	1.10	0.45

  Character Size	Width	Height
  millimeters	2.96	5.56
  inches	0.117	0.219

  Character Pitch	Width	Height
  millimeters	3.55	5.94
  inches	0.140	0.234

  Dot Size	Width	Height
  millimeters	0.56	0.66
  inches	0.022	0.026

  Dot Pitch	Width	Height
  millimeters	0.6	0.7
  inches	0.024	0.028

  Weight	21g
  Pin Count	14

• visibility Optical Characteristics

  Optical Characteristics

  Glass Type/Glass Color	STN/Blue
  Polarizer	Transmissive
  View Direction	6 o'clock

  Backlight Color	White
  Backlight Type	LED
  Mode	Negative
  Foreground Color	White
  Background Color	Blue

• electric_bolt Electrical Specification

  Electrical Specifications

  Module Connector Pitch

  0.1mm

• nature Environmental

  Environmental

  Operating Temperatures	min	max
  Celsius	-20°	70°
  Fahrenheit	-4°	158°

  Storage Temperatures	min	max
  Celsius	-30°	80°
  Fahrenheit	-22°	176°

  Humidity	min	max
  Non-condensing	0%	90%

• cable Electronics

  Electronics

  Controller Documents	Sitronix ST7066U Dot Matrix LCD Controller/Driver
  Interface	4-bit Parallel, 8-bit Parallel

• picture_as_pdf Datasheets
  picture_as_pdf

  CFAH0802ATMIJT Datasheet




• download Files and Downloads
  folder_zip Hardware Design - 3D Model


  folder_zip CAD Export - CFAH0802A 2D CAD


  picture_as_pdf 1 to 1 Template - CFAH0802A


  link Demo Code Repository on Github

• assured_workload Compliance Documents
  picture_as_pdf Declaration of Conformity RoHS2

  picture_as_pdf Declaration of Conformity REACH
