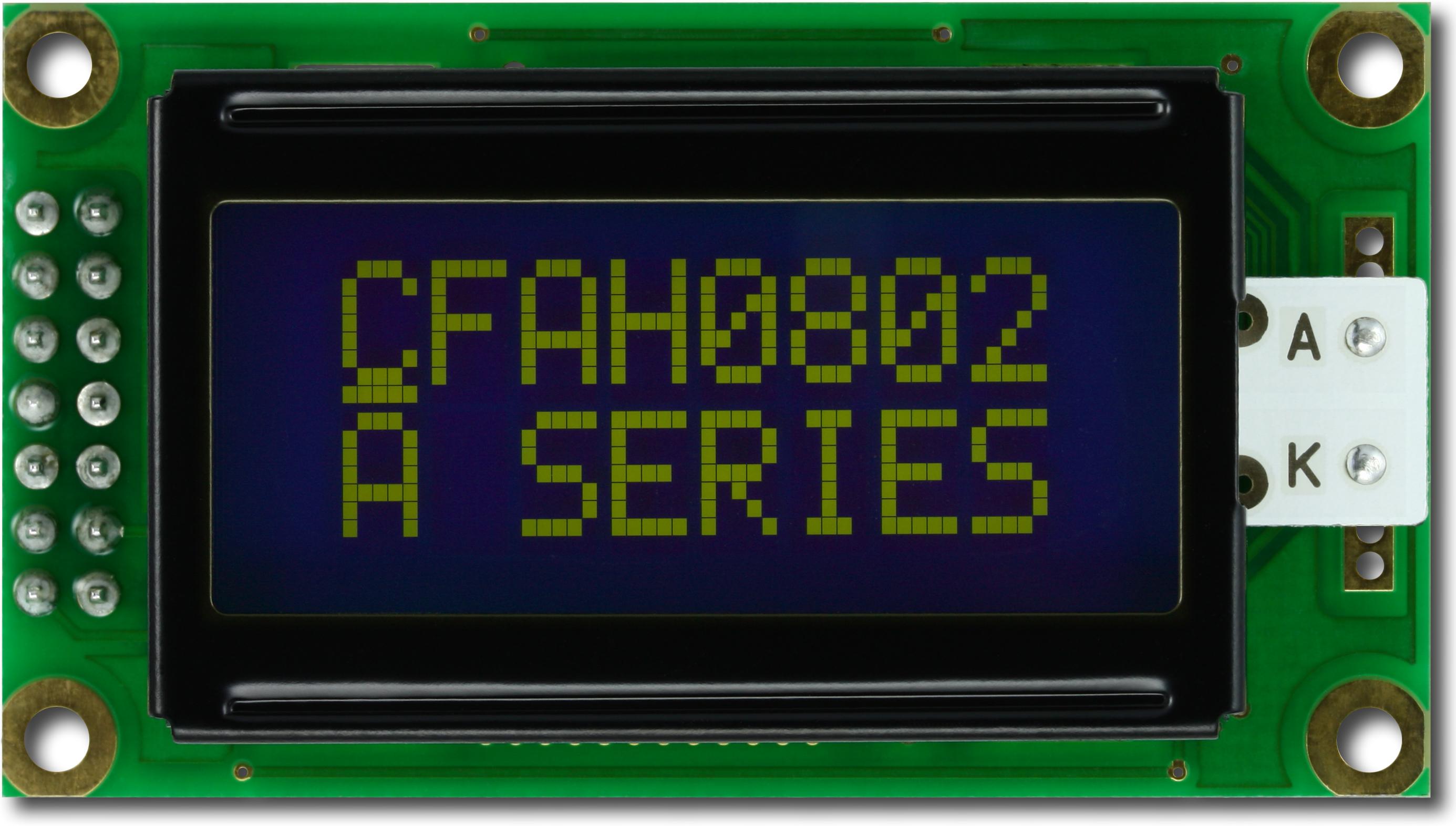

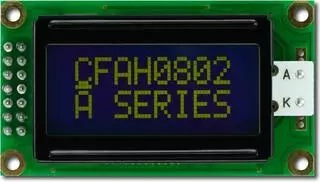

Yellow-green 8x2 Character LCDPart Number: CFAH0802A-YMI-JTYellow-green on dark 8x2 character LCD.
Characters / Columns: 8x2
Optics: 6:00 viewing direction
Backlight: Yellow-green LED
Glass: STN Negative, Transmissive
Controller: Sitronix ST7066U (HD44780 compatible)
Operating Temp: -20°C to +70°C
Interfaces: 4 & 8 bit parallel
Compliance: REACH & RoHS Compliant
Product VariationsColorsDark on Yellow-Green
Yellow-Green LED BacklightYellow-Green on Dark
Yellow-Green LED BacklightWhite on Dark
White LED BacklightWhite on Blue
White LED BacklightDark on Yellow-Green
No BacklightDark on Green
Green LED Backlight

 square_foot Physical Characteristics
Physical Characteristics

        Characters x Lines
            8 x 2


    Module Overall        width
        height
        depth


        millimeters
        58
        32
        13.2


        inches
        2.28
        1.26
        0.52



    PCB Outline        width
        height
        depth


        millimeters
        58
        32
        13.2


        inches
        2.28
        1.26
        0.52



        Diagonal Dimension
            1.18"


    Viewing Area        Width
        Height


        millimeters
        38
        16


        inches
        1.50
        0.63



    Active Area        Width
        Height


        millimeters
        27.81
        11.5


        inches
        1.10
        0.45



    Character Size        Width
        Height


        millimeters
        2.96
        5.56


        inches
        0.117
        0.219



    Character Pitch        Width
        Height


        millimeters
        3.55
        5.94


        inches
        0.140
        0.234



    Dot Size        Width
        Height


        millimeters
        0.56
        0.66


        inches
        0.022
        0.026



    Dot Pitch        Width
        Height


        millimeters
        0.6
        0.7


        inches
        0.024
        0.028



        Weight
            21g
Pin Count
            14

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Blue
Polarizer
            Transmissive
View Direction
            6 o'clock


        Backlight Color
            Yellow-Green
Backlight Type
            LED
Mode
            Negative
Foreground Color
            Yellow-Green
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7066U
Dot Matrix LCD Controller/Driver
Interface
            4-bit Parallel, 8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAH0802AYMIJT Datasheet

 download Files and Downloads
folder_zip Hardware Design - 3D Model
folder_zip CAD Export - CFAH0802A 2D CAD
picture_as_pdf 1 to 1 Template - CFAH0802A
link Demo Code Repository on Github
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH











Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:


Price: $6.47



            Quantity
            Unit Price


            1
            $6.47

            10
            $5.62

            20
            $5.42

            50 *
            $5.23

            100 *
            $5.14

            200 *
            $5.07

            500 *
            $4.51

            1000 *
            $4.06

25 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.



Colors	Dark on Yellow-Green Yellow-Green LED Backlight Yellow-Green on Dark Yellow-Green LED Backlight White on Dark White LED Backlight White on Blue White LED Backlight Dark on Yellow-Green No Backlight Dark on Green Green LED Backlight

Module Overall	width	height	depth
millimeters	58	32	13.2
inches	2.28	1.26	0.52

PCB Outline	width	height	depth
millimeters	58	32	13.2
inches	2.28	1.26	0.52

Viewing Area	Width	Height
millimeters	38	16
inches	1.50	0.63

Active Area	Width	Height
millimeters	27.81	11.5
inches	1.10	0.45

Character Size	Width	Height
millimeters	2.96	5.56
inches	0.117	0.219

Character Pitch	Width	Height
millimeters	3.55	5.94
inches	0.140	0.234

Dot Size	Width	Height
millimeters	0.56	0.66
inches	0.022	0.026

Dot Pitch	Width	Height
millimeters	0.6	0.7
inches	0.024	0.028

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Quantity	Unit Price
1	$6.47
10	$5.62
20	$5.42
50 *	$5.23
100 *	$5.14
200 *	$5.07
500 *	$4.51
1000 *	$4.06
