This product is discontinued and has been replaced by CFAH0802A-YMI-JT

[EOL] Red 8x2 Parallel Character LCD

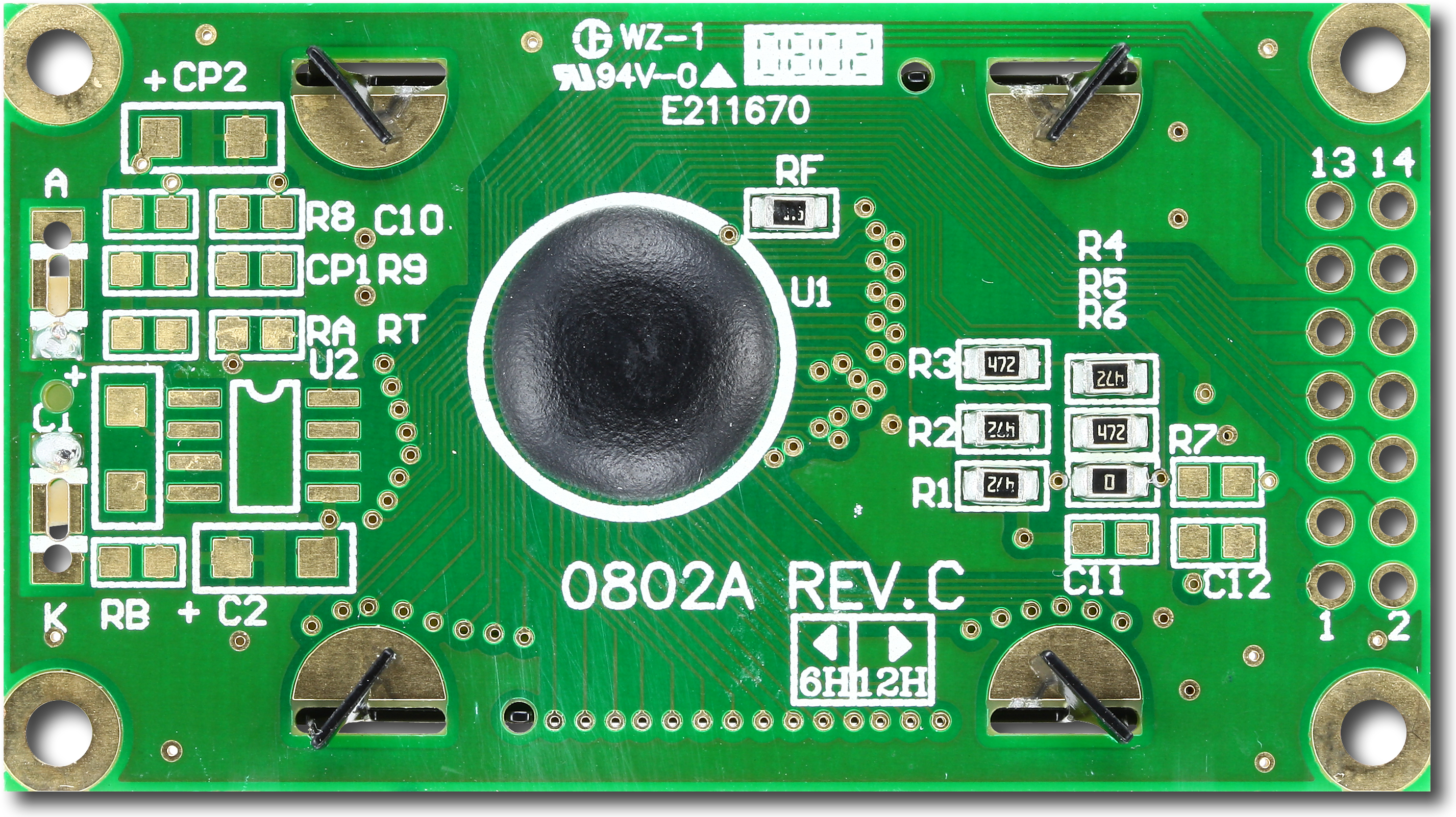

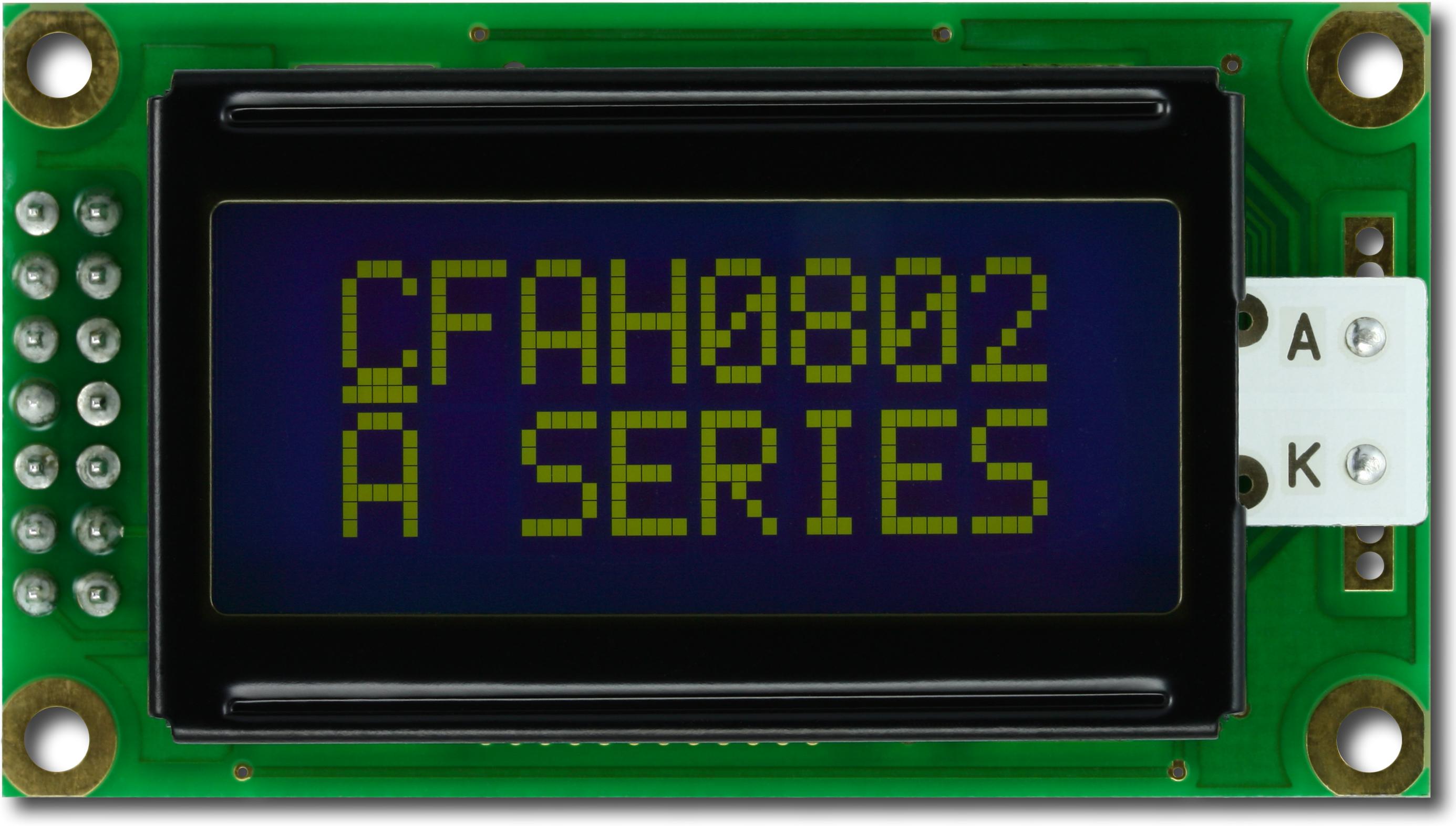

Part Number: CFAH0802A-YMI-JP

Parallel Character LCD 8x2, RoHS Compliant, Yellow/Green LED Backlight, STN Negative, Blue, Transmissive -20°C to +70°C 6:00

  • Available in several variations of backlight and polarizer (minimum order may be required)
  • 8-bit or 4-bit parallel interface
  • Industry-standard HD44780 compatible controller
  • square_foot Physical Characteristics

    Physical Characteristics

    Characters x Lines 8 x 2
    Module Overall width height depth
    millimeters 58 32 13.5
    inches 2.28 1.26 0.53
    PCB Outline width height depth
    millimeters 58 32 13.5
    inches 2.28 1.26 0.53
    Viewing Area Width Height
    millimeters 38 16
    inches 1.50 0.63
    Active Area Width Height
    millimeters 27.81 11.5
    inches 1.10 0.45
    Character Size Width Height
    millimeters 2.96 5.56
    inches 0.117 0.219
    Character Pitch Width Height
    millimeters 3.55 5.94
    inches 0.140 0.234
    Dot Size Width Height
    millimeters 0.56 0.66
    inches 0.022 0.026
    Dot Pitch Width Height
    millimeters 0.6 0.7
    inches 0.024 0.028
    Weight 21g
  • visibility Optical Characteristics

    Optical Characteristics

    Glass Type/Glass Color STN/Blue
    Polarizer Transmissive
    View Direction 6 o'clock
    Backlight Color Yellow-Green
    Backlight Type LED
    Mode Negative
    Foreground Color Yellow
    Background Color Dark
  • nature Environmental

    Environmental

    Operating Temperatures min max
    Celsius -20° 70°
    Fahrenheit -4° 158°
    Storage Temperatures min max
    Celsius -30° 80°
    Fahrenheit -22° 176°
    Humidity min max
    Non-condensing 0% 90%
  • cable Electronics

    Electronics

    Controller Documents Sunplus SPLC780D
    16COM/40SEG Controller/Driver
    Interface 4-bit Parallel, 8-bit Parallel
  • picture_as_pdf Datasheets
    picture_as_pdf
    CFAH0802AYMIJP v2.0.pdf
    (Datasheet V 2.0, Hardware A)
