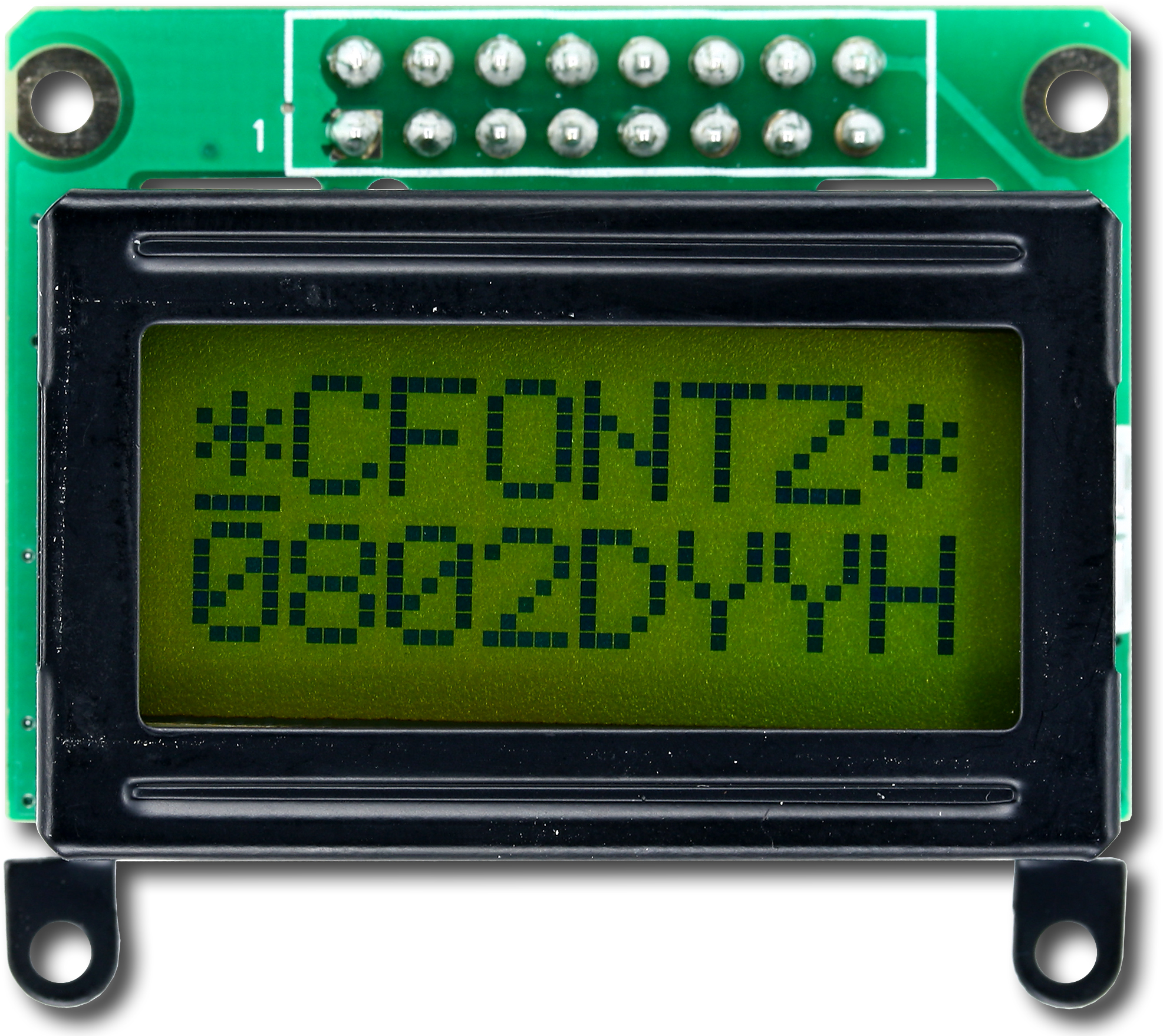

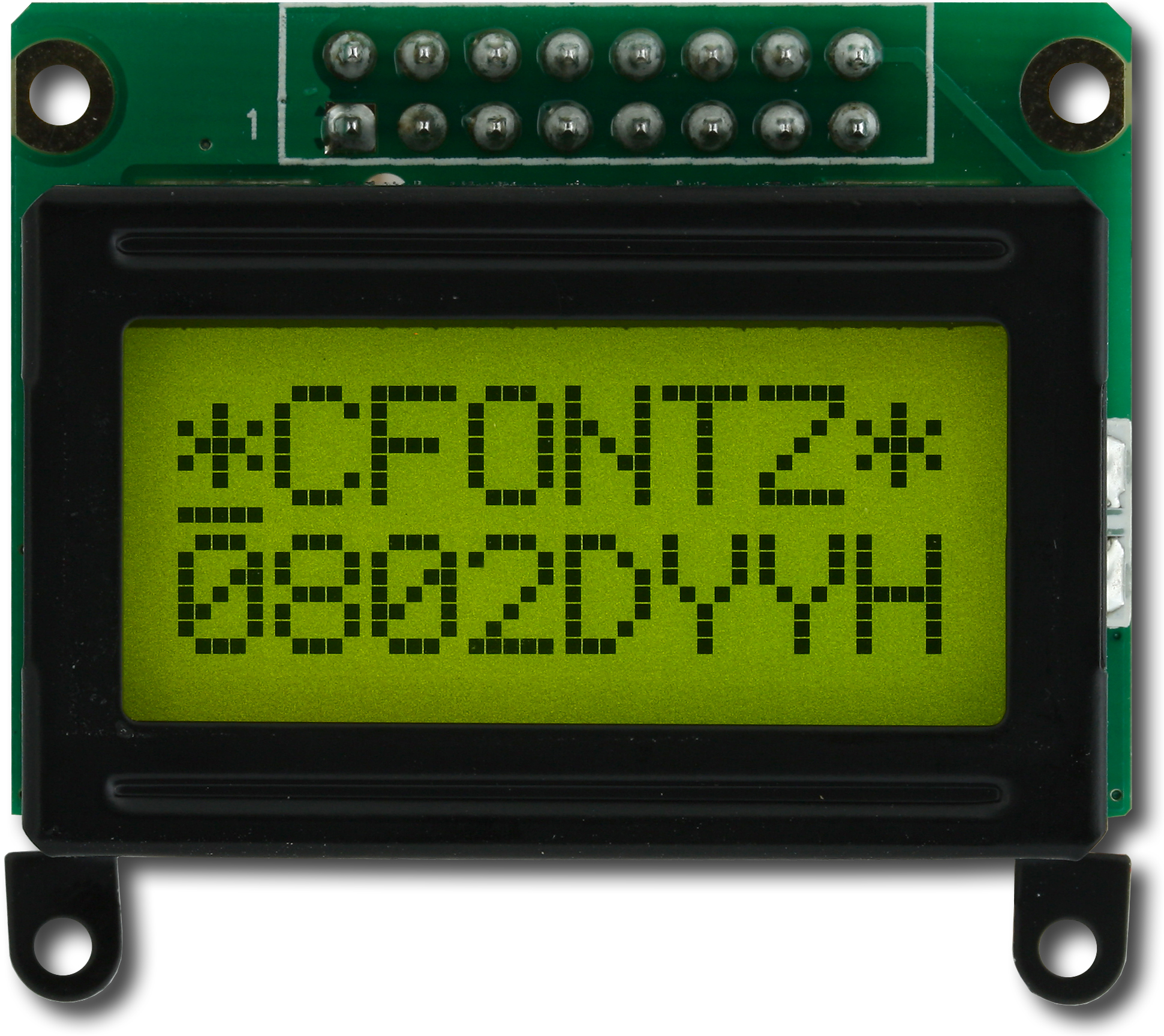

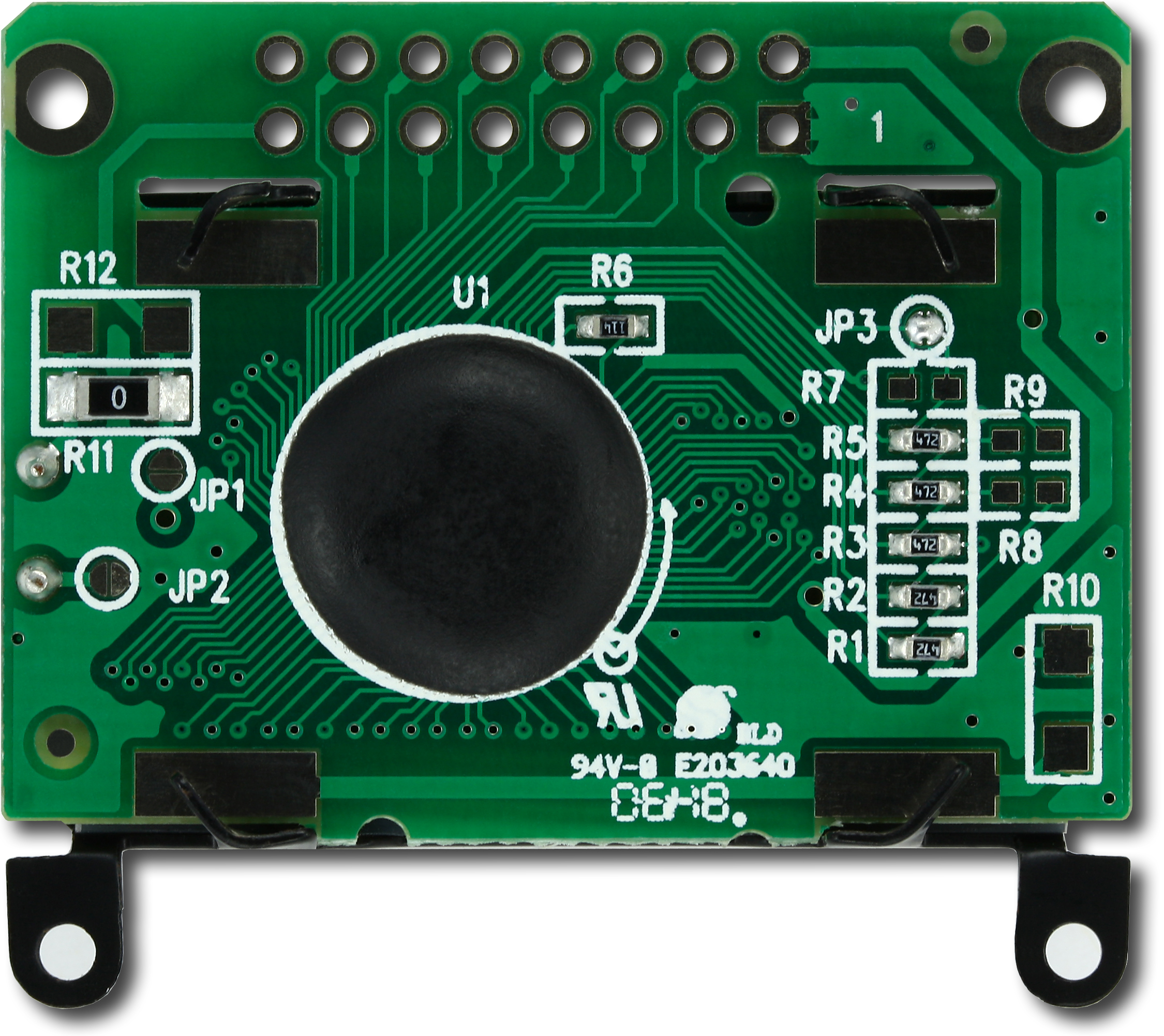

Backlit 8x2 Character Sunlight Readable LCDPart Number: CFAH0802D-YYH-JPSunlight readable 8x2 character LCD with LED backlight. This small character LCD is perfect for small, handheld devices that are used in direct sunlight or low light environments since it has a backlight and is still has a low current draw. If you need an 8x2 character LCD that is even lower power and without a backlight you should consider our Sunlight Readable 8x2 Character LCD.
Characters / Columns: 8x2
Optics: 6:00 viewing direction
Backlight: Yellow-green LED
Glass: STN Positive, Transflective
Controller: Sitronix ST7066U (HD44780 compatible)
Operating Temp: -20°C to +70°C
Interfaces: 4 & 8 bit parallel
Pin Count : 16
Compliance: REACH & RoHS Compliant
Product VariationsColorsDark on Yellow-Green
No BacklightDark on Yellow-Green
Yellow-Green LED Backlight

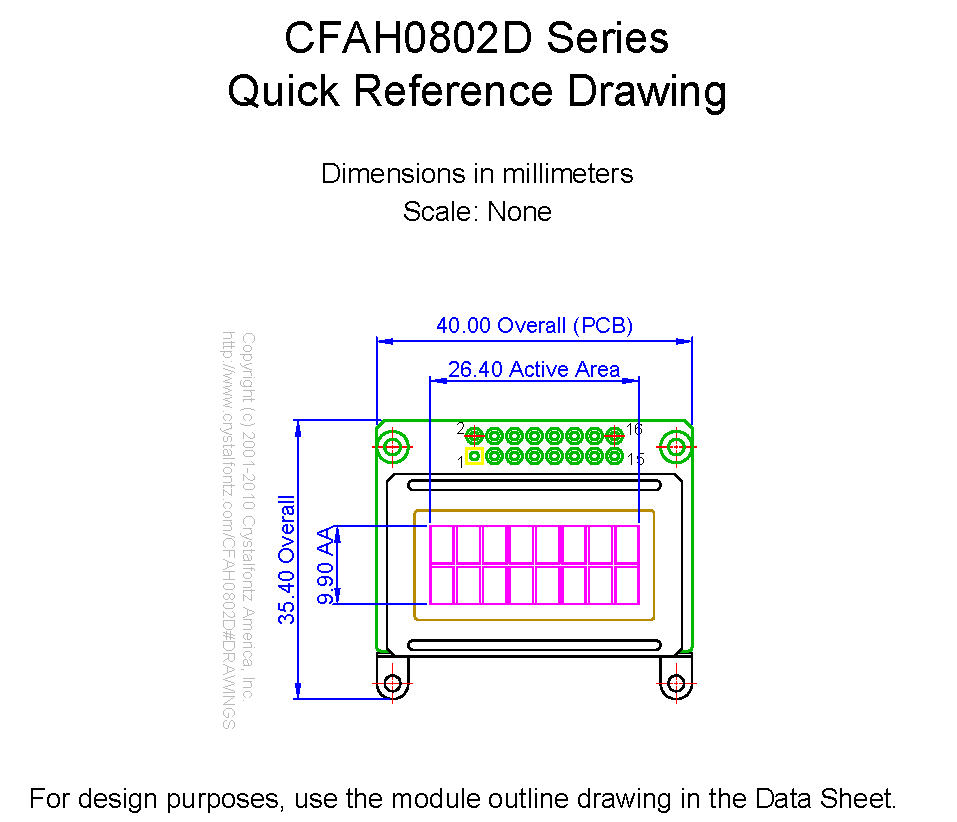

 square_foot Physical Characteristics
Physical Characteristics

        Characters x Lines
            8 x 2


    Module Overall        width
        height
        depth


        millimeters
        40
        35.4
        14


        inches
        1.58
        1.39
        0.55



    PCB Outline        width
        height
        depth


        millimeters
        40
        35.4
        14


        inches
        1.58
        1.39
        0.55



        Diagonal Dimension
            1.11"


    Viewing Area        Width
        Height


        millimeters
        30.4
        13.9


        inches
        1.20
        0.55



    Active Area        Width
        Height


        millimeters
        26.4
        9.9


        inches
        1.04
        0.39



    Character Size        Width
        Height


        millimeters
        2.95
        4.75


        inches
        0.116
        0.187



    Character Pitch        Width
        Height


        millimeters
        3.35
        5.15


        inches
        0.132
        0.203



    Dot Size        Width
        Height


        millimeters
        0.55
        0.55


        inches
        0.022
        0.022



    Dot Pitch        Width
        Height


        millimeters
        0.6
        0.6


        inches
        0.024
        0.024



        Weight
            16g
Pin Count
            16

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Yellow-Green
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes


        Backlight Color
            Yellow-Green
Backlight Type
            LED
Mode
            Positive
Foreground Color
            Dark
Background Color
            Yellow-Green

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            4.5V
Supply Voltage for Logic Maximum
            5.5V
Supply Voltage for Logic Typical
            5V
Supply Voltage for Driving Panel Typical
            4.5V


        Supply Current Minimum
            0.8mA
Supply Current Maximum
            2mA
Supply Current Typical
            1.2mA
Module Connector Pitch
            0.1mm

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Minimum
            3.8V
Forward Voltage Maximum
            4.3V


        Forward Voltage Typical
            4.1V
Forward Current Minimum
            150mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7066U
Dot Matrix LCD Controller/Driver
Interface
            4-bit Parallel, 8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAH0802DYYHJP Datasheet

 download Files and Downloads
folder_zip CAD Export - CFAH0802D 2D CAD
picture_as_pdf 1 to 1 Template - CFAH0802D 1 TO 1.PDF
link Demo Code Repository on Github
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH














Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:


Price:



            Quantity
            Unit Price


            1
            $9.18

            10
            $8.94

            20
            $8.64

            50
            $8.34

            100
            $8.21

            200
            $8.15

            300
            $8.10

            500
            $8.03

            1000
            $5.81

1168 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth considering


						8x2 Pin Dual Row Header
Add header pins (5pk)? $0.28 ea.





Colors	Dark on Yellow-Green No Backlight Dark on Yellow-Green Yellow-Green LED Backlight

Module Overall	width	height	depth
millimeters	40	35.4	14
inches	1.58	1.39	0.55

PCB Outline	width	height	depth
millimeters	40	35.4	14
inches	1.58	1.39	0.55

Viewing Area	Width	Height
millimeters	30.4	13.9
inches	1.20	0.55

Active Area	Width	Height
millimeters	26.4	9.9
inches	1.04	0.39

Character Size	Width	Height
millimeters	2.95	4.75
inches	0.116	0.187

Character Pitch	Width	Height
millimeters	3.35	5.15
inches	0.132	0.203

Dot Size	Width	Height
millimeters	0.55	0.55
inches	0.022	0.022

Dot Pitch	Width	Height
millimeters	0.6	0.6
inches	0.024	0.024

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Quantity	Unit Price
1	$9.18
10	$8.94
20	$8.64
50	$8.34
100	$8.21
200	$8.15
300	$8.10
500	$8.03
1000	$5.81

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #10876: SunPlus Controller Change

Products Affected:	CFAH0802D-YYH-JP, CFAH0802D-NYG-JP, CFAH0802Z-YYH-JP, CFAH1602Y-NYG-ET, CFAH1602Y-YYH-ET, CFAH1602Z-YYH-ET
Date Issued:	September 13, 2017
Summary:	SunPlus Controller Change
Description:	The parts listed currently use a SunPlus SPLC7800D Controller Chip. This controller is being discontinued by the manufacturer. The part will be replaced by a Sitronix ST7066U controller. A PCB revision will be made as part of the change to the new controller chip.
Reason:	The SunPlus SPLC7800 Controller is EOL. The new controller is a different size package with different pinouts.
Impact:	There should be no impact to users.
Recommendation:	It is highly recommended that users of the displays with the SunPlus controller verify that there are no operational differences in the systems where they are used.
Availability:	Last time buys of the current parts may be made until November 15, 2017, depending upon the availability of the SunPlus Controller.
Price Change:	To be determined when the parts with the Sitronix controllers are available.
Response:	Last time buys are available until 11/17/2017
