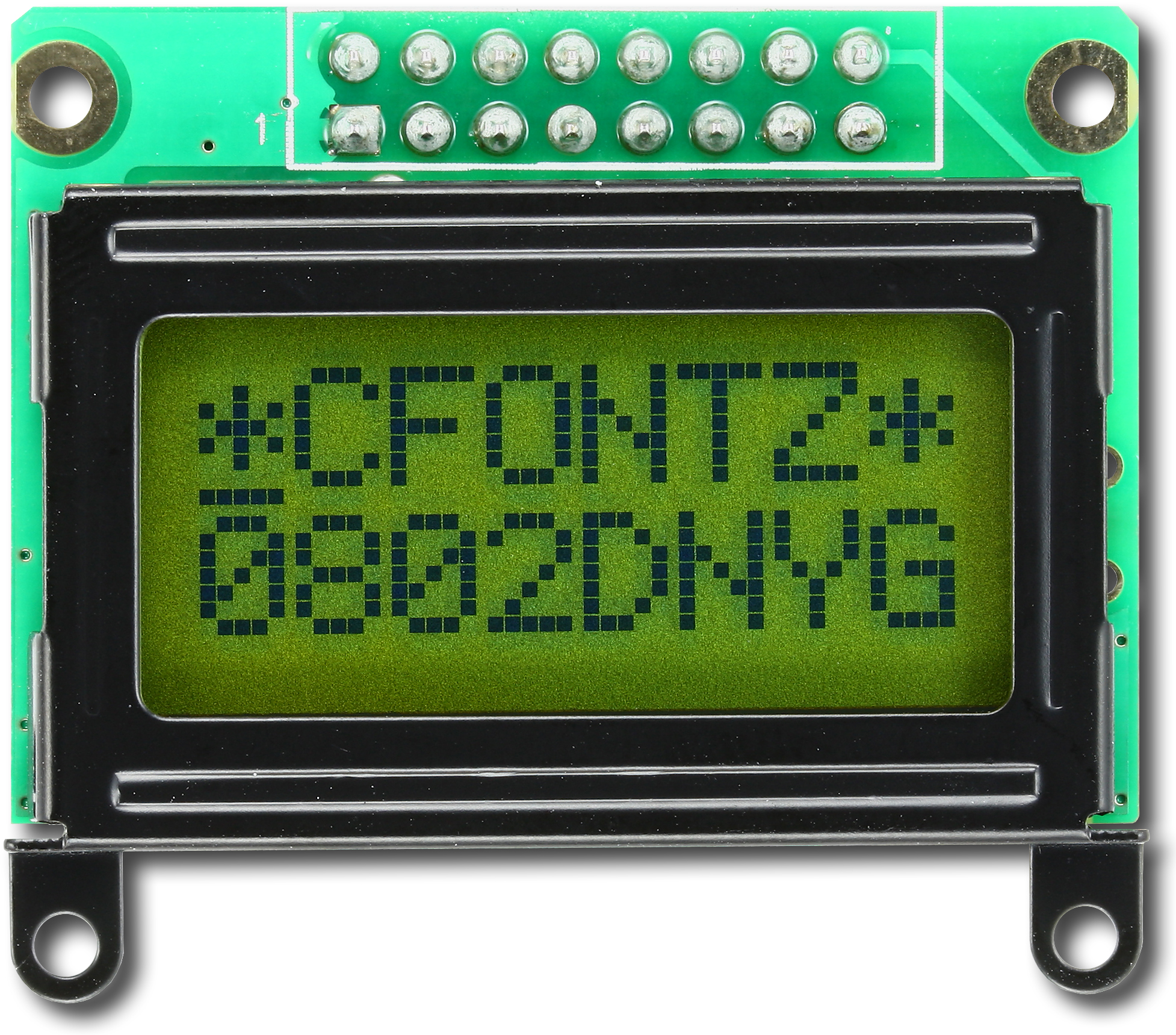

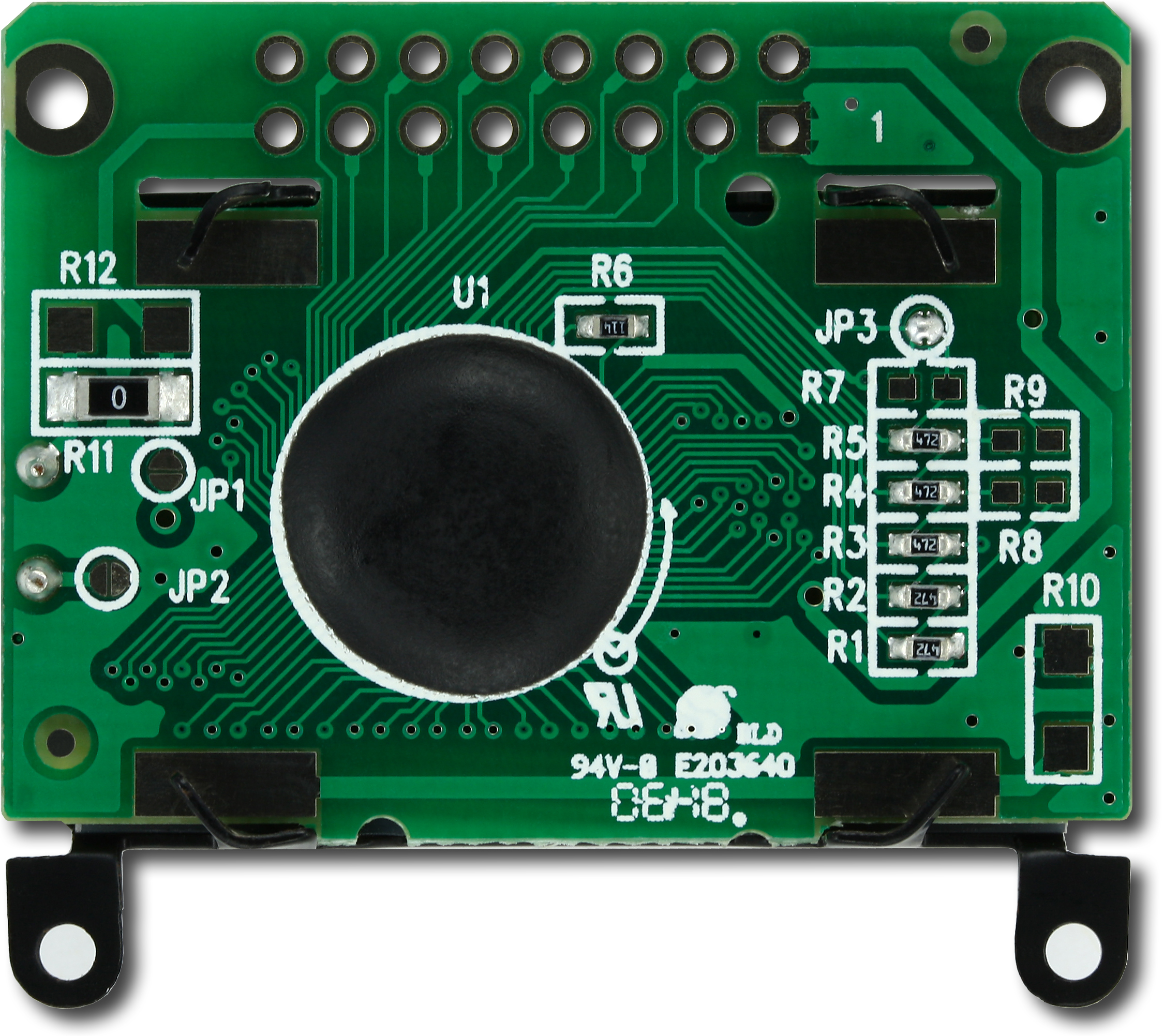

Reflective Non-Backlit 8x2 Character LCDPart Number: CFAH0802D-NYG-JPSuper low-power, 16-pin, sunlight readable, 8x2 character LCD display. This little character display is able to be low power and sunlight readable because of its reflective polarizer, so you don't need a backlight and you're still able to clearly see in direct sunlight. However, this isn't optimal for dark environments, in that case you might consider using our other 8x2 Sunlight Readable Character LCD which uses more power, but has a backlight for low-light environments.
Characters / Columns: 8x2
Optics: 6:00 viewing direction
Backlight: None
Glass: STN Positive, Reflective
Controller: Sitronix ST7066U (HD44780 compatible)
Operating Temp: -20°C to +70°C
Interfaces: 4 & 8 bit parallel
Pin Count: 16
Product VariationsColorsDark on Yellow-Green
No BacklightDark on Yellow-Green
Yellow-Green LED Backlight

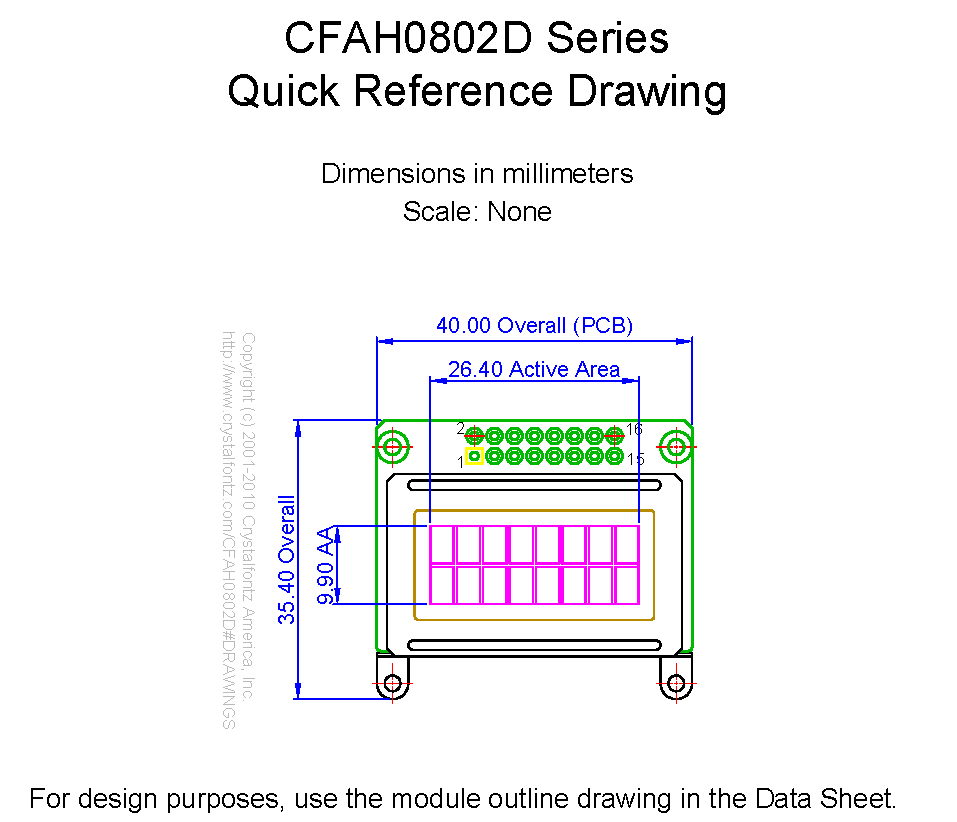

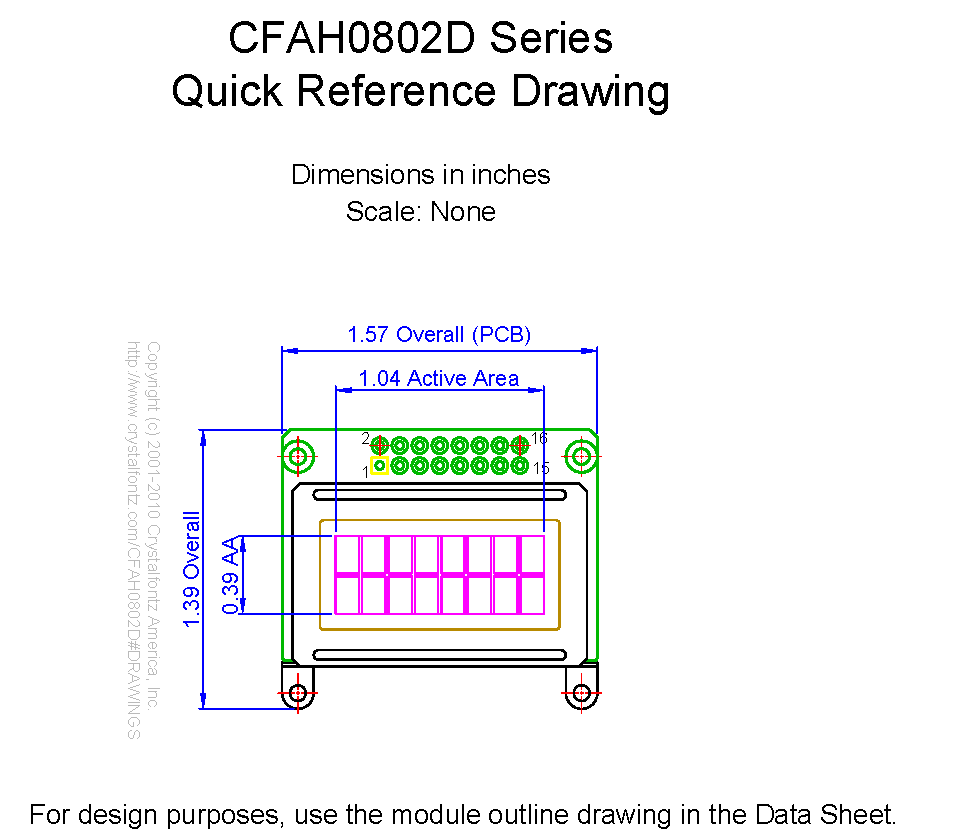

 square_foot Physical Characteristics
Physical Characteristics

        Characters x Lines
            8 x 2


    Module Overall        width
        height
        depth


        millimeters
        40
        35.4
        10


        inches
        1.58
        1.39
        0.39



    PCB Outline        width
        height
        depth


        millimeters
        40
        35.4
        10


        inches
        1.58
        1.39
        0.39



        Diagonal Dimension
            1.11"


    Viewing Area        Width
        Height


        millimeters
        30.4
        13.9


        inches
        1.20
        0.55



    Active Area        Width
        Height


        millimeters
        26.4
        9.9


        inches
        1.04
        0.39



    Character Size        Width
        Height


        millimeters
        2.95
        4.75


        inches
        0.116
        0.187



    Character Pitch        Width
        Height


        millimeters
        3.35
        5.15


        inches
        0.132
        0.203



    Dot Size        Width
        Height


        millimeters
        0.55
        0.55


        inches
        0.022
        0.022



    Dot Pitch        Width
        Height


        millimeters
        0.6
        0.6


        inches
        0.024
        0.024



        Weight
            11g
Pin Count
            16

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Yellow-Green
Polarizer
            Reflective
View Direction
            6 o'clock
Sunlight Readable
            Yes


        Mode
            Positive
Foreground Color
            Dark
Background Color
            Yellow-Green

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            4.5V
Supply Voltage for Logic Maximum
            5.5V
Supply Voltage for Logic Typical
            5V
Supply Current Minimum
            0.8mA


        Supply Current Maximum
            2mA
Supply Current Typical
            1.2mA
Module Connector Pitch
            0.1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7066U
Dot Matrix LCD Controller/Driver
Interface
            4-bit Parallel, 8-bit Parallel

picture_as_pdf Datasheets
picture_as_pdfCFAH0802D-NYG-JP Datasheet

Previous Versions of Datasheetspicture_as_pdfCFAH0802DNYGJP v2.0.pdf
(Datasheet V 2.0, Hardware A)
picture_as_pdfCFAH0802DNYGJP v1.1.pdf
(Datasheet V 1.1, Hardware A)
download Files and Downloads
folder_zip CAD Export - CFAH0802D 2D CAD
picture_as_pdf 1 to 1 Template - CFAH0802D 1 TO 1.PDF
link Demo Code Repository on Github
assured_workload Compliance Documents

picture_as_pdf Declaration
                                    of Conformity RoHS2
picture_as_pdf Declaration
                                    of Conformity REACH











Need a written quote? Add to cart, then enter
                            your email address in the "request a quote" box.
Quantity:


Price:



            Quantity
            Unit Price


            1 *
            $9.18

            10 *
            $8.94

            20 *
            $8.64

            50 *
            $8.34

            100 *
            $8.21

            200 *
            $8.15

            300 *
            $8.10

            500 *
            $6.54

            1000 *
            $5.58

0 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
* Sign up to be notified when we these are back in-stock.
Other components worth
                    considering


						8x2 Pin Dual Row Header
Add header pins (5pk)? $0.28 ea.




Compatible Software
CFAHWINTEST

Colors	Dark on Yellow-Green No Backlight Dark on Yellow-Green Yellow-Green LED Backlight

Module Overall	width	height	depth
millimeters	40	35.4	10
inches	1.58	1.39	0.39

PCB Outline	width	height	depth
millimeters	40	35.4	10
inches	1.58	1.39	0.39

Viewing Area	Width	Height
millimeters	30.4	13.9
inches	1.20	0.55

Active Area	Width	Height
millimeters	26.4	9.9
inches	1.04	0.39

Character Size	Width	Height
millimeters	2.95	4.75
inches	0.116	0.187

Character Pitch	Width	Height
millimeters	3.35	5.15
inches	0.132	0.203

Dot Size	Width	Height
millimeters	0.55	0.55
inches	0.022	0.022

Dot Pitch	Width	Height
millimeters	0.6	0.6
inches	0.024	0.024

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Quantity	Unit Price
1 *	$9.18
10 *	$8.94
20 *	$8.64
50 *	$8.34
100 *	$8.21
200 *	$8.15
300 *	$8.10
500 *	$6.54
1000 *	$5.58

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #10876: SunPlus Controller Change

Products Affected:	CFAH0802D-YYH-JP, CFAH0802D-NYG-JP, CFAH0802Z-YYH-JP, CFAH1602Y-NYG-ET, CFAH1602Y-YYH-ET, CFAH1602Z-YYH-ET
Date Issued:	September 13, 2017
Summary:	SunPlus Controller Change
Description:	The parts listed currently use a SunPlus SPLC7800D Controller Chip. This controller is being discontinued by the manufacturer. The part will be replaced by a Sitronix ST7066U controller. A PCB revision will be made as part of the change to the new controller chip.
Reason:	The SunPlus SPLC7800 Controller is EOL. The new controller is a different size package with different pinouts.
Impact:	There should be no impact to users.
Recommendation:	It is highly recommended that users of the displays with the SunPlus controller verify that there are no operational differences in the systems where they are used.
Availability:	Last time buys of the current parts may be made until November 15, 2017, depending upon the availability of the SunPlus Controller.
Price Change:	To be determined when the parts with the Sitronix controllers are available.
Response:	Last time buys are available until 11/17/2017
