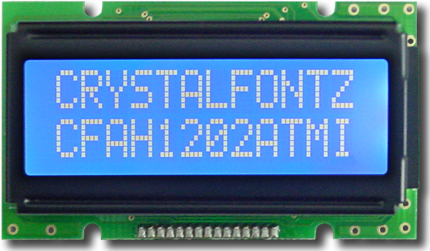

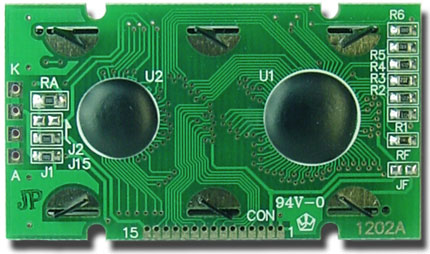

White and Blue 12x2 Character LCD (EOL)

Part Number: CFAH1202A-TMI-JP

Parallel Character LCD 12x2, RoHS Compliant, White Edge LED Backlight, STN Negative, Blue, Transmissive -20°C to +70°C 6:00

• Available in several variations of backlight and polarizer (minimum order may be required)
• 8-bit or 4-bit parallel interface
• Industry-standard HD44780 compatible controller

• square_foot Physical Characteristics

  Physical Characteristics

  Characters x Lines

  12 x 2

  Module Overall	width	height	depth
  millimeters	55.7	32	14.5
  inches	2.193	1.260	0.571

  PCB Outline	width	height	depth
  millimeters	55.7	32	14.5
  inches	2.193	1.260	0.571

  Viewing Area	Width	Height
  millimeters	46	14.5
  inches	1.811	0.571

  Active Area	Width	Height
  millimeters	37.85	11.7
  inches	1.490	0.461

  Character Size	Width	Height
  millimeters	2.65	5.55
  inches	0.104	0.219

  Character Pitch	Width	Height
  millimeters	3.2	6.2
  inches	0.126	0.244

  Dot Size	Width	Height
  millimeters	0.45	0.6
  inches	0.018	0.024

  Dot Pitch	Width	Height
  millimeters	0.55	0.7
  inches	0.022	0.028

  Weight

  16g

• visibility Optical Characteristics

  Optical Characteristics

  Glass Type/Glass Color	STN/Blue
  Polarizer	Transmissive
  View Direction	6 o'clock

  Backlight Color	White
  Backlight Type	LED
  Mode	Negative
  Foreground Color	White
  Background Color	Blue

• nature Enviromental

  Environmental

  Operating Temperatures	min	max
  Celsius	-20°	70°
  Fahrenheit	-4°	158°

  Storage Temperatures	min	max
  Celsius	-30°	80°
  Fahrenheit	-22°	176°

  Humidity	min	max
  Non-condensing	0%	90%

• cable Electronics

  Electronics

  Controller Documents	Sunplus SPLC780D 16COM/40SEG Controller/Driver
  Interface	4-bit Parallel, 8-bit Parallel

• picture_as_pdf Datasheets
  picture_as_pdf

  CFAH1202ATMIJP v3.0.pdf
  (Datasheet V 3.0, Hardware E)

• download Files and Downloads
  folder_zip CAD Export - CFAH1202A 2D CAD.zip


  picture_as_pdf 1 to 1 Template - CFAH1202A 1 TO 1.PDF
