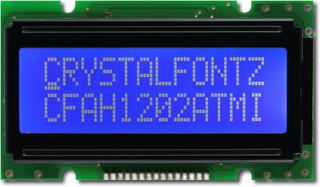

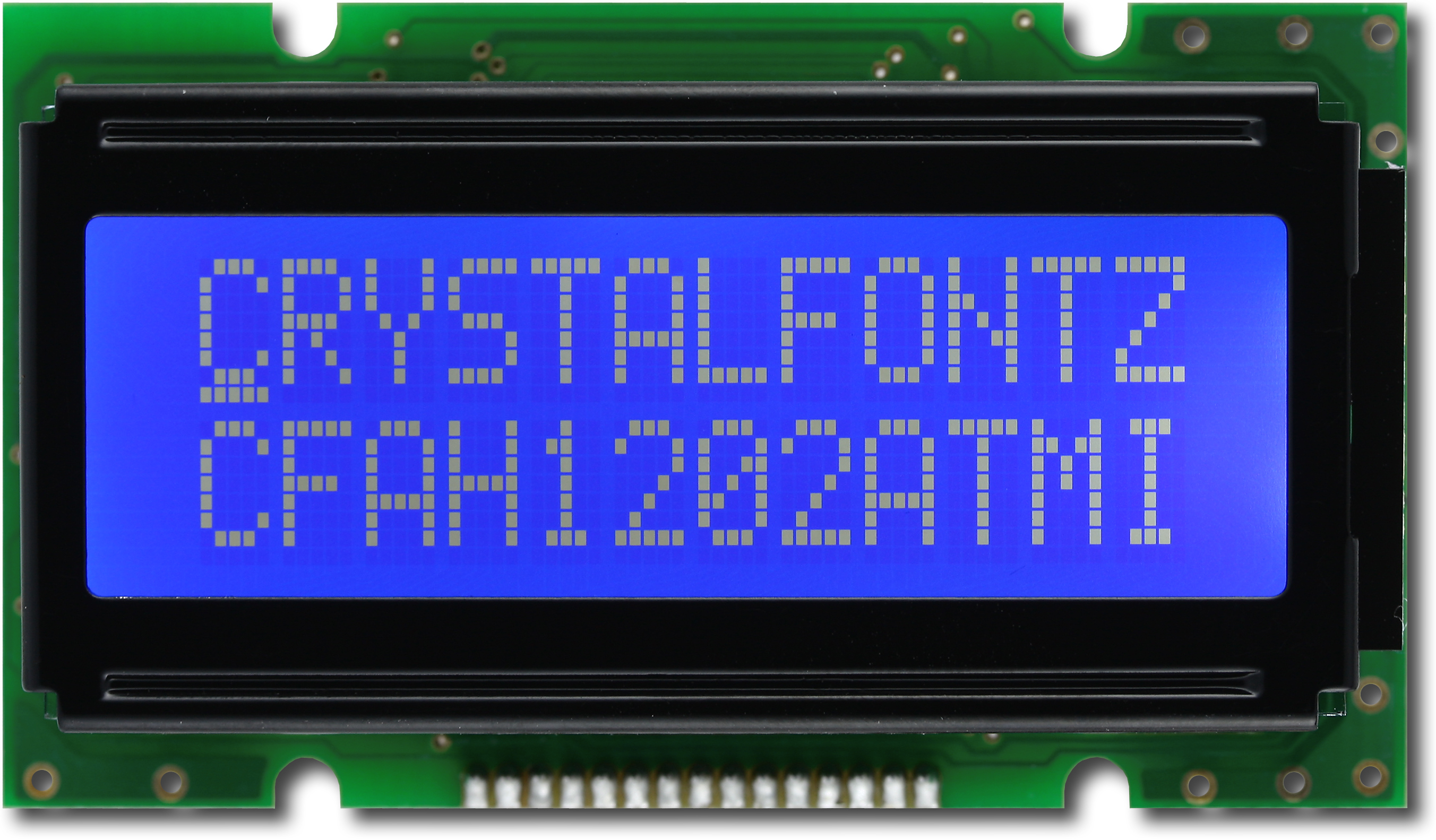

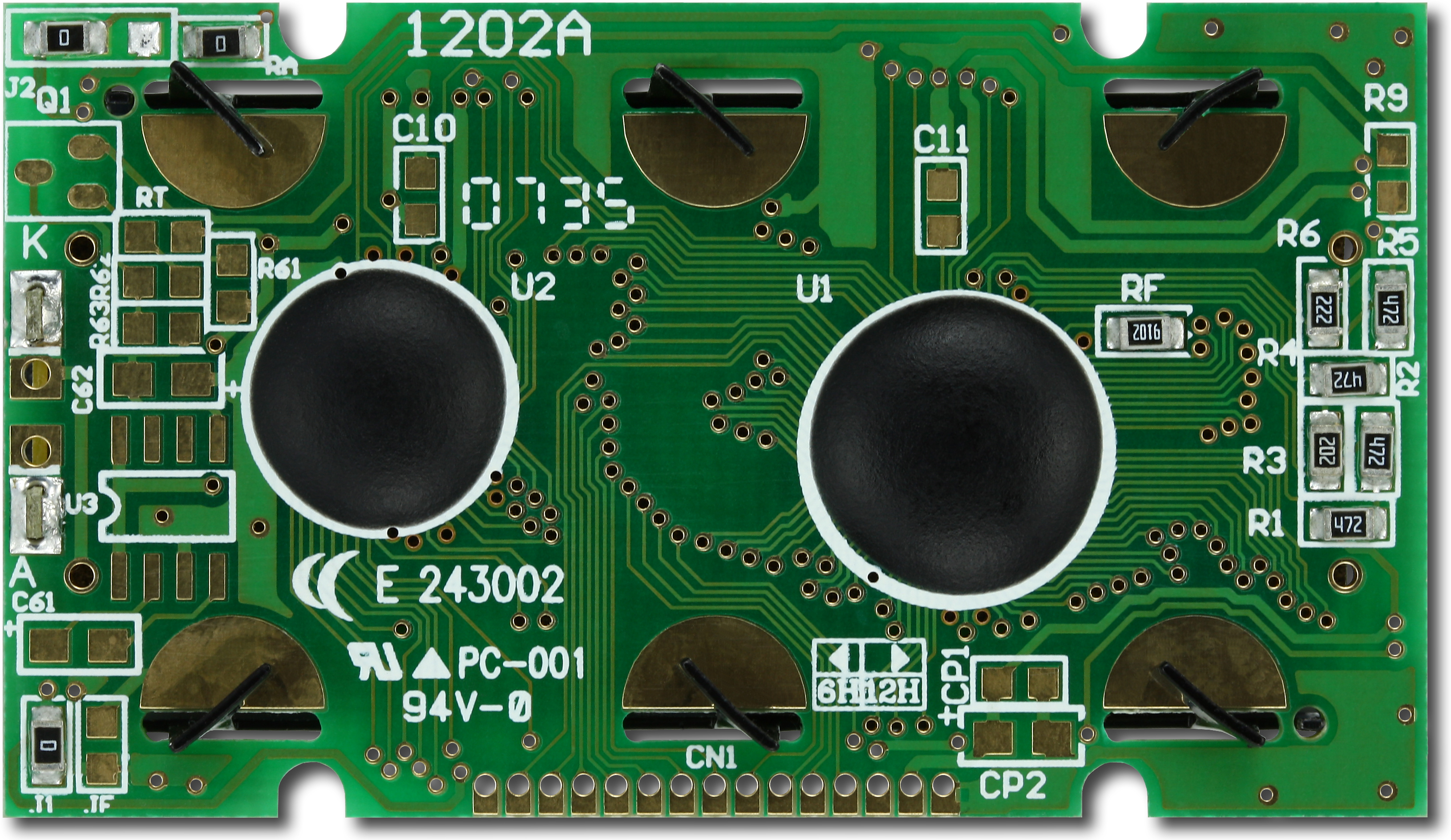

White on Blue 12x2 Character ModulePart Number: CFAH1202A-TMI-JTWhite on blue 12x2 parallel character LCD with LED backlight.
Characters / Rows: 12x2
Optics: 6:00 viewing direction
Backlight: White LED
Glass: STN Negative, Transmissive
Controller: Sitronix ST7066U (HD44780 compatible)
Operating Temp: -20°C to +70°C
Interfaces: 4 & 8 bit parallel
Product VariationsColorsDark on Yellow-Green
No backlightWhite on Blue
White LED backlightDark on Yellow-Green
Yellow-Green LED backlight

 square_foot Physical Characteristics
Physical Characteristics

        Characters x Lines
            12:00 x 2


    Module Overall        width
        height
        depth


        millimeters
        55.7
        32
        14.5


        inches
        2.19
        1.26
        0.57



    PCB Outline        width
        height
        depth


        millimeters
        55.7
        32
        14.5


        inches
        2.19
        1.26
        0.57



        Diagonal Dimension
            1.56"


    Viewing Area        Width
        Height


        millimeters
        46
        14.5


        inches
        1.81
        0.57



    Active Area        Width
        Height


        millimeters
        37.85
        11.7


        inches
        1.49
        0.46



    Character Size        Width
        Height


        millimeters
        2.65
        5.5


        inches
        0.104
        0.217



    Character Pitch        Width
        Height


        millimeters
        3.2
        6.2


        inches
        0.126
        0.244



    Dot Size        Width
        Height


        millimeters
        0.45
        0.6


        inches
        0.018
        0.024



    Dot Pitch        Width
        Height


        millimeters
        0.55
        0.7


        inches
        0.022
        0.028



        Weight
            16g
Pin Count
            15

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Blue
Polarizer
            Transmissive
View Direction
            6 o'clock


        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            White
Background Color
            Blue

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.05mm

 nature Enviromental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7066U
ST7066U

Dot Matrix LCD Controller/Driver
Sitronix ST7066U

Sitronix ST7066U
Dot Matrix LCD Controller/Driver
Interface
            4-bit Parallel, 8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAH1202ATMIJT Datasheet

 download Files and Downloads
folder_zip CAD Export - CFAH1202A 2D CAD.zip
picture_as_pdf 1 to 1 Template - CFAH1202A 1 TO 1.PDF
link Demo Code Repository on Github
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH














Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:


Price:



            Quantity
            Price


            1
            $8.88

            5
            $8.19

            10
            $7.22

            20
            $7.00

            50
            $6.75

            100
            $6.66

            200
            $6.62

            300 *
            $6.26

            500 *
            $6.22

            1000 *
            $5.59

 * Pricing is subject to change.
Contact us about potential lead times.



Colors	Dark on Yellow-Green No backlight White on Blue White LED backlight Dark on Yellow-Green Yellow-Green LED backlight

Module Overall	width	height	depth
millimeters	55.7	32	14.5
inches	2.19	1.26	0.57

PCB Outline	width	height	depth
millimeters	55.7	32	14.5
inches	2.19	1.26	0.57

Viewing Area	Width	Height
millimeters	46	14.5
inches	1.81	0.57

Active Area	Width	Height
millimeters	37.85	11.7
inches	1.49	0.46

Character Size	Width	Height
millimeters	2.65	5.5
inches	0.104	0.217

Character Pitch	Width	Height
millimeters	3.2	6.2
inches	0.126	0.244

Dot Size	Width	Height
millimeters	0.45	0.6
inches	0.018	0.024

Dot Pitch	Width	Height
millimeters	0.55	0.7
inches	0.022	0.028

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Quantity	Price
1	$8.88
5	$8.19
10	$7.22
20	$7.00
50	$6.75
100	$6.66
200	$6.62
300 *	$6.26
500 *	$6.22
1000 *	$5.59

Notices

Part Change Notice

Subscribe to Part Change Notices by email or RSS

Part Change Notice #10011: Rev. F

Products Affected:	CFAH1202A-GGH-JT, CFAH1202A-NYG-JT, CFAH1202A-YYH-JT, CFAH1202A-TMI-JT, CFAH1202A-TTI-JT
Date Issued:	September 9, 2008
Summary:	Rev. F
Last revision:	Rev. E
Description:	Minor layout changes to back of board
Reason:	Manufacturing improvements
Impact:	None
Price Change:	None
