This product has reached end of life. Please see our other 16x1 Character LCD displays.

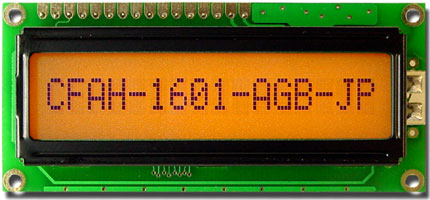

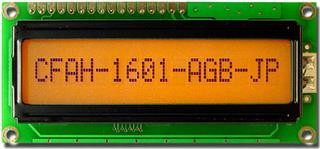

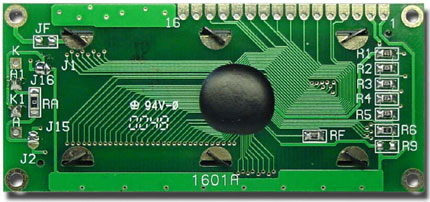

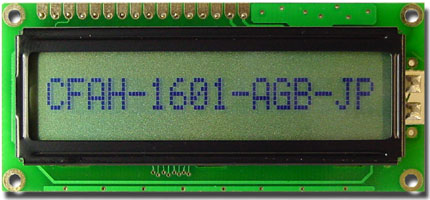

[EOL] Orange 16x1 Character LCD
Part Number: CFAH1601A-AGH-JP
Parallel Character LCD 16x1, RoHS Compliant, Amber LED Backlight, STN Positive, Gray, Transflective -20°C to +70°C 6:00
- Fit and form compatible with the CFAG14432B Series of Graphic LCD modules. Upgrade your product that uses this CFAH1601A character display by switching to the graphic CFAG14432B, or, lower your costs by replacing that graphic with this character module
- Available in several variations of backlight and polarizer (minimum order may be required)
- 8-bit or 4-bit parallel interface
- Industry-standard HD44780 compatible controller

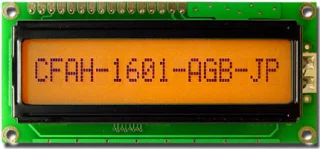

![[EOL] Orange 16x1 Character LCD (CFAH1601A-AGH-JP)](/images/products/CFAH1601AAGHJP/CFAH1601A-AGH-JP_front_bl_on.jpg)
Datasheet
TECHNICAL SPECS
Physical Characteristics
| Characters x Lines | 16 x 1 |
| Module Overall | width | height | depth |
|---|---|---|---|
| millimeters | 80 | 36 | 13.2 |
| inches | 3.150 | 1.417 | 0.520 |
| PCB Outline | width | height | depth |
|---|---|---|---|
| millimeters | 80 | 36 | 13.2 |
| inches | 3.150 | 1.417 | 0.520 |
| Viewing Area | width | height |
|---|---|---|
| millimeters | 66 | 16 |
| inches | 2.598 | 0.630 |
| Active Area | width | height |
|---|---|---|
| millimeters | 59.6 | 6.56 |
| inches | 2.346 | 0.258 |
| Character Size | width | height |
|---|---|---|
| millimeters | 3.07 | 6.56 |
| inches | 0.121 | 0.258 |
| Character Pitch | width |
|---|---|
| millimeters | 3.77 |
| inches | 0.148 |
| Dot Size | width | height |
|---|---|---|
| millimeters | 0.55 | 0.75 |
| inches | 0.022 | 0.030 |
| Dot Pitch | width | height |
|---|---|---|
| millimeters | 0.63 | 0.83 |
| inches | 0.025 | 0.033 |
| Weight | 33g |
Optical Characteristics
| Glass Type/Glass Color | STN/Gray |
| Polarizer | Transflective |
| View Direction | 6 o'clock |
| Sunlight Readable | Yes |
| Backlight Color | Amber |
| Backlight Type | LED |
| Mode | Positive |
| Foreground Color | Dark |
| Background Color | Amber |
Electrical Specifications
| Module Connector Pitch | 0.10mm |
Environmental
| Operating Temperatures | min | max |
|---|---|---|
| Celsius | -20° | 70° |
| Fahrenheit | -4° | 158° |
| Storage Temperatures | min | max |
|---|---|---|
| Celsius | -30° | 80° |
| Fahrenheit | -22° | 176° |
| Humidity | min | max |
|---|---|---|
| Non-condensing | 0% | 90% |
Electronics
| Controller Documents | Sunplus SPLC780D 16COM/40SEG Controller/Driver |
| Interface | 4-bit Parallel, 8-bit Parallel |
Compatible Software:
Form compatible with these 144x32 graphic modules:
For reference only. For design purposes, please use the specifications in the datasheet.
