This product is discontinued and has been replaced by CFAH1602C-TMI-JT

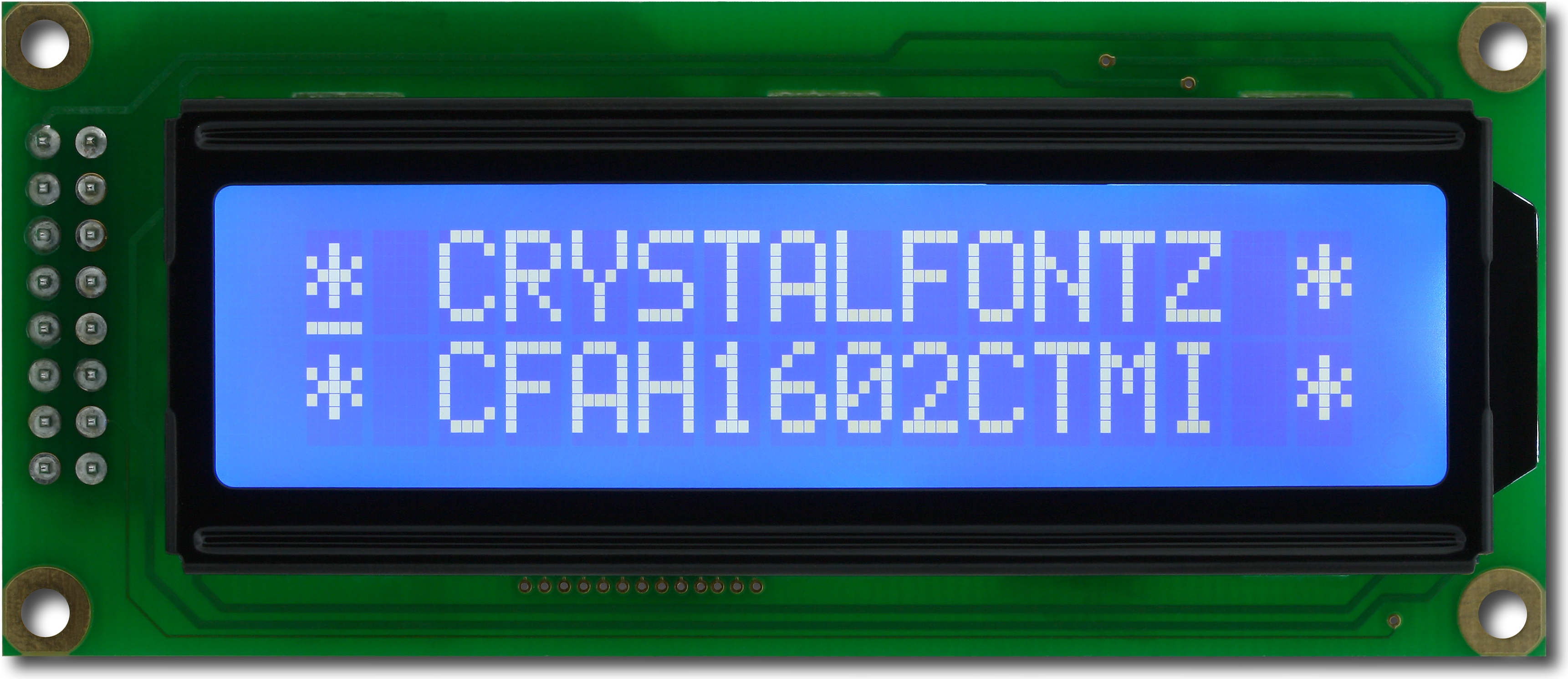

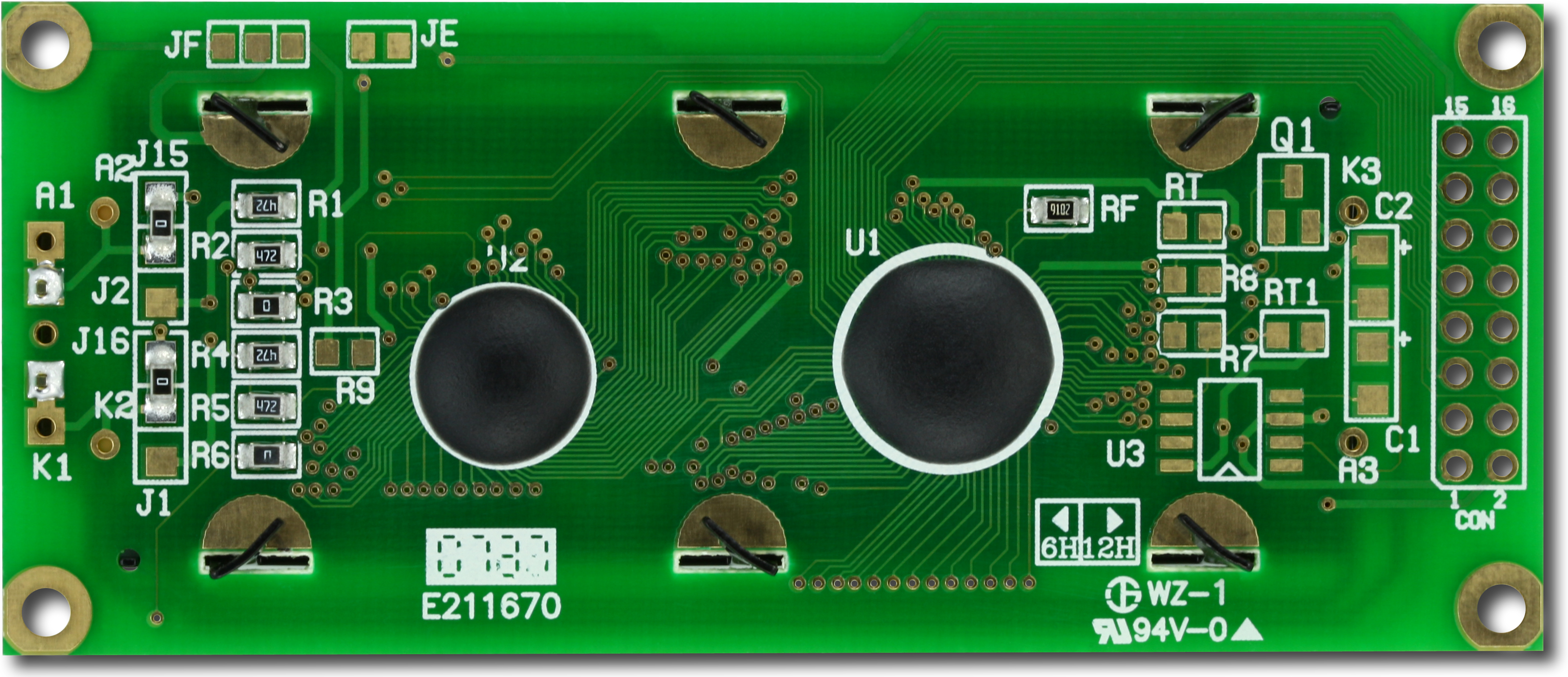

16x2 Parallel Character LCD [EOL]
Part Number: CFAH1602C-TMI-JP
Parallel Character LCD 16x2, RoHS Compliant, White Edge LED Backlight, STN Negative, Blue, Transmissive -20°C to +70°C 6:00
- Fit (except for JTV/JPV) and form compatible with the CFAG14432A Series of Graphic LCD modules. Upgrade your product that uses this CFAH1602C character display by switching to the graphic CFAG14432A, or, lower your costs by replacing that graphic with this character module
- Available in several variations of backlight and polarizer (minimum order may be required)
- 8-bit or 4-bit parallel interface
- Industry-standard HD44780 compatible controller

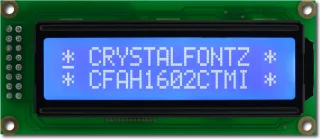

![16x2 Parallel Character LCD [EOL] (CFAH1602C-TMI-JP)](/images/products/CFAH1602CTMIJP/CFAH1602CTMI_large.jpg)
Datasheet
TECHNICAL SPECS
Physical Characteristics
| Characters x Lines | 16 x 2 |
| Module Overall | width | height | depth |
|---|---|---|---|
| millimeters | 85 | 36 | 13.2 |
| inches | 3.346 | 1.417 | 0.520 |
| PCB Outline | width | height | depth |
|---|---|---|---|
| millimeters | 85 | 36 | 13.2 |
| inches | 3.346 | 1.417 | 0.520 |
| Viewing Area | width | height |
|---|---|---|
| millimeters | 66 | 16 |
| inches | 2.598 | 0.630 |
| Active Area | width | height |
|---|---|---|
| millimeters | 56.2 | 11.5 |
| inches | 2.213 | 0.453 |
| Character Size | width | height |
|---|---|---|
| millimeters | 2.95 | 5.55 |
| inches | 0.116 | 0.219 |
| Character Pitch | width | height |
|---|---|---|
| millimeters | 3.55 | 5.95 |
| inches | 0.140 | 0.234 |
| Dot Size | width | height |
|---|---|---|
| millimeters | 0.55 | 0.65 |
| inches | 0.022 | 0.026 |
| Dot Pitch | width | height |
|---|---|---|
| millimeters | 0.6 | 0.7 |
| inches | 0.024 | 0.028 |
| Weight | 32g |
Optical Characteristics
| Glass Type/Glass Color | STN/Blue |
| Polarizer | Transmissive |
| View Direction | 6 o'clock |
| Backlight Color | White |
| Backlight Type | LED |
| Mode | Negative |
| Foreground Color | White |
| Background Color | Blue |
Electrical Specifications
| Module Connector Pitch | 0.10mm |
Environmental
| Operating Temperatures | min | max |
|---|---|---|
| Celsius | -20° | 70° |
| Fahrenheit | -4° | 158° |
| Storage Temperatures | min | max |
|---|---|---|
| Celsius | -30° | 80° |
| Fahrenheit | -22° | 176° |
| Humidity | min | max |
|---|---|---|
| Non-condensing | 0% | 90% |
Electronics
| Controller Documents | Sunplus SPLC780D 16COM/40SEG Controller/Driver |
| Interface | 4-bit Parallel, 8-bit Parallel |
