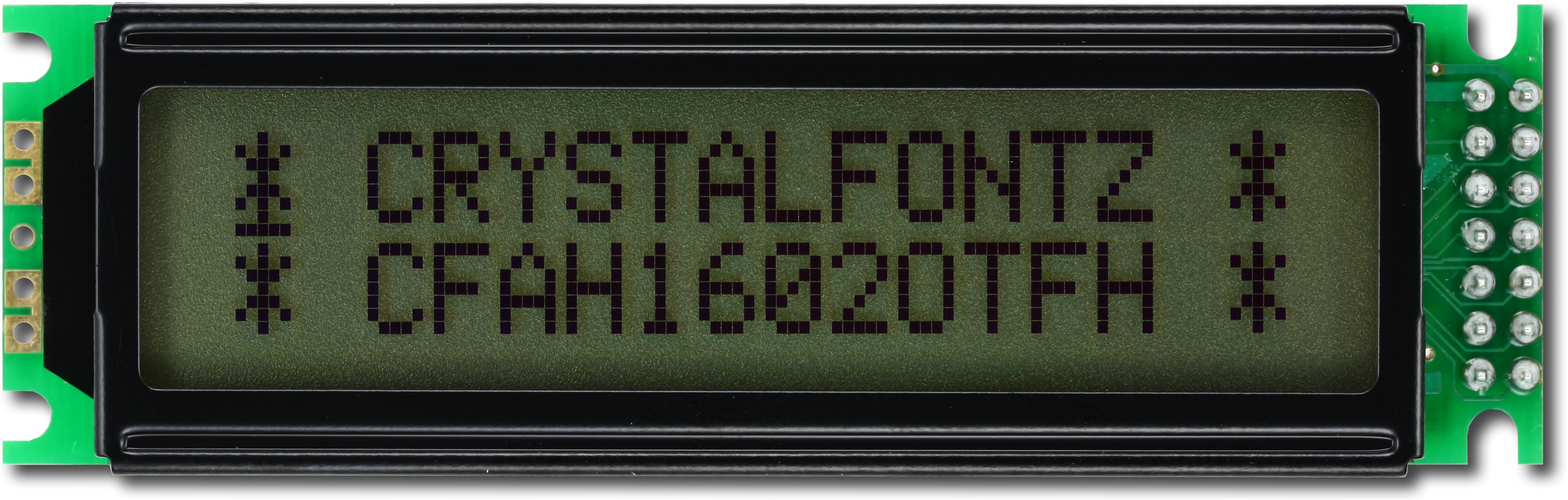

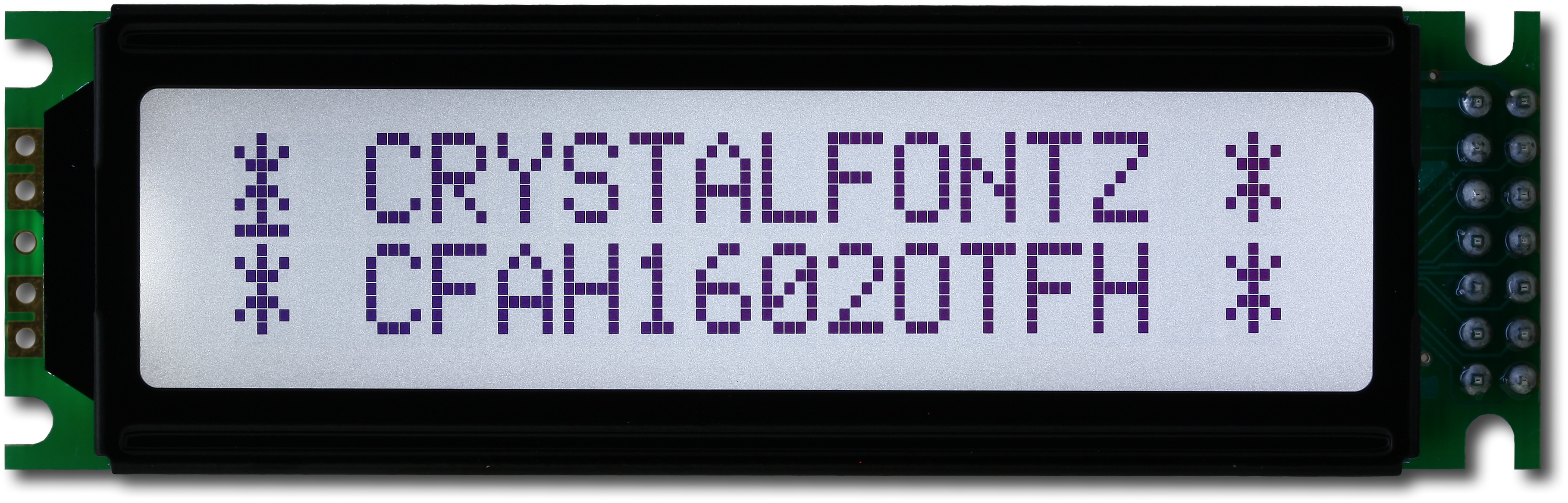

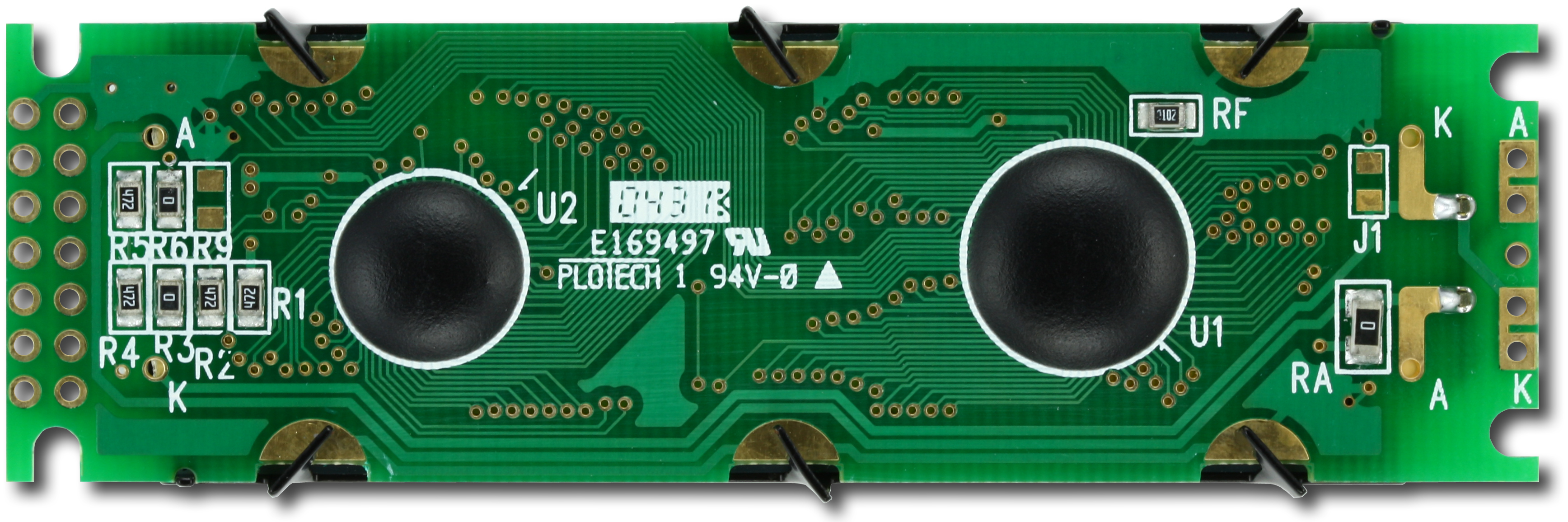

Gray Standard 16x2 Character LCDPart Number: CFAH1602O-TFH-ETDark on light gray sunlight readable 16x2 character LCD with single LED backlight included. All pins and functionality is documented in the datasheet. Contrast can be easily adjusted with a potentiometer or PWM. Each row holds 16 characters there are 2 rows per module.
Optics: 6:00 viewing direction
Backlight: White LED
Glass: FSTN Positive, Transflective
Controller: Sitronix ST7066U (HD44780 compatible)
Operating Temp: -20°C to +70°C
Interfaces: 4 & 8 bit parallel
Compliance: REACH & RoHS Compliant
Product VariationsColorsDark on Yellow-Green
Yellow-Green LED BacklightWhite on Blue
White LED BacklightDark on Light Gray
White LED Backlight

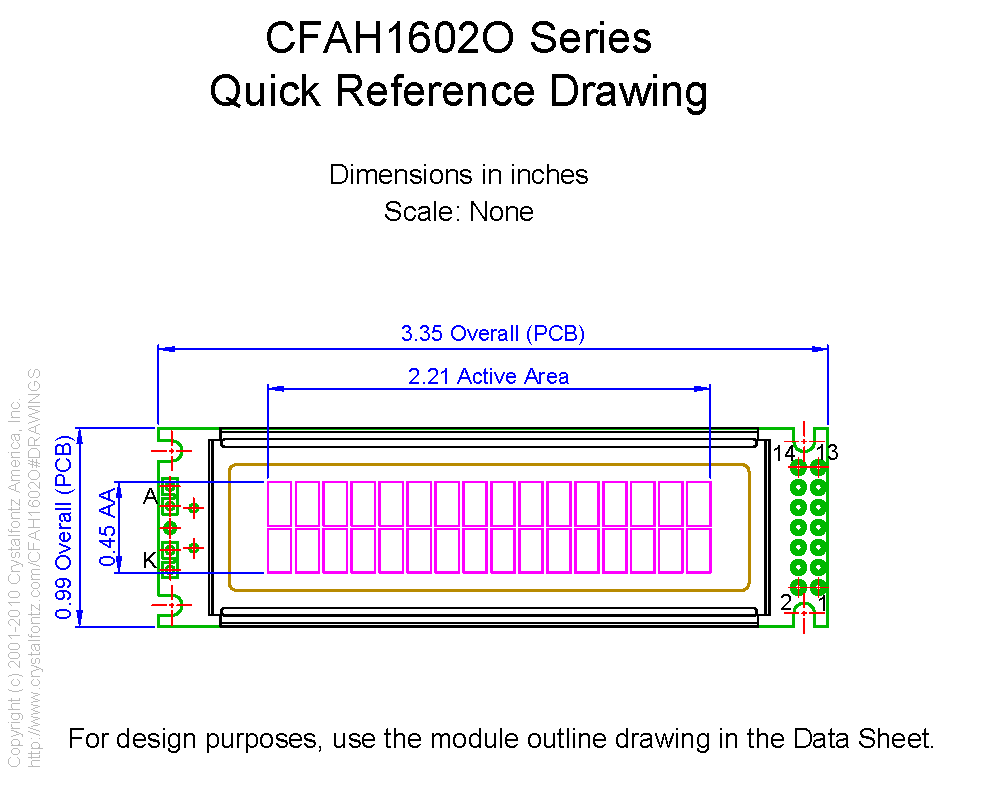

 square_foot Physical Characteristics
Physical Characteristics

        Characters x Lines
            16 x 2


    Module Overall        width
        height
        depth


        millimeters
        85
        25.2
        13.5


        inches
        3.35
        0.99
        0.53



    PCB Outline        width
        height
        depth


        millimeters
        85
        25.2
        13.5


        inches
        3.35
        0.99
        0.53



        Diagonal Dimension
            2.26"


    Viewing Area        Width
        Height


        millimeters
        66
        16


        inches
        2.60
        0.63



    Active Area        Width
        Height


        millimeters
        56.2
        11.5


        inches
        2.21
        0.45



    Character Size        Width
        Height


        millimeters
        2.95
        5.55


        inches
        0.116
        0.219



    Character Pitch        Width
        Height


        millimeters
        3.55
        5.95


        inches
        0.140
        0.234



    Dot Size        Width
        Height


        millimeters
        0.55
        0.65


        inches
        0.022
        0.026



    Dot Pitch        Width
        Height


        millimeters
        0.6
        0.7


        inches
        0.024
        0.028



        Weight
            32g
Pin Count
            14

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            FSTN/Light Gray
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes


        Backlight Color
            White
Backlight Type
            LED
Mode
            Positive
Foreground Color
            Dark
Background Color
            Light Gray

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7066U
Dot Matrix LCD Controller/Driver
Interface
            4-bit Parallel, 8-bit Parallel

picture_as_pdf Datasheets
picture_as_pdfCFAH1602OTFHET Datasheet

Previous Versions of Datasheetpicture_as_pdfCFAH1602OTFHET.pdf

download Files and Downloads
folder_zip Hardware Design - 3D Model
folder_zip CAD Export - CFAH1602O 2D CAD
picture_as_pdf 1 to 1 Template - CFAH1602O 1 TO 1.PDF
link Demo Code Repository on Github
assured_workload Compliance Documents

picture_as_pdf Declaration
                                    of Conformity RoHS2
picture_as_pdf Declaration
                                    of Conformity REACH














Need a written quote? Add to cart, then enter
                            your email address in the "request a quote" box.
Quantity:


Price:



            Quantity
            Unit Price


            1
            $7.98

            10
            $7.01

            20
            $6.81

            50 *
            $6.56

            100 *
            $6.48

            200 *
            $6.44

            300 *
            $6.08

            500 *
            $6.04

            1000 *
            $5.72

23 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Compatible Software
CFAHWINTEST

Colors	Dark on Yellow-Green Yellow-Green LED Backlight White on Blue White LED Backlight Dark on Light Gray White LED Backlight

Module Overall	width	height	depth
millimeters	85	25.2	13.5
inches	3.35	0.99	0.53

PCB Outline	width	height	depth
millimeters	85	25.2	13.5
inches	3.35	0.99	0.53

Viewing Area	Width	Height
millimeters	66	16
inches	2.60	0.63

Active Area	Width	Height
millimeters	56.2	11.5
inches	2.21	0.45

Character Size	Width	Height
millimeters	2.95	5.55
inches	0.116	0.219

Character Pitch	Width	Height
millimeters	3.55	5.95
inches	0.140	0.234

Dot Size	Width	Height
millimeters	0.55	0.65
inches	0.022	0.026

Dot Pitch	Width	Height
millimeters	0.6	0.7
inches	0.024	0.028

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Quantity	Unit Price
1	$7.98
10	$7.01
20	$6.81
50 *	$6.56
100 *	$6.48
200 *	$6.44
300 *	$6.08
500 *	$6.04
1000 *	$5.72
