This product has reached end of life

Home » Products » Character LCD Displays » Character X Lines » 16x2 Character

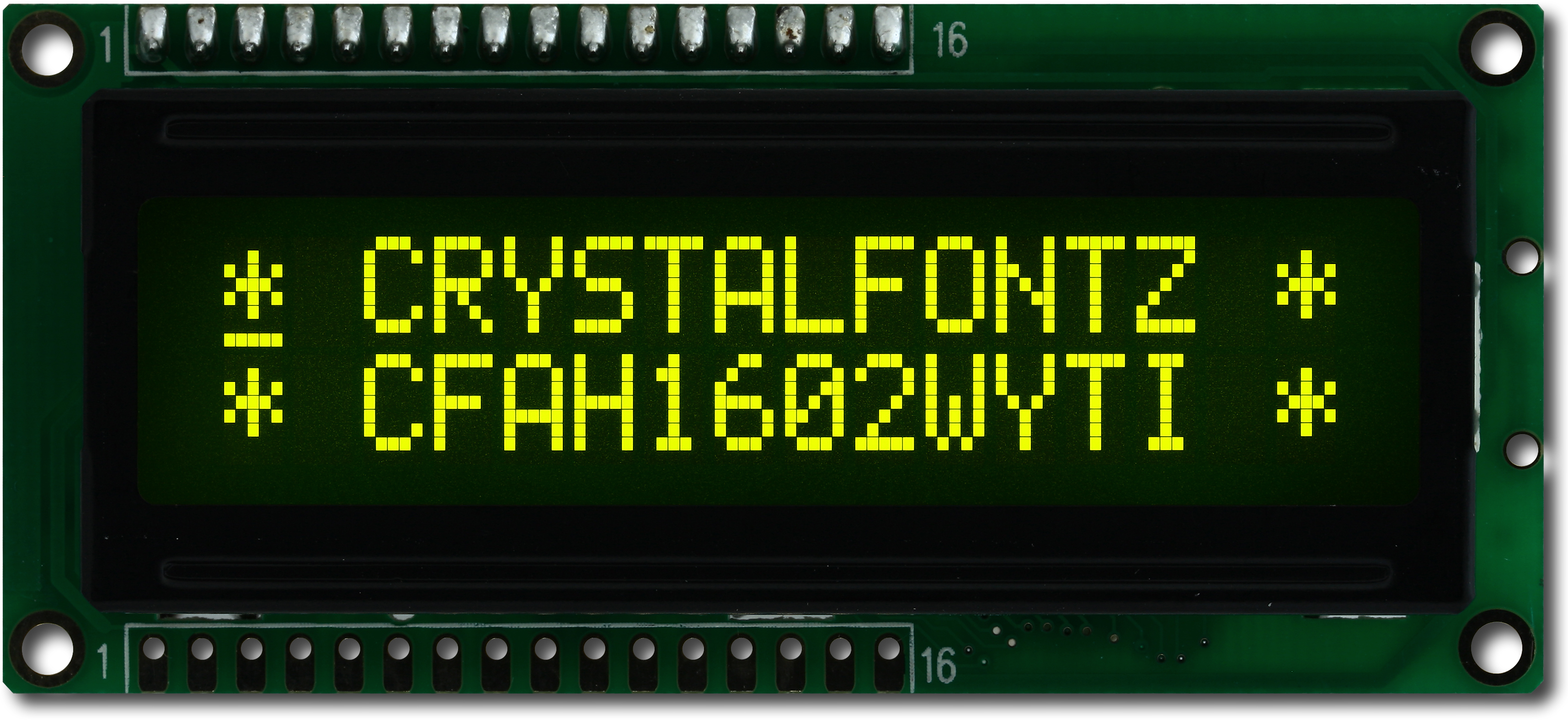

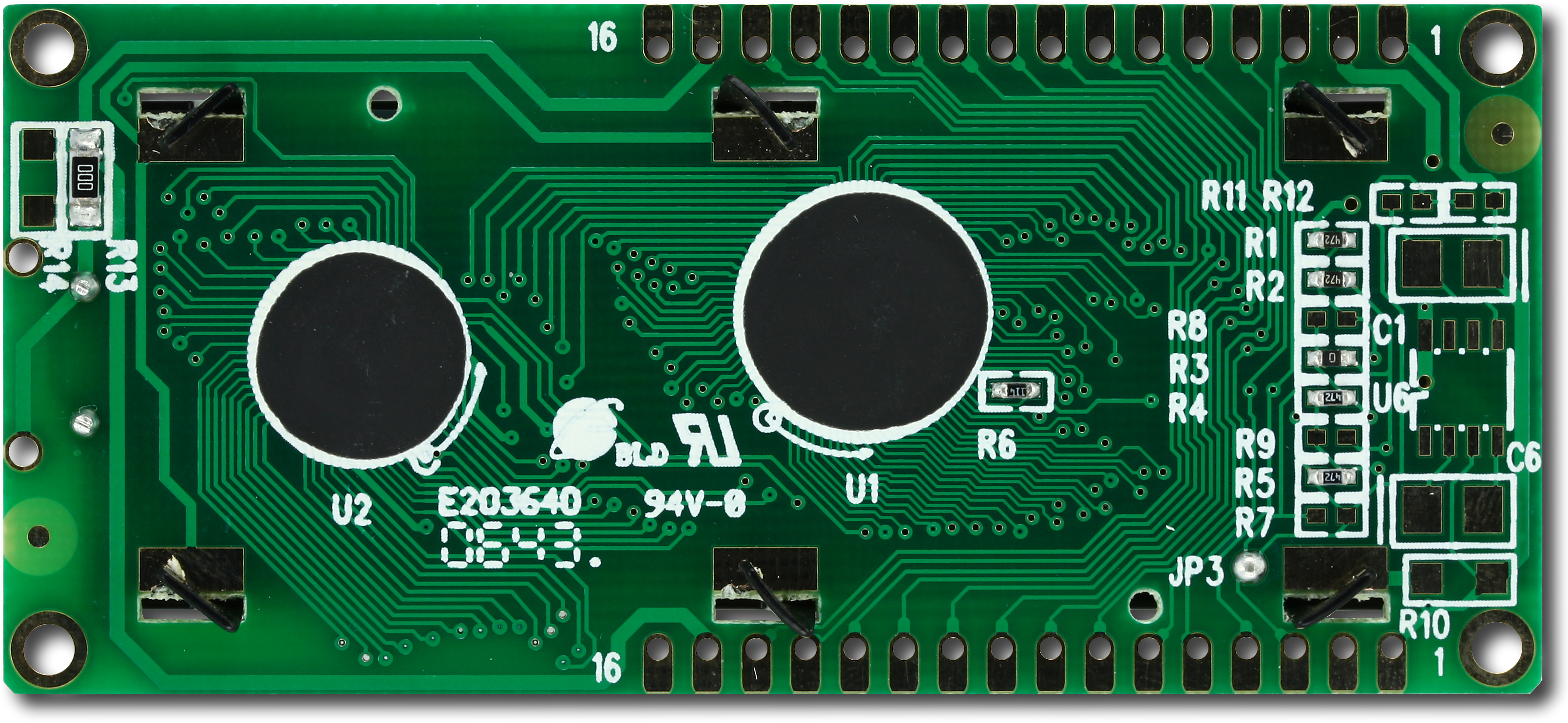

Yellow on Black 16x2 Character LCD

Part Number: CFAH1602W-YTI-JP

This 2x16 character LCD offers Yellow-Green LED Backlight, FSTN Negative, Transmissive.

  • 6:00 viewing angle.
  • 8-bit or 4-bit parallel interface
  • Industry-standard HD44780 compatible controller
  • Form & fit compatible with the CFAG14432B Series of Graphic LCD modules.
  • The CFAH1602W Series is compatible with the CFAH1602B Series (Connector on Top) and CFAH1602J Series (Connector on Bottom).
  • Available in several variations of backlight and polarizer (minimum order may be required)
  • Operating temperature range from -20°C to +70°C
  • This display is RoHS Compliant.
  • Crystalfontz America, Incorporated is ISO 9001:2015 certified.
Yellow on Black 16x2 Character LCD (CFAH1602W-YTI-JP)

Datasheet

Files

TECHNICAL SPECS

Physical Characteristics

Characters x Lines 16 x 2

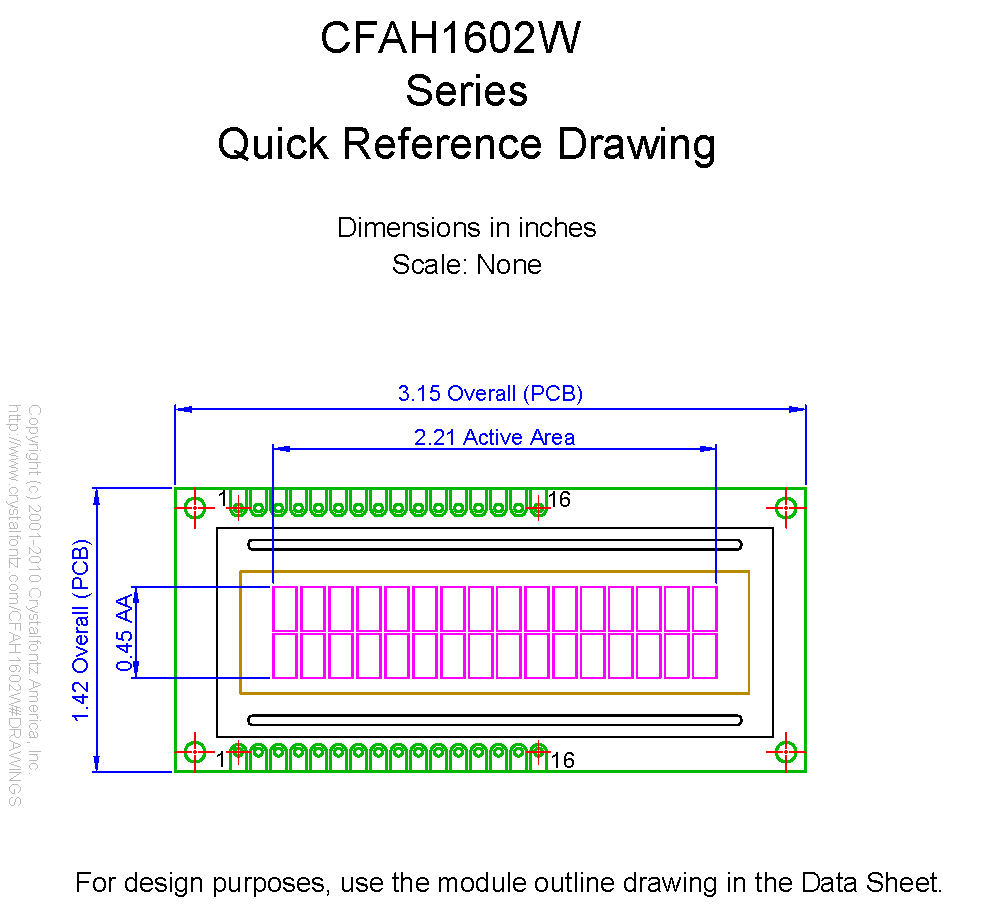

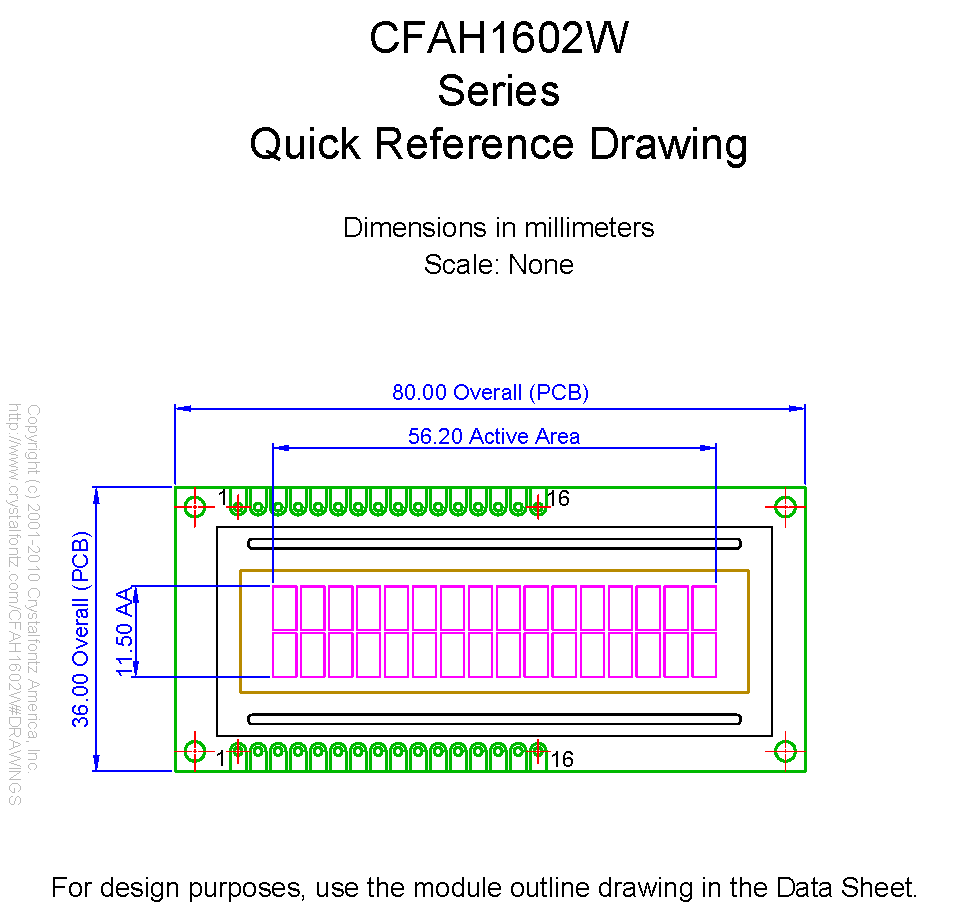

Module Overall width height depth
millimeters 80 36 14
inches 3.150 1.417 0.551
PCB Outline width height depth
millimeters 80 36 14
inches 3.150 1.417 0.551
Diagonal Dimension 2.26"
Viewing Area width height
millimeters 64.5 15.5
inches 2.539 0.610
Active Area width height
millimeters 56.2 11.5
inches 2.213 0.453
Character Size width height
millimeters 2.95 5.55
inches 0.116 0.219
Character Pitch width height
millimeters 3.55 5.95
inches 0.140 0.234
Dot Size width height
millimeters 0.55 0.65
inches 0.022 0.026
Dot Pitch width height
millimeters 0.6 0.7
inches 0.024 0.028
Weight 35g

Optical Characteristics

Glass Type/Glass Color FSTN/Black
Polarizer Transmissive
View Direction 6 o'clock
Backlight Color Yellow-Green
Backlight Type LED
Mode Negative
Foreground Color Yellow-Green
Background Color Dark

Electrical Specifications

Module Connector Pitch 0.1mm

Environmental

Operating Temperatures min max
Celsius -20° 70°
Fahrenheit -4° 158°
Storage Temperatures min max
Celsius -30° 80°
Fahrenheit -22° 176°
Humidity min max
Non-condensing 0% 90%

Electronics

Controller Documents Sunplus SPLC780D
16COM/40SEG Controller/Driver
Interface 4-bit Parallel, 8-bit Parallel

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAH1602W-YTI-JP or RSS RSS feed for changes to CFAH1602W-YTI-JP

Product Update #10875: This part will soon be End of Life and no longer available. There is no cross reference or substitute part.

Products Affected: CFAH2002Z-YYH-JP, CFAH1602W-RTI-JP, CFAH1602W-YTI-JP, CFAH1602Z-NYG-ET, CFAH1602Z-TMI-ET
Date Issued: September 13, 2017
Summary: This part will soon be End of Life and no longer available. There is no cross reference or substitute part.
Description:
Reason: The Sunplus display controller is being discontinued by the manufacturer.
Impact: No replacements will be offered for these parts.
Recommendation: Contact support@crystalfontz.com to explore other modules that may work for you.
Availability: Once current stocks are depleted these products will no longer be available.
For reference only. For design purposes, please use the specifications in the datasheet.
