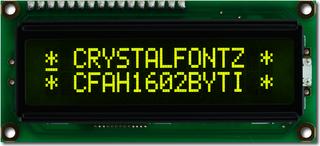

16x2 Yellow on Dark Character LCD
Part Number: CFAH1602B-YTI-JT
High contrast 16x2 character LCD with an LED backlight.
Characters / Columns: 16x2Optics: 6:00 viewing directionBacklight :Glass: FSTN Negative, TransmissiveController: Sitronix ST7066U (HD44780 compatible)Operating Temp: -20°C to +70°CInterfaces : 4 & 8 bit parallelCompliance: REACH & RoHS Compliant
Module Metric Imperial
Overall Width
80.00 mm
3.150 in
Overall Height
36.00 mm
1.417 in
Overall Depth
13.20 mm
0.520 in
Diagonal Dimension
2.26 in
Weight
33 g
Shape
rectangle
PCB Metric Imperial
PCB Width
80.00 mm
3.150 in
PCB Height
36.00 mm
1.417 in
PCB Depth
13.20 mm
0.520 in
Display Area Metric Imperial
Active Area Width
56.20 mm
2.213 in
Active Area Height
11.50 mm
0.453 in
Viewing Width
66.00 mm
2.598 in
Viewing Height
16.00 mm
0.630 in
Character Geometry Metric Imperial
Character Width
2.95 mm
0.116 in
Character Height
5.55 mm
0.219 in
Character Pitch Width
3.55 mm
0.140 in
Character Pitch Height
5.95 mm
0.234 in
Dot Geometry Metric Imperial
Dot Pitch Width
0.60 mm
0.024 in
Dot Pitch Height
0.70 mm
0.028 in
Dot Size Width
0.55 mm
0.022 in
Dot Size Height
0.65 mm
0.026 in
Connectors
Module Connector Type
Header
Module Connector Pitch
2.54 mm (0.10 in)
Pin Count
16
Technology
Display Technology
LCD
Display Addressing
Passive
Glass Type
FSTN
Mode
Transmissive
Polarizer
Negative
Viewing
View Direction
6:00 o'clock
Display Colors
Foreground Color
Yellow-Green
Background Color
Dark
Glass Color
Black
Backlight
Backlight Type
LED
Backlight Color
Yellow-Green
Available Interfaces
Standard Interface(s)
8-bit Parallel, 4-bit Parallel
Temperature
Min (°C) Max (°C) Min (°F) Max (°F)
Operating Temperature
-20°C
70°C
-4°F
158°F
Storage Temperature
-30°C
80°C
-22°F
176°F
Humidity
Relative Humidity 0% to 90% RH (non-condensing)
Datasheets Documents & Files
Products Affected:
CFAH1602B-NGG-JTV, CFAH1602B-NYG-JT, CFAH1602B-TMI-JT, CFAH1602B-YMI-JT, CFAH1602B-YTI-JT, CFAH1602B-YYH-JT, CFAH1602B-YYH-JTE, CFAH1602B-YYH-JTV Date Issued:
January 15, 2019 Summary:
The PCB of the CFAH1602B family is being revised. The new Rev will be Rev S Reason:
This is a continuing effort to improve our products. Impact:
The function of the module will be identical. Customers modifying backlight resistors may have to modify work instructions. Recommendation:
Customers do not need to make special buys. Samples may be purchased if a customer wishes to test modules with the revised PCBs. Availability:
Modules with the revised PCBs will be available as current stocks are depleted. Price Change:
No price change is anticipated
Subscribe to Part Change Notices byemail or RSS
for
CFAH1602B-YTI-JT
