20x2 Parallel Character LCD

Part Number: CFAH2002A-GGH-JP

Datasheet



Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAH2002A-GGH-JP or RSS RSS feed for changes to CFAH2002A-GGH-JP for CFAH2002A-GGH-JP


Description

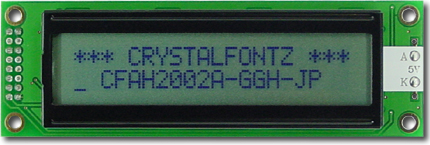

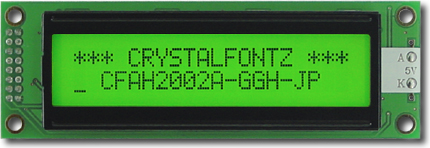

Parallel Character LCD 20x2, RoHS Compliant, Green LED Backlight, STN Positive, Gray, Transflective -20°C to +70°C 6:00

Please look at the CFAG19232C, which is a 192x32 graphic LCD module that is mechanically compatible with the standard CFAH2002A 20x2 character modules.

  • Form compatible with the CFAG19232C Series of Graphic LCD modules. Upgrade your product that uses this CFAH2002A character display by switching to the graphic CFAG19232C, or, lower your costs by replacing that graphic with this character module
  • Available in several variations of backlight and polarizer (minimum order may be required)
  • 8-bit or 4-bit parallel interface
  • Industry-standard HD44780 compatible controller

TECHNICAL SPECS

For reference only. For design purposes, please use the specifications in the datasheet.

Physical Characteristics

Characters x Lines 20 x 2
Module Overall width height depth
millimeters 116 37 13.9
inches 4.567 1.457 0.547
PCB Outline width height depth
millimeters 116 37 13.9
inches 4.567 1.457 0.547
Viewing Area width height
millimeters 85 18.6
inches 3.346 0.732
Active Area width height
millimeters 73.5 11.5
inches 2.894 0.453
Character Size width height
millimeters 3.2 5.55
inches 0.126 0.219
Character Pitch width height
millimeters 3.7 5.95
inches 0.146 0.234
Dot Size width height
millimeters 0.6 0.65
inches 0.024 0.026
Dot Pitch width height
millimeters 0.65 0.7
inches 0.026 0.028
Weight 52g

Optical Characteristics

Glass Type/Glass Color STN/Gray
Polarizer Transflective
View Direction 6 o'clock
Sunlight Readable Yes
Backlight Color Green
Backlight Type LED
Mode Positive
Foreground Color Dark
Background Color Green

Environmental

Operating Temperatures min max
Celsius -20° 70°
Fahrenheit -4° 158°
Storage Temperatures min max
Celsius -30° 80°
Fahrenheit -22° 176°
Humidity min max
Non-condensing 0% 90%

Electronics

Controller Sunplus SPLC780D
Interface 4-bit Parallel, 8-bit Parallel

*Suggest a Correction

Production Notes

While we do not offer any direct replacements for this product, perhaps one of our many other CFAH displays will fit your needs. Feel free to contact our tech support team to get assistance in finding the right display.
