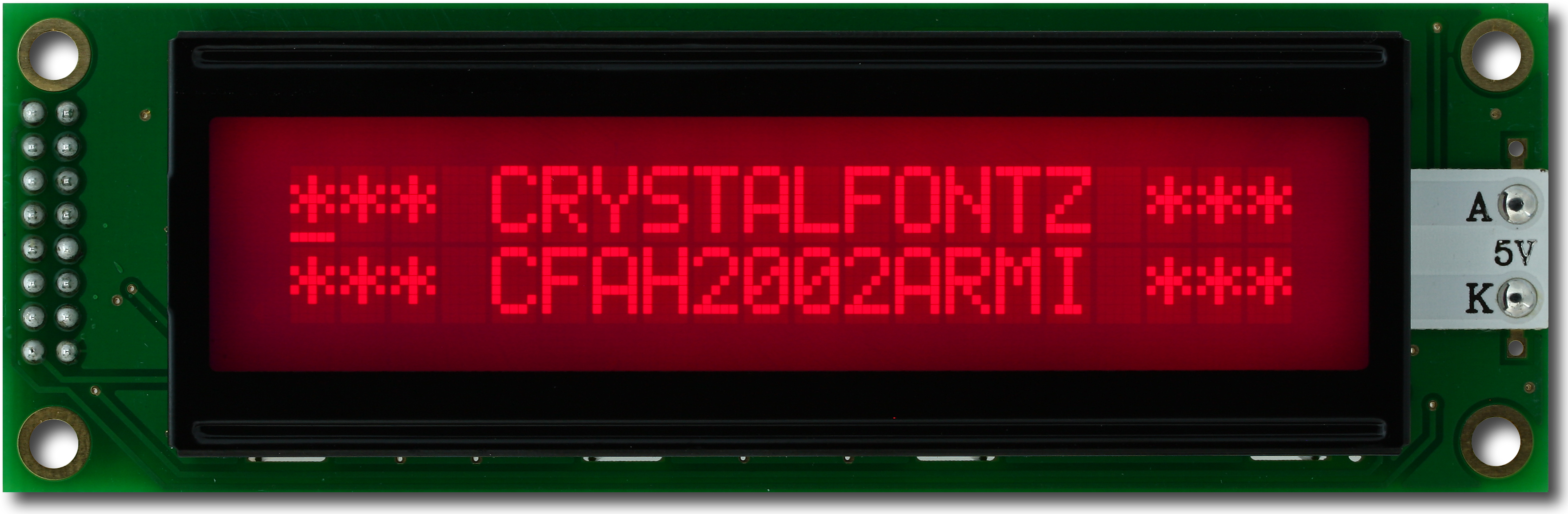

20x2 Parallel Character LCD

Part Number: CFAH2002A-RMI-JT

Parallel Character LCD 20x2, RoHS Compliant, Red LED Backlight, STN Negative, Blue, Transmissive -20°C to +70°C 6:00,

• Form compatible with the CFAG19232C Series of Graphic LCD modules. Upgrade your product that uses this CFAH2002A character display by switching to the graphic CFAG19232C, or, lower your costs by replacing that graphic with this character module
• Available in several variations of backlight and polarizer (minimum order may be required)
• 8-bit or 4-bit parallel interface
• Industry-standard HD44780 compatible controller

• grid_on Resolution

  Character Grid

  Characters	20
  Lines	2

• square_foot Physical Dimensions

  Module	Metric	Imperial
  Overall Width	116.00 mm	4.567 in
  Overall Height	37.00 mm	1.457 in
  Overall Depth	13.90 mm	0.547 in
  Weight	52 g

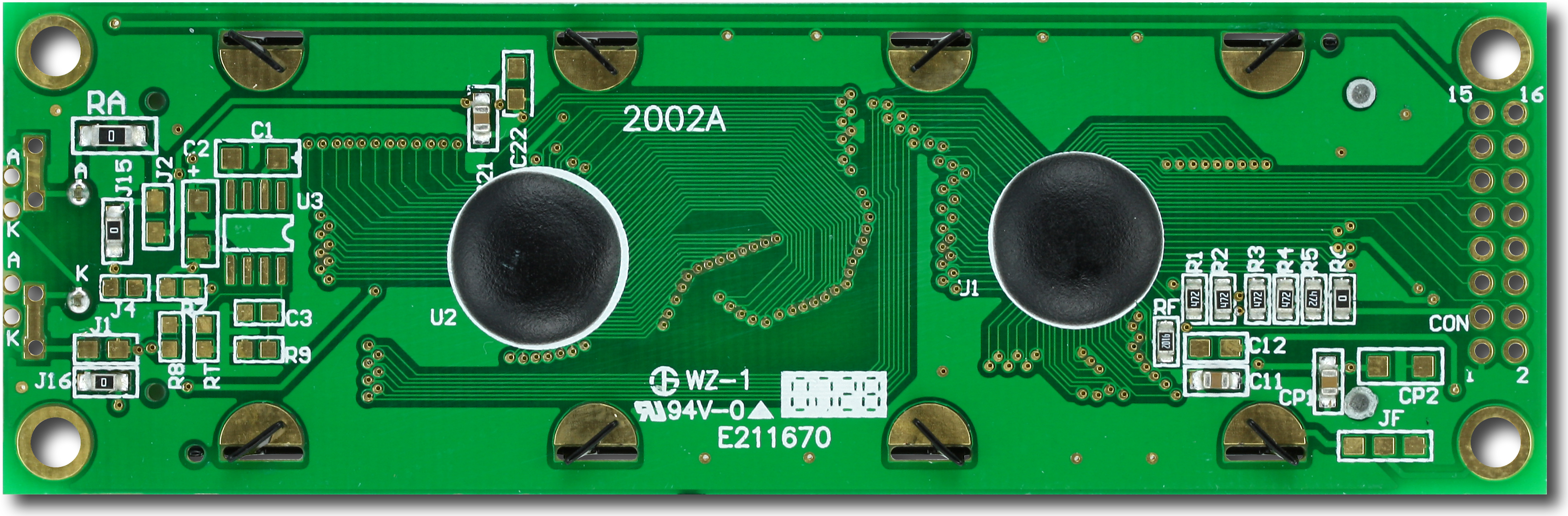

  PCB	Metric	Imperial
  PCB Width	116.00 mm	4.567 in
  PCB Height	37.00 mm	1.457 in
  PCB Depth	13.90 mm	0.547 in

  Display Area	Metric	Imperial
  Active Area Width	73.50 mm	2.894 in
  Active Area Height	11.50 mm	0.453 in
  Viewing Width	85.00 mm	3.346 in
  Viewing Height	18.60 mm	0.732 in

  Character Geometry	Metric	Imperial
  Character Width	3.20 mm	0.126 in
  Character Height	5.55 mm	0.219 in
  Character Pitch Width	3.70 mm	0.146 in
  Character Pitch Height	5.95 mm	0.234 in

  Dot Geometry	Metric	Imperial
  Dot Pitch Width	0.65 mm	0.026 in
  Dot Pitch Height	0.70 mm	0.028 in
  Dot Size Width	0.60 mm	0.024 in
  Dot Size Height	0.65 mm	0.026 in

• build Mechanical

  Connectors

  Module Connector Pitch

  0.10 mm (0.00 in)

• visibility Display Optics

  Technology

  Display Technology	LCD
  Display Addressing	passive
  Glass Type	STN
  Mode	Transmissive
  Polarizer	Negative

  Viewing

  View Direction

  6 o'clock

• palette Color & Appearance

  Display Colors

  Foreground Color	Red
  Background Color	Dark
  Glass Color	Blue

  Backlight

  Backlight Type	LED
  Backlight Color	Red

• cable Interface

  Available Interfaces

  Standard Interface(s)

  8-bit Parallel, 4-bit Parallel

• nature Environmental

  Temperature

  	Min (°C)	Max (°C)	Min (°F)	Max (°F)
  Operating Temperature	-20°C	70°C	-4°F	158°F
  Storage Temperature	-30°C	80°C	-22°F	176°F

  Humidity

  Relative Humidity

  0% to 90% RH (non-condensing)

• info Product Metadata

  Controller

  Built-in Controller

  Sitronix ST7066U

• download Downloads
  Datasheets


  picture_as_pdf

  CFAH2002ARMIJP.pdf






  Documents & Files


  folder_zip CAD Export - CFAH2002A 2D CAD


  picture_as_pdf 1 to 1 Template - CFAH2002A 1 TO 1.PDF





  Controller Documents:
  link Sitronix ST7066U
