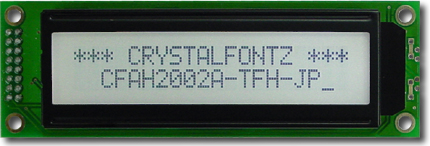

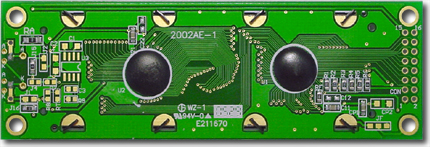

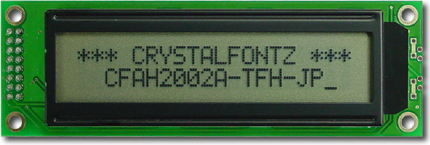

[EOL] 20x2 Gray Character LCD

Part Number: CFAH2002A-TFH-JP

Parallel Character LCD 20x2, RoHS Compliant, White Edge LED Backlight, FSTN Positive, Transflective -20°C to +70°C 6:00

• Form compatible with the CFAG19232C Series of Graphic LCD modules. Upgrade your product that uses this CFAH2002A character display by switching to the graphic CFAG19232C, or, lower your costs by replacing that graphic with this character module
• Available in several variations of backlight and polarizer (minimum order may be required)
• 8-bit or 4-bit parallel interface
• Industry-standard HD44780 compatible controller

• square_foot Physical Characteristics

  Physical Characteristics

  Characters x Lines

  20 x 2

  Module Overall	width	height	depth
  millimeters	116	37	13.9
  inches	4.567	1.457	0.547

  PCB Outline	width	height	depth
  millimeters	116	37	13.9
  inches	4.567	1.457	0.547

  Viewing Area	Width	Height
  millimeters	85	18.6
  inches	3.346	0.732

  Active Area	Width	Height
  millimeters	73.5	11.5
  inches	2.894	0.453

  Character Size	Width	Height
  millimeters	3.2	5.55
  inches	0.126	0.219

  Character Pitch	Width	Height
  millimeters	3.7	5.95
  inches	0.146	0.234

  Dot Size	Width	Height
  millimeters	0.6	0.65
  inches	0.024	0.026

  Dot Pitch	Width	Height
  millimeters	0.65	0.7
  inches	0.026	0.028

  Weight

  52g

• visibility Optical Characteristics

  Optical Characteristics

  Glass Type/Glass Color	FSTN/Light Gray
  Polarizer	Transflective
  View Direction	6 o'clock
  Sunlight Readable	Yes

  Backlight Color	White
  Backlight Type	LED
  Mode	Positive
  Foreground Color	Dark
  Background Color	White

• nature Enviromental

  Environmental

  Operating Temperatures	min	max
  Celsius	-20°	70°
  Fahrenheit	-4°	158°

  Storage Temperatures	min	max
  Celsius	-30°	80°
  Fahrenheit	-22°	176°

  Humidity	min	max
  Non-condensing	0%	90%

• cable Electronics

  Electronics

  Controller Documents	Sunplus SPLC780D 16COM/40SEG Controller/Driver
  Interface	4-bit Parallel, 8-bit Parallel

• picture_as_pdf Datasheets
  picture_as_pdf

  CFAH2002ATFHJT Datasheet


• download Files and Downloads
  folder_zip CAD Export - CFAH2002A 2D CAD


  picture_as_pdf 1 to 1 Template - CFAH2002A 1 TO 1.PDF
