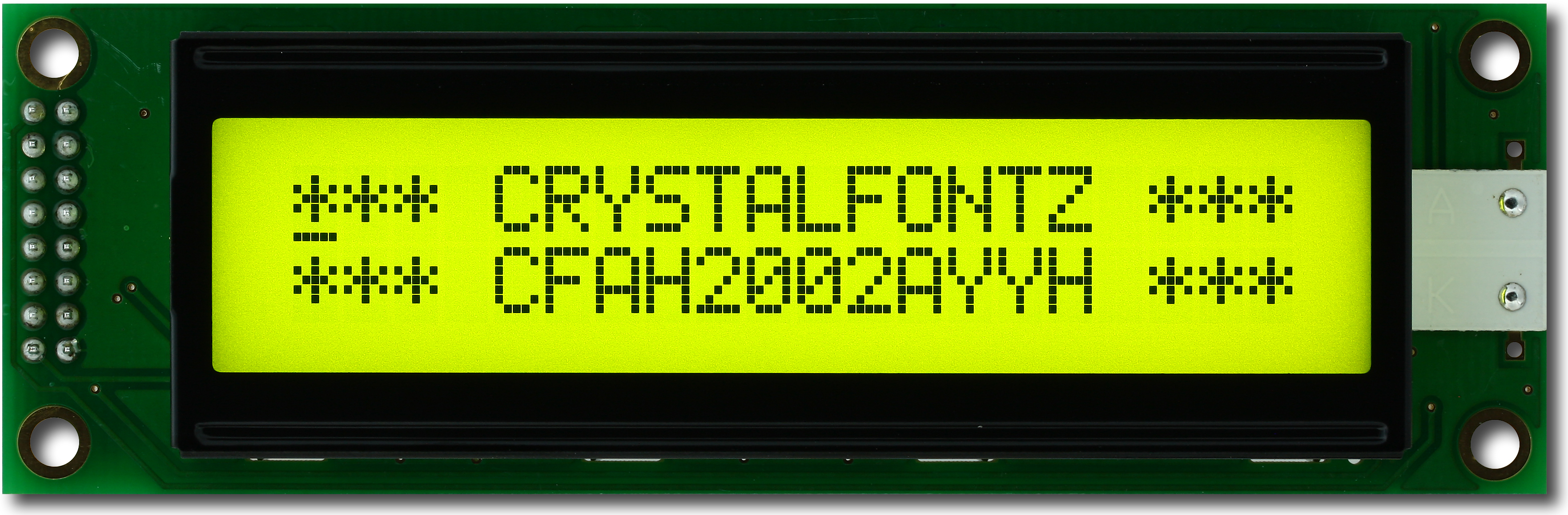

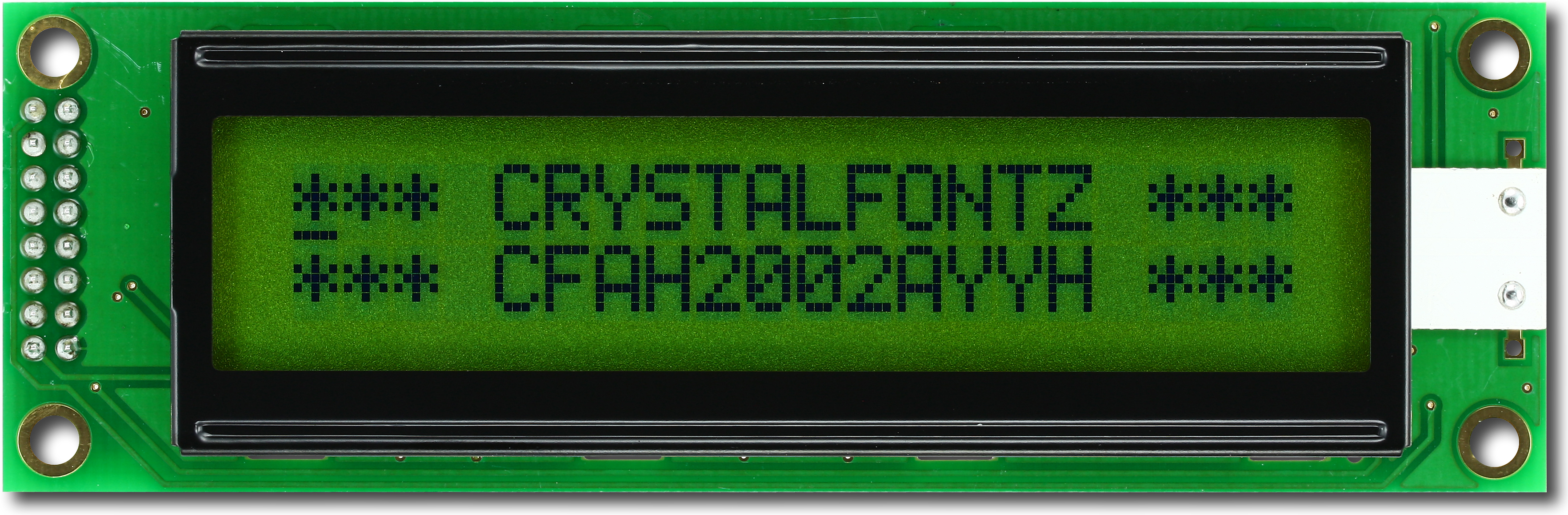

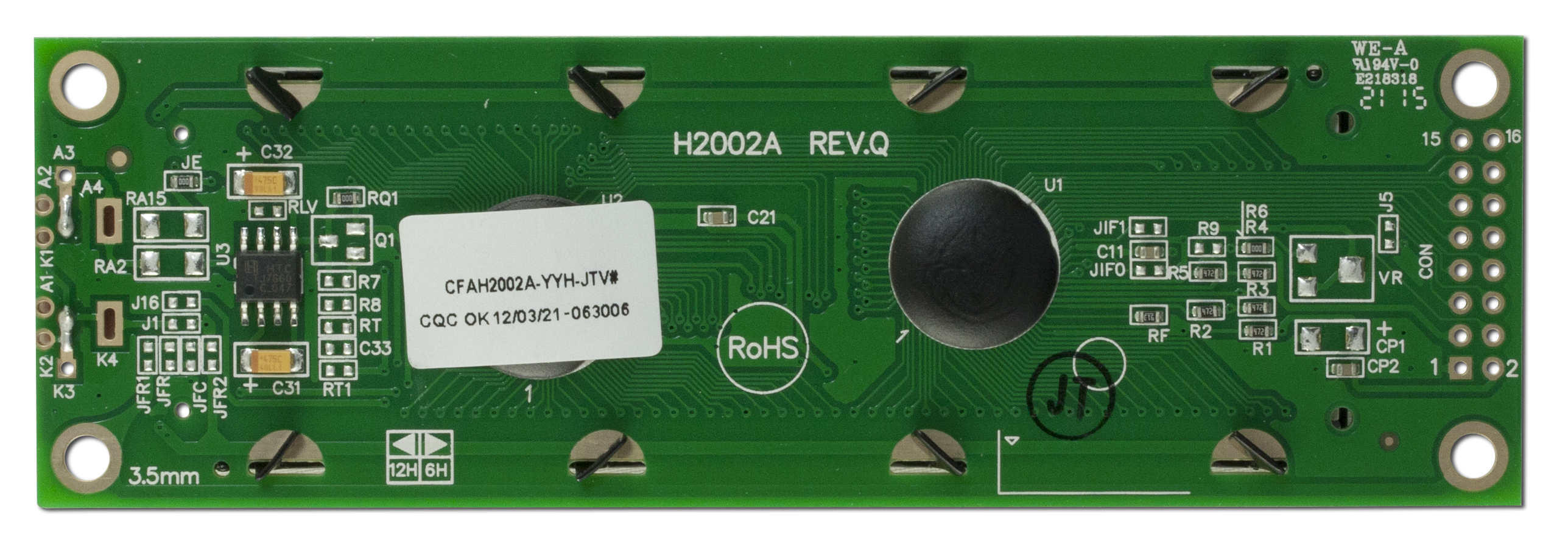

20x2 Dark on Yellow Character LCD

Part Number: CFAH2002A-YYH-JTV

Parallel Character LCD 20x2, RoHS Compliant, Yellow/Green LED Backlight, STN Positive, Yellow/Green, Transflective -20°C to +70°C 6:00 viewing angle. Negative Voltage Generator

  • Form compatible with the CFAG19232C Series of Graphic LCD modules. Upgrade your product that uses this CFAH2002A character display by switching to the graphic CFAG19232C, or, lower your costs by replacing that graphic with this character module
  • Available in several variations of backlight and polarizer (minimum order may be required)
  • 8-bit or 4-bit parallel interface
  • Industry-standard HD44780 compatible controller

Product Variants


4-bit Parallel / 8-bit Parallel

CFAH2002A-NGG-JTReflective 20x2 Character LCD
CFAH2002A-NYG-JTGreen 20x2 Standard Character LCD
CFAH2002A-NYG-JTVGreen Reflective Standard 20x2 Character LCD
CFAH2002A-TFH-JT20x2 Character Dark on Gray LCD
CFAH2002A-TMI-JT20x2 Character LCD White on Blue
CFAH2002A-YMI-JTYellow-Green 20x2 Character LCD
CFAH2002A-YMI-JTV20x2 Character LCD Yellow on Green
CFAH2002A-YYH-JTBlack on Yellow 20x2 Character LCD
CFAH2002A-YYH-JTV20x2 Dark on Yellow Character LCD

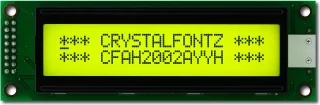

20x2 Dark on Yellow Character LCD (CFAH2002A-YYH-JTV)
Qty:
Quantity Price
1 $16.99
5 $15.63
10 $13.81
20 * $13.34
50 * $12.88
100 * $12.70
200 * $12.60
300 * $11.95
500 * $11.86
1000 * $11.22
* Pricing is subject to change. Contact us about potential lead times.
Components worth considering
4685 8x2 Pin Dual Row Header
Add header pins? (5pk) $0.28 ea.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Datasheet

Files

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAH2002A-YYH-JTV or RSS RSS feed for changes to CFAH2002A-YYH-JTV for CFAH2002A-YYH-JTV

Compliance Documents

TECHNICAL SPECS

Physical Characteristics

Characters x Lines 20 x 2
Module Overall width height depth
millimeters 116 37 13.9
inches 4.567 1.457 0.547
PCB Outline width height depth
millimeters 116 37 13.9
inches 4.567 1.457 0.547
Diagonal Dimension 2.93"
Viewing Area width height
millimeters 85 18.6
inches 3.346 0.732
Active Area width height
millimeters 73.5 11.5
inches 2.894 0.453
Character Size width height
millimeters 3.2 5.55
inches 0.126 0.219
Character Pitch width height
millimeters 3.7 5.95
inches 0.146 0.234
Dot Size width height
millimeters 0.6 0.65
inches 0.024 0.026
Dot Pitch width height
millimeters 0.65 0.7
inches 0.026 0.028
Weight 52g
Pin Count 16

Optical Characteristics

Glass Type/Glass Color STN/Yellow-Green
Polarizer Transflective
View Direction 6 o'clock
Sunlight Readable Yes
Backlight Color Yellow-Green
Backlight Type LED
Mode Positive
Foreground Color Dark
Background Color Yellow-Green

Electrical Specifications

Module Connector Pitch 0.1mm

Environmental

Operating Temperatures min max
Celsius -20° 70°
Fahrenheit -4° 158°
Storage Temperatures min max
Celsius -30° 80°
Fahrenheit -22° 176°
Humidity min max
Non-condensing 0% 90%

Electronics

Controller Documents Sitronix ST7066U
ST7066U
Dot Matrix LCD Controller/Driver
Sitronix ST7066U

Sitronix ST7066U
Dot Matrix LCD Controller/Driver
Interface 4-bit Parallel, 8-bit Parallel

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAH2002A-YYH-JTV or RSS RSS feed for changes to CFAH2002A-YYH-JTV

Product Update #10941: The parts listed are being updated.

Products Affected: CFAH2002A-NGG-JT, CFAH2002A-NYG-JT, CFAH2002A-NYG-JTV, CFAH2002A-TFH-JT, CFAH2002A-TMI-JT, CFAH2002A-YMI-JT, CFAH2002A-YYH-JT, CFAH2002A-YYH-JTV
Date Issued: March 23, 2018
Summary: The parts listed are being updated.
Description: The PCB will be revised to improve manufacturability and performance. The PCB will be marked as REV Q.
Reason: Continuous product improvement
Impact: There is no impact. The functionality of the module will not change.
Recommendation: None
Availability: Modules with the revised PCBs will be available when current stocks are depleted.
Price Change: TBD
Response: None Required
