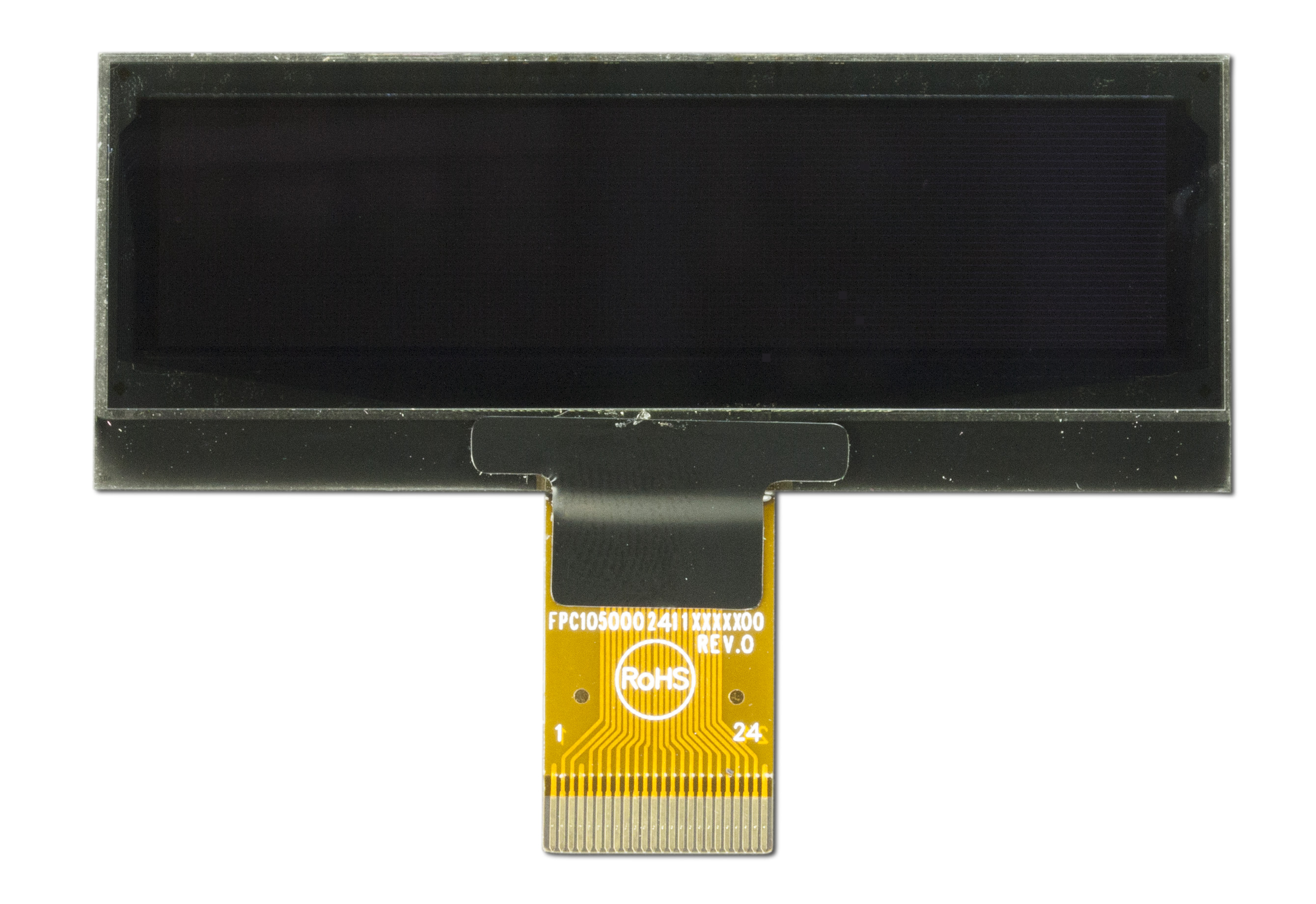

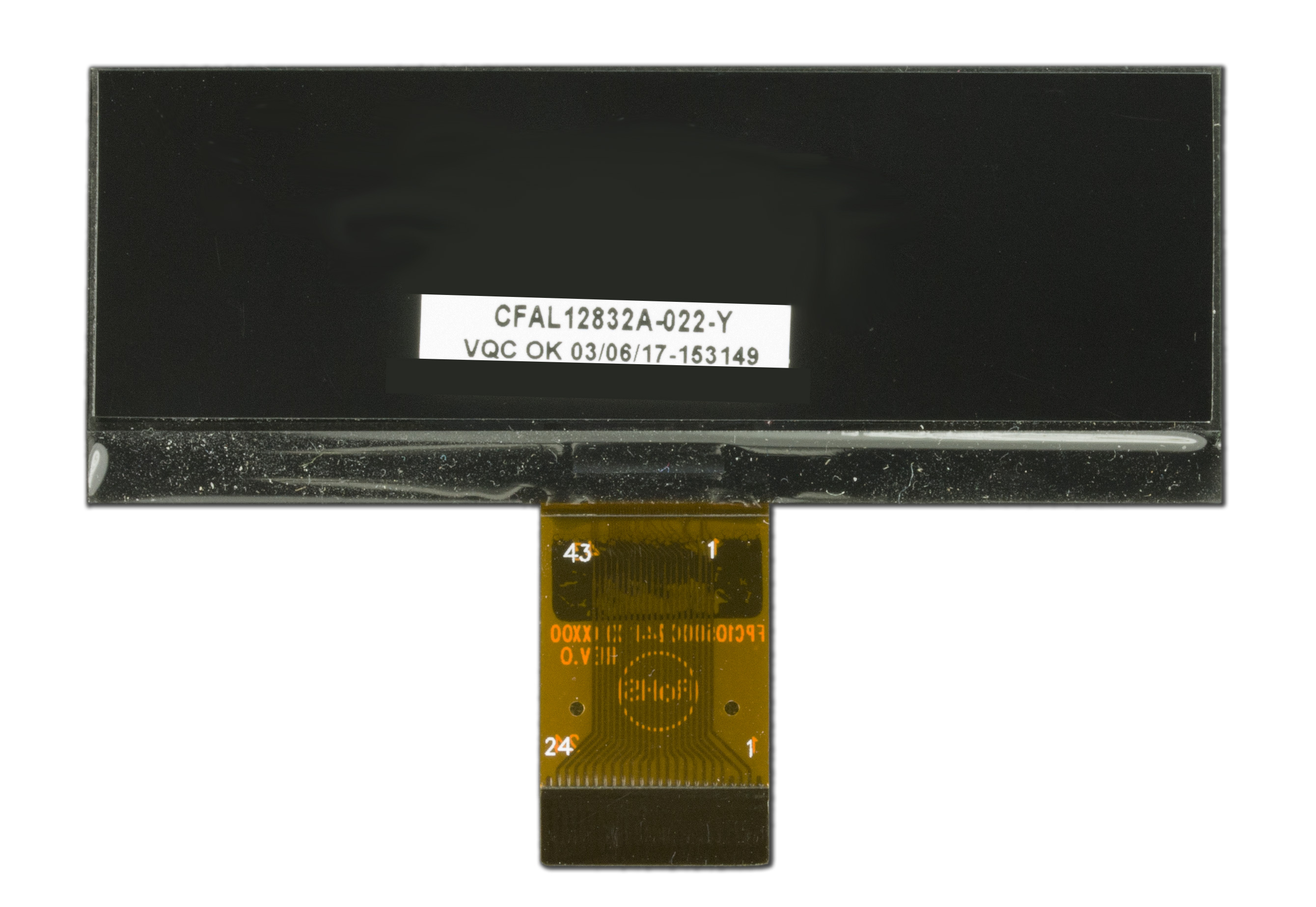

128x32 Small Yellow OLED Module

Part Number: CFAL12832A-022Y

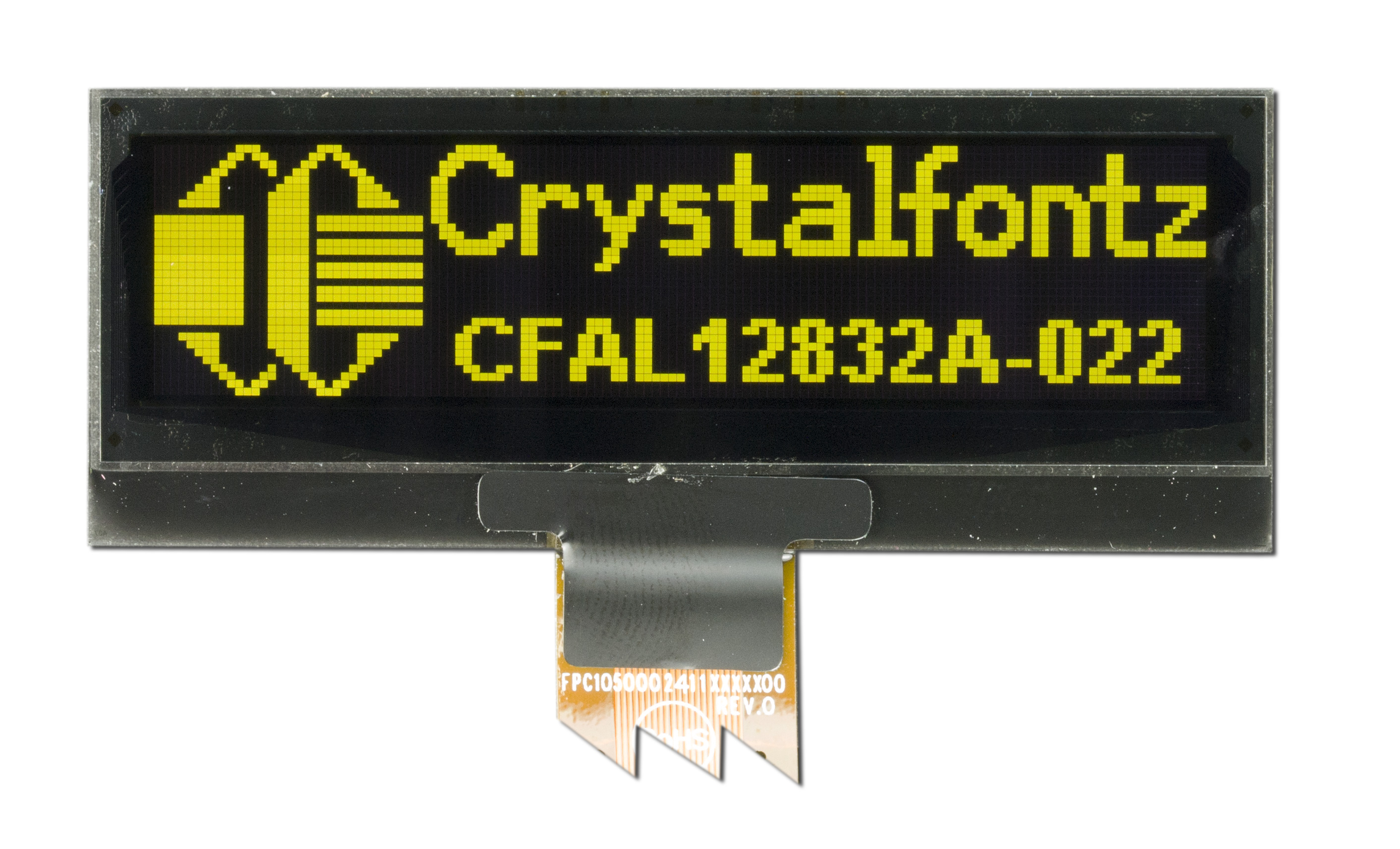

128x32 small, super readable, yellow on black, graphical OLED. If you're looking for a small high-def OLED module, with low power requirements, this one might work for you.
  • 128*32 Dot Matrix
  • Built-in controller Solomon Systech SSD1305
  • +3V Power supply
  • 1/32 duty
  • Interface: 6800, 8080, SPI, I2C
  • Arduino Compatible! Checkout the demo sketch in the files section

Product Variants

CFAL12832A-022WSmall 128x32 Graphic OLED
CFAL12832A-022Y128x32 Small Yellow OLED Module
128x32 Small Yellow OLED Module (CFAL12832A-022Y)
Qty:
Quantity Price
1 * $20.38
5 * $17.99
10 * $16.57
20 * $16.01
50 * $15.44
100 * $14.59
200 * $14.49
300 * $13.75
500 * $13.65
1000 * $12.59
* For quantites over this amount the lead time may be up to 60 days. Contact us about potential lead times.
Components worth considering
4656 Multi-use ZIF Breakout Board
Faster development $22.34 ea.
4626 24 Position, 0.5mm Pitch, Gold, FCC FPC ZIF Connector
Add 5 ZIF Connectors $0.97 ea.
4826 24-Position ZIF Breakout Board
Add a 24-pin ZIF Breakout Board? $6.08 ea.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Datasheet

CFAL12832A022Y Datasheet
(Datasheet V 1.0)

Files

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAL12832A-022Y or RSS RSS feed for changes to CFAL12832A-022Y for CFAL12832A-022Y

Compliance Documents

TECHNICAL SPECS

Physical Characteristics

Column Dots x Row Dots 128 x 32

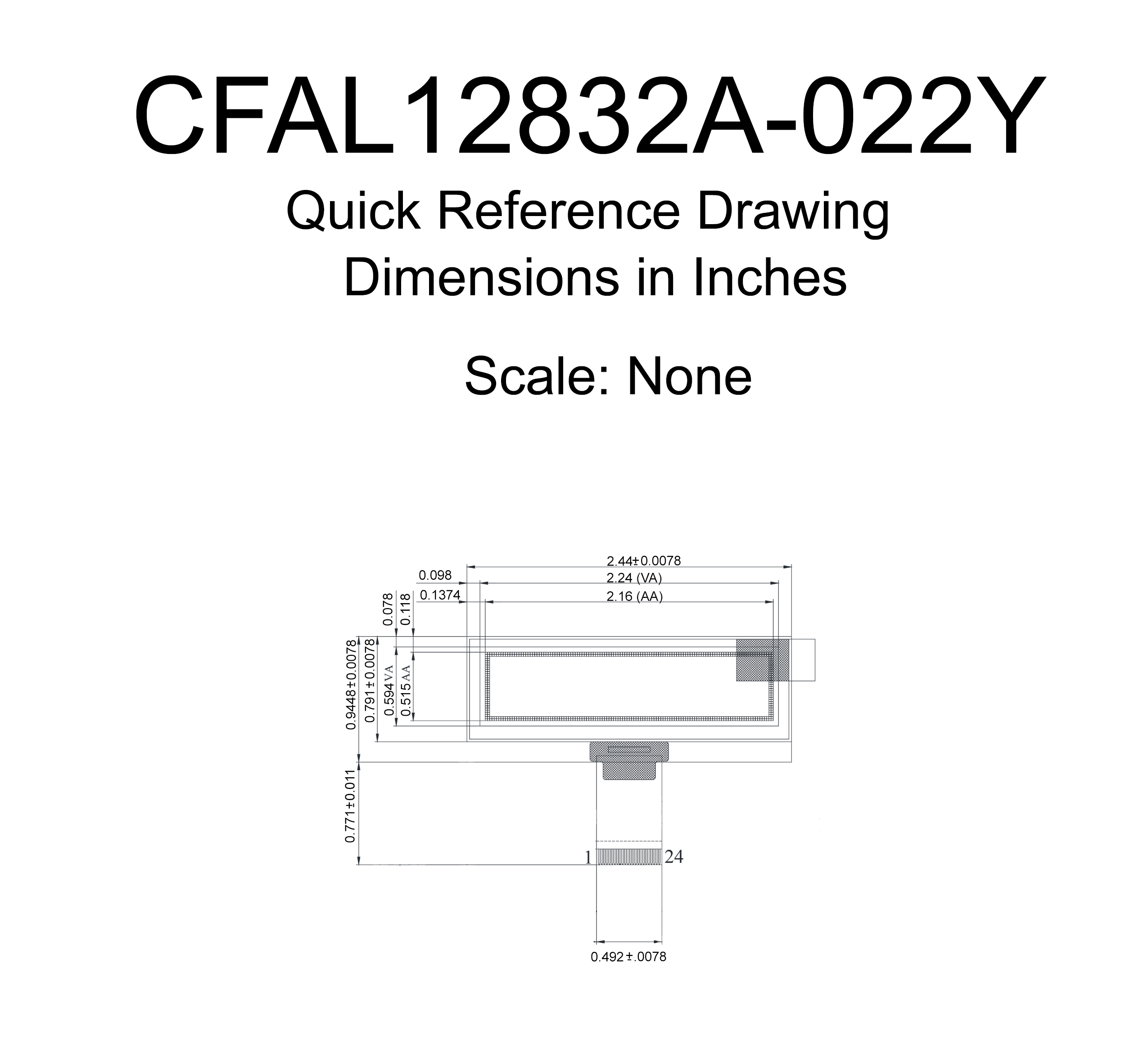

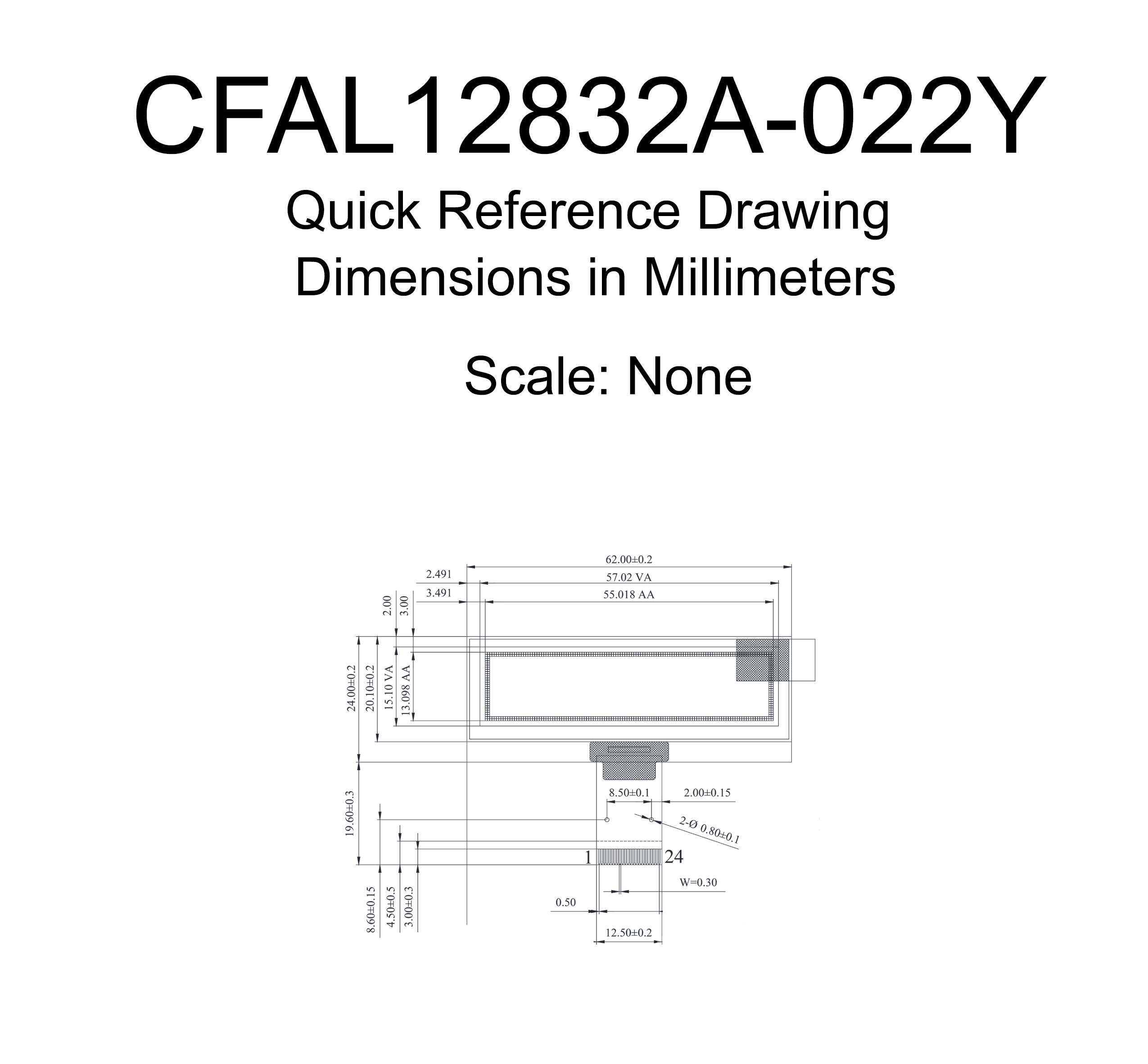

Module Overall width height depth
millimeters 62 24 2.35
inches 2.441 0.945 0.093
*width / height does not include Foldable Tab
Diagonal Dimension 2.23"
Viewing Area width height
millimeters 57.02 15.1
inches 2.245 0.594
Active Area width height
millimeters 55.018 13.098
inches 2.1661 0.5157
Dot Size width height
millimeters 0.408 0.388
inches 0.0161 0.0153
Dot Pitch width height
millimeters 0.43 0.41
inches 0.017 0.016
Optional Connectors CS050Z24GA0
Flexible Cable (FFC/FPC) length
millimeters 19.6
inches 0.772
Weight 6g

Optical Characteristics

Glass Type OLED
Polarizer Emissive
View Angle 160°
Foreground Color Yellow
Background Color Black

Electrical Specifications

Supply Voltage for Logic Typical 3.3V
Supply Voltage for Driving Panel Typical 12:00V

Environmental

Operating Temperatures min max
Celsius -40° 80°
Fahrenheit -40° 176°
Storage Temperatures min max
Celsius -40° 80°
Fahrenheit -40° 176°

Electronics

Controller Documents Solomon Systech SSD1305
SSD1305 132 x 64 Dot Matrix
OLED/PLED Segment/Common Driver with Controller
Interface 8-bit Parallel, I2C, SPI

Miscellaneous

Foldable Tab Yes

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAL12832A-022Y or RSS RSS feed for changes to CFAL12832A-022Y

Product Update #10847: (New Product) CFAL12832A-022Y

New Product: CFAL12832A-022Y
Date Issued: April 13, 2017
Summary: (New Product) CFAL12832A-022Y
Description: OLED Modules: 128x32 small, super readable, yellow on black, graphical OLED. If you're looking for a small high-def OLED module, with low power requirements, this one might work for you.


128*32 Dot Matrix
Built-in controller SSD1305Z
+3V Power supply
1/32 duty
Interface: 6800, 8080, SPI, I2C
For reference only. For design purposes, please use the specifications in the datasheet.
