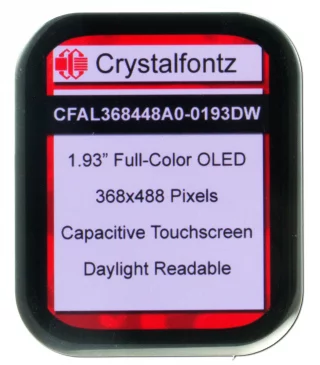

368x448 Touchscreen Full-Color Graphic OLED Module

Part Number: CFAL368448A00-193DW

Crisp, vivid, and ready to touch: this 1.93" AMOLED with integrated capacitive touch delivers premium visuals and responsive input in a single compact assembly. A 60,000:1 contrast ratio, 600 cd/mA brightness, and 100% NTSC color gamut make every pixel count, while OCA-bonded OGS touch keeps the optical stack clean and the total assembly just 2.11mm thin.

AMOLED Visuals at 368x448

Every pixel generates its own light, so blacks are truly black with no backlight bleed. The 30.91mm x 38.17mm active area delivers sharp, vibrant imagery with under 3ms response time and 85° viewing angles in all four directions. QSPI interface keeps pin count low while maintaining fast data throughput via the CH13620 driver.

OCA-Bonded Capacitive Touch

The OGS capacitive touch panel is bonded to the display glass with optically clear adhesive, eliminating the air gap and internal reflections you'd get from a non-bonded assembly. The result is better contrast, improved outdoor readability, and a thinner stack than air-gap designs. The CST816D touch controller communicates over I²C and shares the same 19-pin FPC as the display, so one connector handles both display and touch.

Ideal Applications

• Smartwatches and fitness wearables
• Compact medical and handheld instruments
• Smart home control panels
• Portable audio players and IoT sensor displays
• Access control and premium consumer electronics

Key Features

• AMOLED panel: true emissive display, no backlight required
• 1.93" diagonal, 368xRGBx448 resolution
• 60,000:1 contrast ratio, 600 cd/mA luminance (typical)
• 16.7M colors, 100% NTSC color gamut
• 85° viewing angles in all four directions
• Under 3ms response time
• OCA-bonded OGS capacitive touch, CST816D controller (I²C)
• 2.11mm total assembly thickness
• QSPI + touch via single 19-pin FPC connector
• Operating temperature: -20°C to +70°C
• RoHS compliant

Part Number Breakdown

• CFAL - Crystalfontz America OLED display module
• 368448 - 368x448 pixel resolution
• A0 - Display family A, revision 0
• 0193 - 1.93" diagonal display size
• D - Daylight readable
• W - Capacitive touch with extended glass
