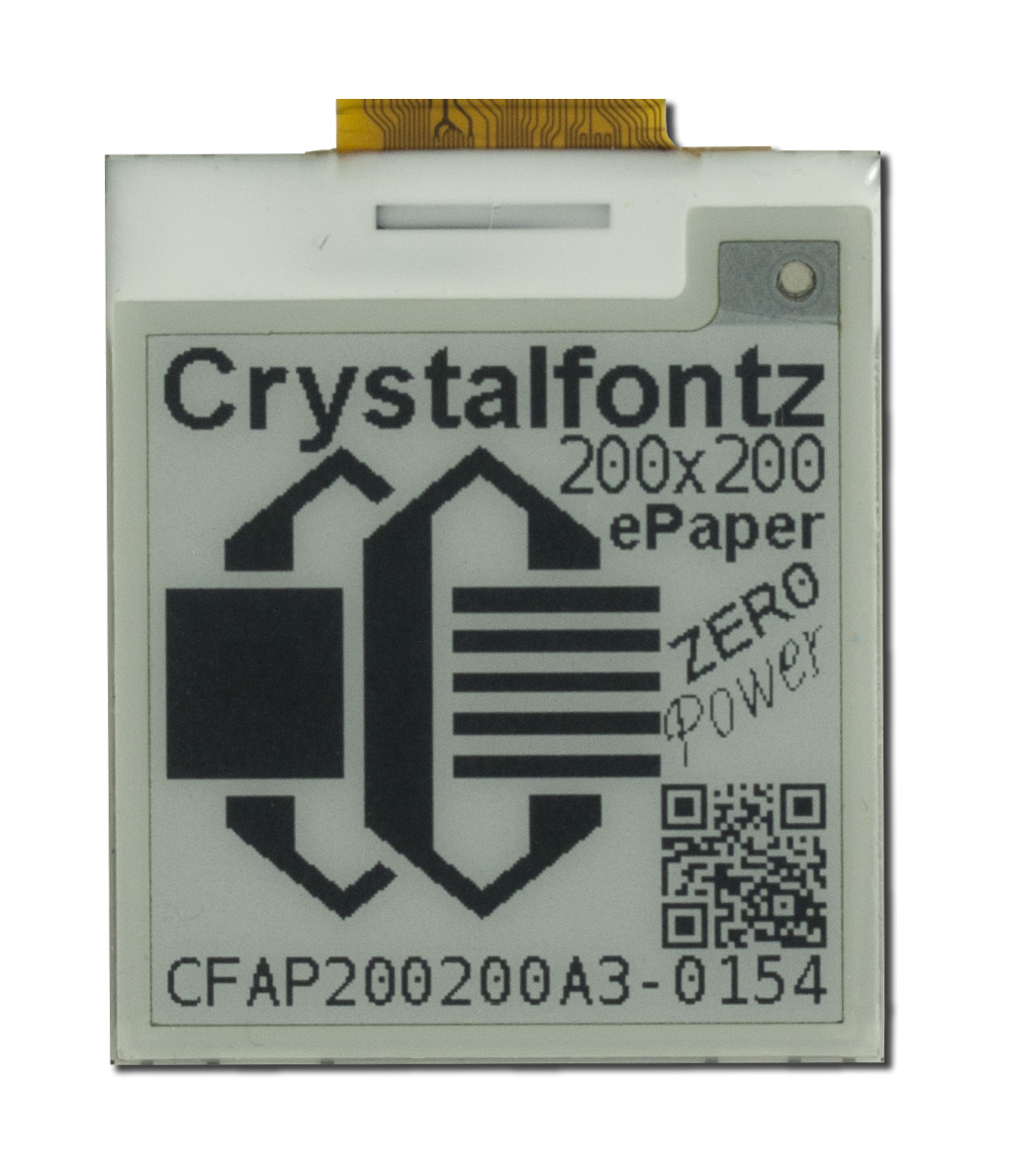

200x200 ePaper with Adapter Board

Part Number: CFAP200200A3-E2-1

Easily integrate this 1.54" black and white ePaper display into your product. This ePaper module takes care of all the circuitry required to operate the display so only the COM and power lines need to be supplied.

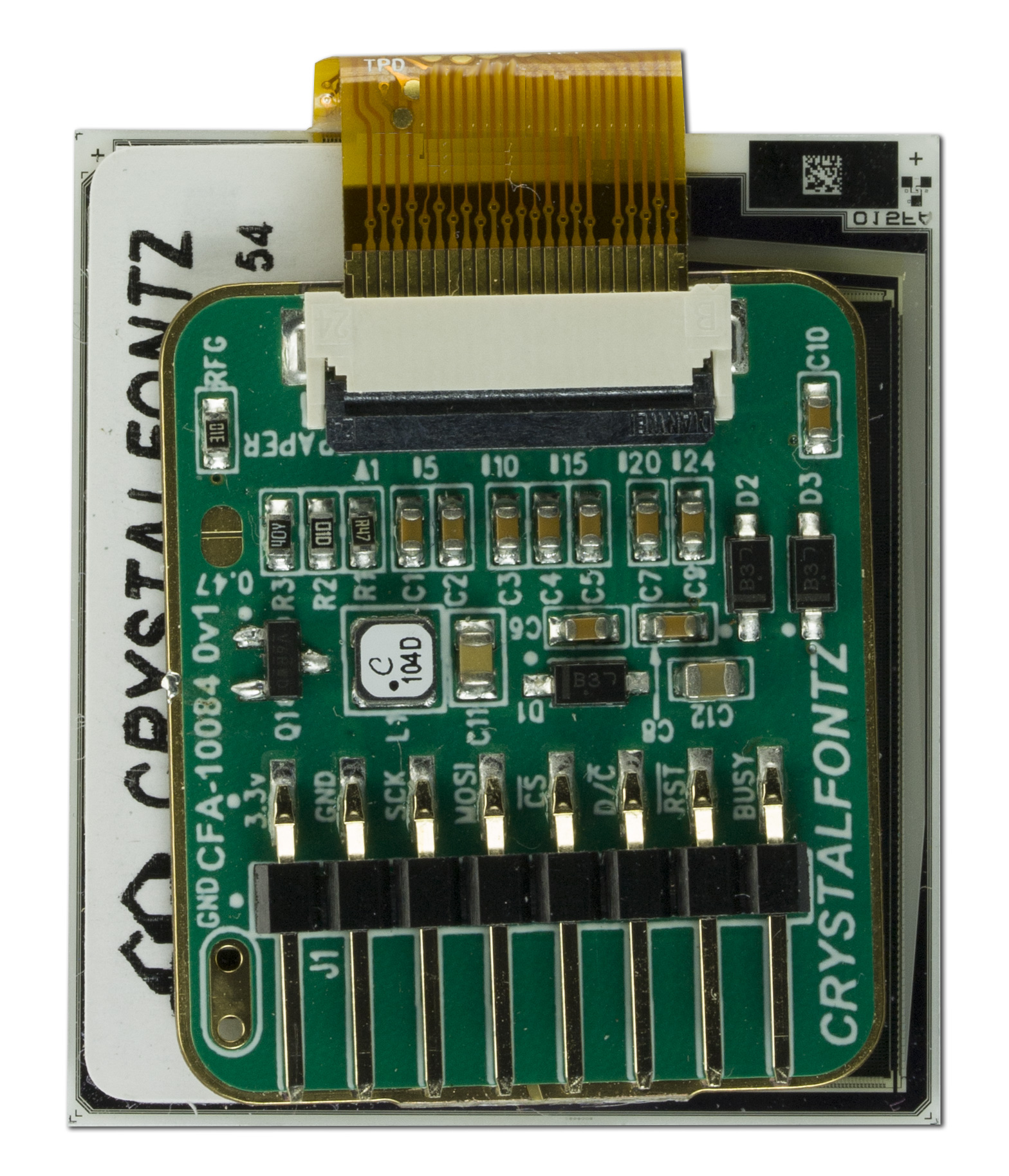

This kit comprises a 200x200 1.54" ePaper display and the CFA10084 ePaper adapter board mounted on the back of the display.

A full 1.54" black and white ePaper demonstration kit is also available.

ePaper reflects light like paper, meaning it's sunlight-readable and can be viewed from wide angles
Supports 3 or 4 wire SPI for communications
Bi-stable image displays without flickering
Supports partial screen updates
~5 years / ~1M updates
~2sec for a full screen update

Physical Characteristics

Column Dots x Row Dots

200 x 200

Module Overall	width	height	depth
millimeters	31.8	37.32	1.05
inches	1.25	1.47	0.04
*width / height does not include Foldable Tab

Diagonal Dimension

1.5"

Active Area	Width	Height
millimeters	27	27
inches	1.06	1.06

Dot Pitch	Width	Height
millimeters	0.135	0.135
inches	0.0053	0.0053

Weight	4.8g
Pin Count	24

Optical Characteristics
Optical Characteristics

Glass Type ePaper

Sunlight Readable Yes

Foreground Color black

Background Color white
Electrical Specification
Electrical Specifications

Supply Voltage for Logic Minimum 2.2V

Supply Voltage for Logic Maximum 3.7V

Supply Voltage for Logic Typical 3.3V

Module Connector Pitch 2.54mm
Environmental
Environmental

Operating Temperatures min max

Celsius 0° 50°

Fahrenheit 32° 122°

Storage Temperatures min max

Celsius -25° 60°

Fahrenheit -13° 140°

Humidity min max

Non-condensing 40% 70%
Electronics
Electronics

Interface SPI
Datasheets

picture_as_pdf
CFA10084 Datasheet

picture_as_pdf
CFAP200200A3-0154 Datasheet
Files and Downloads

folder_zip Hardware Design - 3D Model

Operating Temperatures	min	max
Celsius	0°	50°
Fahrenheit	32°	122°

Storage Temperatures	min	max
Celsius	-25°	60°
Fahrenheit	-13°	140°

Humidity	min	max
Non-condensing	40%	70%
