1.54" ePaper Development Kit

Part Number: CFAP200200A3-E2-2

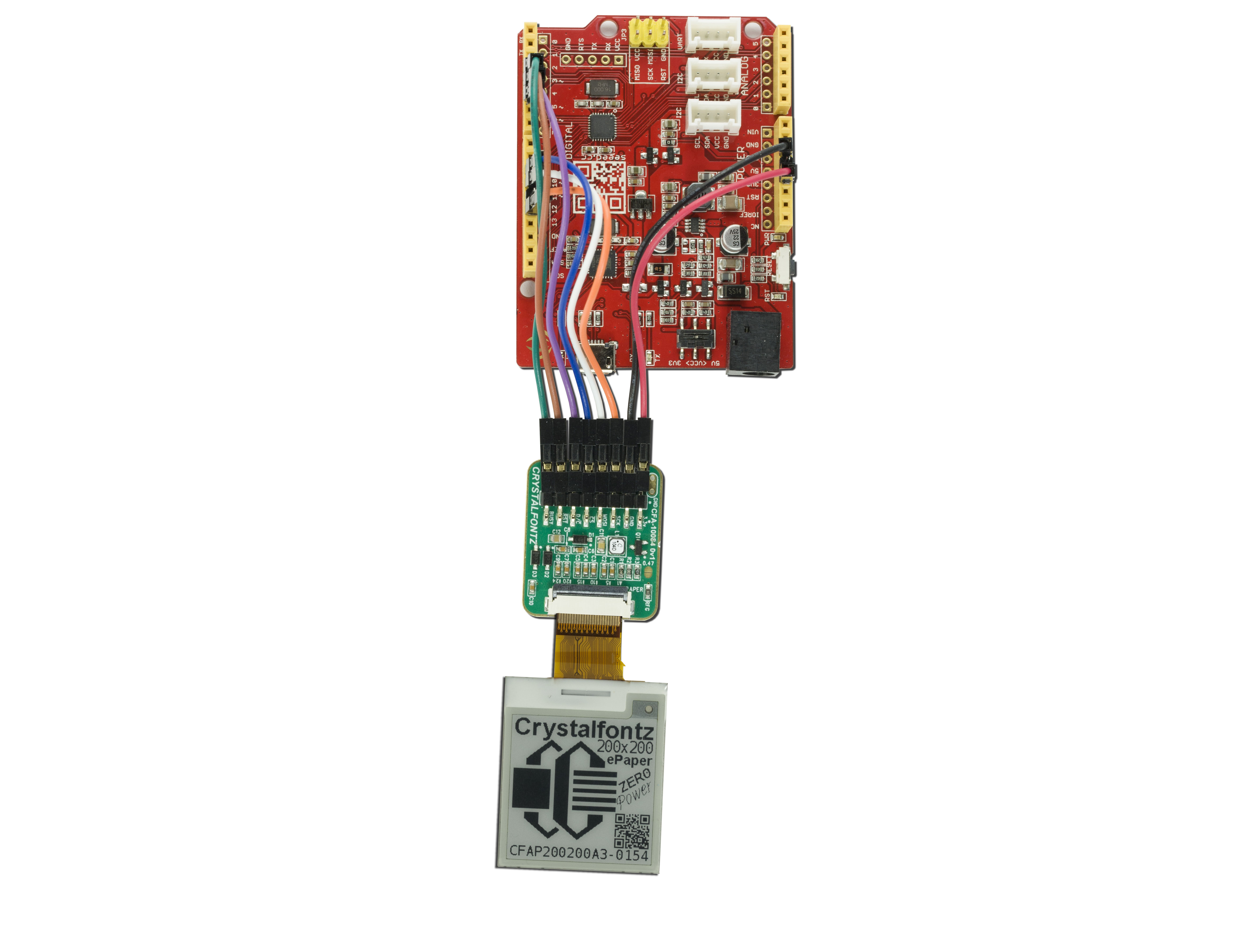

Need to get to development fast? This is a full and working demo kit for the 1.54" Square ePaper Display. The 1.54" black and white display is connected to the ePaper adapter board and wired to a Seeeduino running demonstration code so you can have a functioning demo in your hands as fast as possible.

The kit includes:
  • Seeeduino
  • CFA10084
  • CFAP200200A3-0154
  • USB cable
  • All necessary wires and headers to connect them together
We can also provide just the ePaper and adapter board.
  • square_foot Physical Characteristics

    Physical Characteristics

    Column Dots x Row Dots 200 x 200
    Module Overall width height depth
    millimeters 31.8 37.32 1.05
    inches 1.252 1.469 0.041
    *width / height does not include Foldable Tab
    Diagonal Dimension 1.5"
    Active Area Width Height
    millimeters 27 27
    inches 1.063 1.063
    Dot Pitch Width Height
    millimeters 0.135 0.135
    inches 0.0053 0.0053
    Weight 26g
    Pin Count 24
  • visibility Optical Characteristics

    Optical Characteristics

    Glass Type ePaper
    Sunlight Readable Yes
    Foreground Color black
    Background Color white
  • electric_bolt Electrical Specification

    Electrical Specifications

    Supply Voltage for Logic Minimum 2.2V
    Supply Voltage for Logic Maximum 3.7V
    Supply Voltage for Logic Typical 3.3V
    Module Connector Pitch 2.54mm
  • nature Enviromental

    Environmental

    Operating Temperatures min max
    Celsius 50°
    Fahrenheit 32° 122°
    Storage Temperatures min max
    Celsius -25° 60°
    Fahrenheit -13° 140°
    Humidity min max
    Non-condensing 40% 70%
  • cable Electronics

    Electronics

    Interface SPI
  • picture_as_pdf Datasheets

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAP200200A3-E2-2 or RSS RSS feed for changes to CFAP200200A3-E2-2
  • text_snippet
    End-Of-Life #11176: End-Of-Life Notification
    Products Affected: CFAP104212D0-0213, CFAP200200A3-E2-1, CFAP200200A3-E2-2
    Date Issued: February 27, 2023
    Summary: End-Of-Life Notification
    Description: This product is going EOL and being replaced with the CFAP104212D00213. There are some changes to the initialization sequence that will be required.
    Reason: The controller for the display sometimes exhibits errors if it is not reset using the new sequence as shown in the demonstration code.
    Availability: Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.
