DB9 Female to DB9 Male Cable

Part Number: WR-232-Y09

Pricing

Quantity Price
1 $5.45
20 $4.36
50 $3.82
* Contact us about potential lead times.
Qty:
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to WR-232-Y09 or RSS RSS feed for changes to WR-232-Y09 for WR-232-Y09

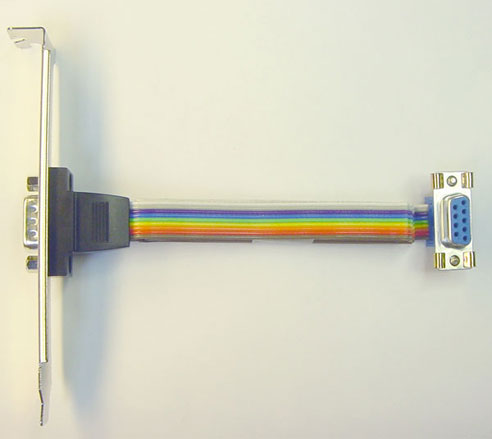

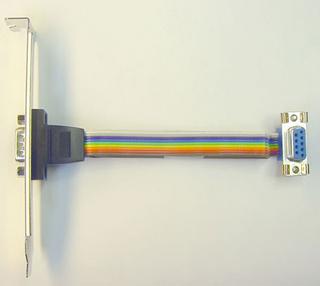

DB9 Female to DB9 Male Cable (WR-232-Y09)
DB9 Female to DB9 Male Cable
Close

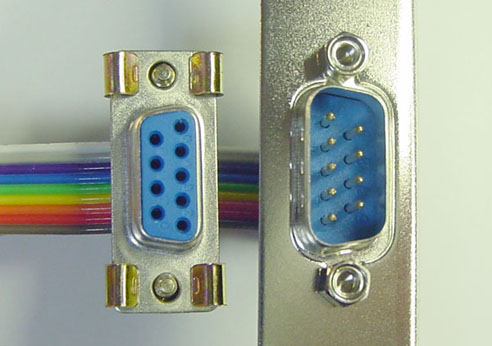

This is a close-up of the DB9 ends of the ribbon cable.
This is a close-up of the DB9 ends of the ribbon cable.
This is a close-up of the DB9 ends of the ribbon cable.
Close

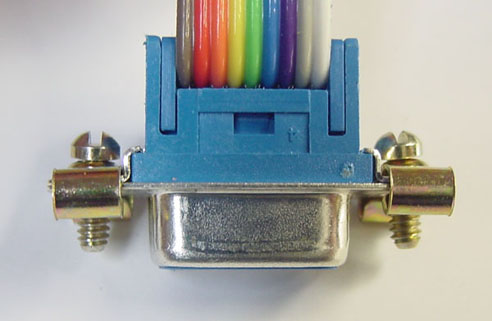

This is a close-up of the DB9 connector hardware.
This is a close-up of the DB9 connector hardware.
This is a close-up of the DB9 connector hardware.
Close

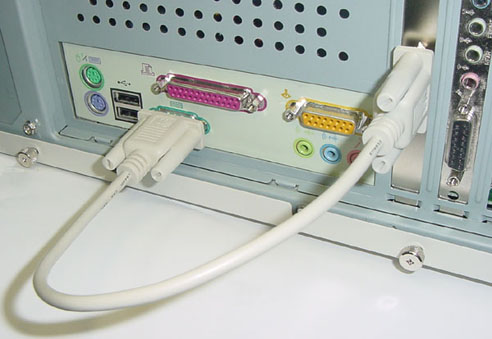

This shows the bracket end of the WR232Y09 in the
PC expansion slot (with the ribbon cable inside), and the WR232Y10 13 cable
connecting the WR232Y09 bracket end with the serial port.
This shows the bracket end of the WR232Y09 in the
PC expansion slot (with the ribbon cable inside), and the WR232Y10 13 cable
connecting the WR232Y09 bracket end with the serial port.
This shows the bracket end of the WR232Y09 in the PC expansion slot (with the ribbon cable inside), and the WR232Y10 13" cable connecting the WR232Y09 bracket end with the serial port.
Close

Description

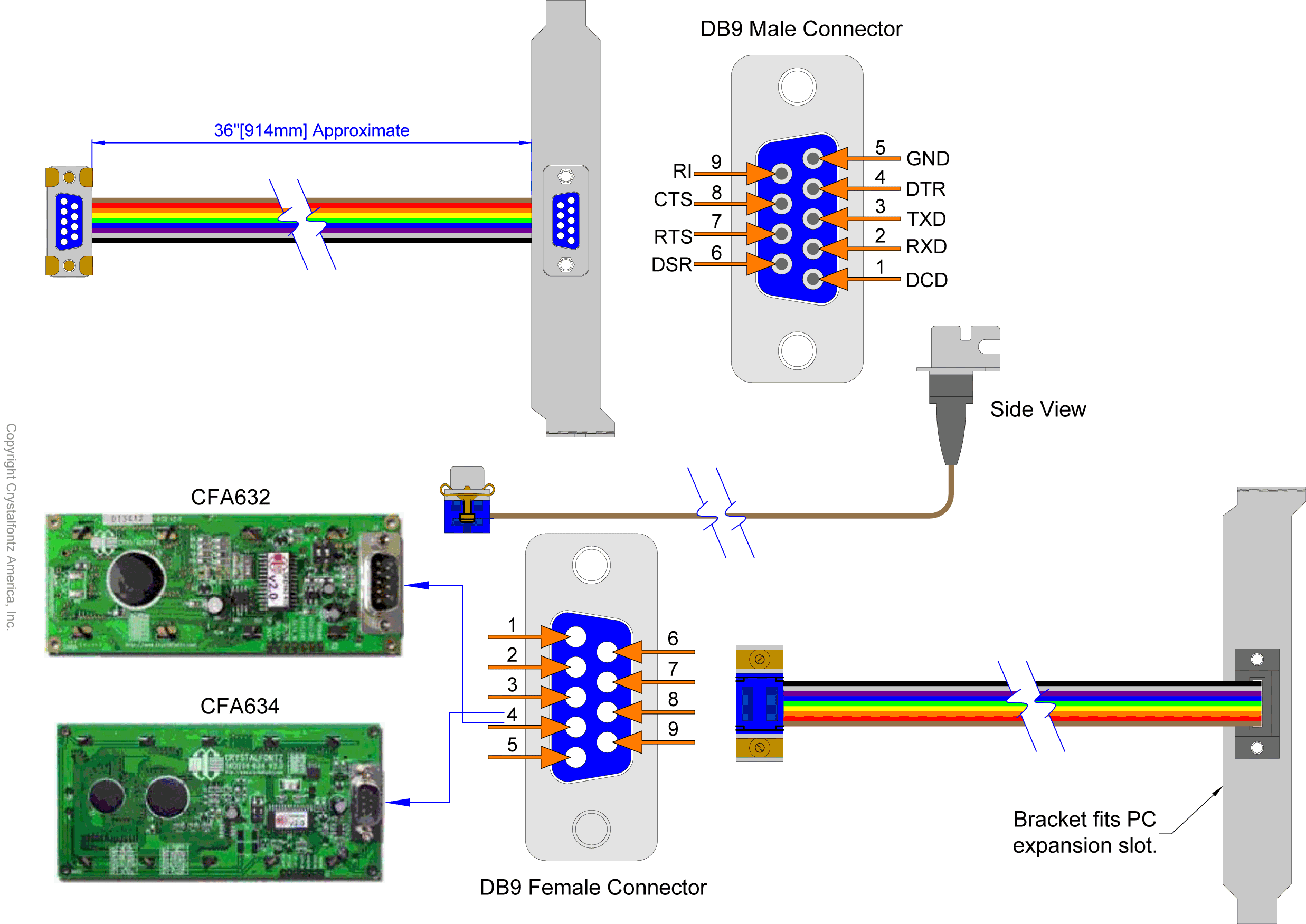

This RS232 ribbon cable, DB9 female to DB9 male with a bracket to fit a PC expansion slot. You can connect our serial CFA-632 or CFA-634 displays to a standard 9-pin RS232 connection as found on a PC or the USB232a converter.

TECHNICAL SPECS

Physical Characteristics

Flexible Cable (FFC/FPC) length
millimeters 965
inches 37.992
Weight 50g
For reference only. For design purposes, please use the specifications in the datasheet.
