Home » Products » Accessories » Cables

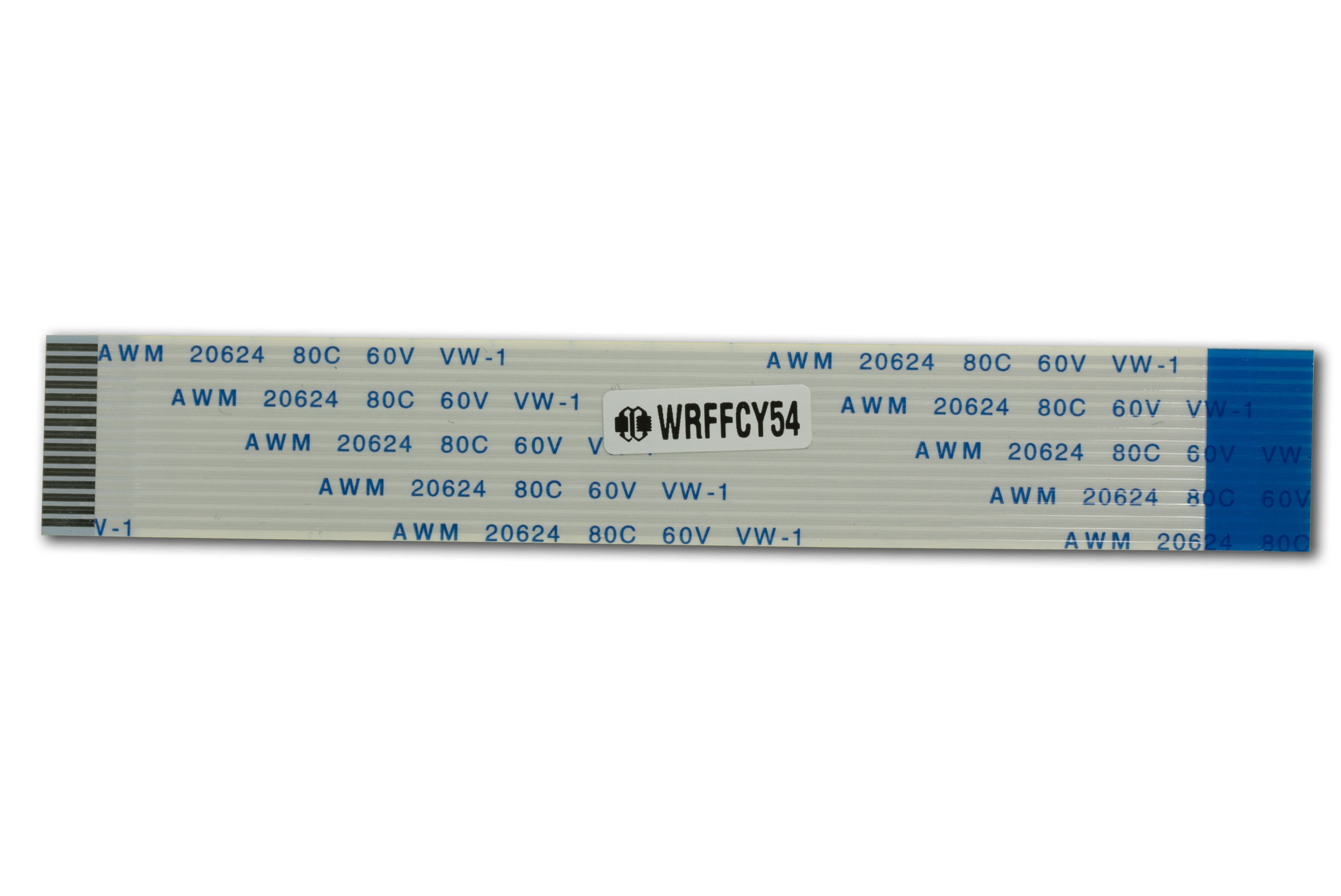

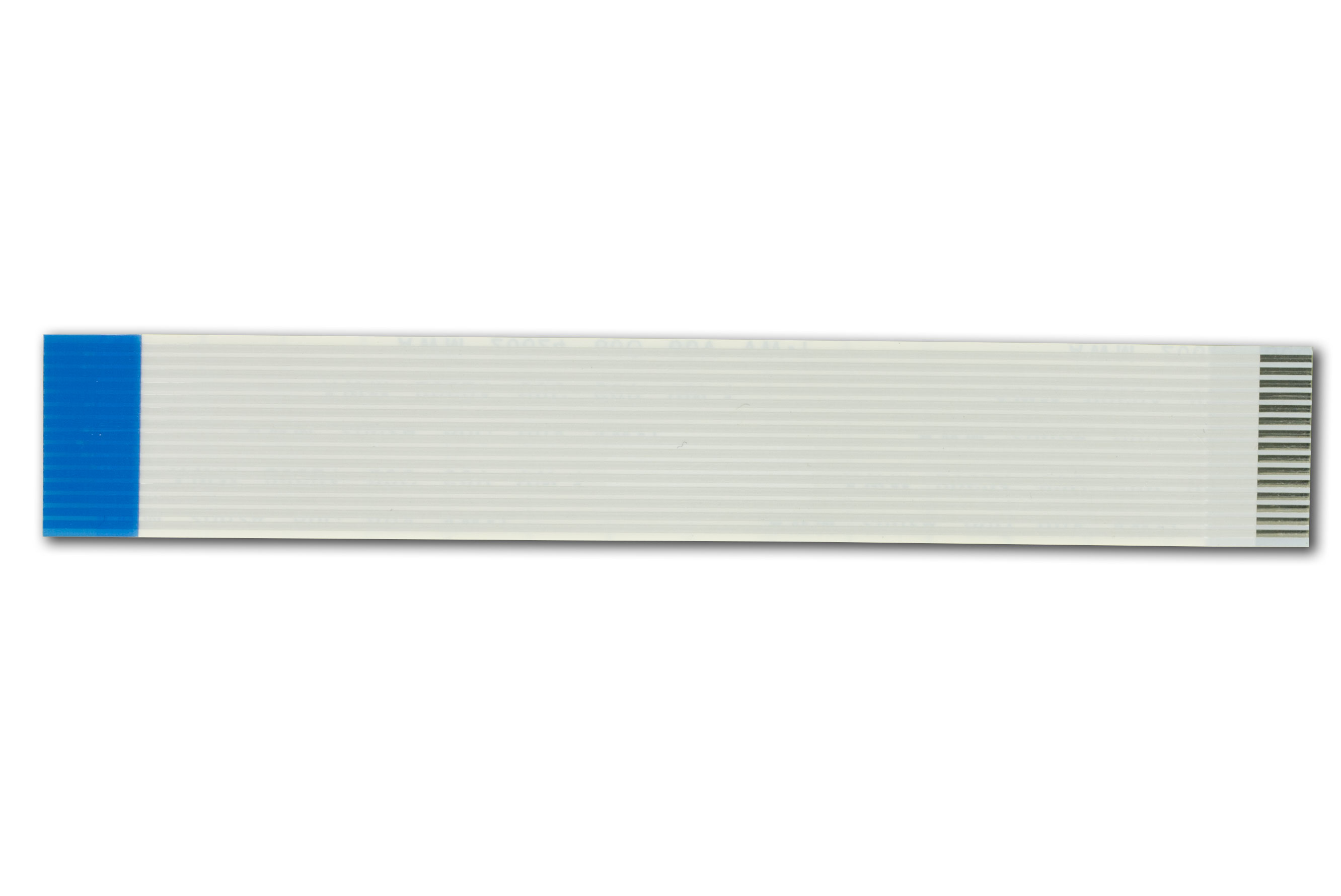

4" Flat Flex DSI Cable

Part Number: WR-FFC-Y54

Don't forget the cable! This cable is a 100mm long flat flex cable to connect a display with a DSI connector to the DSI port on a Raspberry Pi. It is 15 pins with 1mm pitch contacts. Specifically for our 5" Raspberry Pi Display.

Product Variants

WR-FFC-Y544" Flat Flex DSI Cable
WR-FFC-Y5612" Flat Flex DSI Cable
4" Flat Flex DSI Cable (WR-FFC-Y54)
Qty:
Quantity Price
1 $2.30
10 $1.73
20 $1.44
50 $1.15
100 $0.92
500 $0.86
1000 * $0.69
* Pricing is subject to change. Contact us about potential lead times.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Datasheet

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to WR-FFC-Y54 or RSS RSS feed for changes to WR-FFC-Y54 for WR-FFC-Y54

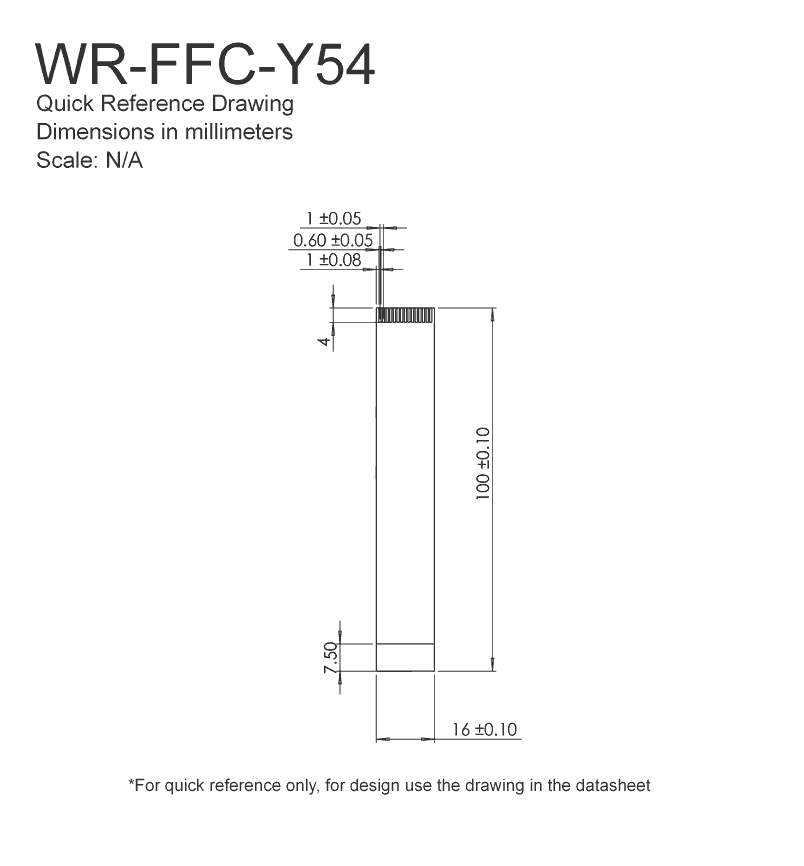

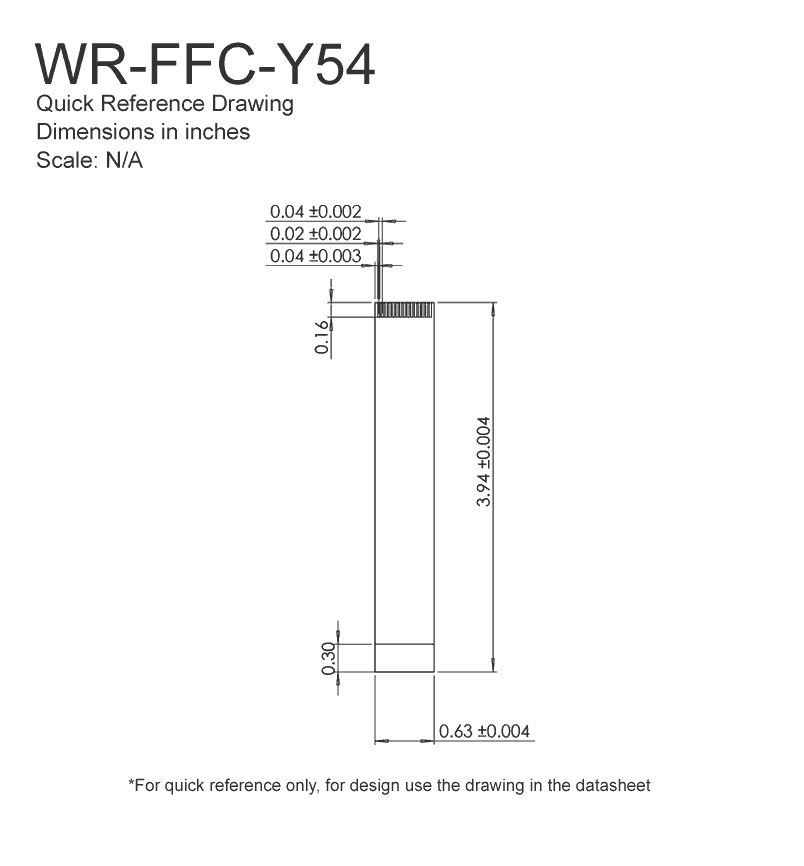

TECHNICAL SPECS

Physical Characteristics

Module Overall width height depth
millimeters 16 100 0.3
inches 0.630 3.937 0.012
Weight 0.6g
Pin Count 15

Electrical Specifications

Module Connector Pitch 2.54mm
For reference only. For design purposes, please use the specifications in the datasheet.
