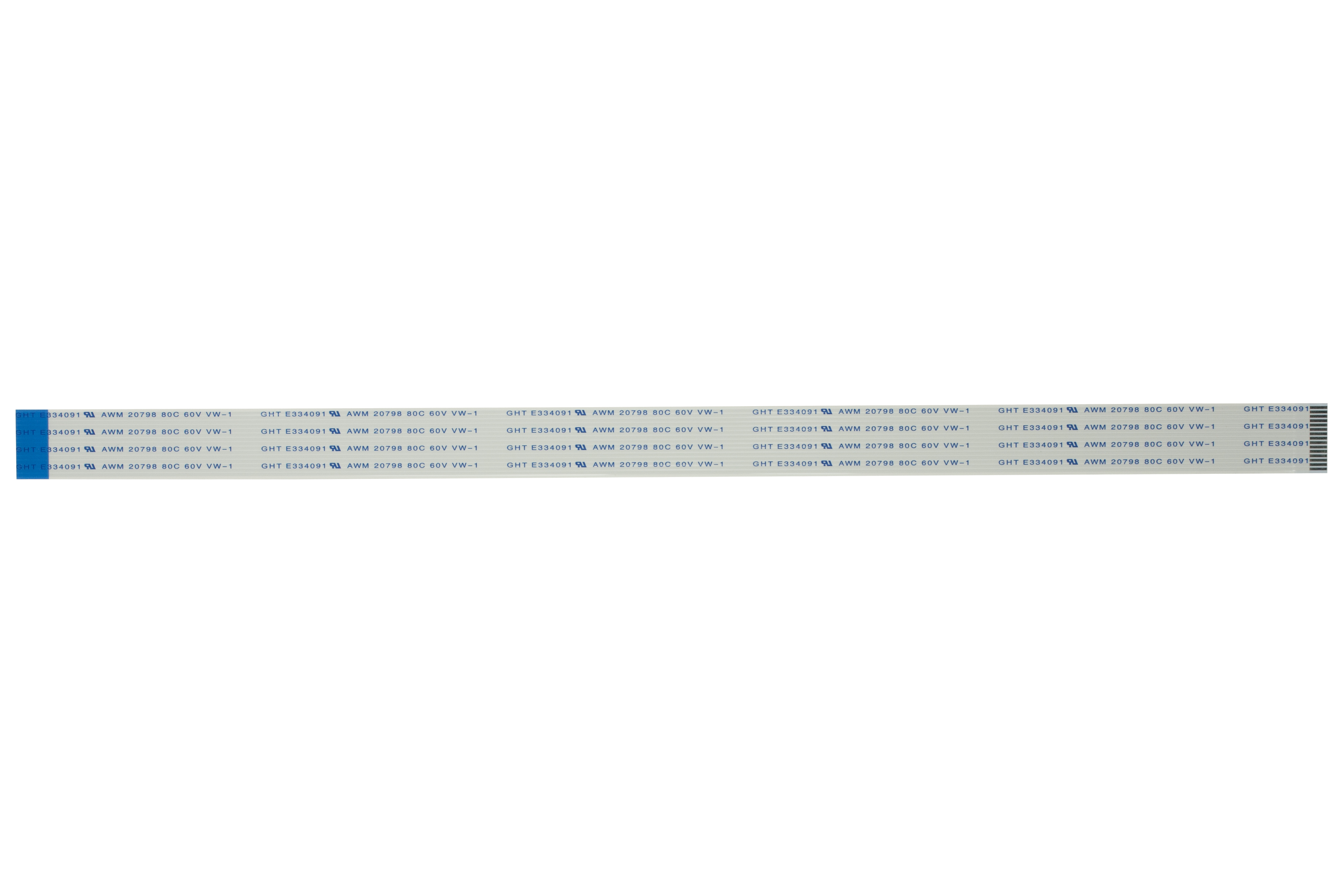

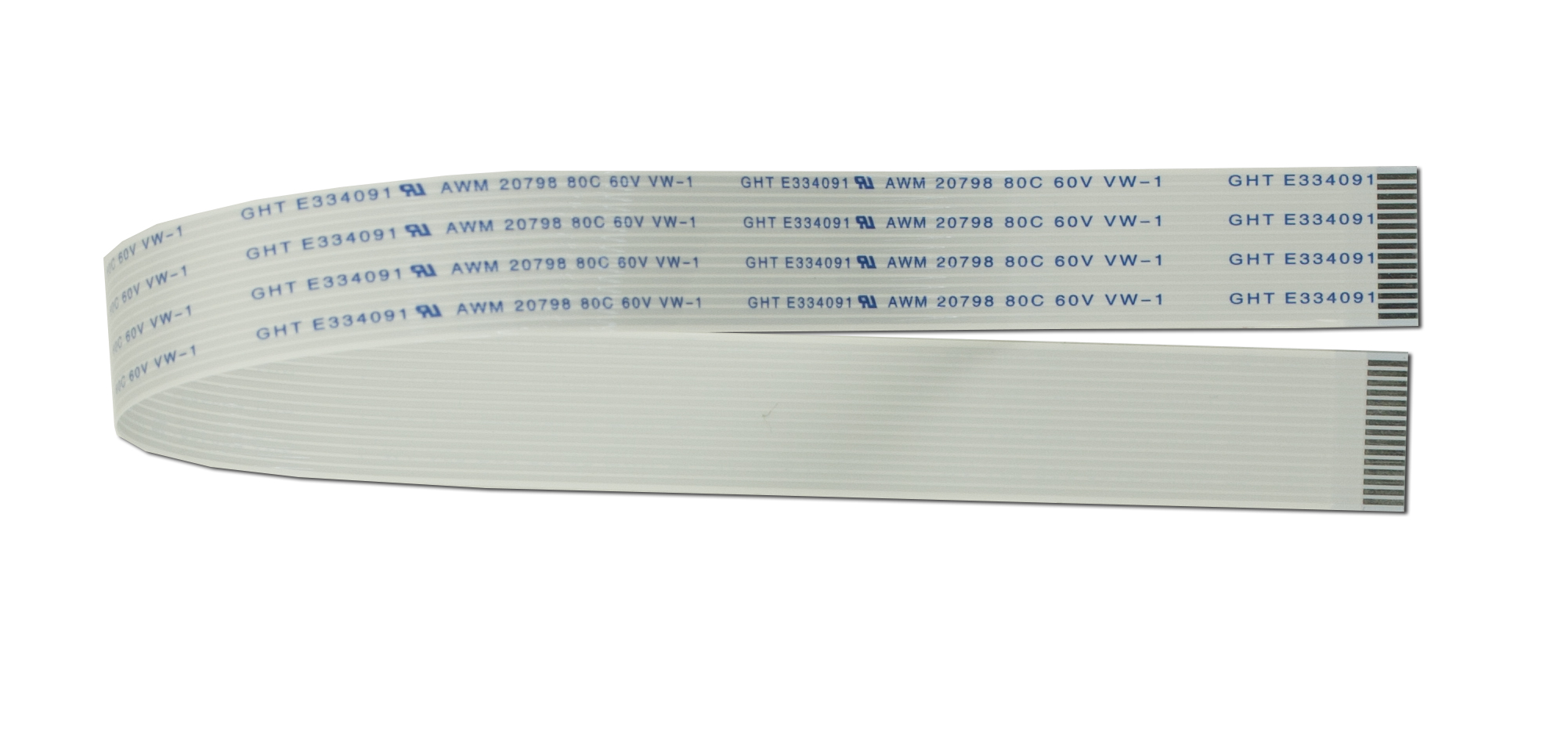

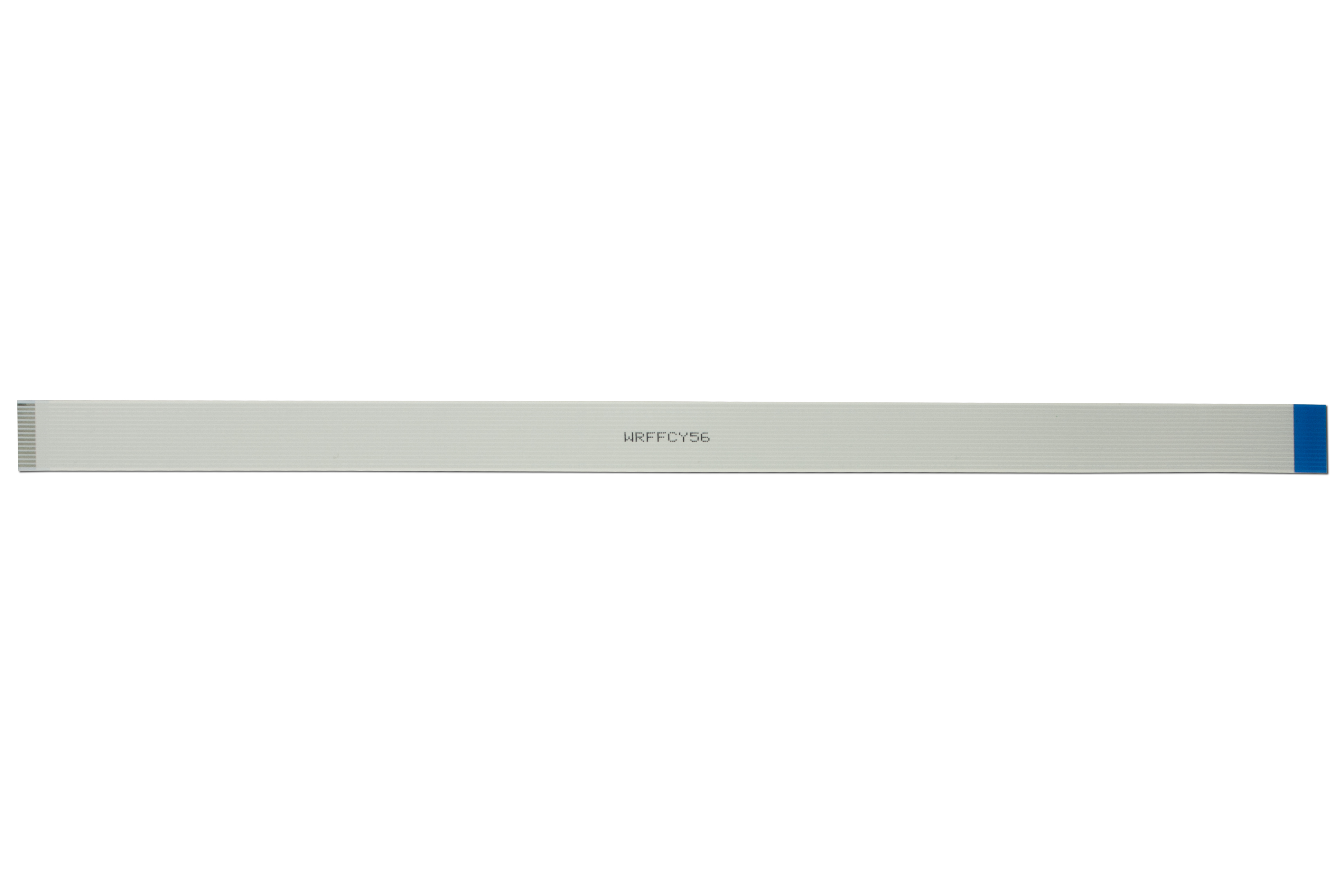

12" Flat Flex DSI Cable

Part Number: WR-FFC-Y56

A flat flex cable for connecting a Raspberry Pi DSI compatible display to the DSI connector on the RPi. This cable is approximately 12 inches in length. For a short cable, consider the 6" Raspberry Pi DSI flat flex cable.

Key Features:
  • 1mm pitch
  • 15 positions
  • 12 inch length
  • Connectors on opposite sides of the FFC
  • DSI compatible


Qty:
Quantity Price
1 $2.30
10 $1.73
20 $1.44
50 $1.15
100 $0.92
500 $0.86
1000 $0.69
* For quantites over this amount the lead time may be up to 60 Days. Contact us about potential lead times.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Datasheet

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to WR-FFC-Y56 or RSS RSS feed for changes to WR-FFC-Y56 for WR-FFC-Y56

Video Demonstrations

Demonstration of Crystalfontz 5 inch MIPI DSI Display

TECHNICAL SPECS

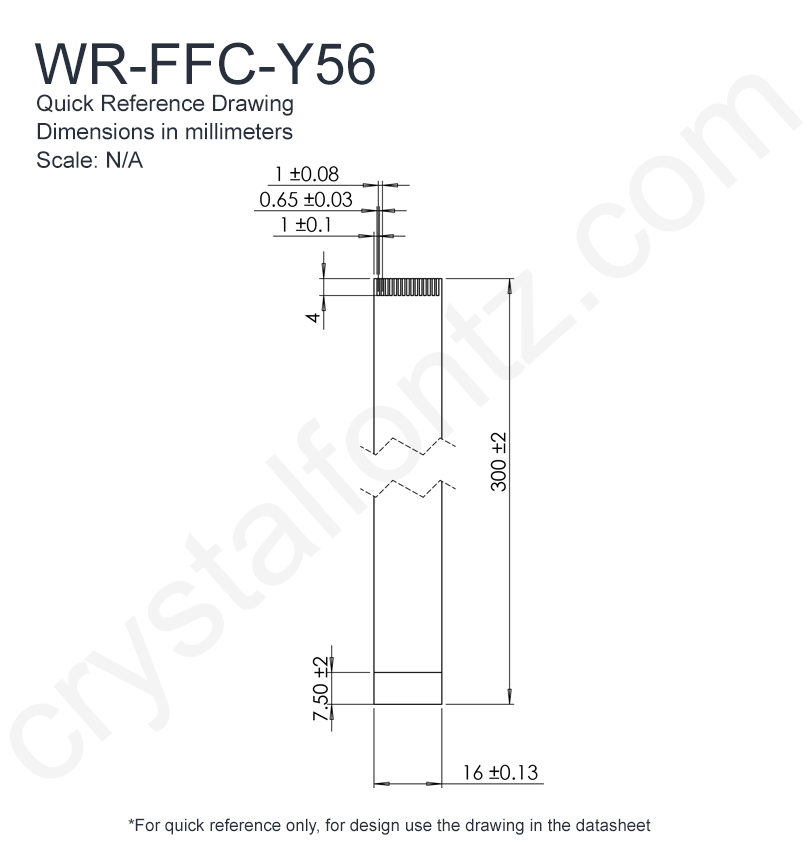

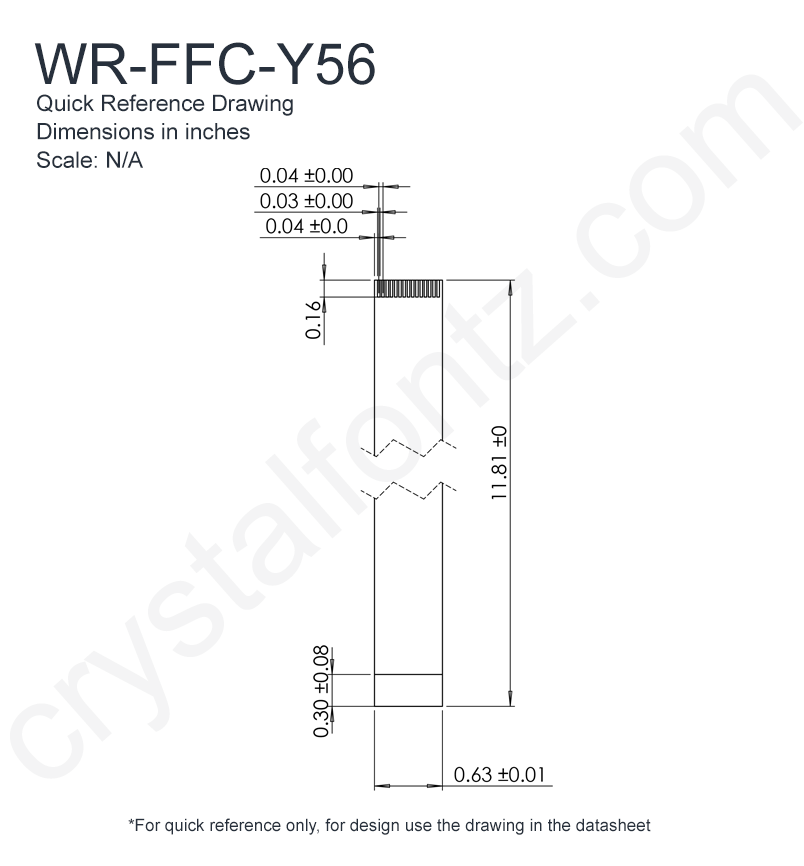

Physical Characteristics

Flexible Cable (FFC/FPC) length
millimeters 300
inches 11.811
Weight 2.2g
Pin Count 15

Electrical Specifications

Module Connector Pitch 1mm
For reference only. For design purposes, please use the specifications in the datasheet.
