Serial ATX Power Cable

Part Number: WR-PWR-Y14

ATX power cable for the CFA533, CFA633 serial, CFA633 USB, CFA631, CFA635 USB, CFA635 Serial LCD modules, and SCAB
Allows you to turn an ATX power supply on and off, or power cycle a computer through the CFA533, CFA633, or CFA631 / CFA635 +SCAB.
RoHS Compliant.
We also offer the WR-PWR-Y44 which is a longer, but otherwise identical cable.
We also offer the WR-PWR-Y05, it is similar but uses individual pins for Vsb instead of the WOL (Wake On LAN) connector.

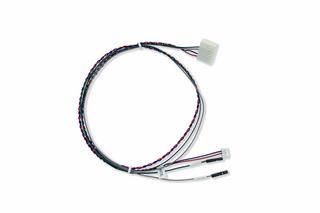

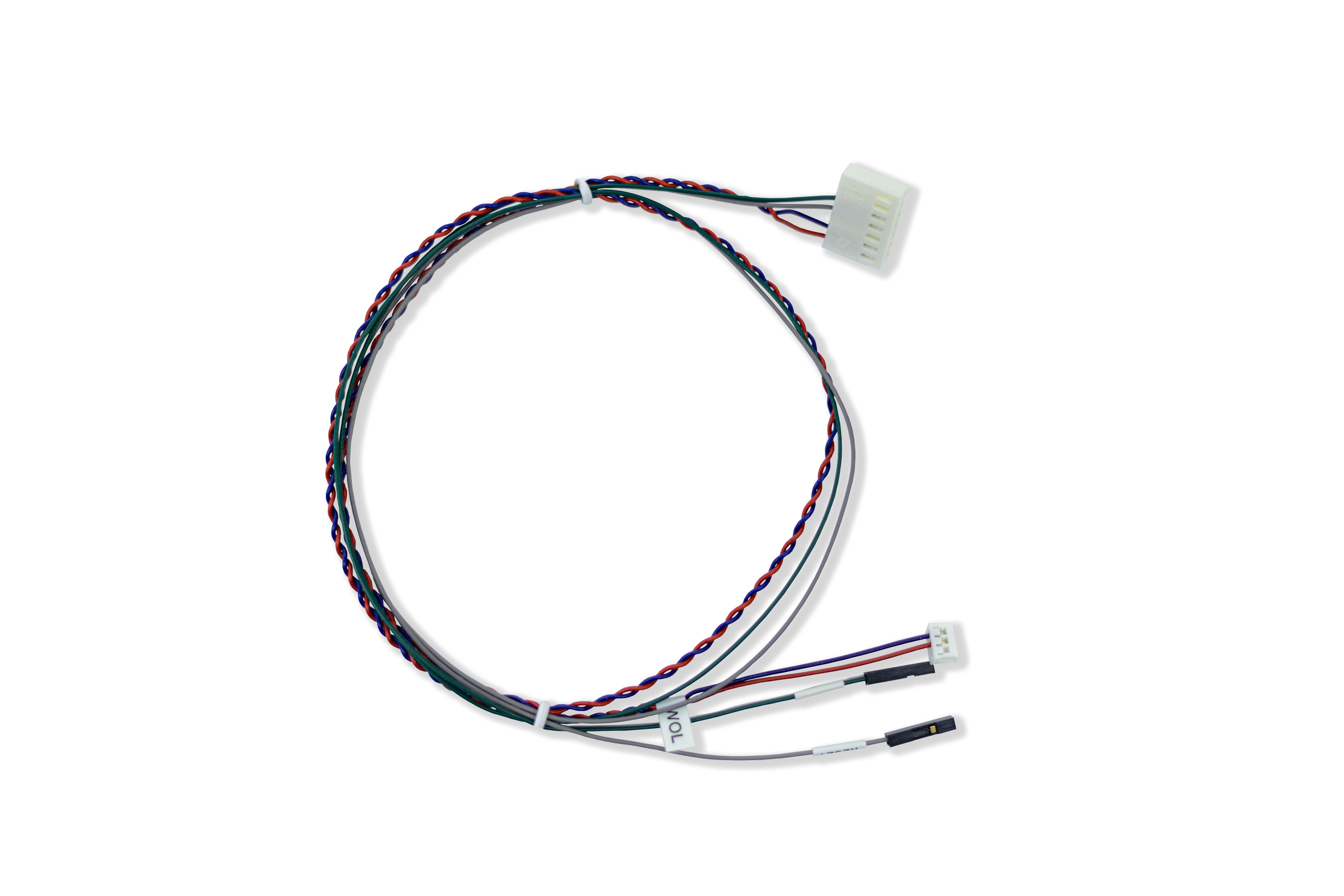

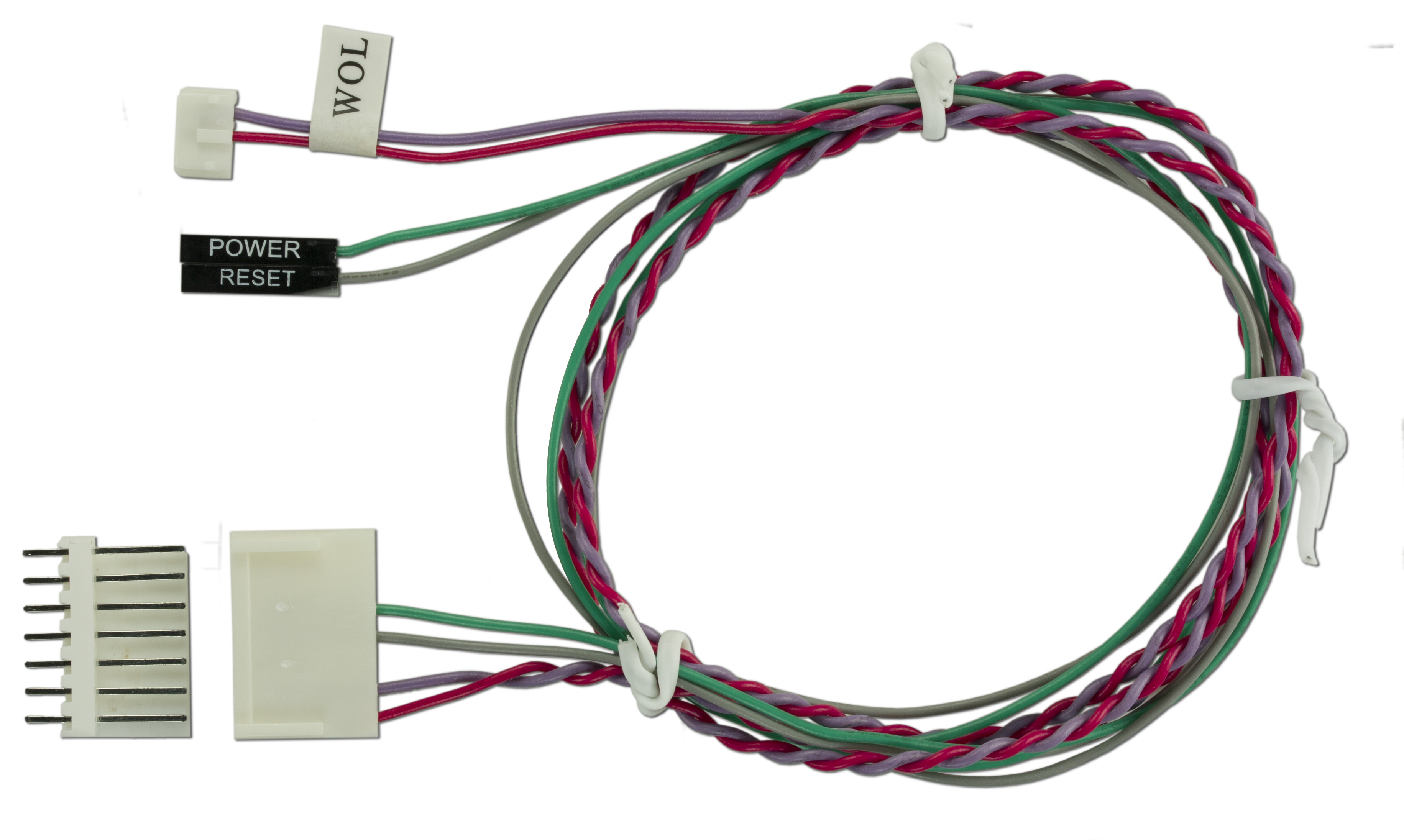

Serial ATX Power Cable (WR-PWR-Y14)

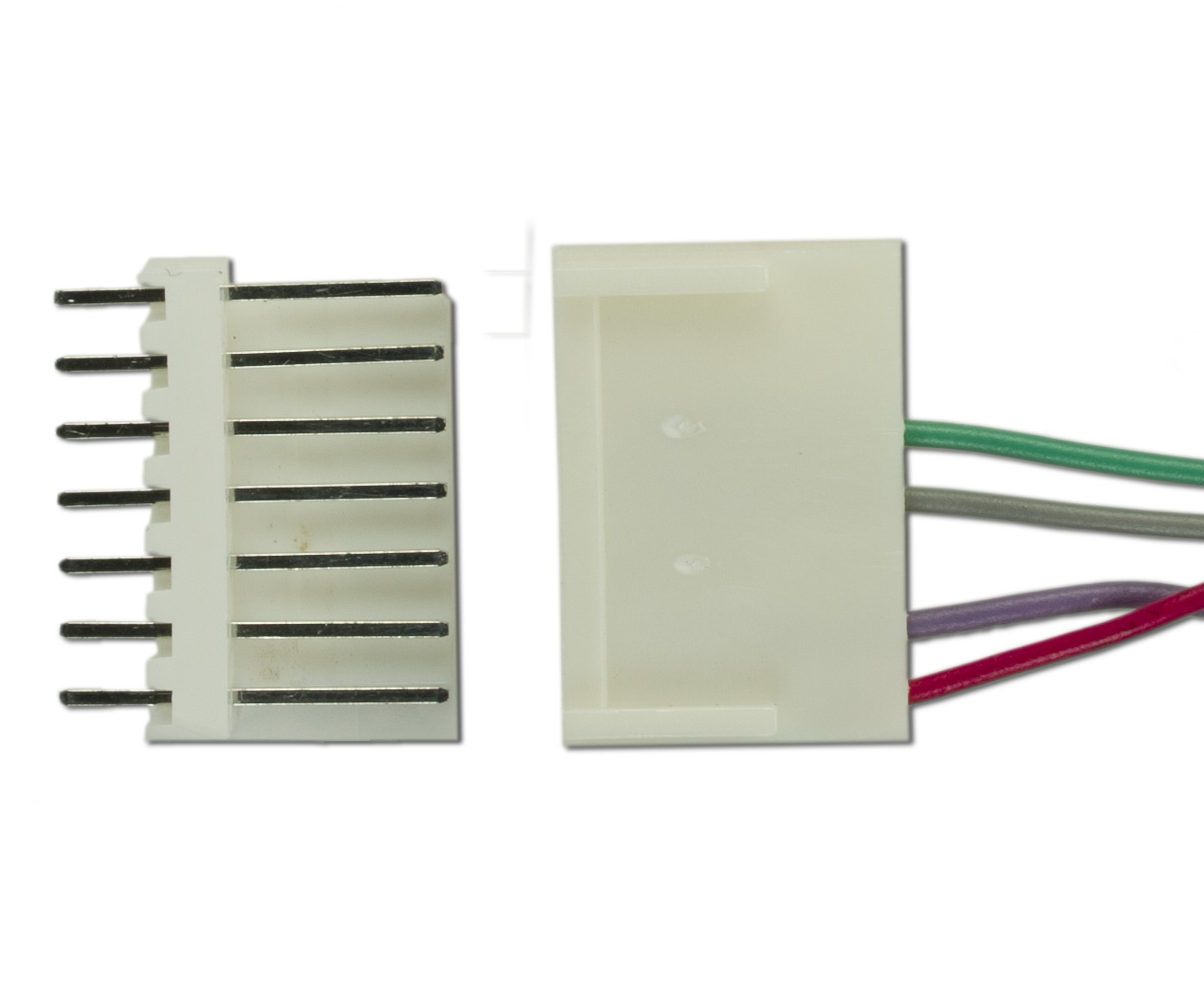

This is the end of the cable that attached to the 633. If you purchase a 633 and a WRPWRY14 at the same time, the connector will be soldered into the 633. If the cable is purchased separately, the header shown is supplied, ready for you to solder it into the J8 position of your 633

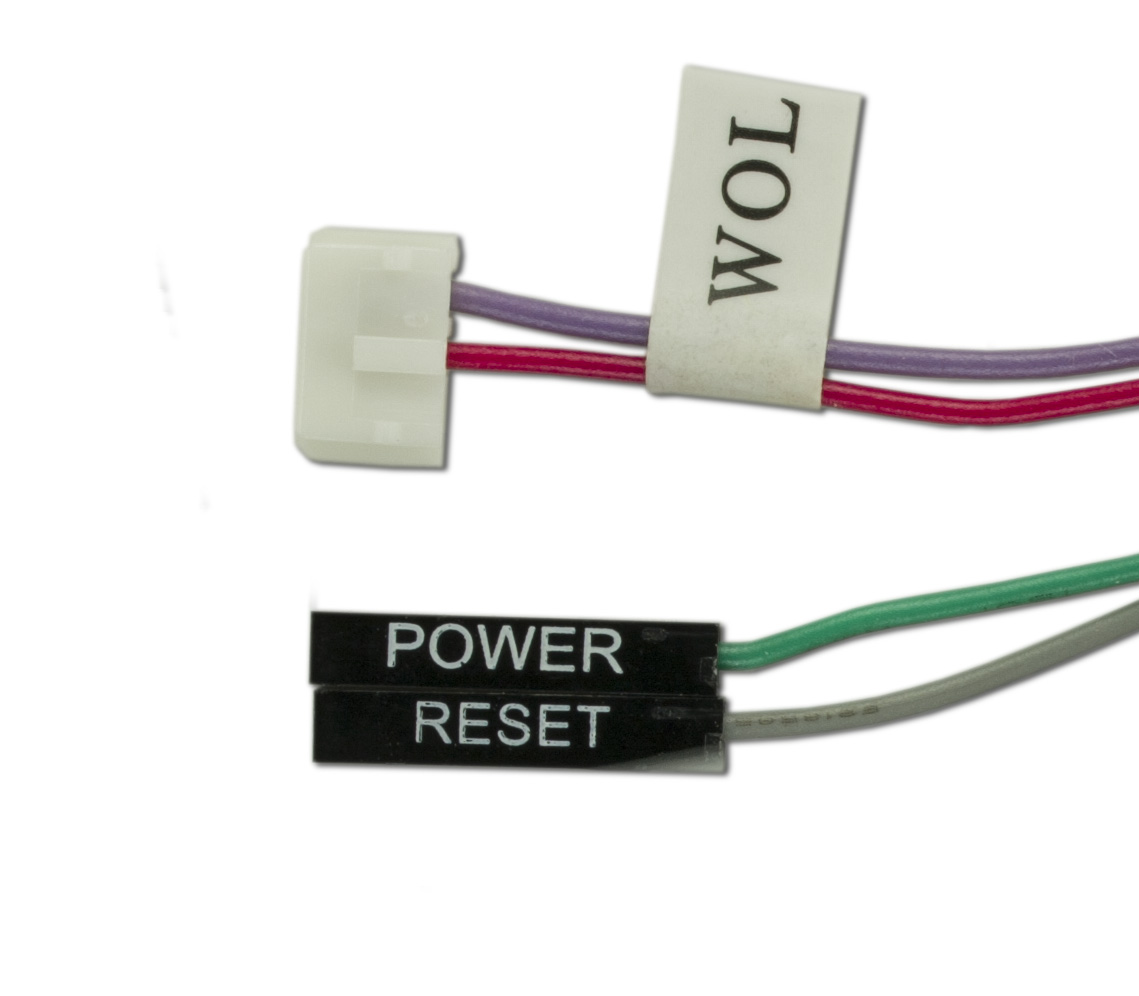

These are the connections that are made to the motherboard. The RESET and POWER wires push onto the corresponding pins of your motherboard. The WOL connector plugs into the WOL header that is available on most motherboards.

Quantity	Price
1	$6.21
10	$5.58
20	$5.29
50	$4.66
100	$4.37
500	$4.03
1000	$3.74

* For quantites over this amount the lead time may be up to 90 days. Contact us about potential lead times.

Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Files

Other Document - WRPWRY14.PDF

Part Change Notices

Subscribe to Part Change Notices by
email or RSS for WR-PWR-Y14

Compliance Documents

TECHNICAL SPECS

Physical Characteristics

Flexible Cable (FFC/FPC)	length
millimeters	595
inches	23.425

Weight

8g

Dimensions

For reference only. For design purposes, please use the specifications in the datasheet.
