EOL 128x64 Transflective Graphical LCD
Part Number: CFAG12864T2-NFH

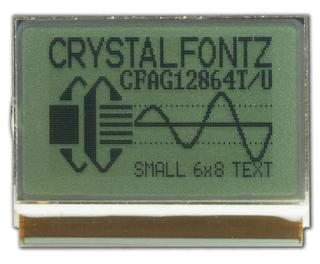

This 128x64 graphic LCD display module (CFAG12864T2-NFH) is a small, thin, and very low-power. This display is visible in most lighting situations, including normal office lighting up to bright sunlight. Since this LCD module has no backlight, there is no power used for the backlight, however, the display is not viewable in dark environments without an external light source. This display is well suited for low-power hand-held devices that are normally used in well-lit environments.
This LCD display has an integrated controller and voltage generating components mounted on the flexible tail. The tail connects to a standard ZIF connector: 18-conductor 0.5mm pitch ZIF (Zero Insertion Force) connector.
This display is also available in a white LED backlit version (CFAG12864T2-TFH).
- Very thin and light TAB construction
- Wide temperature range: -20°C to 70°C (-4°F to 158°F)
- Built-in Sitronix ST7565P controller
- Low power consumption
- Great for handheld, battery operated devices
- 4-wire, 8-bit SPI or 8-bit parallel interface
Is this tiny display just a little too small? We have the CFAG12864U2-NFH, which is a similar display, but larger physical dimensions.
This display is a direct replacement for the CFAX12864T-NFH and CFAX12864T1-NFH which are no longer in production.
- square_foot Physical Characteristics
Physical Characteristics
Column Dots x Row Dots 128 x 64 Module Overall width height depth millimeters 34 22.42 1.75 inches 1.34 0.88 0.07 *width / height does not include Foldable Tab Diagonal Dimension 1.19" Viewing Area Width Height millimeters 29.58 17.98 inches 1.17 0.71 Active Area Width Height millimeters 25.58 15.98 inches 1.01 0.63 Dot Size Width Height millimeters 0.23 0.18 inches 0.009 0.007 Dot Pitch Width Height millimeters 0.25 0.2 inches 0.010 0.008 Optional Connectors CS050Z34GB0 Flexible Cable (FFC/FPC) length millimeters 41.86 inches 1.648 Weight 3.1g - visibility Optical Characteristics
Optical Characteristics
Glass Type/Glass Color FSTN/Light-Gray Polarizer Transflective View Direction 6 o'clock View Angle 60° Sunlight Readable Yes Backlight Type LED Mode Positive Foreground Color Dark Background Color Light Gray - electric_bolt Electrical Specification
Electrical Specifications
Supply Voltage for Logic Typical 3.3V Supply Voltage for Driving Panel Typical 9V Supply Current Maximum 0.5mA Supply Current Typical 0.28mA - nature Enviromental
Environmental
Operating Temperatures min max Celsius -20° 70° Fahrenheit -4° 158° Storage Temperatures min max Celsius -30° 80° Fahrenheit -22° 176° - cable Electronics
Electronics
Controller Documents Sitronix ST7565P
ST7565P
65 x 132 Dot Matrix LCD Controller/Driver
Sitronix ST7565P
ST7565P is a single-chip dot matrix LCD driver which incorporates LCD controller and common/segment drivers.Interface 8-bit Parallel, SPI -
picture_as_pdf Datasheets
-
download Files and Downloads
Part Change Notice
Subscribe to Part Change Notices by email
or RSS
- text_snippet
Part Change Notice #11033: The parts listed are being set to End of Life Status
- text_snippet
Product Update #11005: The tape carrier of the LCD controller chip has changed from the previous series of parts. This changes the areas where bends in the assembly are allowed.
Products Affected: CFAG12864T2-NFH, CFAG12864T2-TFH Date Issued: September 13, 2018 Summary: The tape carrier of the LCD controller chip has changed from the previous series of parts. This changes the areas where bends in the assembly are allowed. Reason: The LCD controller chip for the CFAX12864T/CFAX12864U family was discontinued by the chip manufacturer.
Crystalfontz created the CFAG12864T2/CFAG12864U2 family as replacements.
The new LCD controller chip used in the CFAG12864T2/CFAG12864U2 is mechanically different compared to the original controller.
This difference changes the areas where bends in the assembly are allowed.
The bendable area of the tail is marked by 3 green lines. On the old parts, the controller chip was mounted 5.5mm from the third green line. On the new tail, the controller chip is mounted 2.5mm from the third green line.
Impact: For many applications, this change will not affect production. Please ensure that your application does not put undue force on the connection between the flex and the LCD glass. Please ensure that there is not undue bending or force on the flex in the area of the hard, inflexible chip. Recommendation: If your application does not put undue force on the connection or chip, then no change is needed. Availability: N/A Price Change: N/A Attachment: CFAG12864T2_Tail_Bend_Areas.pdf (354KB) - text_snippet
Product Update #10906: (New Product) CFAG12864T2-NFH
