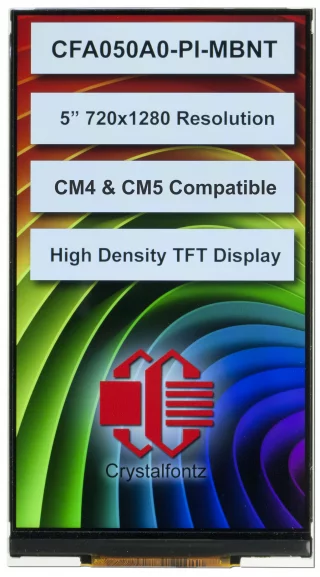

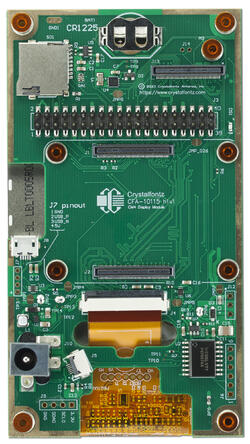

5-inch 720x1280 Compute Module TFT

Part Number: CFA050A0-PI-MBNT

Are you a software developer looking for a turnkey hardware solution? This product is the perfect solution for you. With a 5-inch, full color, IPS, 720x1280 resolution TFT display and easy integration with a Raspberry Pi CM4 or other compatible compute module, you can quickly have a very powerful, compact, robust and versatile computing or Human Machine Interface (HMI) module.

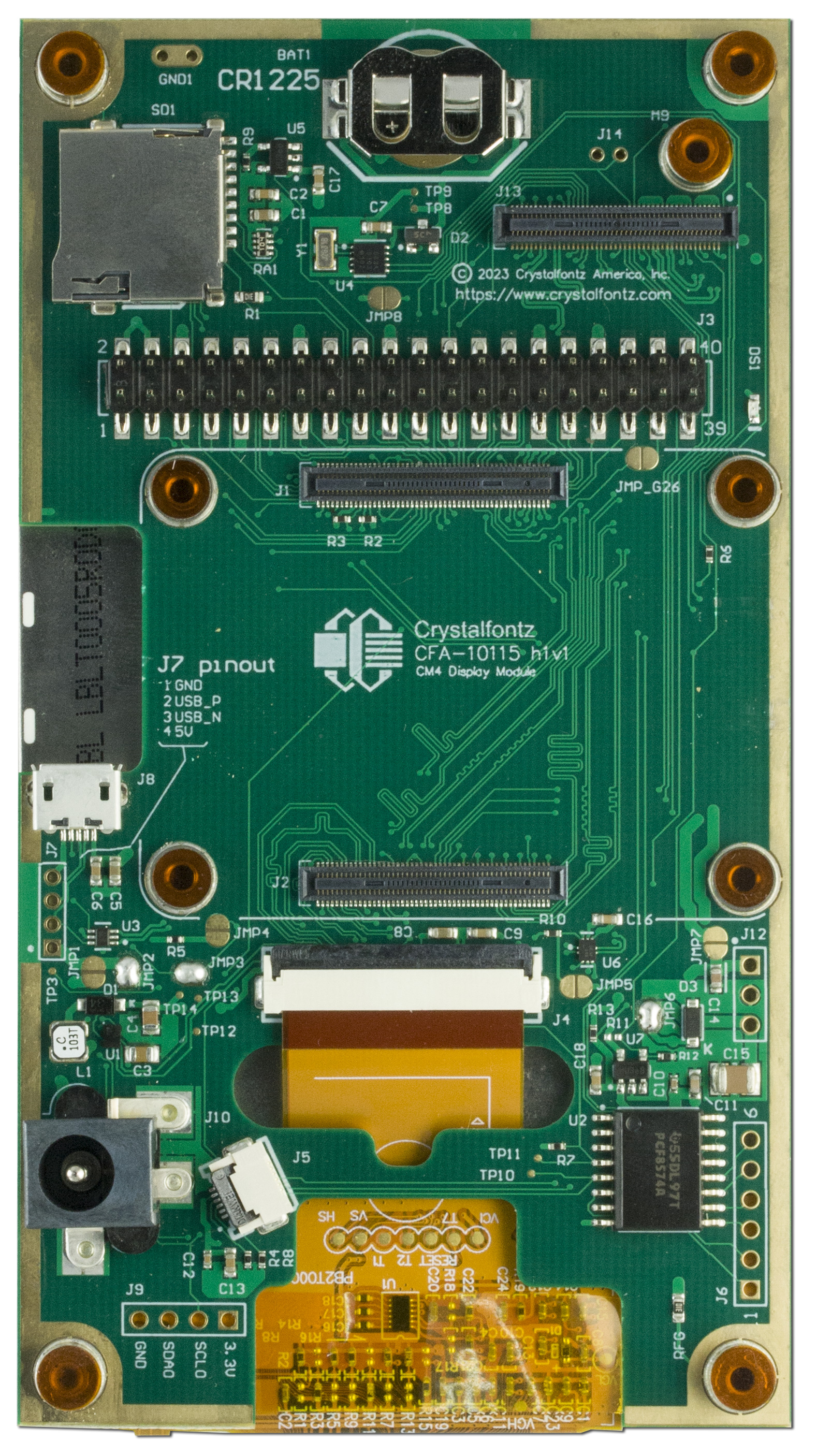

The module's 40-pin header allows standard Pi HATs to be plugged in. The module additionally includes an expansion header with USB, Ethernet, PCIe, USB, and additional GPIOs for daughter boards or cables to be used. With the potential to utilize 32 separate GPIOs, PCIe, USB, and Ethernet, the possibilities are endless. For additional technical detail, refer to our CFA050_PI_M guide.

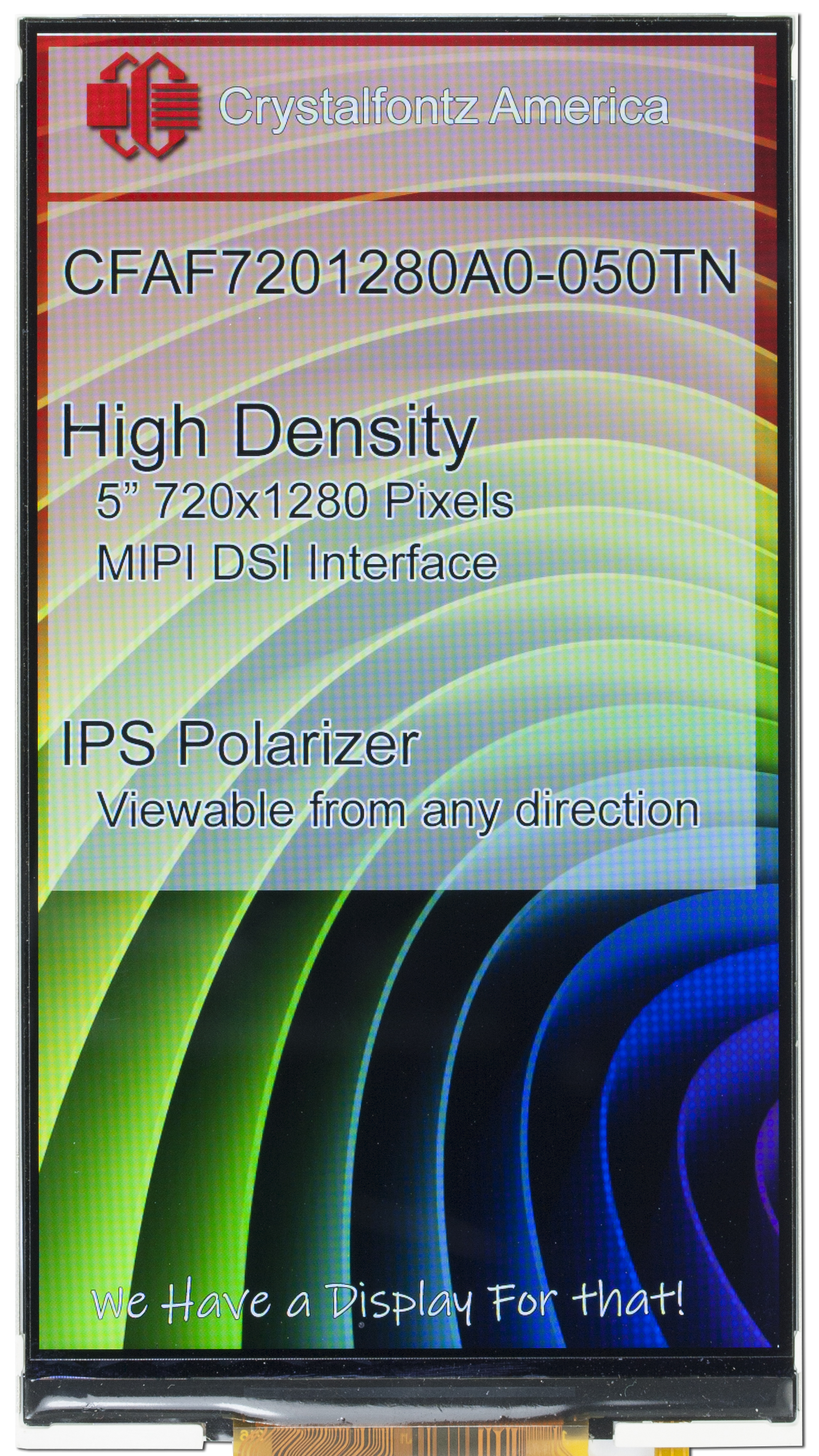

The high pixel density and In-Plane Switching (IPS) make this display look sharp at any angle. Fully integrated into the Raspberry Pi OS, only a few overlays in the config.txt file are needed to get this display up and running.

* Compute Module is NOT included

Part Number:
CFA - Crystalfontz America
050 - 5" inch diagonal
A0 - Series and revision
PI - Raspberry Pi compatible
M - CM4 compatible
B - 16:9 display resolution
N - No touchscreen
T - Standard brightness

Product Variants

• square_foot Physical Characteristics

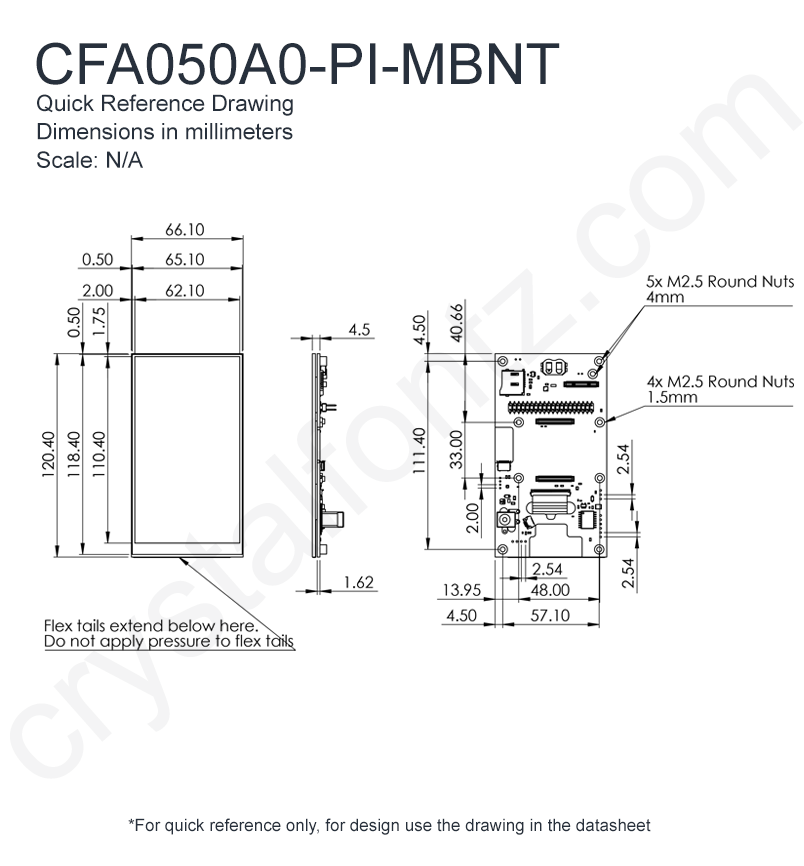

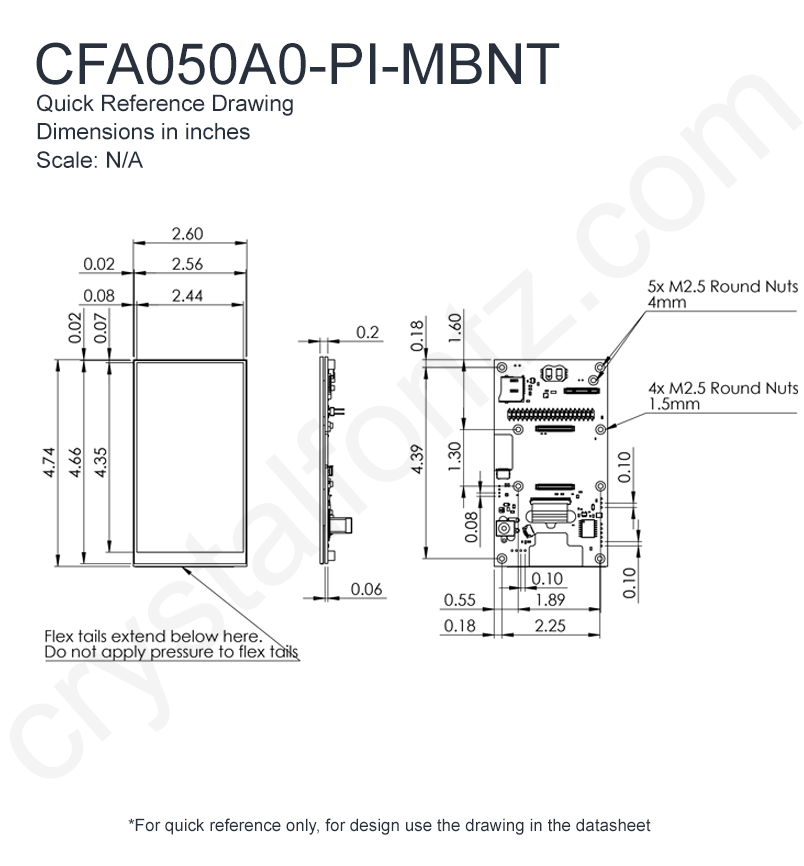

  Physical Characteristics

  Column Dots x Row Dots

  720 x 1280

  Module Overall	width	height	depth
  millimeters	66.1	120.4	18.4
  inches	2.60	4.74	0.72

  Diagonal Dimension

  5"

  Active Area	Width	Height
  millimeters	62.1	110.4
  inches	2.45	4.35

  Dot Pitch	Width	Height
  millimeters	0.08625	0.08625
  inches	0.0034	0.0034

  Weight

  71.7g

• visibility Optical Characteristics

  Optical Characteristics

  Glass Type	TFT
  Polarizer	IPS
  View Angle	80°

  Backlight Color	White
  Backlight Type	LED
  Foreground Color	RGB
  Background Color	Dark

• electric_bolt Electrical Specification

  Electrical Specifications

  Supply Voltage for Logic Minimum	4.75V
  Supply Voltage for Logic Maximum	5.25V
  Supply Voltage for Logic Typical	5V

  Supply Voltage for Driving Panel Typical	5V
  Supply Current Maximum	293mA
  Supply Current Typical	266mA

• nature Enviromental

  Environmental

  Operating Temperatures	min	max
  Celsius	-20°	70°
  Fahrenheit	-4°	158°

  Storage Temperatures	min	max
  Celsius	-30°	80°
  Fahrenheit	-22°	176°

• cable Electronics

  Electronics

  Interface

  SPI, USB

• picture_as_pdf Datasheets
  picture_as_pdf

  CFA050A0-PI-MBxT Datasheet


• download Files and Downloads
  folder_zip Hardware Design - 3D Model


  link Getting Started Guide on Github
