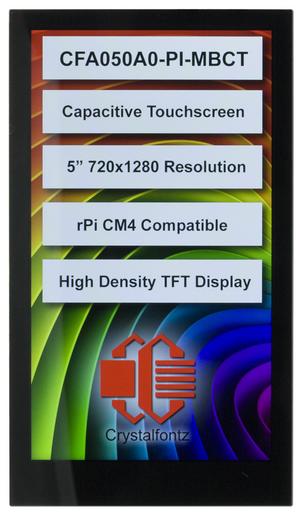

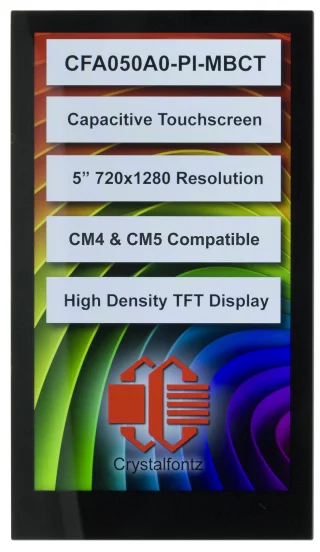

5" 720x1280 Touchscreen Compute Module TFT Display

Part Number: CFA050A0-PI-MBCT

This family of modules takes the complexity out of designing a high-resolution display into an end product or hobby project. These modules have mating connectors for the Raspberry Pi CM4 and support for the modules is included in the official Raspberry Pi OS distribution. Only a few overlays in the config.txt file are needed for this display to be ready to use.

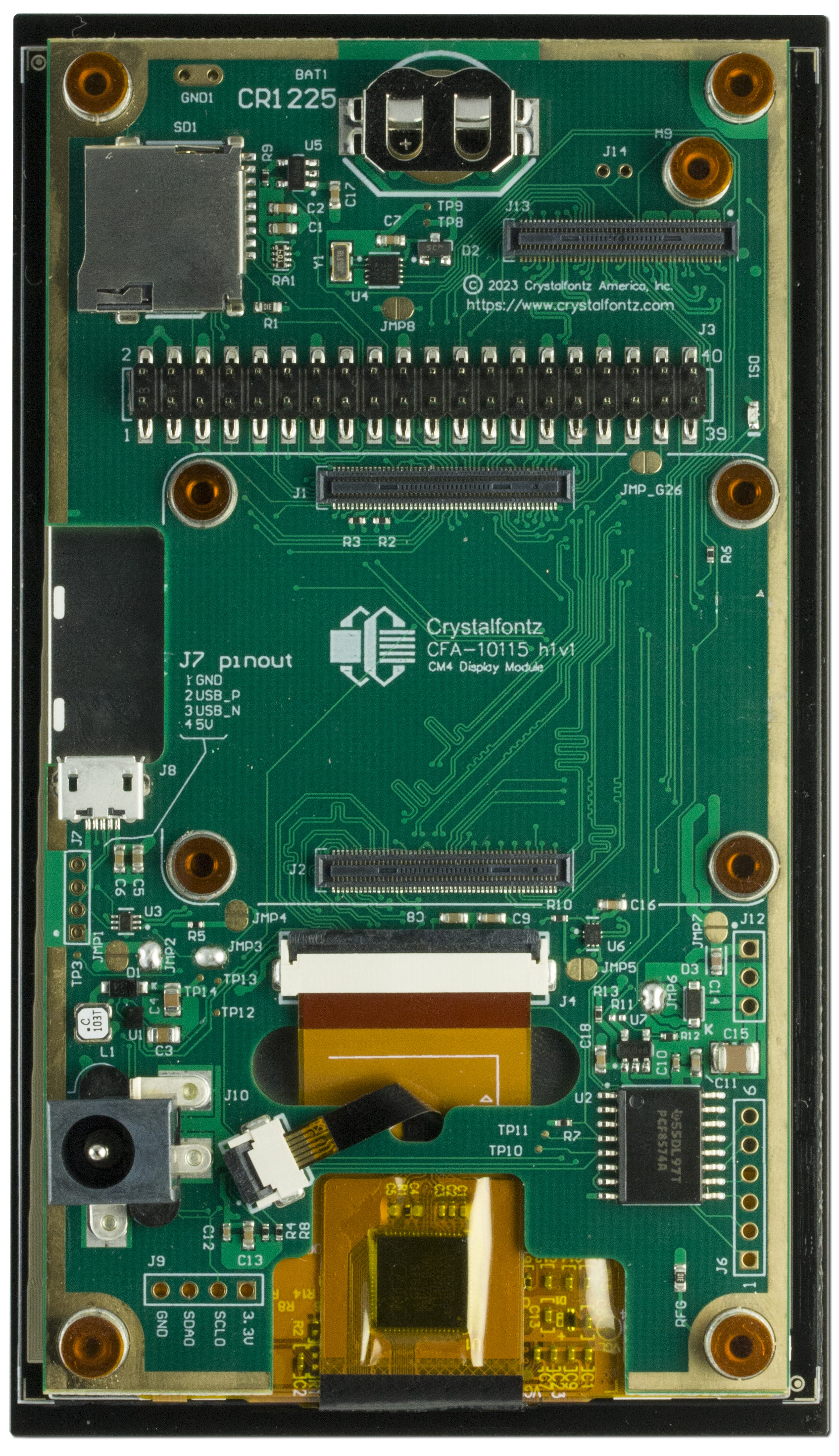

With the potential to utilize 32 separate GPIOs, PCIe, USB, and Ethernet, the possibilities are endless. The module's 40-pin header allows standard Pi HATs to be plugged in. Additionally, the module includes an expansion header with USB, Ethernet, PCIe, USB, and additional GPIOs for daughter boards or cables to be used. For more technical details, refer to our CFA050_PI_M guide.

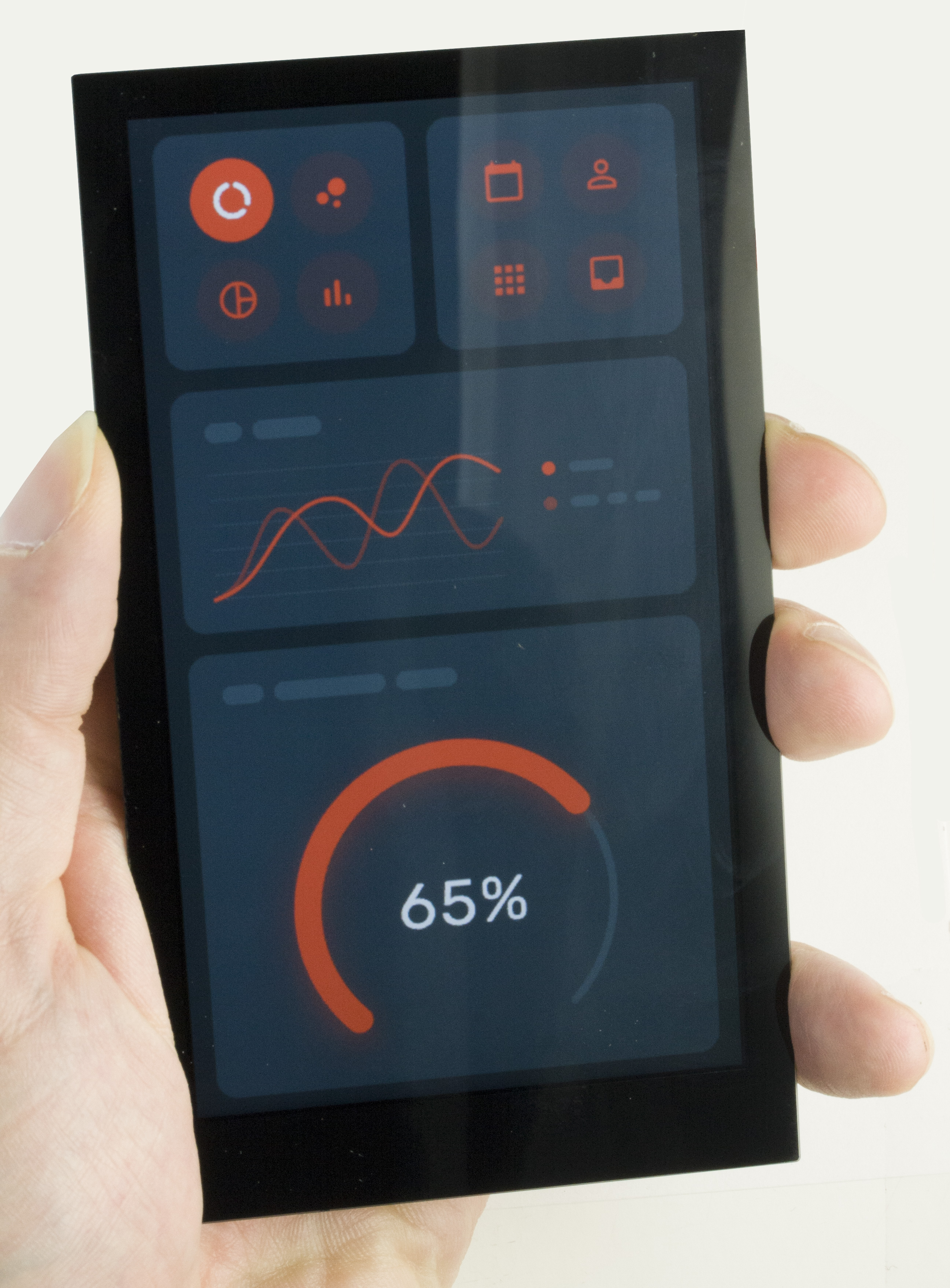

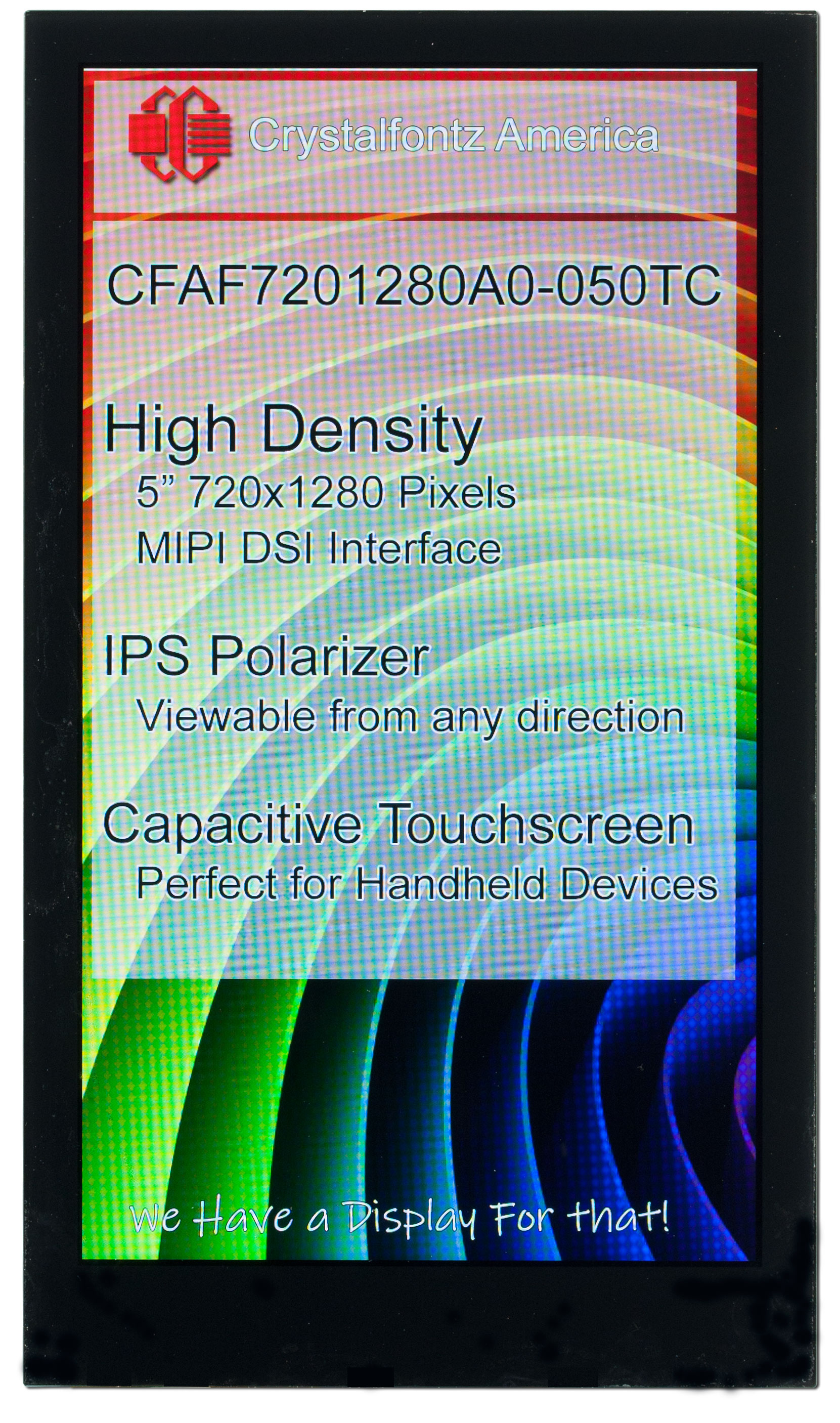

The module has a full color, 5-inch, 720x1280 resolution TFT display and capacitive touch panel. The high pixel density and In-Plane Switching (IPS) make this display look sharp at any angle.

* Compute Module is NOT included

Part Number:
CFA - Crystalfontz America
050 - 5" inch diagonal
A0 - Series and revision
PI - Raspberry Pi compatible
M - CM4 compatible
B - 16:9 display resolution
C - Capacitive touchscreen
T - Standard brightness

Product Variants

• square_foot Physical Characteristics

  Physical Characteristics

  Column Dots x Row Dots

  720 x 1280

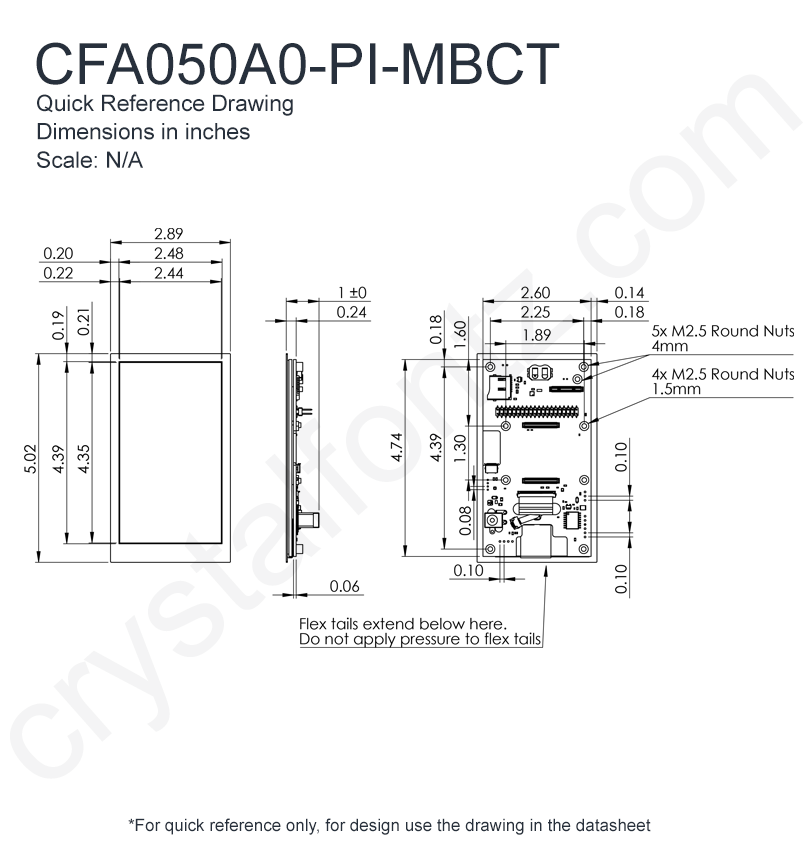

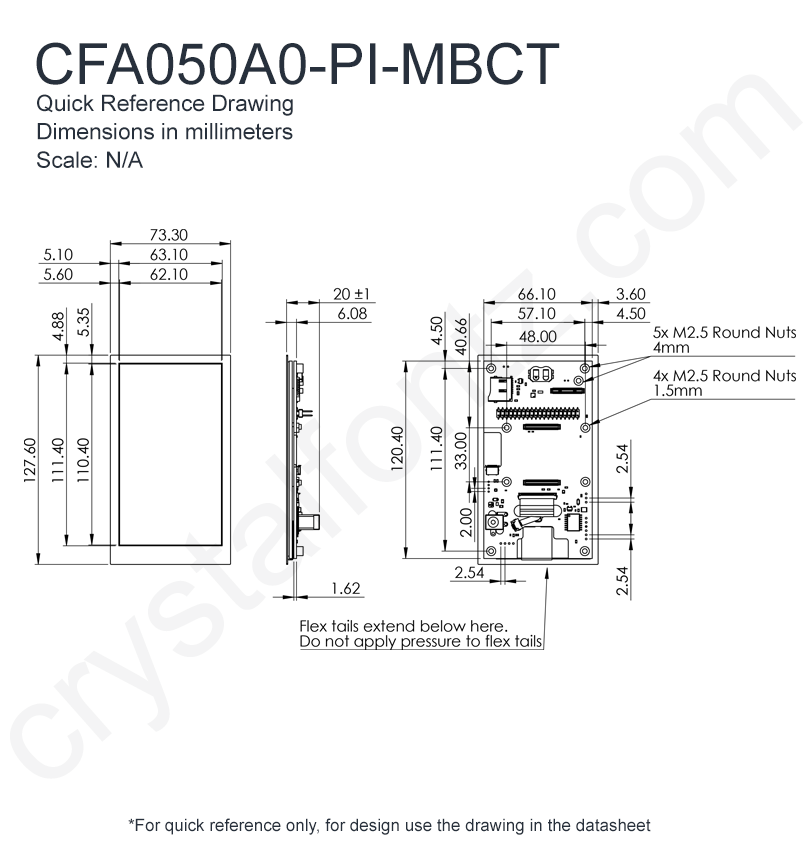

  Module Overall	width	height	depth
  millimeters	73.3	127.6	20
  inches	2.89	5.02	0.79

  Diagonal Dimension

  5"

  Active Area	Width	Height
  millimeters	62.1	110.4
  inches	2.45	4.35

  Dot Pitch	Width	Height
  millimeters	0.08625	0.08625
  inches	0.0034	0.0034

  Weight

  104.4g

• visibility Optical Characteristics

  Optical Characteristics

  Glass Type	TFT
  Polarizer	IPS
  View Angle	80°

  Backlight Color	White
  Backlight Type	LED
  Foreground Color	RGB
  Background Color	Dark

• electric_bolt Electrical Specification

  Electrical Specifications

  Supply Voltage for Logic Minimum	4.75V
  Supply Voltage for Logic Maximum	5.25V
  Supply Voltage for Logic Typical	5V

  Supply Voltage for Driving Panel Typical	5V
  Supply Current Maximum	293mA
  Supply Current Typical	266mA

• nature Enviromental

  Environmental

  Operating Temperatures	min	max
  Celsius	-20°	70°
  Fahrenheit	-4°	158°

  Storage Temperatures	min	max
  Celsius	-30°	80°
  Fahrenheit	-22°	176°

• cable Electronics

  Electronics

  Interface

  SPI, USB
