480x272 4.3" Non-Touch EVE Development Kit
Part Number: CFA480272E0-043SN-KIT

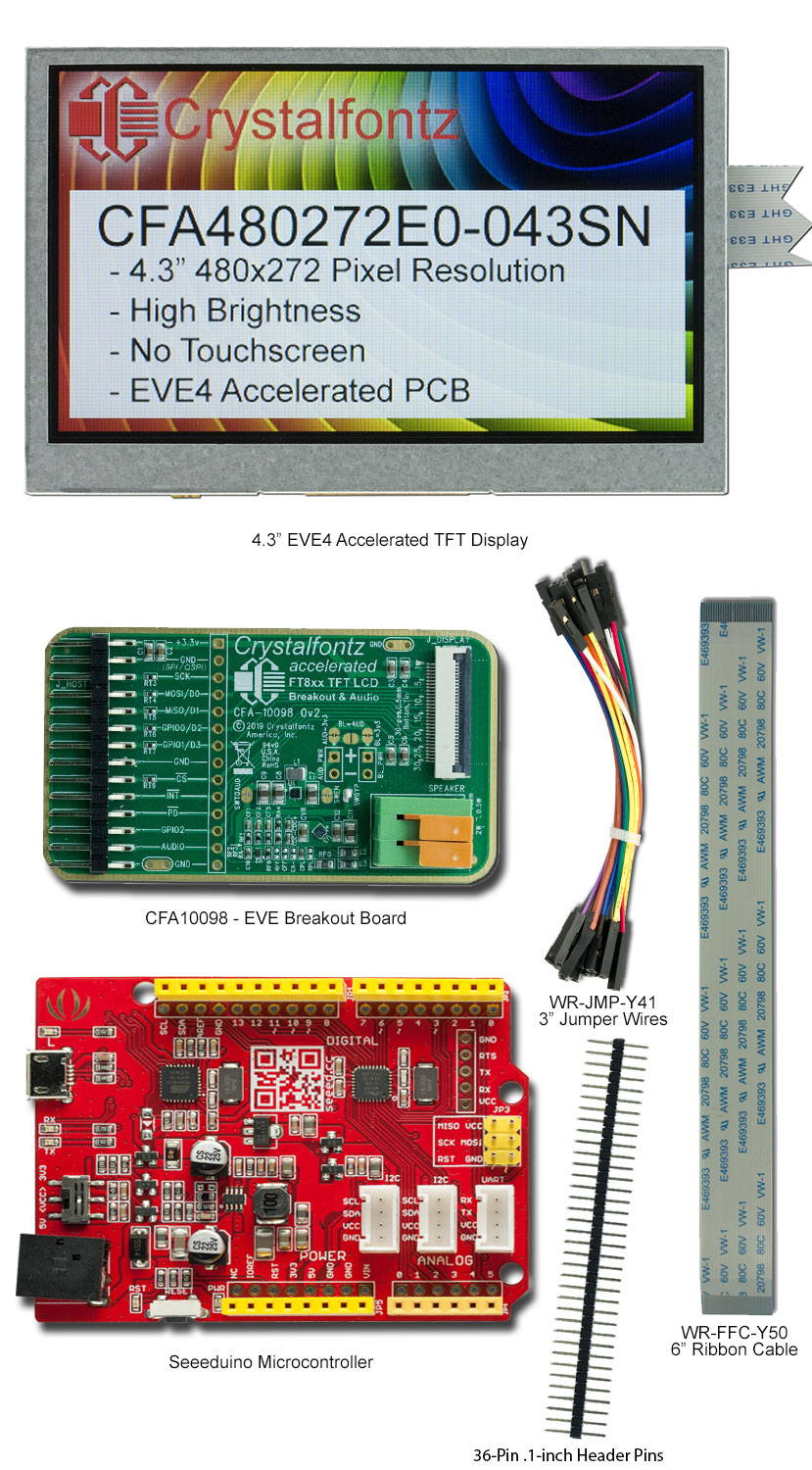

This development kit makes getting started with the 4.3" EVE module as easy as can be. The kit includes the fantastic 4.3" TFT EVE display module, an EVE breakout board, and a Seeeduino microprocessor wired together and running a demonstration for the display. This display is sunlight readable and requires more current for the backlight than the Seeeduino can supply, so the demonstration requires that you supply power to the breakout board to power the display backlight.
In addition to being sunlight-readable, the included display is IPS, so it has extremely wide viewing angles. Additionally, the module includes the BT817 EVE chip. Read more about the benefits of EVE displays on our blog.
Features to note:

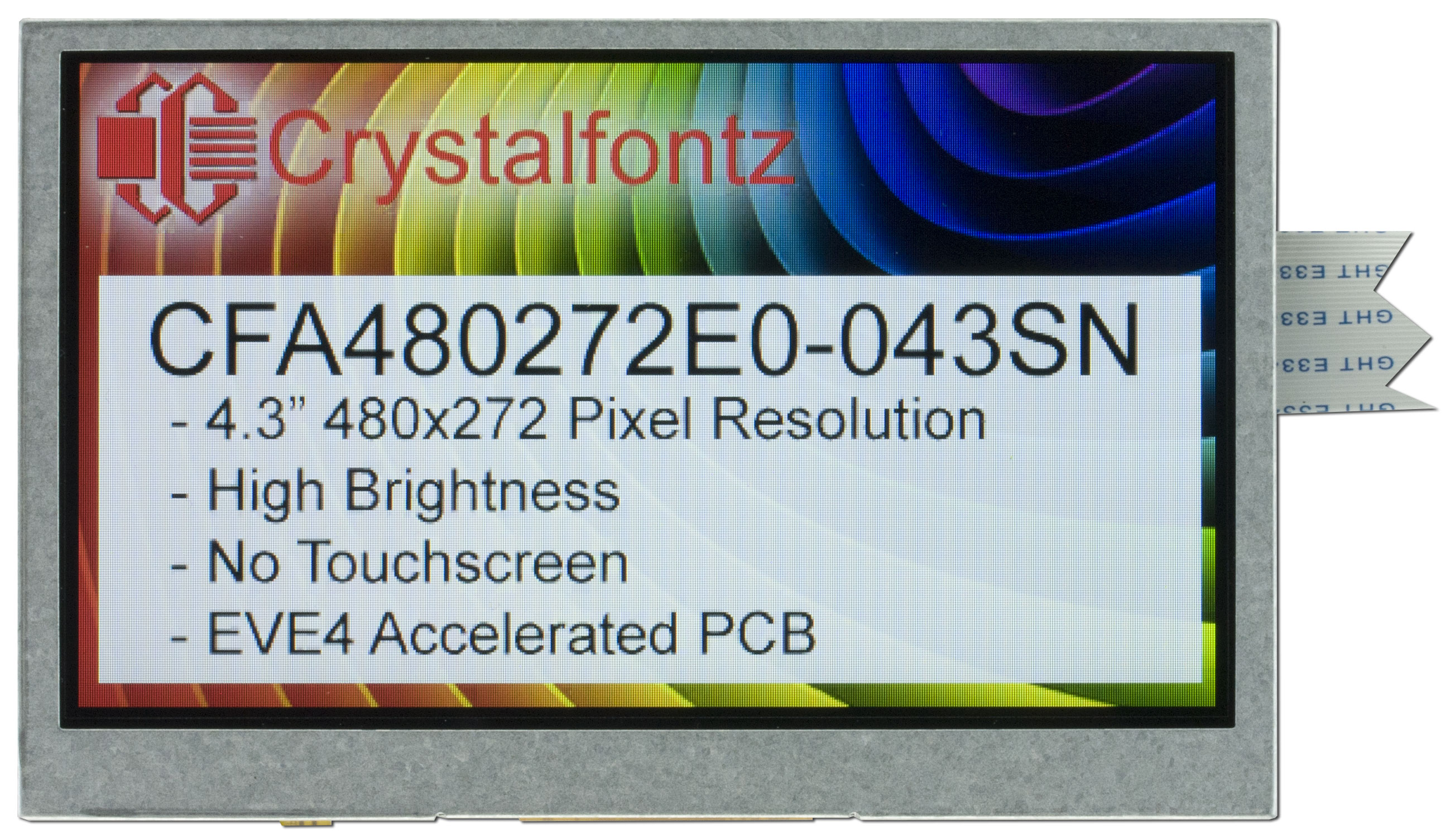

- 4.3" 480x272 EVE TFT Display
- Sunlight readable (1000 nits)
- IPS TFT
- 16M colors
- Bridgetek's BT817 EVE integrated
- 4-wire SPI / Quad SPI
- Needs only an external 5V supply to function out of the box
Part Number: CFA480272E0043SNKIT
CFA - Crystalfontz America
480272 - 480x272 pixel resolution
E0 - EVE part, Family and revision
043 - 4.3" diagonal dimension
S - Sunlight readable
N - No touchscreen
KIT - Development kit
Product Variations
Touchscreen
