480x272 4.3" Capacitive Touchscreen EVE TFT Development Kit

Part Number: CFA480272E0-043SC-KIT

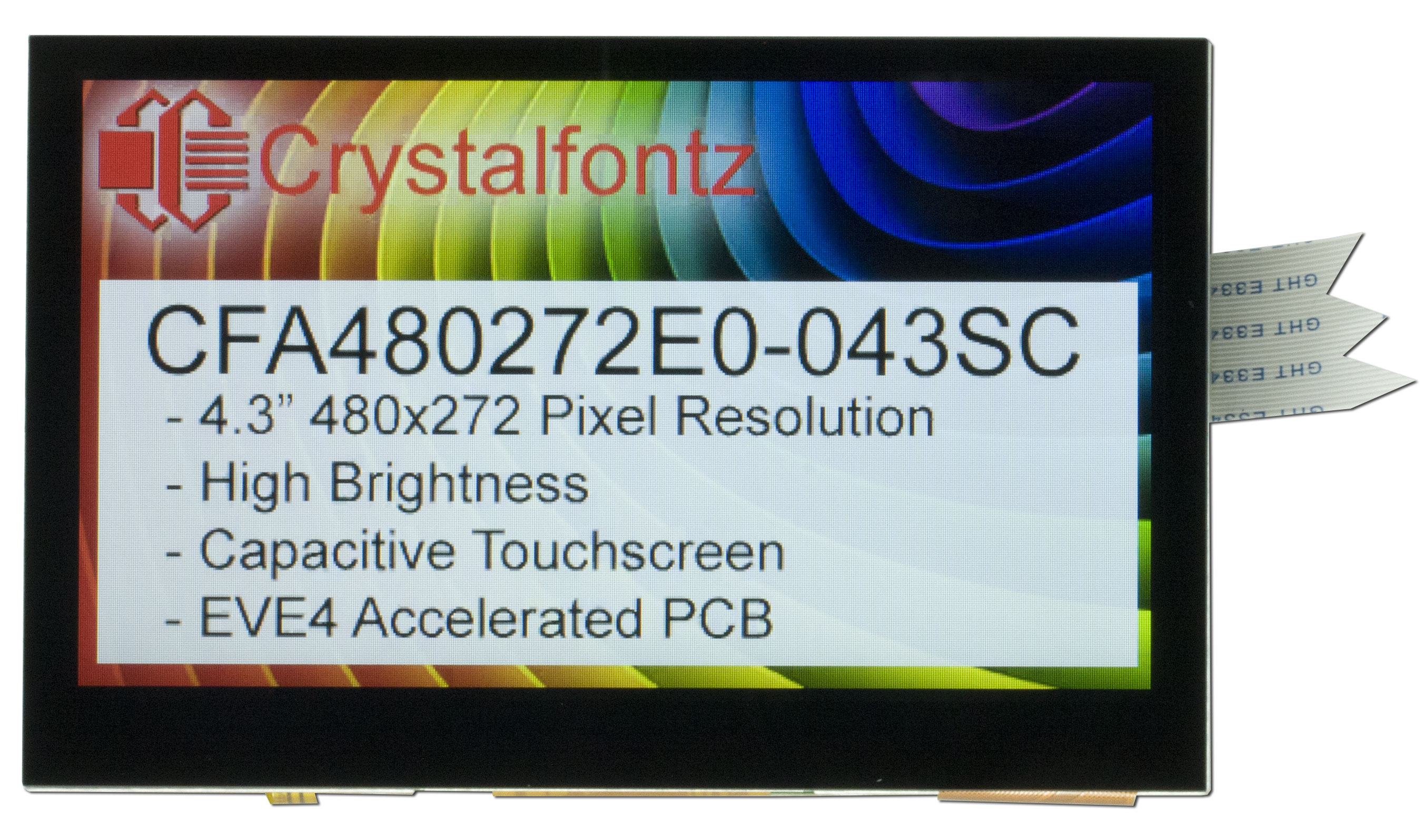

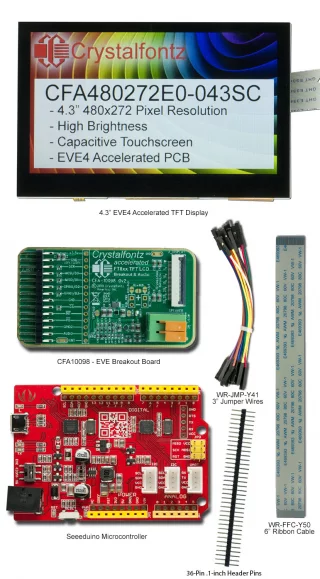

Experience the ultimate in touch responsiveness with this capacitive touch development kit. The kit includes the premium 4.3" TFT EVE display module with capacitive touch panel, an EVE breakout board, and a Seeeduino pre-programmed with an interactive multi-touch demonstration. The capacitive touch panel supports gestures including swipe, pinch, and zoom.

The sunlight-readable display features superior optical clarity thanks to the glass-on-glass construction of the capacitive touch panel. With its IPS technology and 850 nit brightness, this EVE development kit is ideal for developing consumer products, smart home interfaces, and modern HMI applications. The BT817 EVE chip's touch coprocessor handles all gesture recognition, freeing your microcontroller for application tasks.

Features to note:

• 4.3" EVE TFT Display with capacitive touch
• Multi-touch capability with gesture support
• Sunlight readable (850 nits)
• IPS panel with crystal-clear optics
• TFT with 16M colors
• Bridgetek's BT817 EVE with touch coprocessor
• 4-wire SPI / Quad SPI interface
• Pre-loaded with interactive gesture demonstration
• External 5V supply required for backlight

Part Number: CFA480272E0043SCKIT
CFA - Crystalfontz America
480272 - 480x272 pixel resolution
E0 - EVE part, Family and revision
043 - 4.3" diagonal dimension
S - Sunlight readable
C - Capacitive touch panel
KIT - Development kit

• grid_on Resolution

  Pixel Grid

  Column Dots	480 px
  Row Dots	272 px

  Color

  Color Depth

  16.7M bits

  Ratio

  Aspect Ratio

  16:09

• square_foot Physical Dimensions

  Module	Metric	Imperial
  Overall Width	105.50 mm	4.154 in
  Overall Height	67.15 mm	2.644 in
  Overall Depth	10.35 mm	0.407 in
  Diagonal Dimension	4.3 in
  Weight	93.8 g
  Shape	Rectangle

  Display Area	Metric	Imperial
  Active Area Width	95.04 mm	3.742 in
  Active Area Height	53.86 mm	2.120 in
  Viewing Width	97.04 mm	3.820 in
  Viewing Height	55.83 mm	2.198 in

• build Mechanical

  Connectors

  Module Connector Type	ZIFF
  Module Connector Pitch	0.50 mm (0.02 in)
  Pin Count	30
  Foldable Tab	No

• visibility Display Optics

  Technology

  Display Technology	TFT
  Glass Type	IPS
  Mode	Positive

  Viewing

  View Angle	180°
  View Direction	All o'clock
  Brightness Rating	Sunlight

• palette Color & Appearance

  Display Colors

  Foreground Color	RGB
  Background Color	Dark

  Backlight

  Backlight Type	LED
  Backlight Color	White

• electric_bolt Electrical

  Display	Min	Typ	Max	Unit
  Supply Voltage - Logic
  Supply Voltage for Logic	3	3.3	3.6	V
  Supply Current	—	125	—	mA

  Backlight	Min	Typ	Max	Unit
  Voltage
  Forward Voltage	2.7	5	9	V
  Current
  Forward Current	—	344	—	mA

• cable Interface

  Available Interfaces

  Standard Interface(s)

  SPI

• touch_app Touch

  Capability

  Touch Screen

  Capacitive

• nature Environmental

  Temperature

  	Min (°C)	Max (°C)	Min (°F)	Max (°F)
  Operating Temperature	-20°C	70°C	-4°F	158°F
  Storage Temperature	-30°C	80°C	-22°F	176°F

• info Product Metadata

  Classification

  Special Characteristics	EVE
  Returnable	No

  Controller

  Built-in Controller

  Bridgetek BT817
