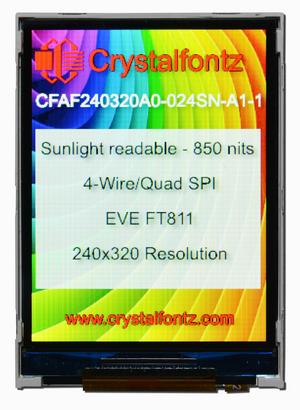

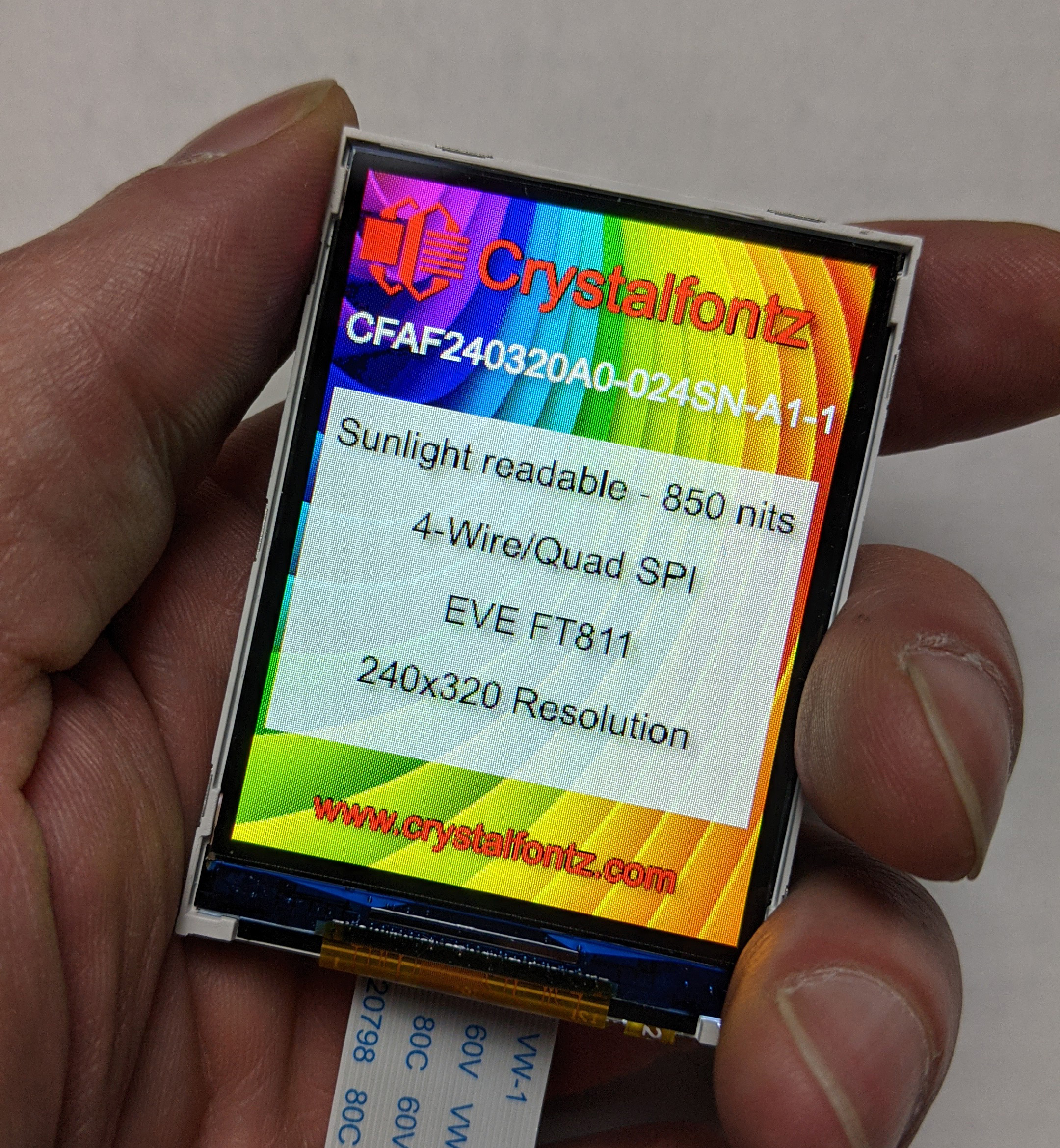

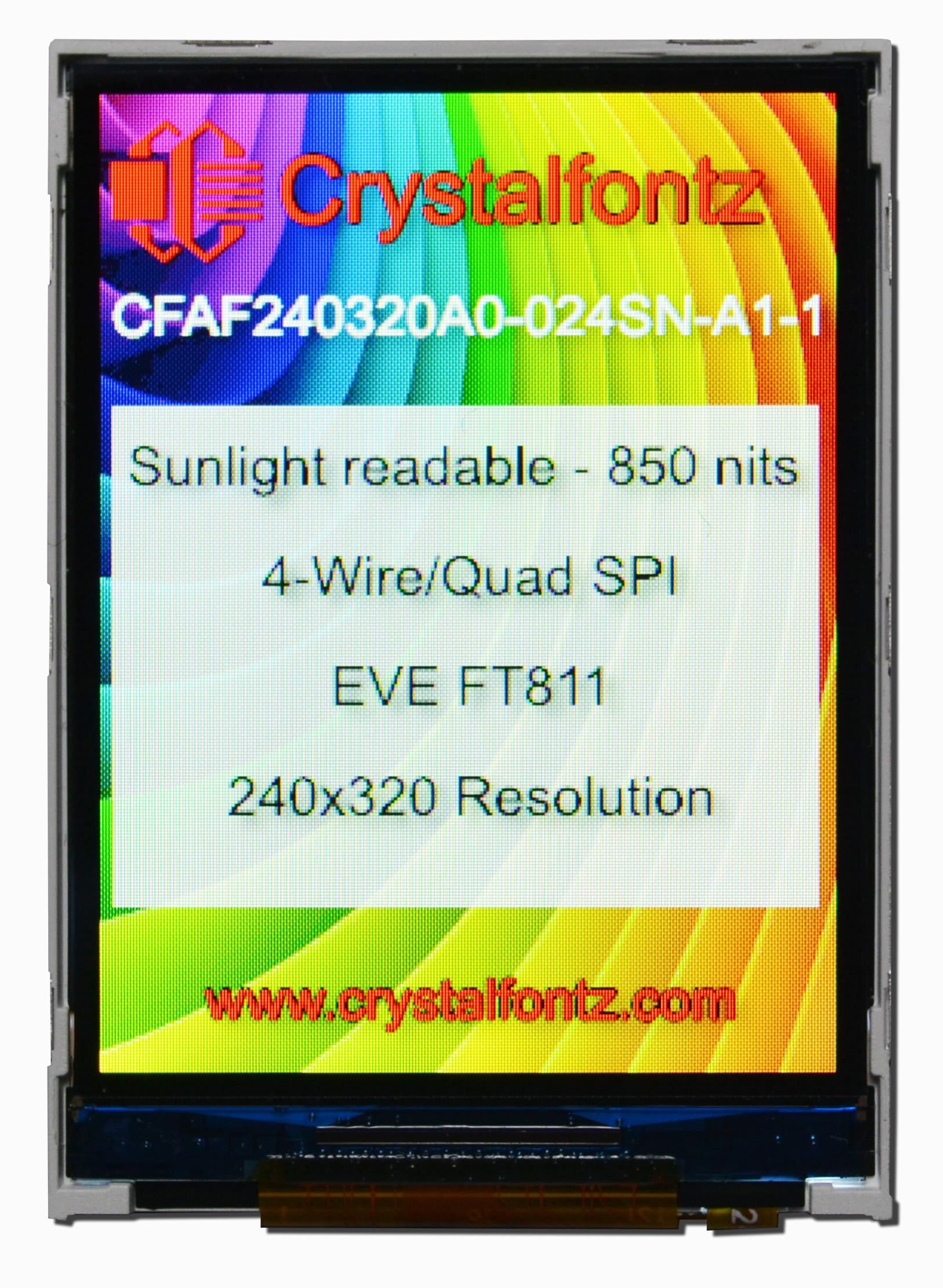

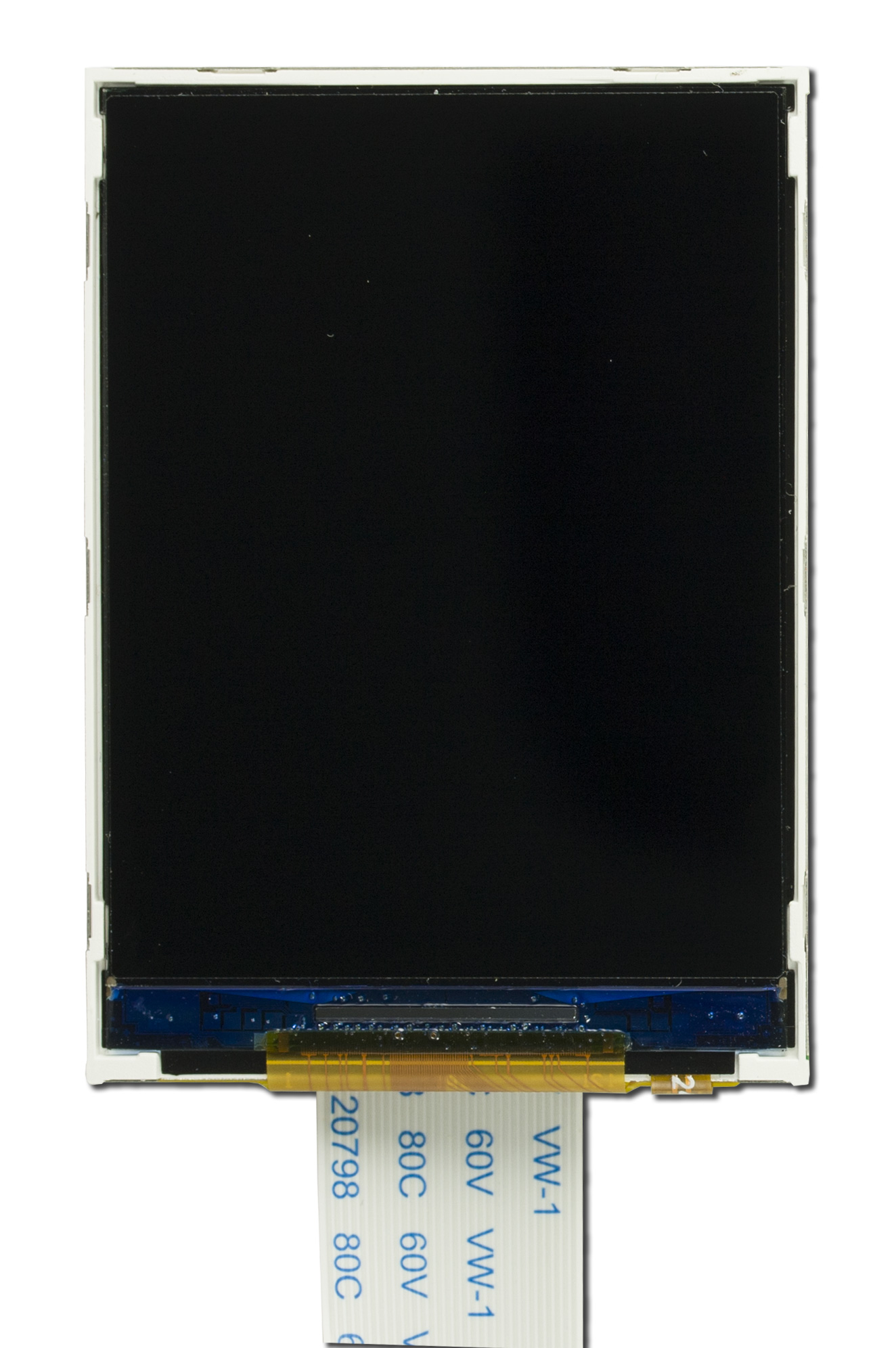

2.4" Sunlight Readable EVE TFT Display

Part Number: CFAF240320A0-024SN-A1-1

This TFT EVE module simplifies development with this 2.4" Full-Color TFT Display. The EVE FT811 chip controls the display using a display list to easily display complex graphics. The display is sunlight readable, full color, and has a wide viewing angle, so it's a great choice for inside or outside.

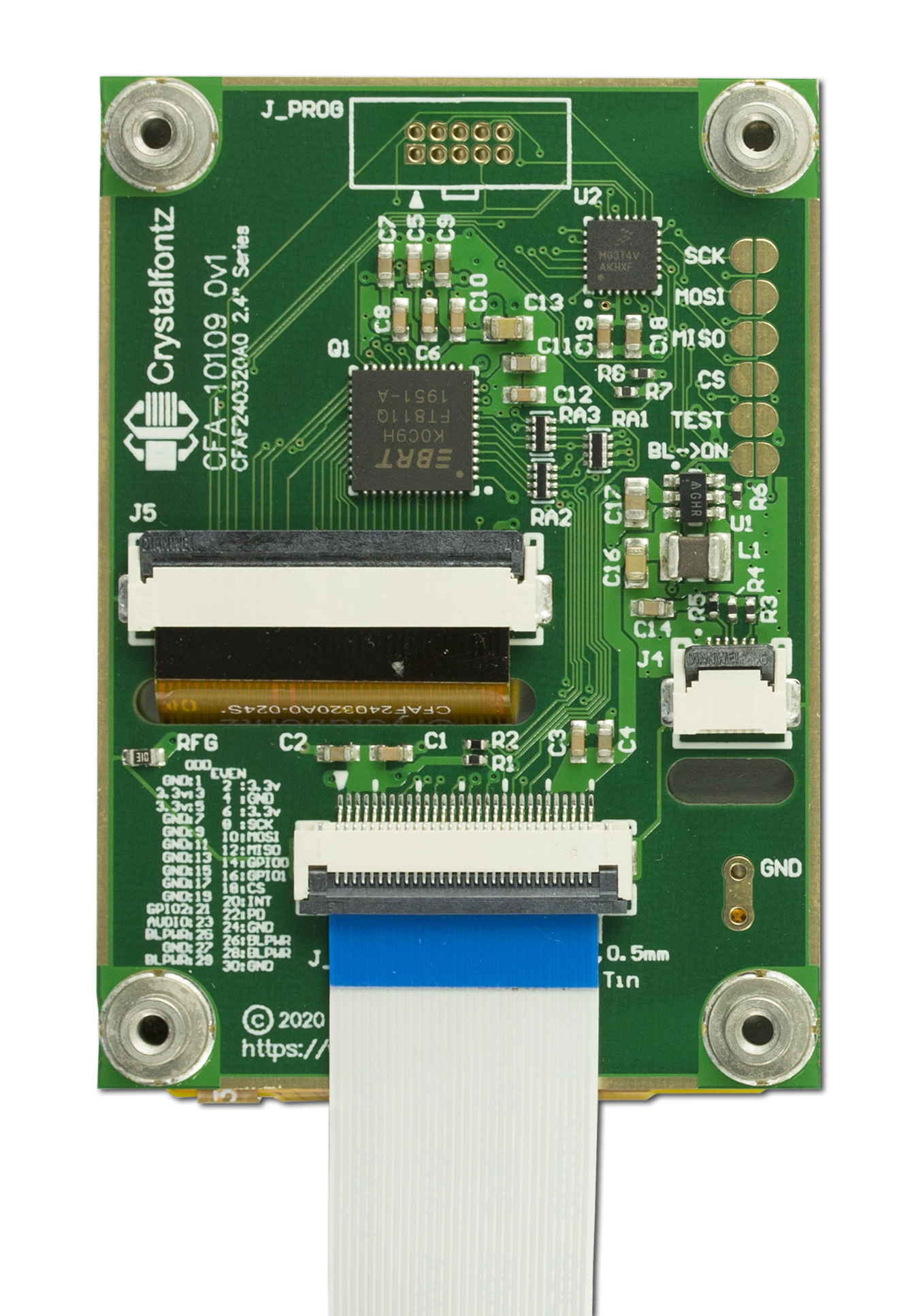

The PCB handles the TFT display backlight voltage, making this display module perfect for hand-held applications. Read more about how the EVE chip can help your product development on our blog.

Key Features:
  • Graphics accelerating FT811 chip for easy graphics control
  • Sunlight Readable (850 nits)
  • SPI interface
  • IPS
  • Full color TFT (262k colors)
  • 2.4" diagonal active area
  • 4x 2-56 threaded mounting stand offs
EVE Features:
  • Supports multiple widgets for simplified design implementation
  • Recognize touch tags and track touch movement
  • Enhanced sketch processing
  • Anti-aliasing of primitive displayed objects for higher-quality graphics
  • Graphical effects such as alpha-blending, shadows, transitions, wipes, etc.
  • Programmable interrupt controller provides interrupts to host MCU
  • Support playback of motion-JPEG encoded AVI videos
  • Mono audio channel output with wave playback and built-in sound synthesizer
  • PWM output for display backlight dimming control

For more detailed information on EVE, see the FTDI FT81x Datasheet. Further information including programming examples, interface design software, and more can be found on FTDI’s website here:https://www.ftdichip.com/Support/Utilities.htm.

Product Variants

CFAF240320A0-024SC-A1-12.4" EVE Touchscreen Display
CFAF240320A0-024SN-A1-12.4" Sunlight Readable EVE TFT Display
2.4" Sunlight Readable EVE TFT Display (CFAF240320A0-024SN-A1-1)
Qty:
Quantity Price
1 $45.76
5 $42.73
10 $41.60
20 $40.20
50 $38.79
100 * $38.23
200 * $37.95
300 * $37.67
500 * $37.39
1000 * $37.11
* Contact us about potential lead times.
Components worth considering
4649 30 Position, 0.5mm Pitch, Tin, FCC FPC ZIF connector
Add 5 ZIF Connectors $0.53 ea.
4606 6-inch 30-pin FFC Cable
Add a ribbon cable $2.00 ea.
4665 Assorted Imperial Screws
Need mounting screws? $2.68 ea.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Datasheet

Files

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAF240320A0-024SN-A1-1 or RSS RSS feed for changes to CFAF240320A0-024SN-A1-1 for CFAF240320A0-024SN-A1-1

Compliance Documents

Video Demonstrations

2.4" EVE Powered Sunlight Readable TFT

Demonstration of our 2.4" EVE Powered, sunlight-readable TFT display


TECHNICAL SPECS

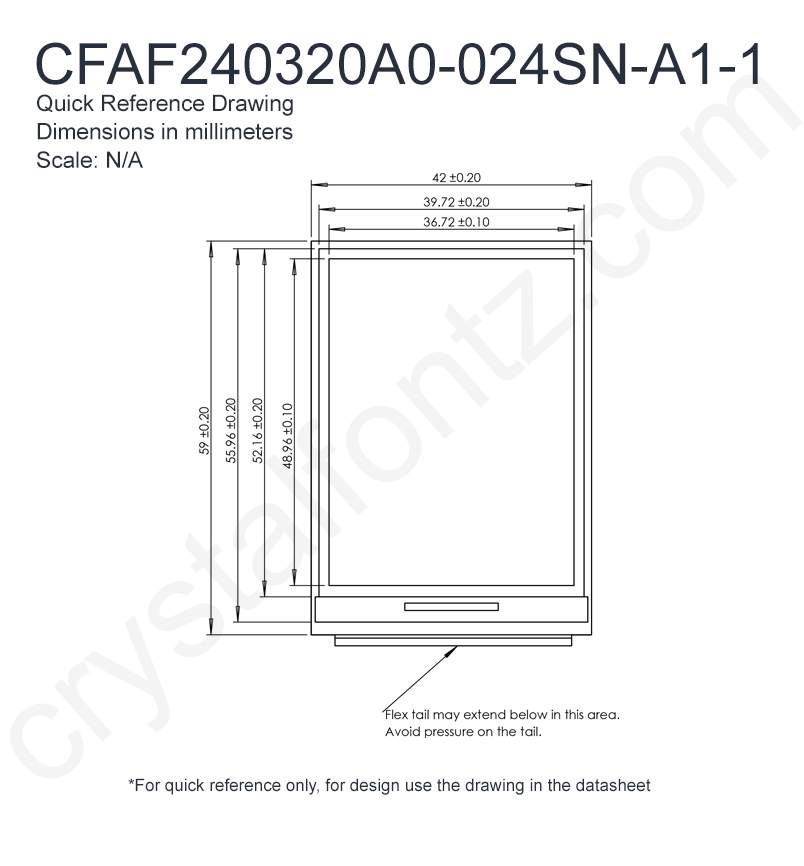

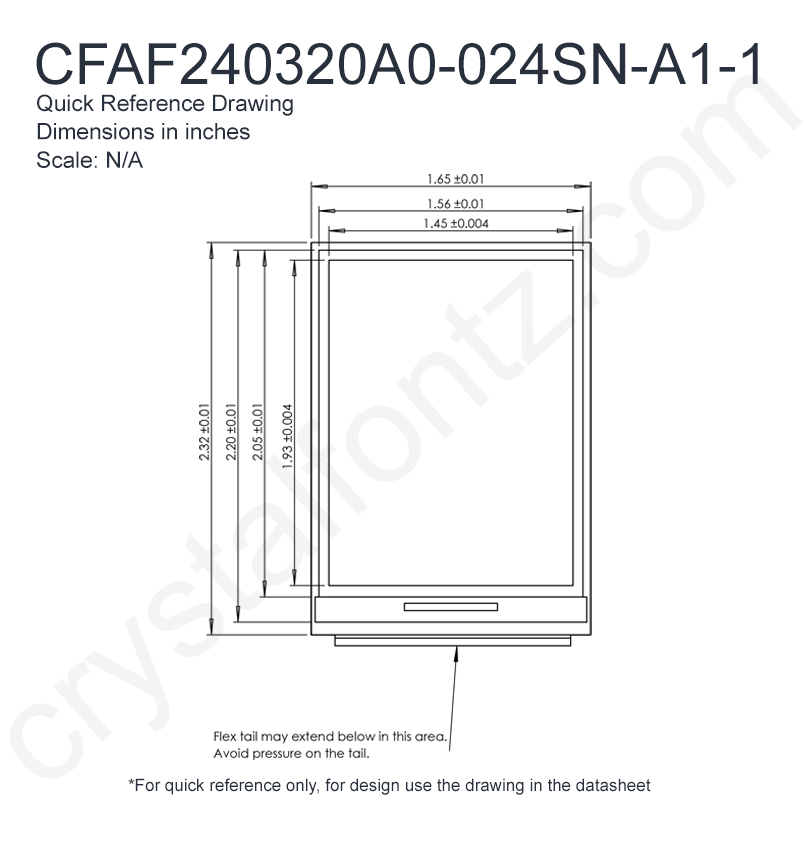

Physical Characteristics

Column Dots x Row Dots 240 x 320
Module Overall width height depth
millimeters 42 59 6.69
inches 1.654 2.323 0.263
Diagonal Dimension 2.4"
Active Area width height
millimeters 36.72 48.96
inches 1.446 1.928
Dot Pitch width height
millimeters 0.152 0.153
inches 0.0060 0.0060
Weight 22.3g

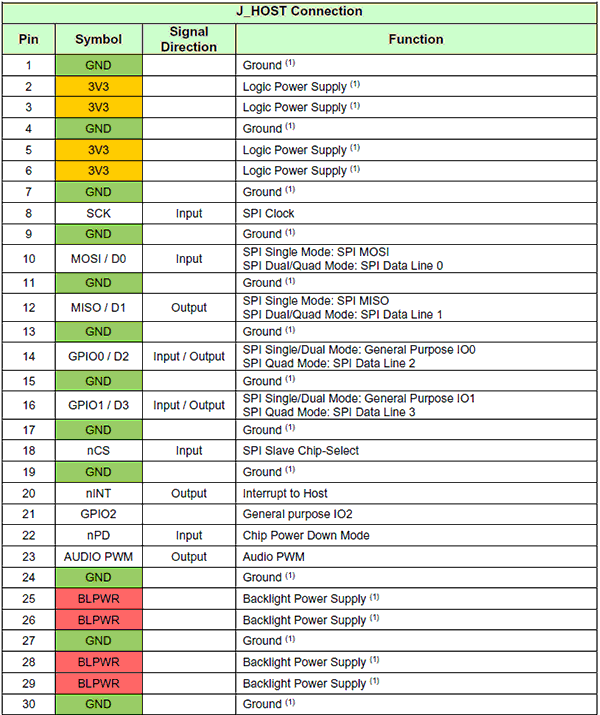

Pin Count 30

Optical Characteristics

Glass Type TFT
Polarizer IPS
View Angle 80°
Sunlight Readable Yes
Backlight Color White
Backlight Type LED
Foreground Color RGB
Background Color Dark

Electrical Specifications

Supply Voltage for Logic Minimum 2.97V
Supply Voltage for Logic Maximum 3.63V
Supply Voltage for Logic Typical 3.3V
Supply Voltage for Driving Panel Typical 3.3V
Supply Current Minimum 2.7mA
Supply Current Maximum 70mA
Supply Current Typical 54mA

Backlight Electrical Specifications

Forward Voltage Minimum 2.7V
Forward Voltage Maximum 5.5V
Forward Voltage Typical 3.3V
Forward Current Maximum 166mA
Forward Current Typical 106mA

Environmental

Operating Temperatures min max
Celsius -20° 70°
Fahrenheit -4° 158°
Storage Temperatures min max
Celsius -30° 80°
Fahrenheit -22° 176°

Electronics

Controller Documents FTDI FT811
Interface SPI

Additional Options

Add a Seeeduino and wires for a complete development kit.

2.4" Sunlight Readable EVE TFT Development Kit
Part Number: CFAF240320A0-024SN-A1-2

This full 2.4" EVE development kit includes everything needed to demonstrate either the 2.4" EVE module or the 2.4" standalone display. Simply plug the Seeeduino to power and supply 3.3V to the EVE Breakout Board to initiate a demonstration on the display.

Some special features:

  • Graphics accelerating FT811 chip for easy graphics control
  • Sunlight Readable (850 nits)
  • SPI interface
  • IPS (can be viewed from any direction)
  • Full-color TFT Display
  • Seeeduino demo kit running a demonstration program
  • EVE chip that supports the display and audio functionality
Included in this kit:

Details
Quantity 1
Price $75.00
Quantity:

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAF240320A0-024SN-A1-1 or RSS RSS feed for changes to CFAF240320A0-024SN-A1-1

Part Change Notice #11100: Board Revision

Products Affected: CFAF240320A0-024SC-A1-1, CFAF240320A0-024SC-A1-2, CFAF240320A0-024SN-A1-1, CFAF240320A0-024SN-A1-2
Date Issued: August 17, 2021
Summary: Board Revision
Description: The board is being revised to support a different NXP processor as the helper processor on the board. This will not affect the functionality of the module and is a drop-in replacement.

Hardware Version Changes: h0v1 to h0v2
Firmware Version: N/A
Reason: Due to the ongoing worldwide component shortage, we are unable to source the current processor until 2023. Instead of having a year-long lead time for our product, we are designing in a readily available processor.
Availability: The new version will be available in Q4 of 2021.
For reference only. For design purposes, please use the specifications in the datasheet.
