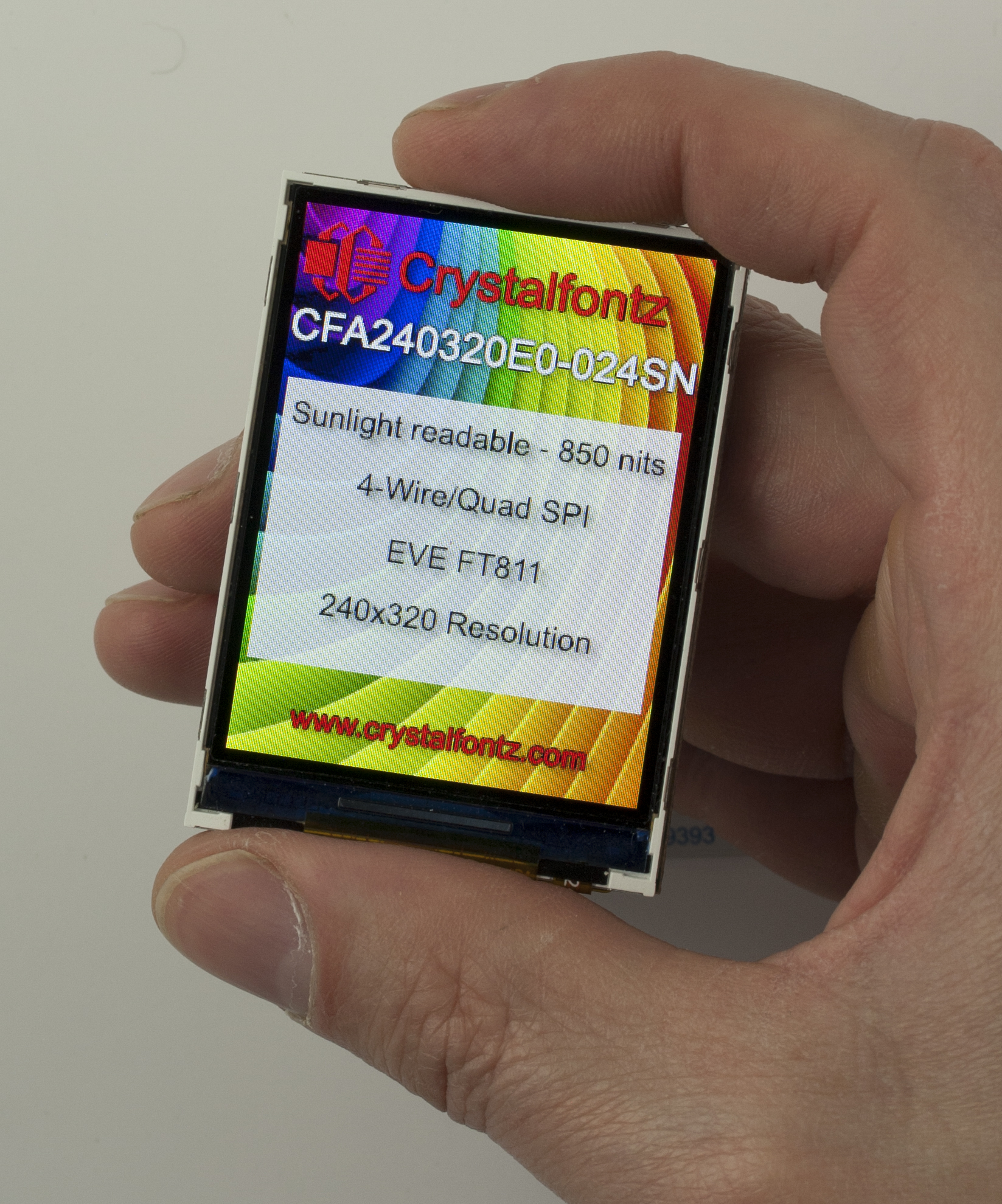

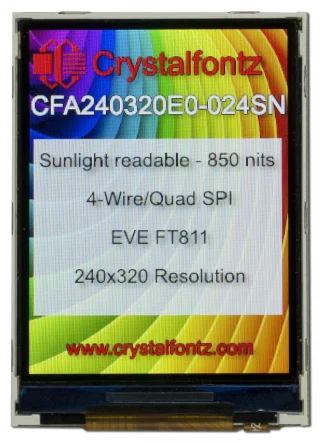

240x320 2.4" EVE TFT Display

Part Number: CFA240320E0-024SN

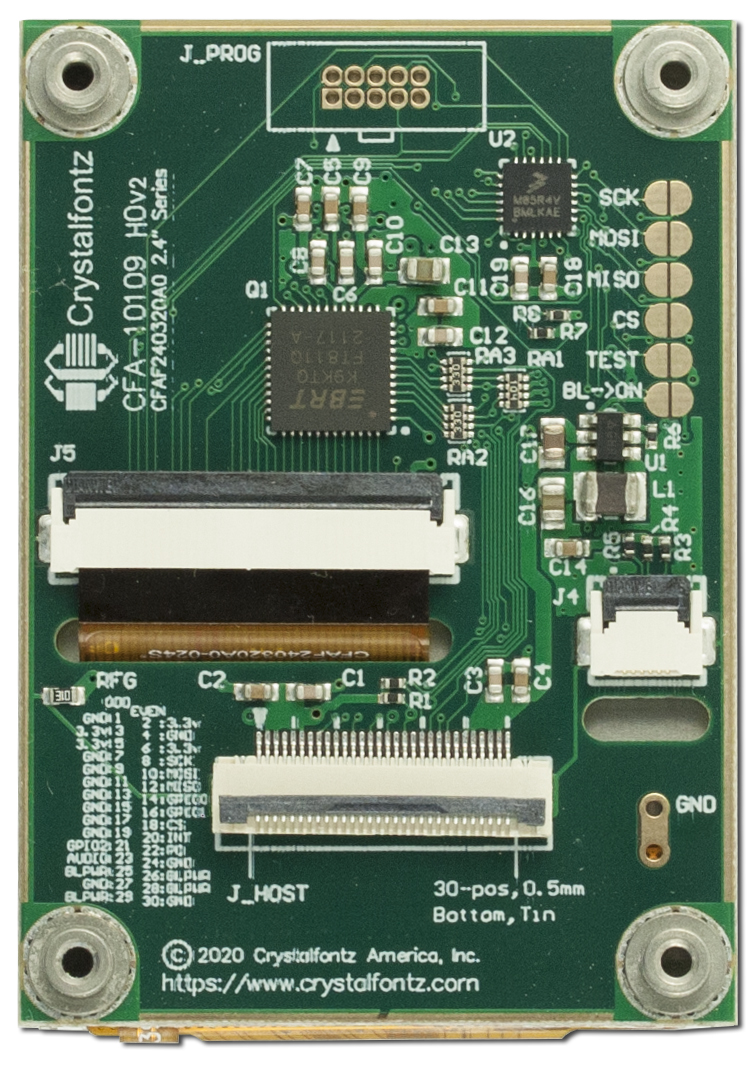

A sunlight readable, 2.4" diagonal EVE TFT, this module leverages the EVE FT811 chip to simplify displaying complex graphics. The EVE handles the touch, backlight, and audio and presents as a SPI device while providing the graphics speed of an RGB display.

The display is sunlight readable, full color, and has a wide viewing angle, so this display module works well for both indoor and outdoor applications.

This EVE TFT only requires 3.3v inputs, making this display module perfect for hand-held applications. Read more about how the EVE chip can help your product development on our blog.

Key Features:
  • Graphics accelerating FT811 chip for easy graphics control
  • Sunlight Readable (850 nits)
  • SPI interface
  • IPS
  • Full color TFT (262k colors)
  • 2.4" diagonal active area
  • 4x 2-56 threaded mounting stand-offs
EVE Features:
  • Supports multiple widgets for simplified design implementation
  • Enhanced sketch processing
  • Anti-aliasing of primitive displayed objects for higher-quality graphics
  • Graphical effects such as alpha-blending, shadows, transitions, wipes, etc.
  • Programmable interrupt controller provides interrupts to host MCU
  • Support playback of motion-JPEG encoded AVI videos
  • Mono audio channel output with wave playback and built-in sound synthesizer
  • PWM output for display backlight dimming control
For more detailed information on EVE, see the FTDI FT81x Datasheet. Further information including programming examples, interface design software, and more can be found on Bridgetek?s website here: https://brtchip.com/ic-module/product/ft811/

Currently Shipping: HW Version 0v2, Firmware Version: 0v1

Part Number:
CFA - Crystalfontz (no 4th letter indicates a display with value-added)
240320 - Pixel Resolution
E - EVE
0 - Revision
024 - 2.4" Diagonal
S - Sunlight Readable
N - No touch
Qty:
Quantity Price
1 $36.71
5 $30.65
10 $29.84
20 $28.84
50 $27.83
100 $27.43
200 $27.22
300 $27.03
500 * $26.82
1000 * $26.62
* For quantites over this amount the lead time may be up to 60 Days. Contact us about potential lead times.
Components worth considering
4649 30 Position, 0.5mm Pitch, Tin, FCC FPC ZIF connector
Add 5 ZIF Connectors $0.61 ea.
4665 Assorted Imperial Screws
Need mounting screws? $3.08 ea.
4606 6-inch 30-pin FFC Cable
Need an additional ribbon cable? $2.30 ea.
4741 240x320 2.4" Touchscreen EVE Development Kit
Purchase a complete kit $107.41 ea.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFA240320E0-024SN or RSS RSS feed for changes to CFA240320E0-024SN for CFA240320E0-024SN

TECHNICAL SPECS

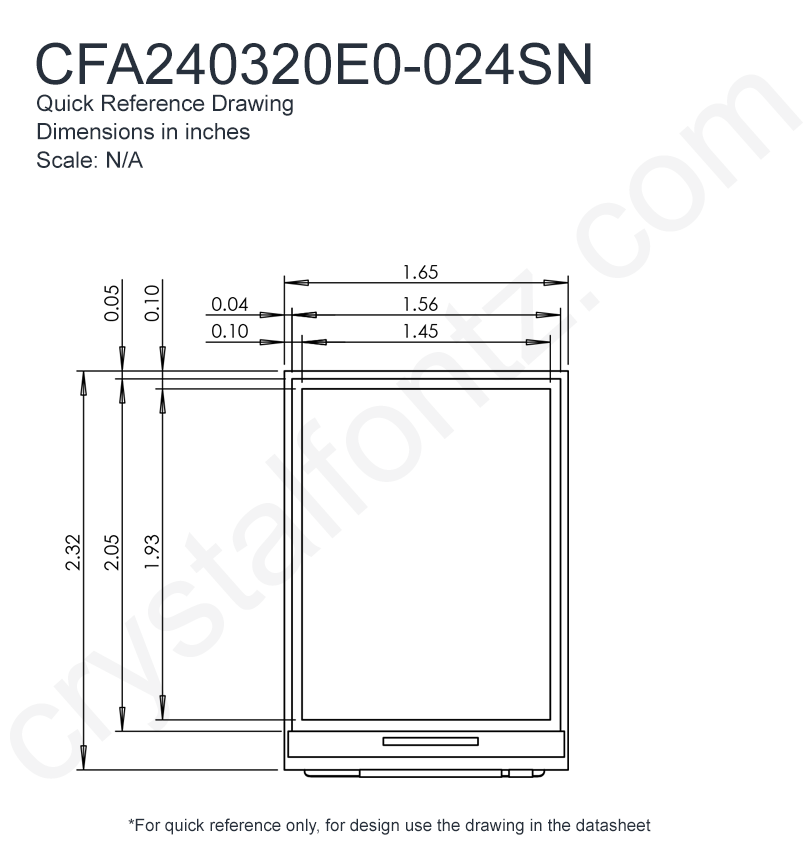

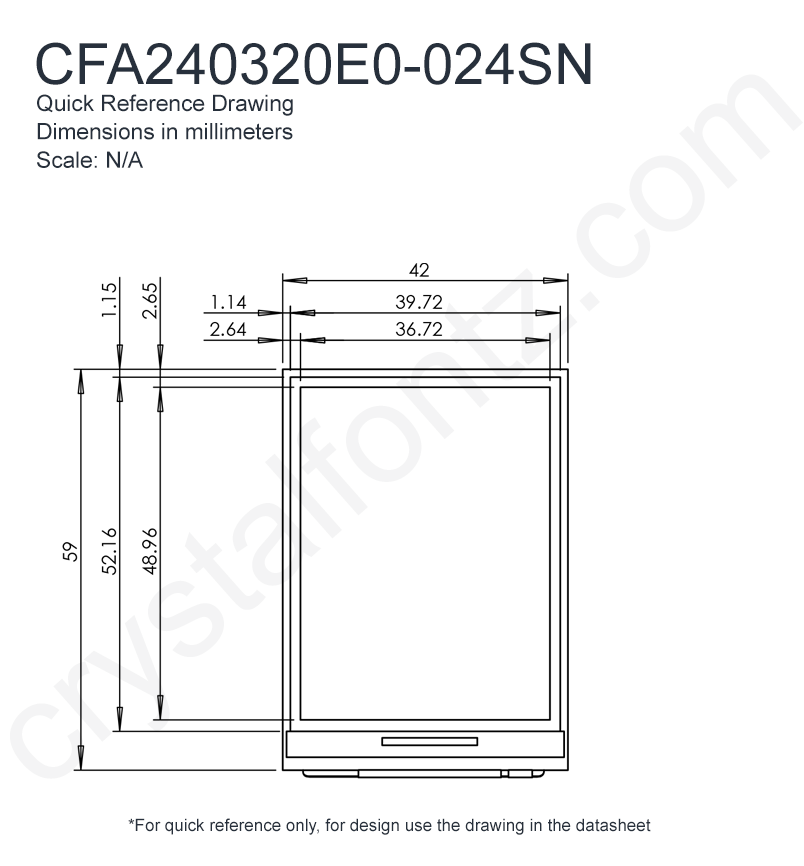

Physical Characteristics

Column Dots x Row Dots 240 x 320
Module Overall width height depth
millimeters 45 62 7.56
inches 1.772 2.441 0.298
Diagonal Dimension 2.4"
Viewing Area width height
millimeters 37.72 49.96
inches 1.485 1.967
Active Area width height
millimeters 36.72 48.96
inches 1.446 1.928
Dot Pitch width height
millimeters 0.153 0.153
inches 0.0060 0.0060
Weight 28g
Pin Count 30

Optical Characteristics

Polarizer Transmissive
View Angle 80°
Sunlight Readable Yes
Backlight Color White
Backlight Type LED
Foreground Color RGB
Background Color Dark

Electrical Specifications

Supply Voltage for Logic Minimum 2.97V
Supply Voltage for Logic Maximum 3.63V
Supply Voltage for Logic Typical 3.3V
Supply Voltage for Driving Panel Typical 3.3V
Supply Current Maximum 70mA
Supply Current Typical 54mA

Backlight Electrical Specifications

Forward Voltage Minimum 2.7V
Forward Voltage Maximum 5.5V
Forward Voltage Typical 3.3V
Forward Current Maximum 166mA
Forward Current Typical 106mA

Environmental

Operating Temperatures min max
Celsius -20° 70°
Fahrenheit -4° 158°
Storage Temperatures min max
Celsius -30° 80°
Fahrenheit -22° 176°

Electronics

Interface SPI

Miscellaneous

Nits 850

Additional Options

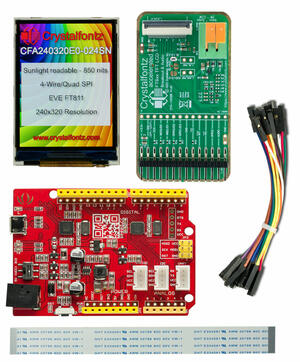

Purchase this display module in a complete development kit.

2.4" EVE Development Kit
Part Number: CFA240320E0-024SN-KIT

This full 2.4" EVE development kit includes everything needed to demonstrate either the 2.4" EVE module or the 2.4" standalone display. Simply plug the Seeeduino to power and supply 3.3V to the EVE Breakout Board to initiate a demonstration on the display.

Some special features:

  • Graphics accelerating FT811 chip for easy graphics control
  • Sunlight Readable (850 nits)
  • SPI interface
  • IPS (can be viewed from any direction)
  • Full-color TFT Display
  • Seeeduino demo kit running a demonstration program
  • EVE chip that supports the display and audio functionality
This part is a direct replacement for the CFAF240320A0-024SN-A1-2. See Part Change Notice #11100.

Part Number:
CFA - Crystalfontz (no 4th letter indicates a display with value added)
240320 - Pixel Resolution
E - EVE
0 - Revision
024 - 2.4" Diagonal
S - Sunlight Readable
N - No Touch
KIT - Development Kit

Details
Quantity 1
Price $77.05
Quantity:

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFA240320E0-024SN or RSS RSS feed for changes to CFA240320E0-024SN

Part Change Notice #11132: CFA240320E0-024SN is now available!

New Product: CFA240320E0-024SN
Date Issued: June 14, 2022
Summary: CFA240320E0-024SN is now available!
Description: CFA240320E0-024SN has been released on our website (https://www.crystalfontz.com/product/cfa240320e0024sn-240x320-2-point-4-inch-eve-tft) and is now available for sale. Orders can be placed directly from the website or by submitting a purchase order to sales@crystalfontz.com. Contact support for any technical questions.
For reference only. For design purposes, please use the specifications in the datasheet.
