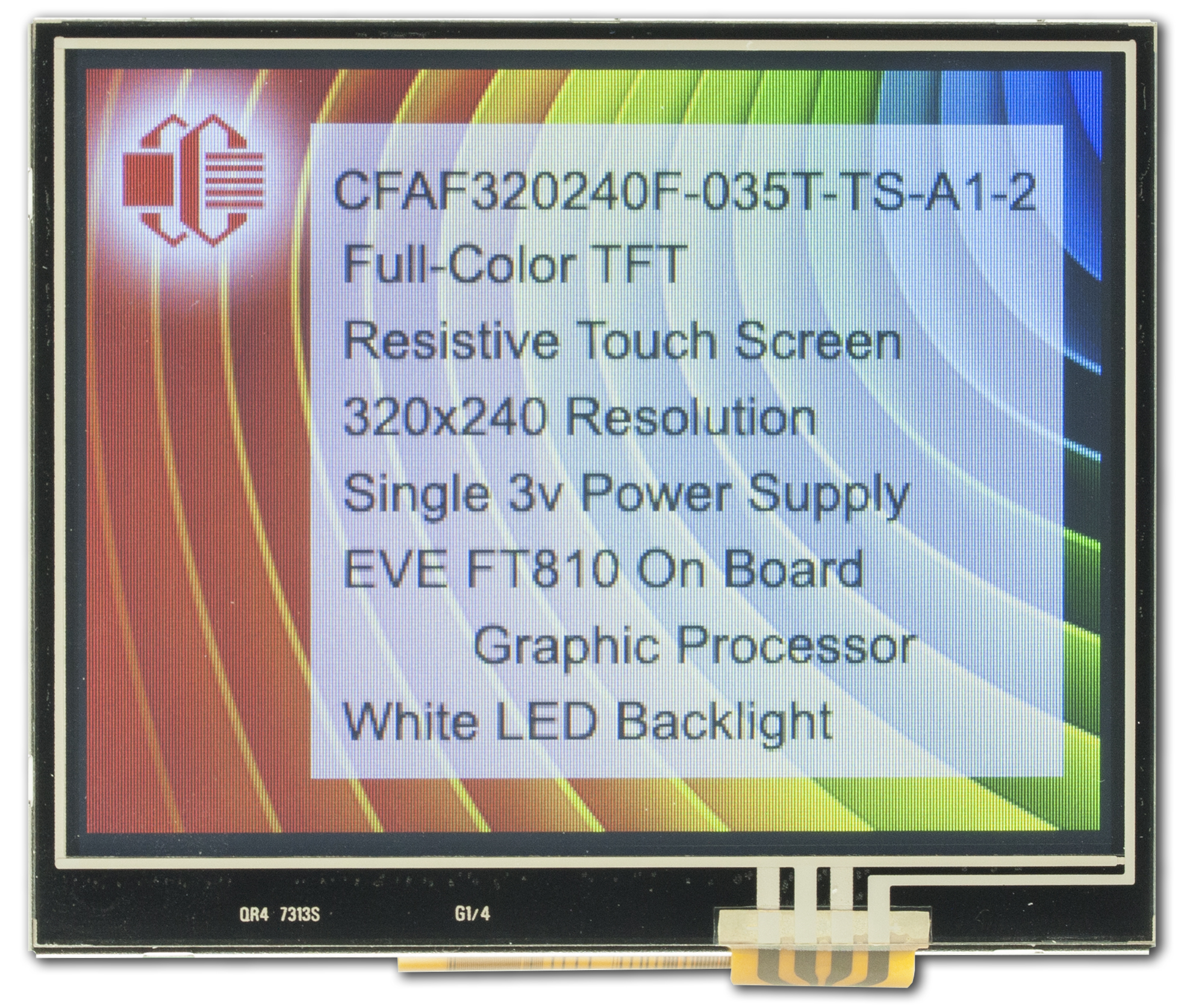

EVE 3.5 Inch TFT Development KitPart Number: CFAF320240F-035T-TS-A1-2

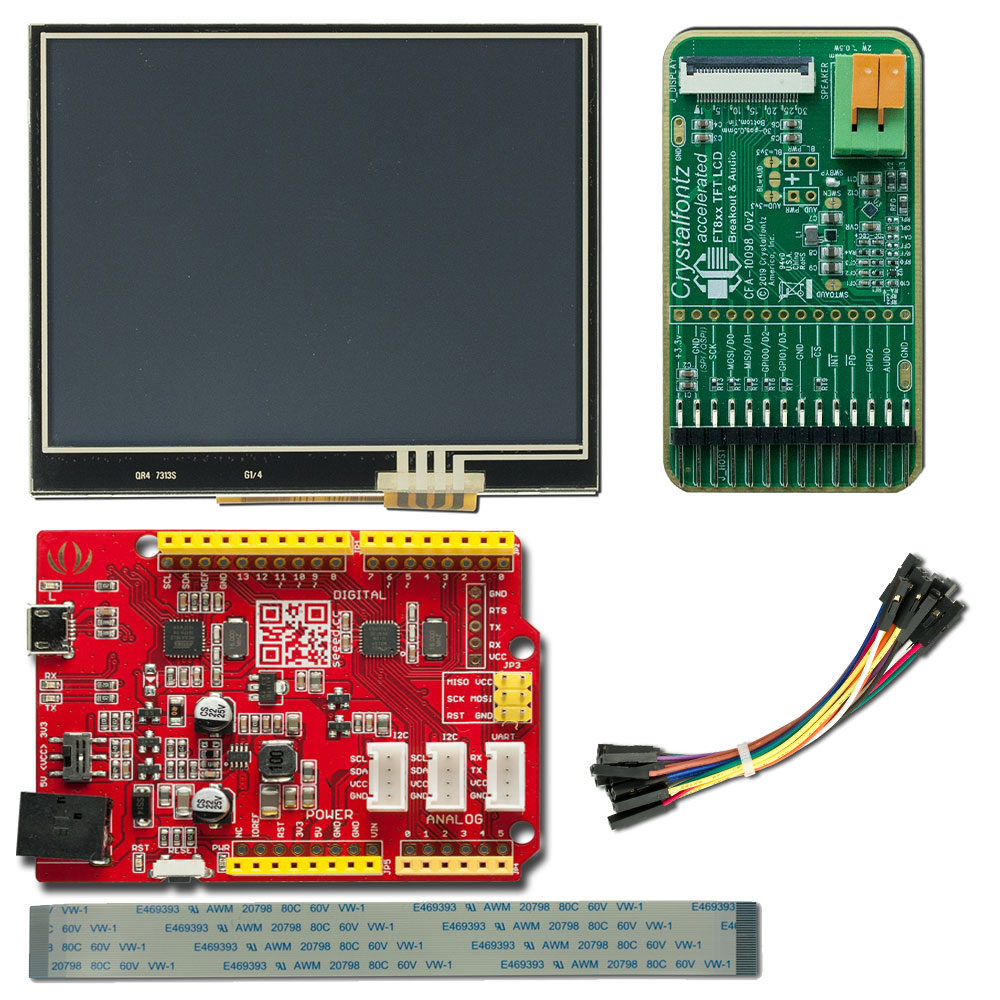

         This 3.5" EVETFT bundle has everything you need to get started with this powerful display. The development kit consists of a 3.5" display mounted on an EVE2 graphically accelerated PCA, a Seeeduino, an EVE breakout board, jumper wires, USB cable and 6-inch ribbon cable.

With a resistive touch screen, full color, and a 6 o'clock viewing angle the display is a great way to offer a full user experience. For more information about the display, including its detailed datasheet, check out the 320x240 3.5" Touch Screen Color TFT page.

The EVE chip really makes this TFT module really shine. EVE (embedded video engine) is a cool new technology from FTDI/Bridgetek that simplifies the process of displaying videos and text in an embedded project. All display, touch sensing, backlight, and audio features are controlled by the FTDI FT810 EVE which appears to host the MCU as a memory-mapped SPI device. The host MCU sends commands and data over the SPI protocol. The module can support both SPI and Quad-SPI.

Check out the 320x240 3.5 Inch EVE Display Kit for just the display and the EVE PCA.Product VariationsColors on
White LED BacklightRGB on Dark
White LED Backlight
TouchscreenNoneResistive

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            320 x 240

    Module Overall        width
        height
        depth

        millimeters
        77.6
        64.4
        4.45

        inches
        3.06
        2.54
        0.18

*width / height does not include Foldable Tab

        Diagonal Dimension
            3.45"

    Active Area        Width
        Height

        millimeters
        70.08
        52.56

        inches
        2.76
        2.07

    Dot Size        Width
        Height

        millimeters
        0.06
        0.21

        inches
        0.002
        0.008

    Dot Pitch        Width
        Height

        millimeters
        0.22
        0.22

        inches
        0.009
        0.009

        Optional Connectors
            CS050Z50GB0

        Weight
            158.7g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            TN
Polarizer
            Transmissive
View Direction
            0.25 o'clock

        Backlight Color
            White
Backlight Type
            LED
Foreground Color
            RGB
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            2.5V
Supply Voltage for Logic Maximum
            3.6V
Supply Voltage for Logic Typical
            3.3V

        Module Connector Pitch
            0.5mm
Touchscreen Connector Pitch
            1mmmm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Interface
            SPI

Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:

Price:

            Quantity
            Unit Price

            1 *
            $122.71

0 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth considering

						MicroSD Card Reader
Need a MicroSD Reader? $8.14 ea.
