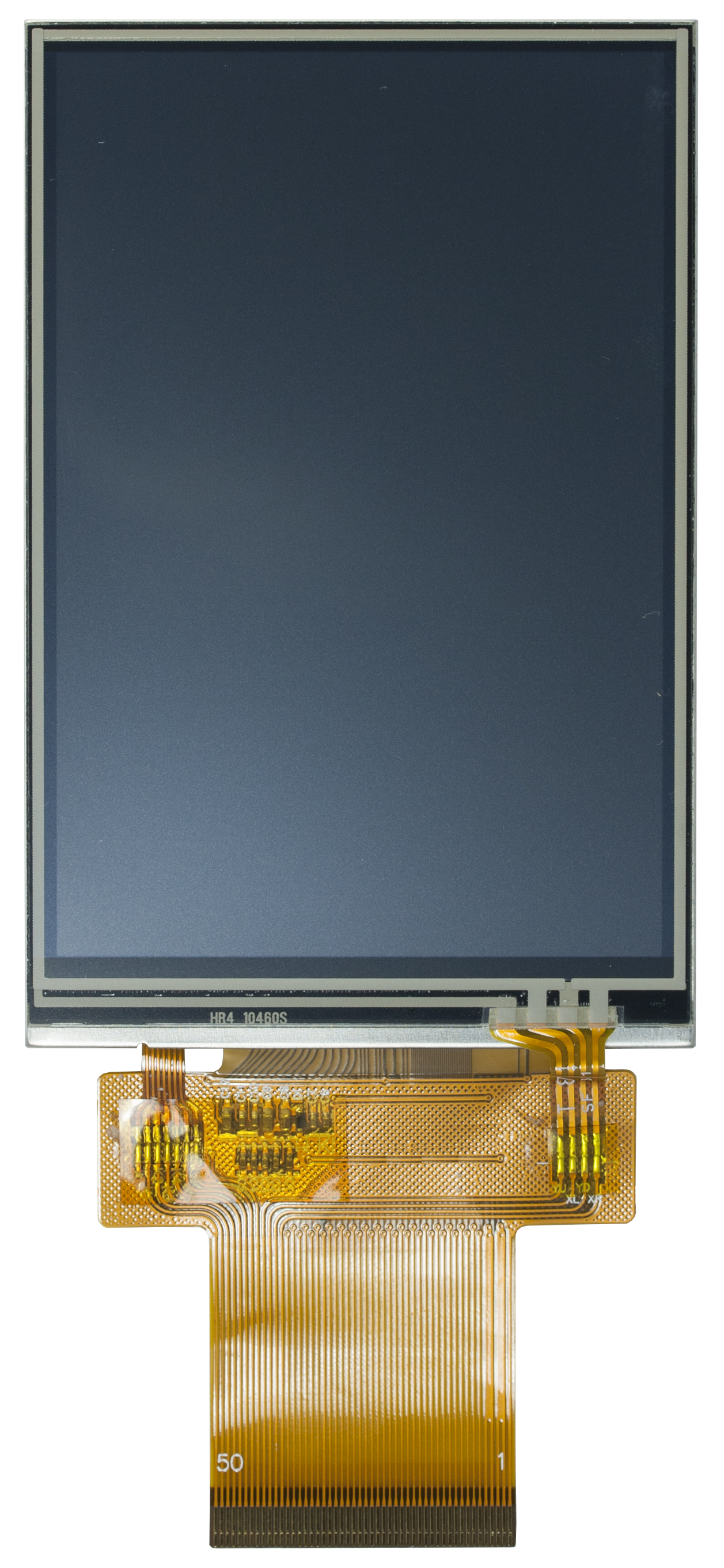

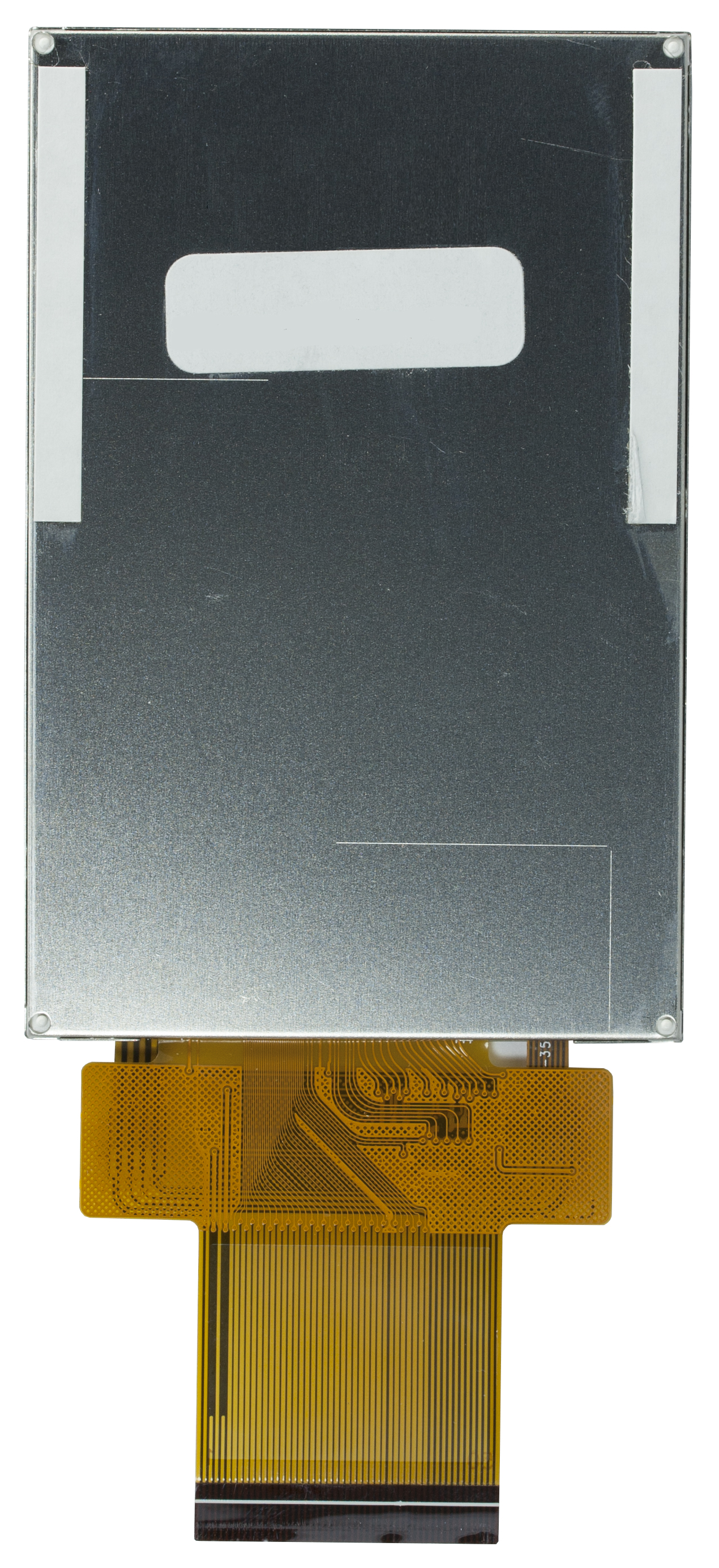

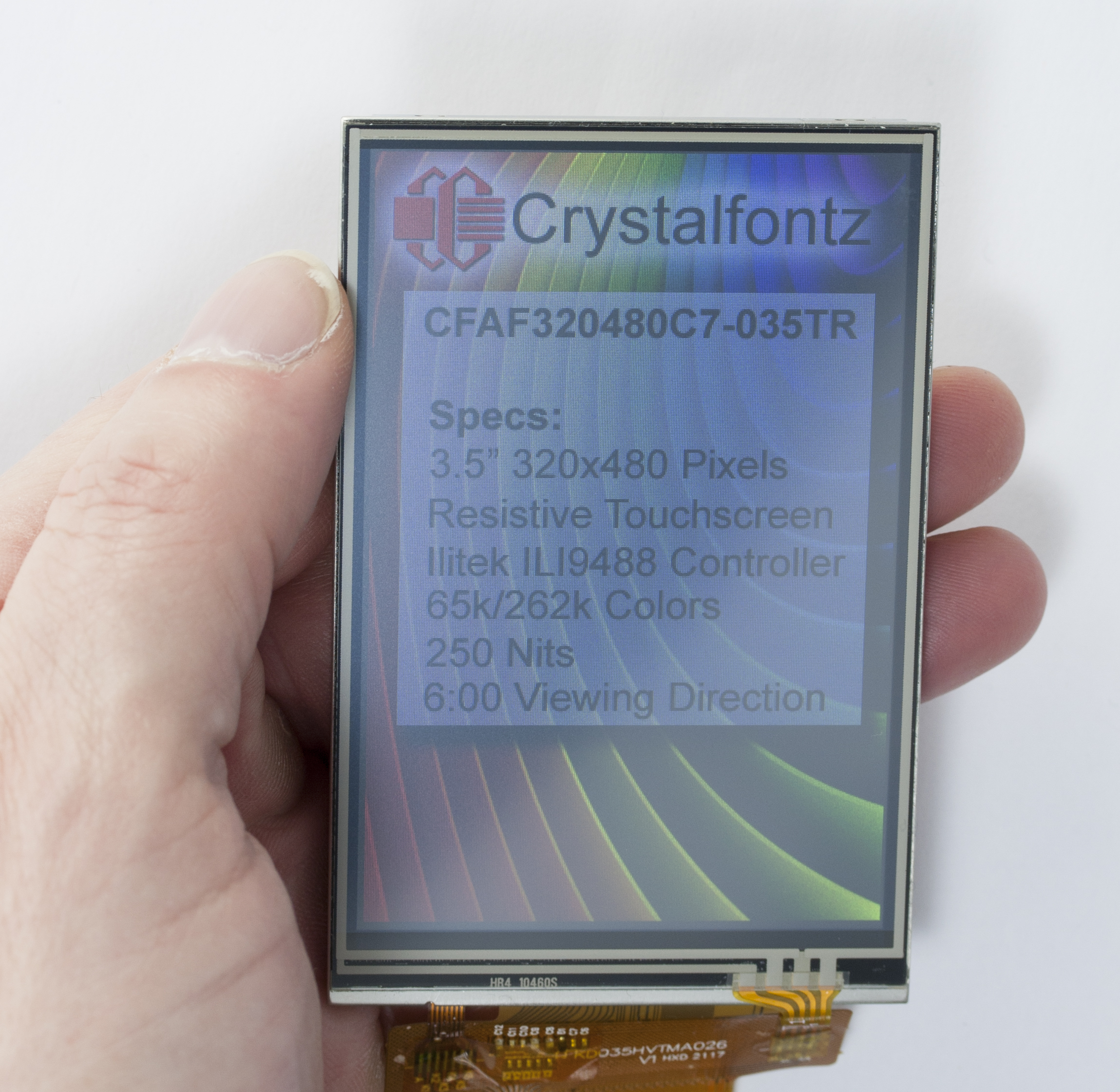

320x480 Full-Color Resistive Touchscreen TFT Display

Part Number: CFAF320480C7-035TR

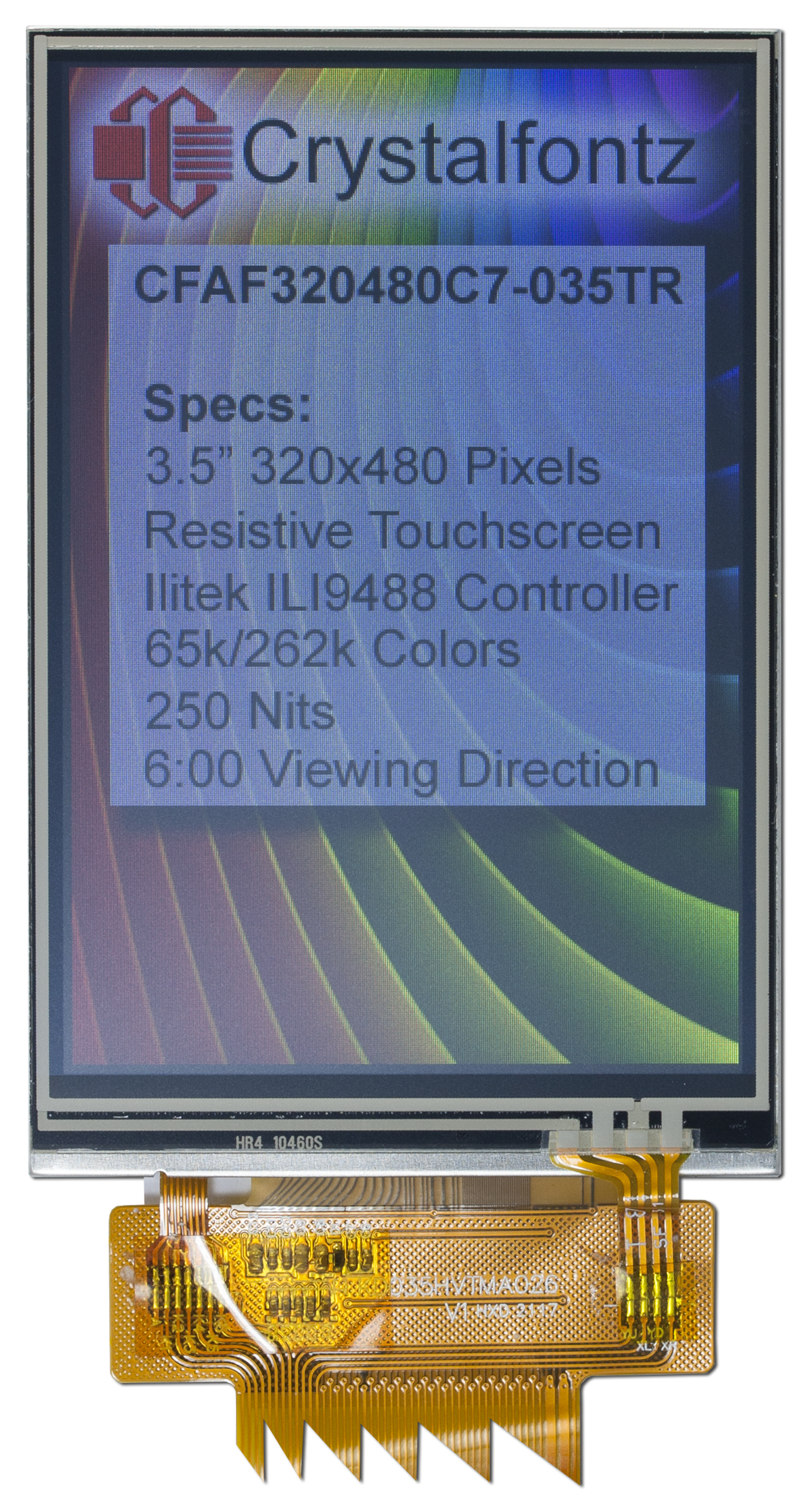

This 3.5-inch TFT display can display up to 262k colors and includes a resistive touchscreen.

With many possible interface options, this display can be integrated into any system. The interface options include 16-bit Parallel, 18-bit Parallel, 8-bit Parallel, 9-bit Parallel, DOT-CLK interface / Generic RGB, and SPI.

Thanks to its high pixel density and low voltage requirements (only 3.3v for all!) this display is a great choice for instruments where space and power consumption are crucial, but lots of detail still needs to be provided. Handheld, portable, or desktop devices would all benefit from this great display! Plus, with the rugged resistive touchscreen, this TFT touchscreen can be your entire human-machine interface.
  • Requires only 3.3v source for power, logic, and backlight
  • Integrated ILI9488 or compatible display controller
  • The white LED backlight has anode (A,+) and cathode (K, -) pins brought out on the 50-pin FPC
  • Resistive touchscreen with pins brought out onto the FPC tail
  • For easy connection, the FPC mates with standard 0.5mm ZIF sockets such as this 50 Position, 0.50mm Pitch ZIF Connector
  • Operating temperature range -20°C to +70°C
  • This display replaces the discontinued CFAF320480C5-035T-TS
Need help? Our free knowledgeable Technical Support is happy to answer your questions anytime.

Part Number Decoder:
CFA - Crystalfontz America
F - TFT
320480 - 320x480 Pixels
C7 - Family Identifier
035 - 3.5" Diagonal
T - Standard Brightness
R - Resistive Touchscreen

Product Variants


16-bit Parallel / 18-bit Parallel / 8-bit Parallel / 9-bit Parallel / DOT-CLK interface / Generic RGB / SPI

Qty:
Quantity Price
1 $45.25
5 $38.12
10 $36.79
20 $35.55
50 $34.30
100 $32.03
200 $31.79
300 * $31.56
500 * $31.31
1000 * $28.49
* Pricing is subject to change. Contact us about potential lead times.
Components worth considering
4639 50 Position, 0.50mm Pitch, Gold, FCC FPC ZIF Connector
Add 5 ZIF Connectors $1.76 ea.
4831 50-Position ZIF Breakout Board
Add a 50-pin ZIF Breakout Board? $6.54 ea.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAF320480C7-035TR or RSS RSS feed for changes to CFAF320480C7-035TR for CFAF320480C7-035TR

Video Demonstrations

See how this resistive 3.5-inch resistive touchscreen TFT display looks in this video demonstration.

TECHNICAL SPECS

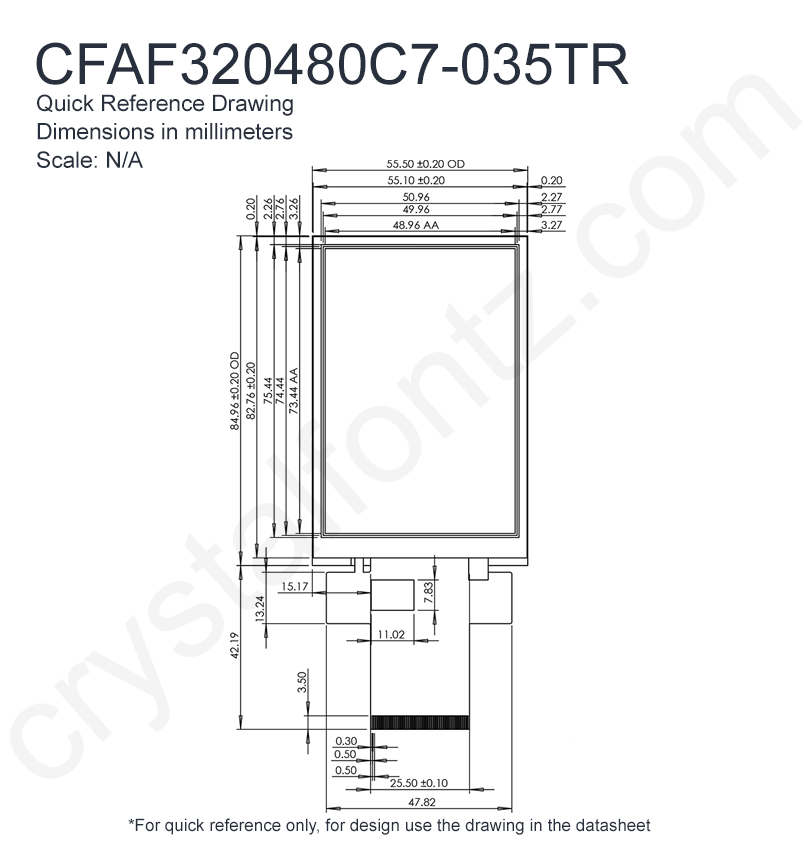

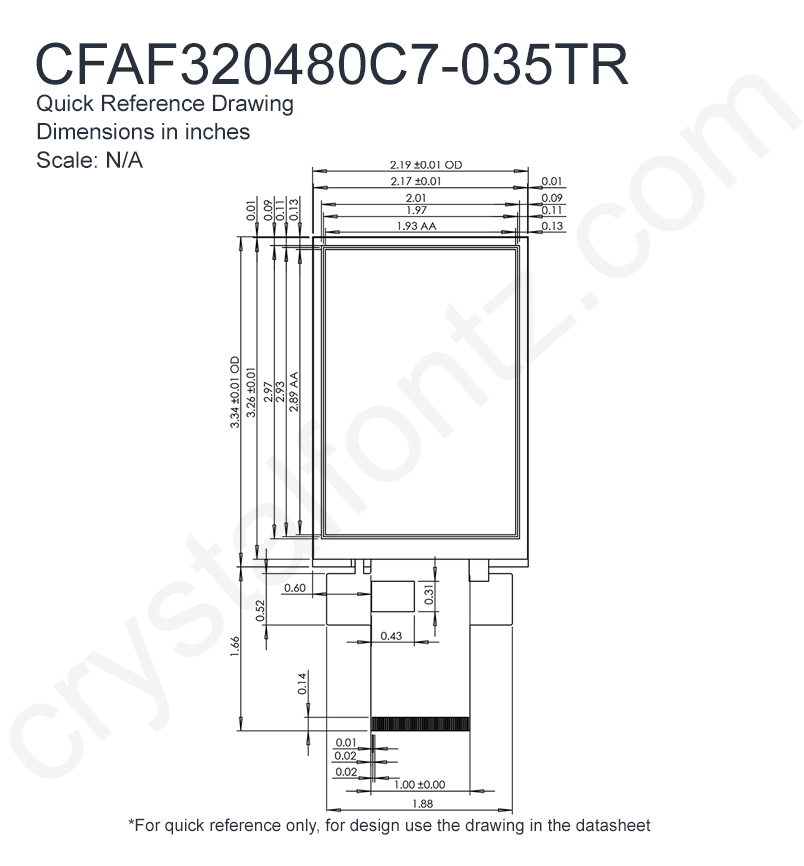

Physical Characteristics

Column Dots x Row Dots 320 x 480
Module Overall width height depth
millimeters 55.5 84.96 3.7
inches 2.185 3.345 0.146
*width / height does not include Foldable Tab
Diagonal Dimension 3.5"
Viewing Area width height
millimeters 50.96 75.44
inches 2.006 2.970
Active Area width height
millimeters 48.96 73.44
inches 1.928 2.891
Dot Pitch width height
millimeters 0.153 0.153
inches 0.0060 0.0060
Weight 35g
Pin Count 50

Optical Characteristics

Polarizer Transmissive
View Direction 6 o'clock
View Angle 60°
Backlight Color White
Backlight Type LED
Foreground Color RGB
Background Color Dark

Electrical Specifications

Supply Voltage for Logic Minimum 1.65V
Supply Voltage for Logic Maximum 4.2V
Supply Voltage for Logic Typical 3.3V
Supply Current Typical 10mA

Environmental

Operating Temperatures min max
Celsius -20° 70°
Fahrenheit -4° 158°
Storage Temperatures min max
Celsius -30° 80°
Fahrenheit -22° 176°

Electronics

Controller Documents Ilitek ILI9488
a-Si TFT LCD Single Chip Driver
320(RGB) x 480 Resolution, 16.7M-color
With Internal GRAM
Interface 16-bit Parallel, 18-bit Parallel, 8-bit Parallel, 9-bit Parallel, DOT-CLK interface / Generic RGB, SPI

Miscellaneous

Foldable Tab Yes
Nits 250
Touch Screen Resistive

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAF320480C7-035TR or RSS RSS feed for changes to CFAF320480C7-035TR

Product Update #11174: 320x480 Full-Color Resistive Touchscreen TFT Display is now available.

New Product: CFAF320480C7-035TR
Date Issued: February 14, 2023
Summary: 320x480 Full-Color Resistive Touchscreen TFT Display is now available.
Description: CFAF320480C7-035TR has been released on our website (https://www.crystalfontz.com/product/cfaf320480c7035tr-320x480-resistive-touchscreen-tft-display) and is now available for sale.

Orders can be placed directly from our website or by submitting a
purchase order to sales@crystalfontz.com.

Contact support@crystalfontz.com for any technical questions.
For reference only. For design purposes, please use the specifications in the datasheet.
