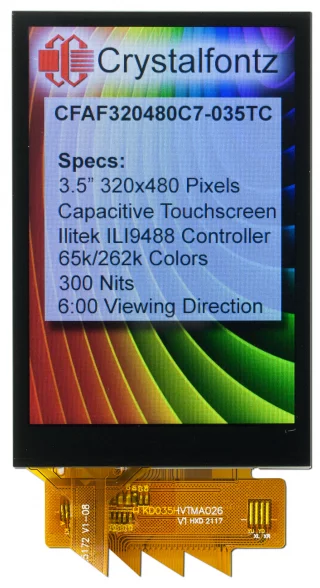

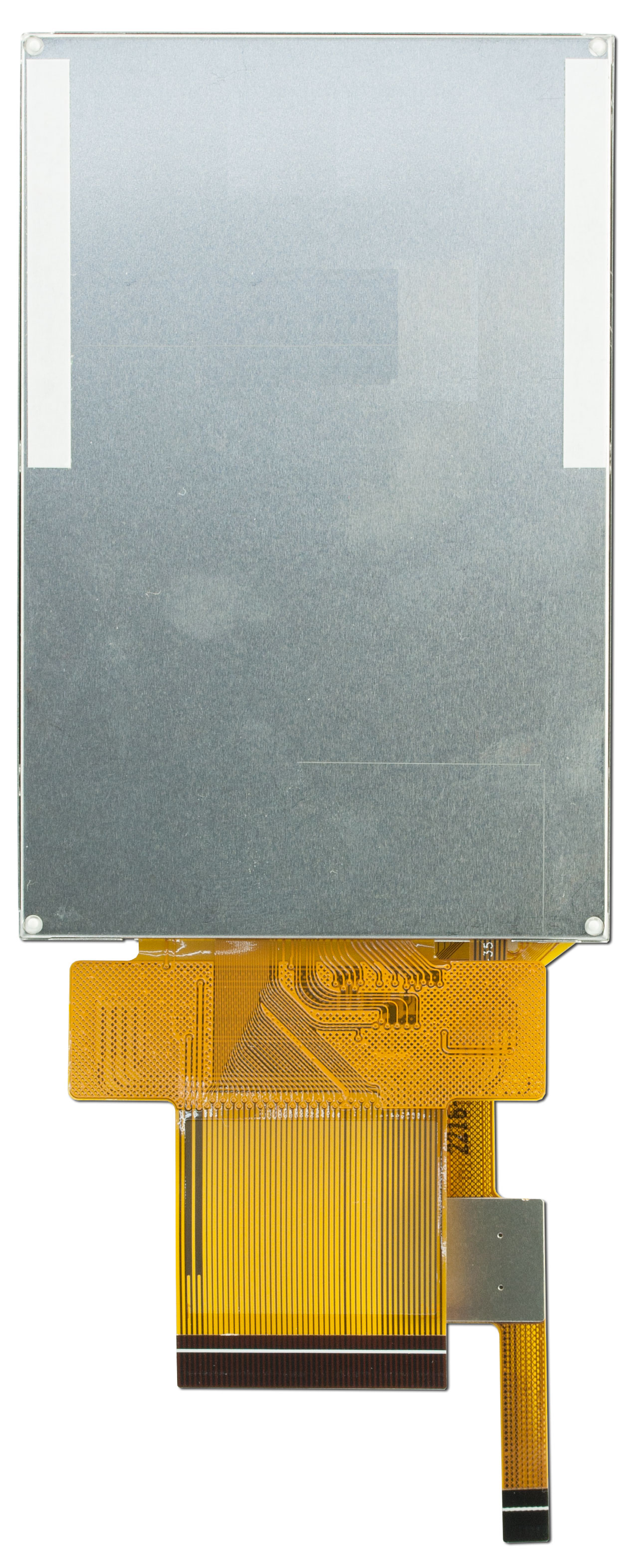

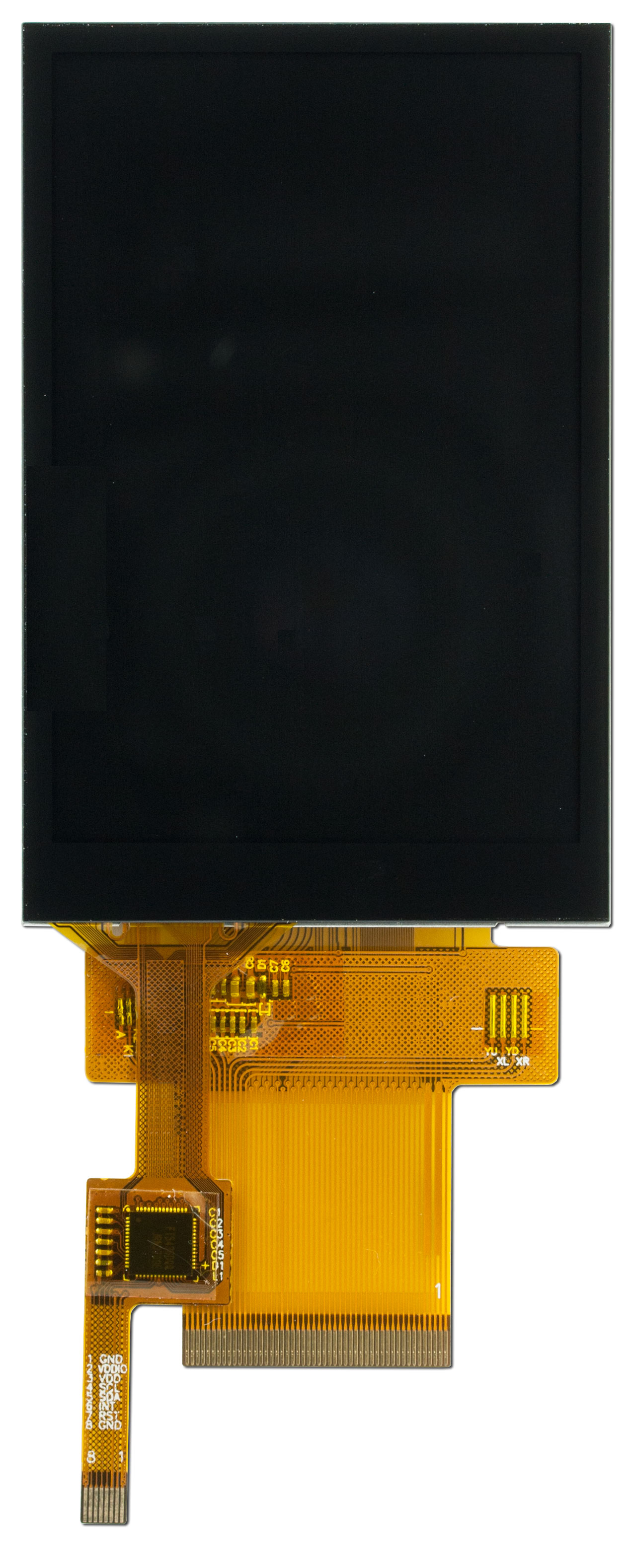

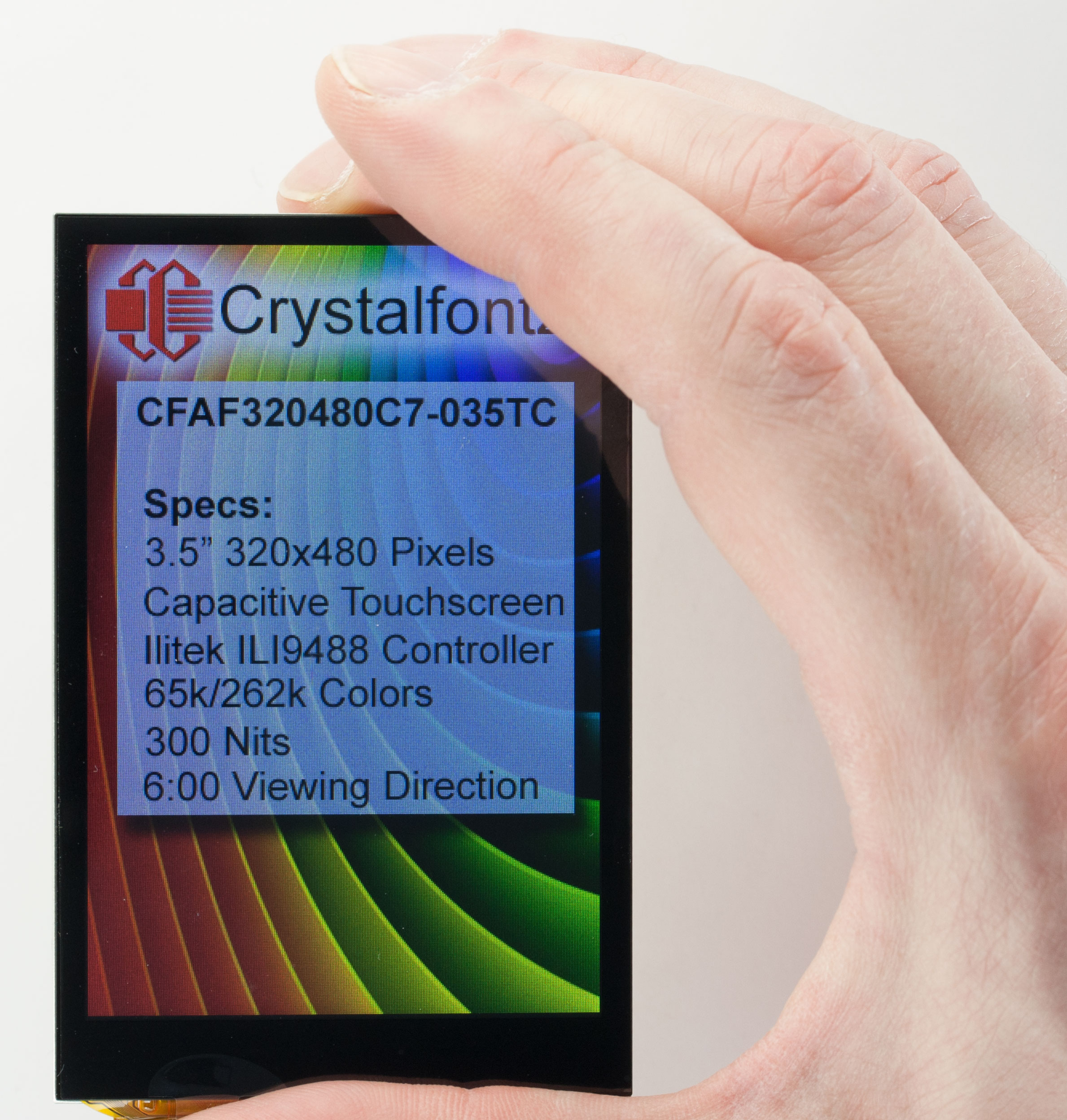

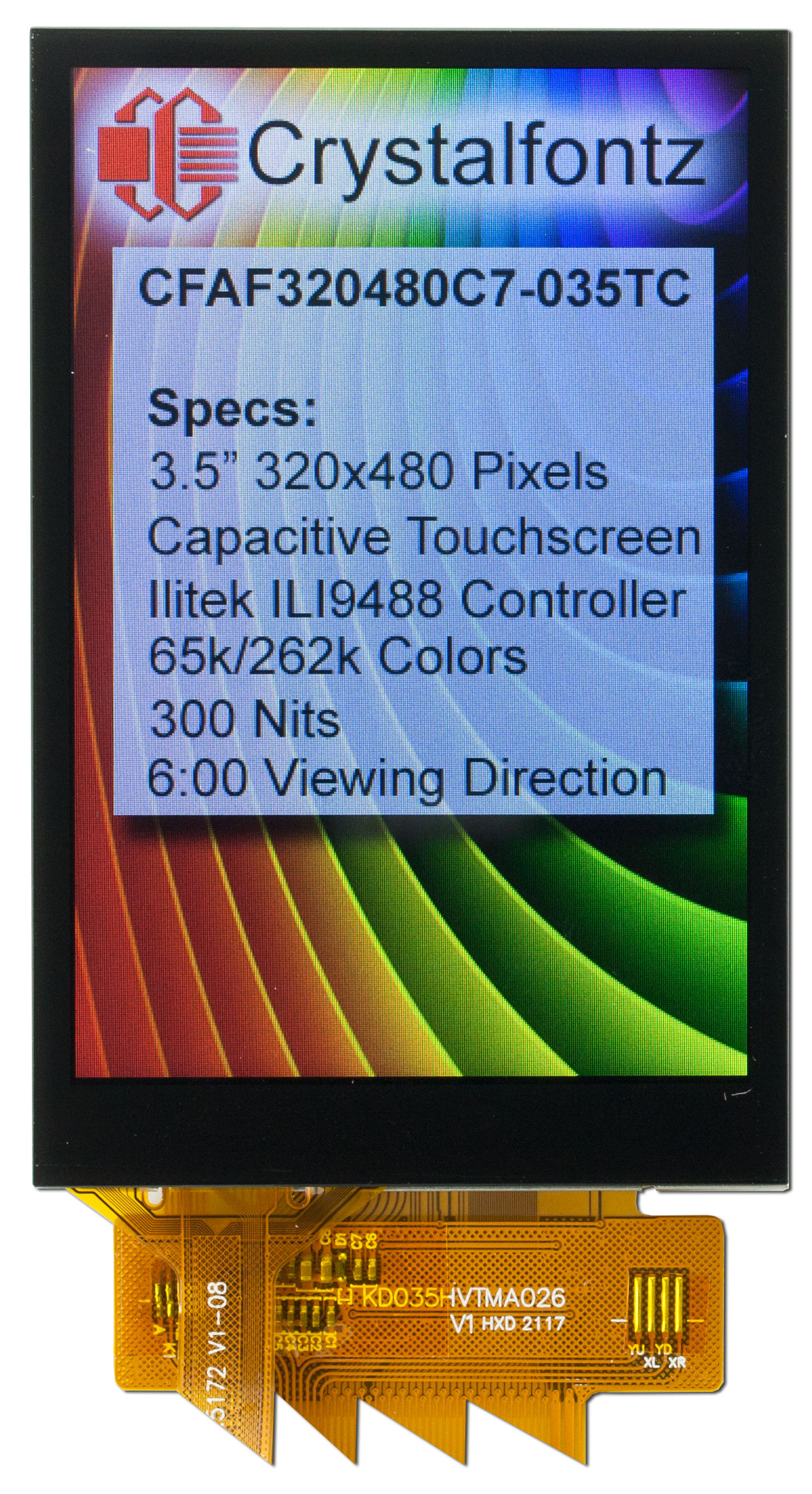

320x480 Capacitive Touchscreen TFT LCD Display

Part Number: CFAF320480C7-035TC

Customers in many different industries have chosen displays from this family of full-color graphic TFT display modules for their stunning 320x480 pixel 3.5-inch diagonal active area. This display module includes a capacitive touchscreen. The family further includes a resistive touchscreen and non-touchscreen option.

The combination of high pixel density and only 3.3v for all power makes this display a perfect choice for hand-held, portable, or desktop instruments.

Highlights: Part Number Decoder:
CFA - Crystalfontz America
F - TFT
320480 - 320x480 Pixels
C7 - Family Identifier
035 - 3.5" Diagonal
T - Standard Brightness
C - Capacitive Touchscreen

Product Variants


16-bit Parallel / 18-bit Parallel / 8-bit Parallel / 9-bit Parallel / DOT-CLK interface / Generic RGB / SPI

Qty:
Quantity Price
1 $45.30
5 $38.13
10 $36.83
20 * $35.59
50 * $34.34
100 * $32.05
200 * $31.81
300 * $31.58
500 * $31.34
1000 * $28.51
* Pricing is subject to change. Contact us about potential lead times.
Components worth considering
4639 50 Position, 0.50mm Pitch, Gold, FCC FPC ZIF Connector
Need Display ZIF Connector? $1.76 ea.

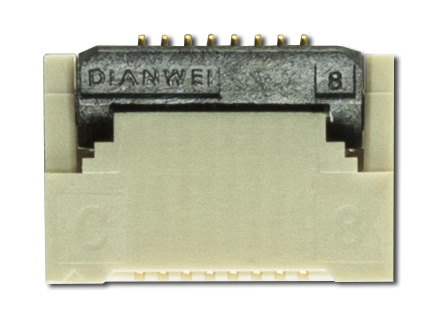

4627 8 Position, 0.5.mm Pitch, Gold, FCC FPC ZIF connector
Need Touchscreen ZIF? $0.62 ea.

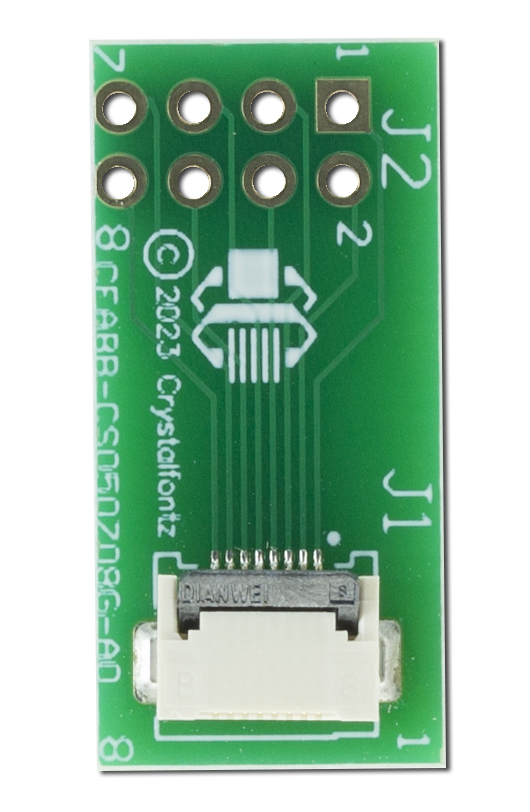

4822 8-Position ZIF Breakout Board
Add an 8-pin ZIF Breakout Board? $6.08 ea.
4831 50-Position ZIF Breakout Board
Add a 50-pin ZIF Breakout Board? $6.54 ea.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAF320480C7-035TC or RSS RSS feed for changes to CFAF320480C7-035TC for CFAF320480C7-035TC

Video Demonstrations

See this full-color Capacitive touchscreen TFT LCD video demonstration.

TECHNICAL SPECS

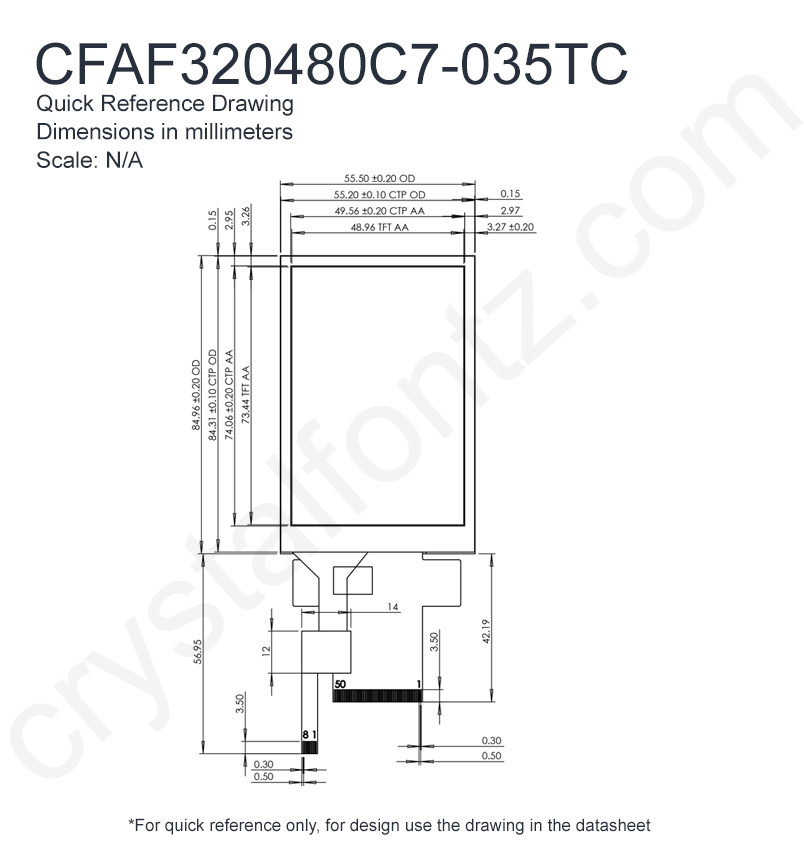

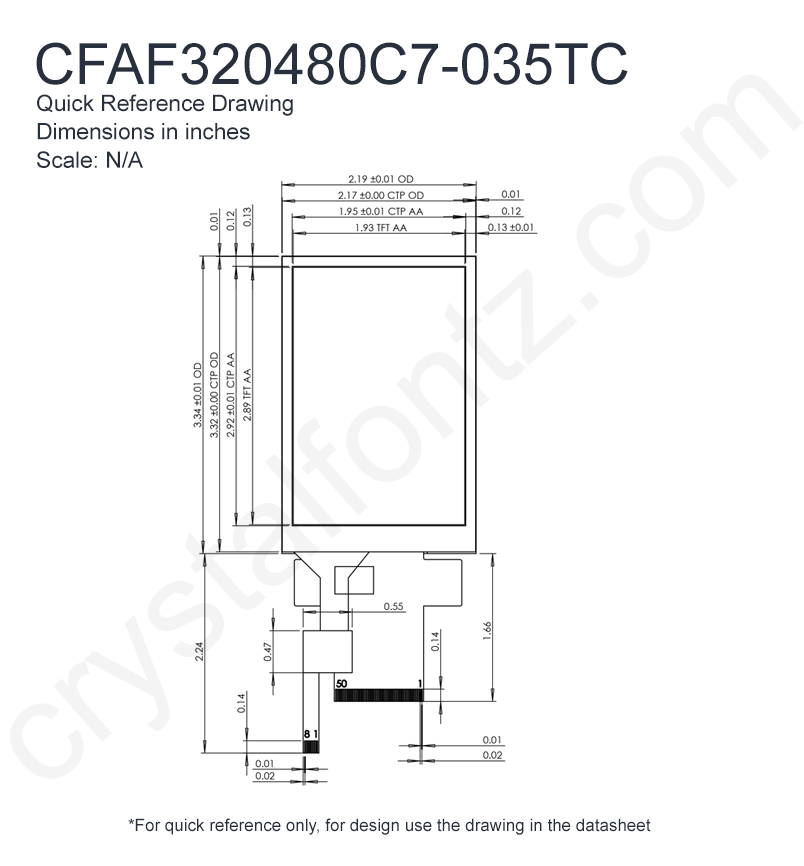

Physical Characteristics

Column Dots x Row Dots 320 x 480
Module Overall width height depth
millimeters 55.5 84.96 4.25
inches 2.185 3.345 0.167
Diagonal Dimension 3.5"
Viewing Area width height
millimeters 50.96 75.44
inches 2.006 2.970
Active Area width height
millimeters 48.96 73.44
inches 1.928 2.891
Dot Pitch width height
millimeters 0.153 0.153
inches 0.0060 0.0060
Weight 42g
Pin Count 50

Optical Characteristics

Glass Type TFT
Polarizer Transmissive
View Direction 6 o'clock
View Angle 70°
Backlight Color White
Backlight Type LED
Foreground Color RGB
Background Color Dark

Electrical Specifications

Supply Voltage for Logic Minimum 1.65V
Supply Voltage for Logic Maximum 3.3V
Supply Voltage for Logic Typical 1.8V
Supply Voltage for Driving Panel Typical 3.3V
Supply Current Minimum 3mA
Supply Current Maximum 3.6mA
Supply Current Typical 8mA

Backlight Electrical Specifications

Forward Voltage Typical 3.3V
Forward Current Maximum 16mA
Forward Current Typical 8mA

Environmental

Operating Temperatures min max
Celsius -20° 70°
Fahrenheit -4° 158°
Storage Temperatures min max
Celsius -30° 80°
Fahrenheit -22° 176°

Electronics

Controller Documents Ilitek ILI9488
a-Si TFT LCD Single Chip Driver
320(RGB) x 480 Resolution, 16.7M-color
With Internal GRAM
Interface 16-bit Parallel, 18-bit Parallel, 8-bit Parallel, 9-bit Parallel, DOT-CLK interface / Generic RGB, SPI

Miscellaneous

Nits 300
Touch Screen Capacitive

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAF320480C7-035TC or RSS RSS feed for changes to CFAF320480C7-035TC

Part Change Notice #11218: 320x480 Capacitive Touchscreen TFT LCD Display is now available.

New Product: CFAF320480C7-035TC
Date Issued: July 17, 2023
Summary: 320x480 Capacitive Touchscreen TFT LCD Display is now available.
Description: CFAF320480C7-035TC has been released on our website (https://www.crystalfontz.com/product/cfaf320480c7035tc-320x480-capacitive-touchscreen-tft-lcd-display) and is now available for sale. Orders can be placed directly from our website or by submitting a purchase order to sales@crystalfontz.com. Contact support@crystalfontz.com for any technical questions.
For reference only. For design purposes, please use the specifications in the datasheet.
