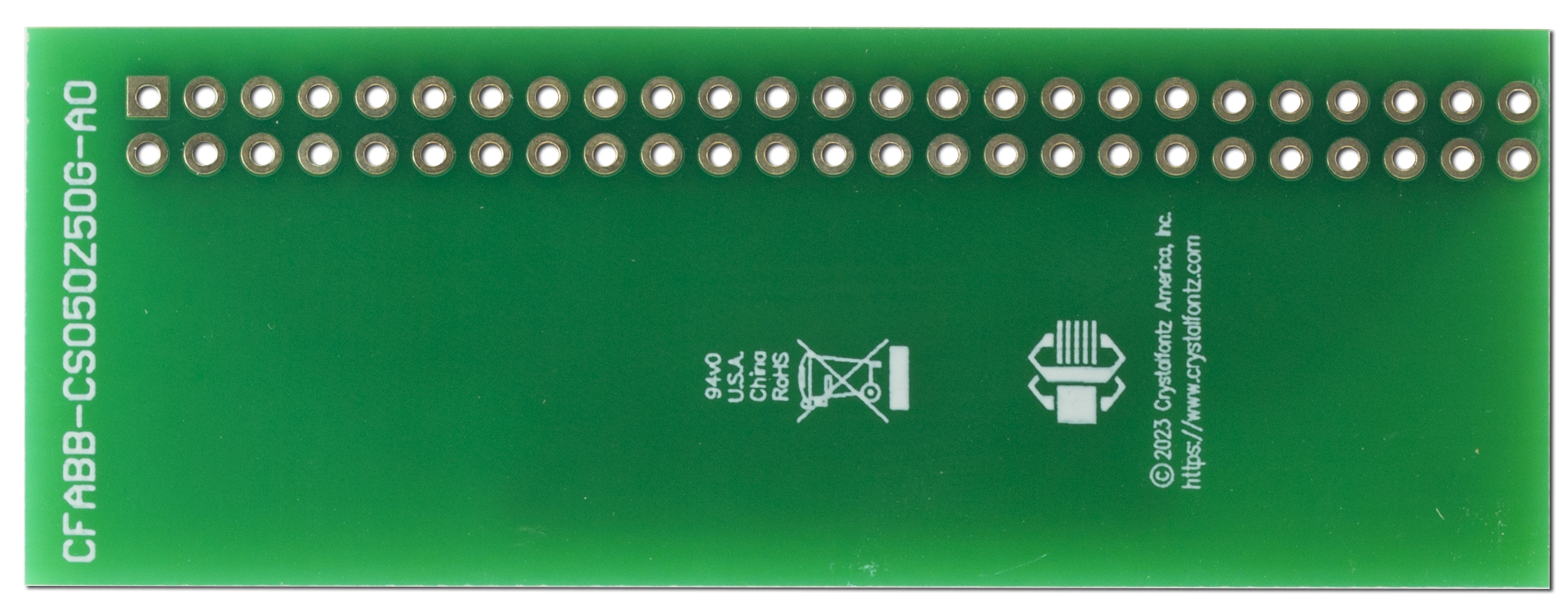

      50-Position ZIF Breakout Board
      Part Number: CFABB-CS050Z50G-B0

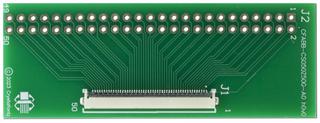

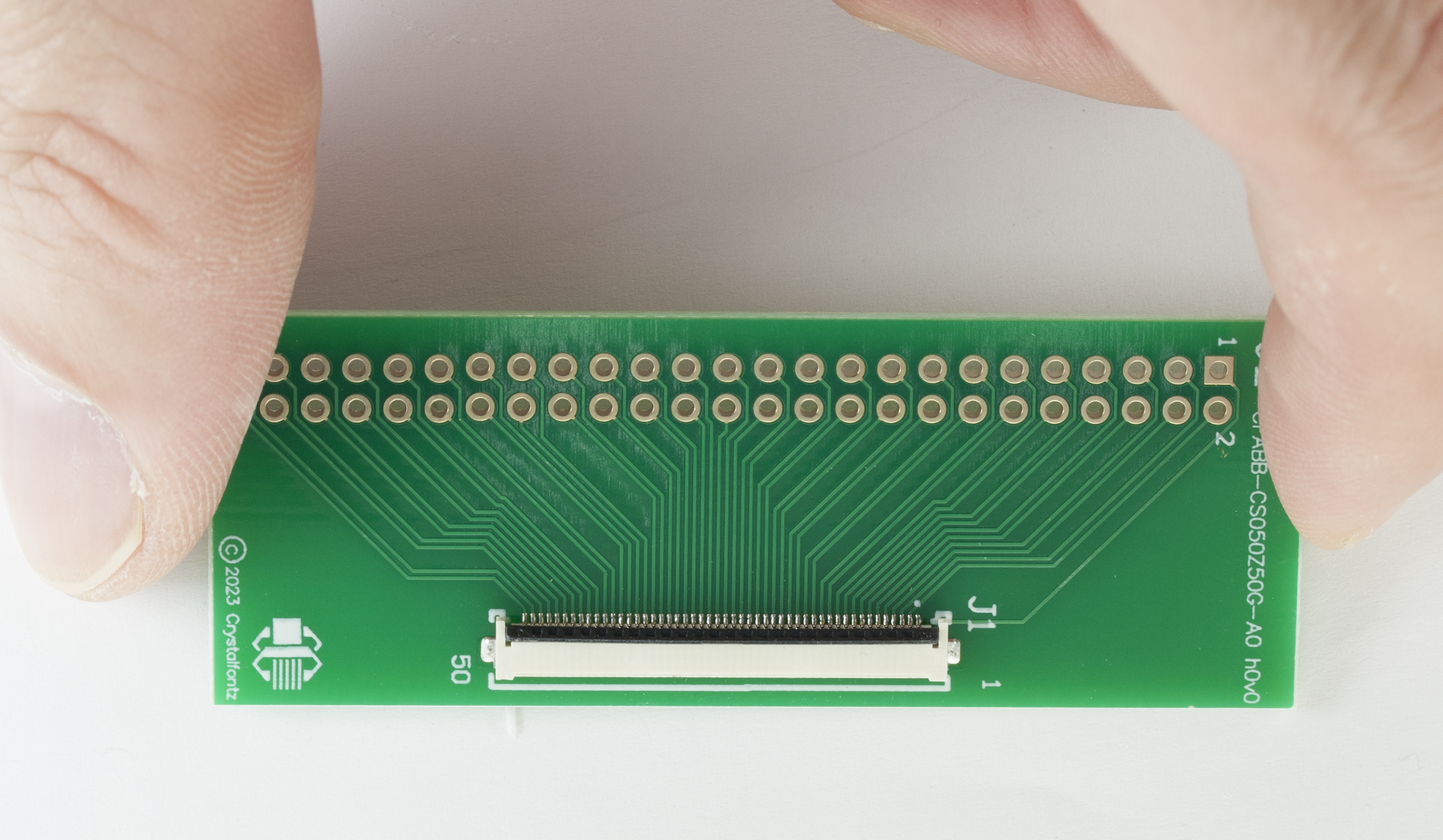

         This ZIF breakout board includes our 50 Position, 0.50mm Pitch, Gold, ZIF Connector broken out to 0.1" through holes. Grab this breakout board for quick prototyping with displays that have a ZIF tail with 50 pins or fewer at a 0.3 mm pitch.

Don't forget to add a few of our dual row headers to populate the through holes.

This breakout board was specifically designed to connect to our multi-use ZIF breakout board. Solder this to the empty through holes on the multi-use board to add any size ZIF connector so you can have a perfect fit.

Part Number:

CFA- Crystalfontz America

BB- Breakout Board

CS050Z50G-B0 includes this connector

Connector Part Number:

CS- Crystalfontz Connector

050- 0.5mm pitch

Z- Top and Bottom Connectors

50- 50 pins

G- Gold

A0- Family and revision
 square_foot Physical Characteristics
Physical Characteristics

        Weight
            5.4g
Pin Count
            50

 picture_as_pdf Datasheets
picture_as_pdfCS050ZxxG-B0 Datasheet

 download Files and Downloads
picture_as_pdf Other Document - CFA10102 Integration Guide
picture_as_pdf Other Document - Getting Started Guide
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH

Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:

Price:

            Quantity
            Unit Price

            1
            $6.54

72 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth considering

						50 Position, 0.50mm Pitch, Gold, FCC FPC ZIF Connector
Add 5 ZIF Connectors? $1.76 ea.

						6-inch Female to Female Jumper Wires
Need jumper wires? $7.30 ea.

						Multi-use ZIF Breakout Board
Need a breakout board? $19.43 ea.

						72 Pin Header
Add Header Pins? $0.66 ea.

Quantity	Unit Price
1	$6.54

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11312: Silkscreen update to correct part number

Product Affected:	CFABB-CS050Z50G-B0
Date Issued:	January 6, 2025
Summary:	Silkscreen update to correct part number
Description:	The silkscreen is being updated to reflect the part number correctly. Hardware Version Changes: h0v0 to h0v1
Reason:	Correcting part number on silkscreen.
Impact:	This is a grammatical change only.

Part Change Notice #11242: 50-Position ZIF Breakout Board is now available

New Product:	CFABB-CS050Z50G-B0
Date Issued:	October 2, 2023
Summary:	50-Position ZIF Breakout Board is now available
Description:	CFABB-CS050Z50G-B0 has been released on our website (https://www.crystalfontz.com/product/cfabbcs050z50gb0-50-position-zif-breakout-board) and is now available for sale. Orders can be placed directly from our website or by submitting a purchase order to sales@crystalfontz.com. Contact support@crystalfontz.com for any technical questions.
