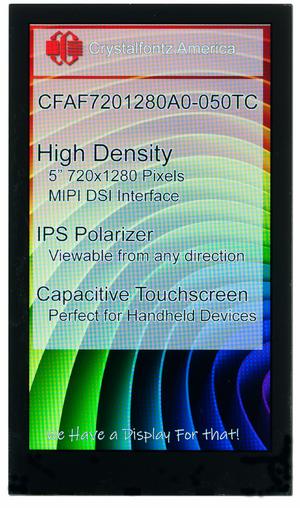

720x1280 5" Capacitive Touchscreen TFT Display

Part Number: CFAF7201280A0-050TC

This 5" diagonal TFT display includes a capacitive touchscreen, making it an ideal choice for a human machine interface. Thanks to IPS technology making it visible without color distortion at up to 80° in each direction, you can mount this display at any viewing angle or use it in cases when it might be viewed from different directions.

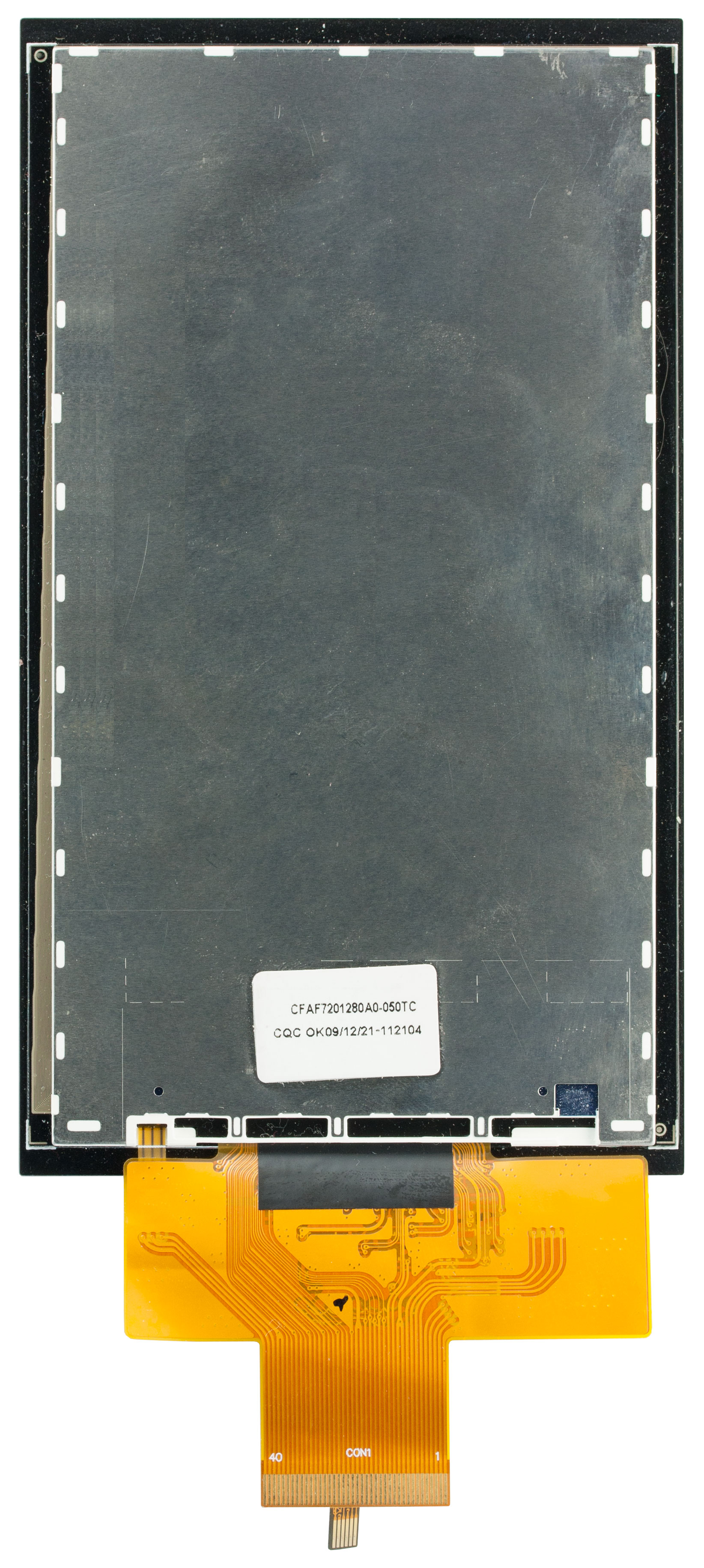

Interface with this display using 4-lane MIPI DSI. The required passive components come pre-loaded on the 40-pin ZIF FPC, making the display ready to plug in and interface with your MIPI-capable hardware. The 6-pin tail for the capacitive touchscreen is separate, and the touch controller communicates via I2C.

This capacitive touch TFT LCD is also thin and lightweight. Between the crisp display, flexible mounting angle, high pixel density, and ease of control, this sleek display is an excellent choice for a wide range of products.

Part Number:
CFA- Crystalfontz America
F- TFT
7201280- 720x1280 pixel resolution
A0- Family and revision
050- 5" diagonal
T- Standard brightness
C- Capacitive touch screen

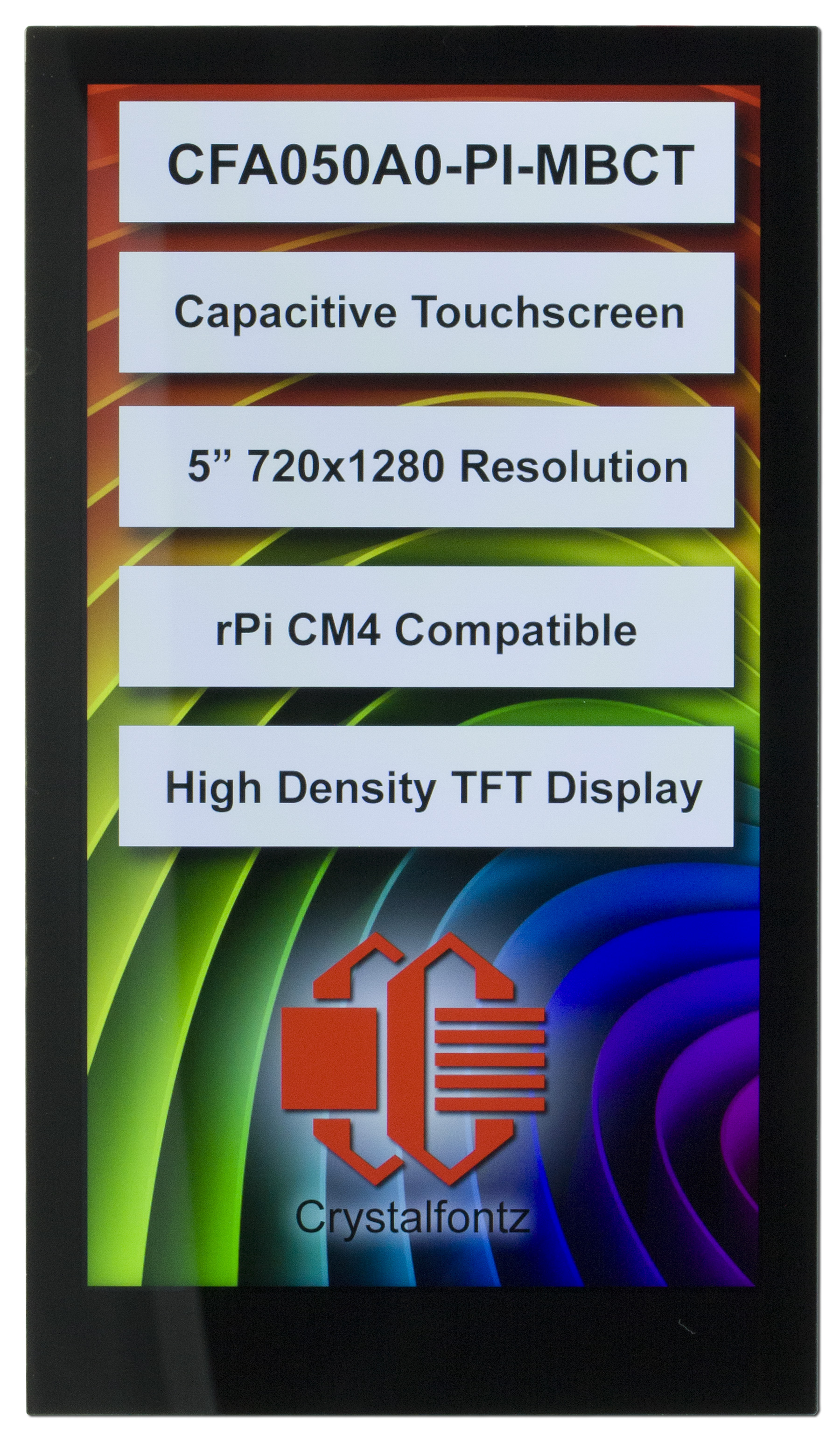

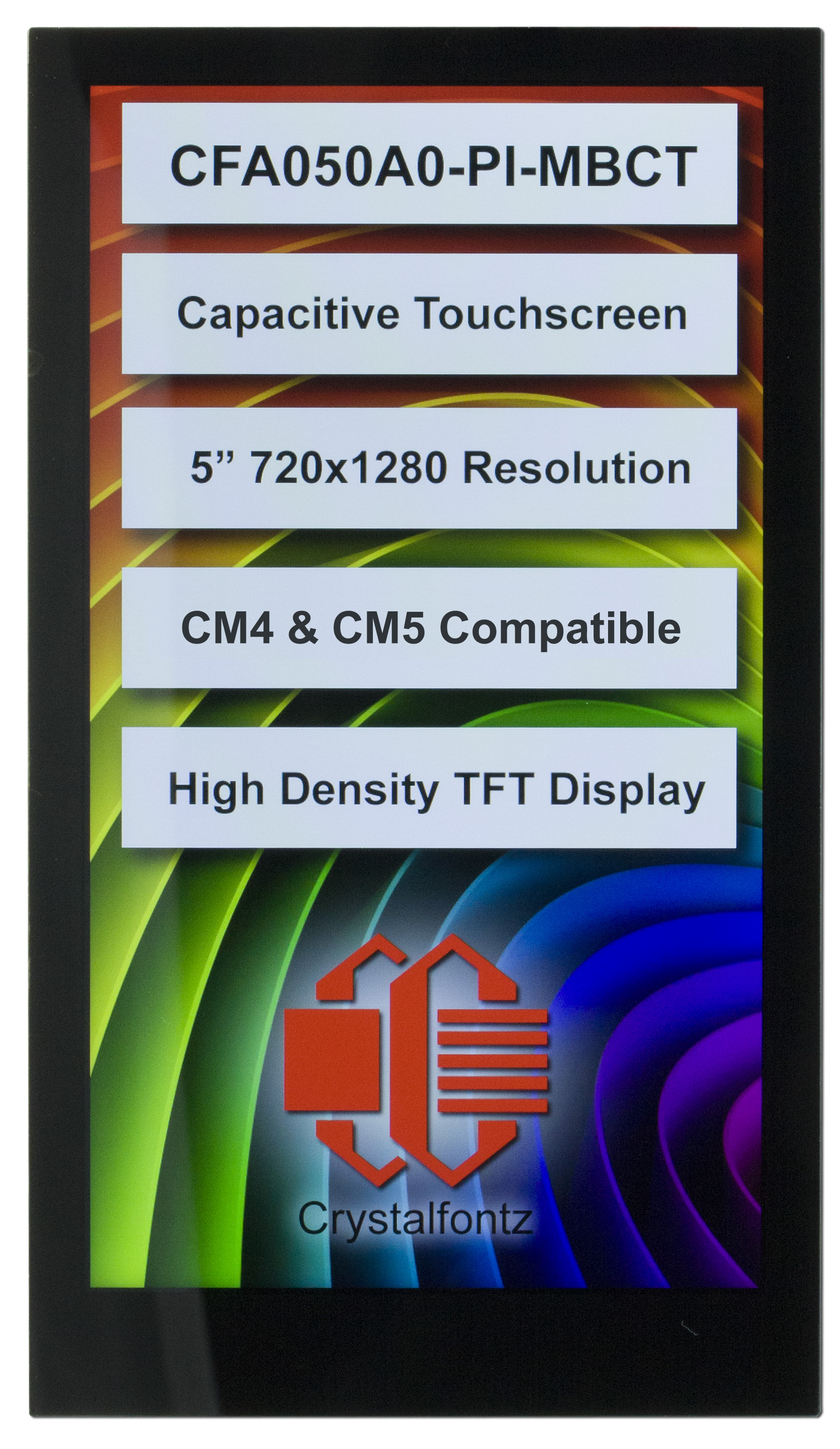

Product Variants

• square_foot Physical Characteristics

  Physical Characteristics

  Column Dots x Row Dots

  720 x 1280

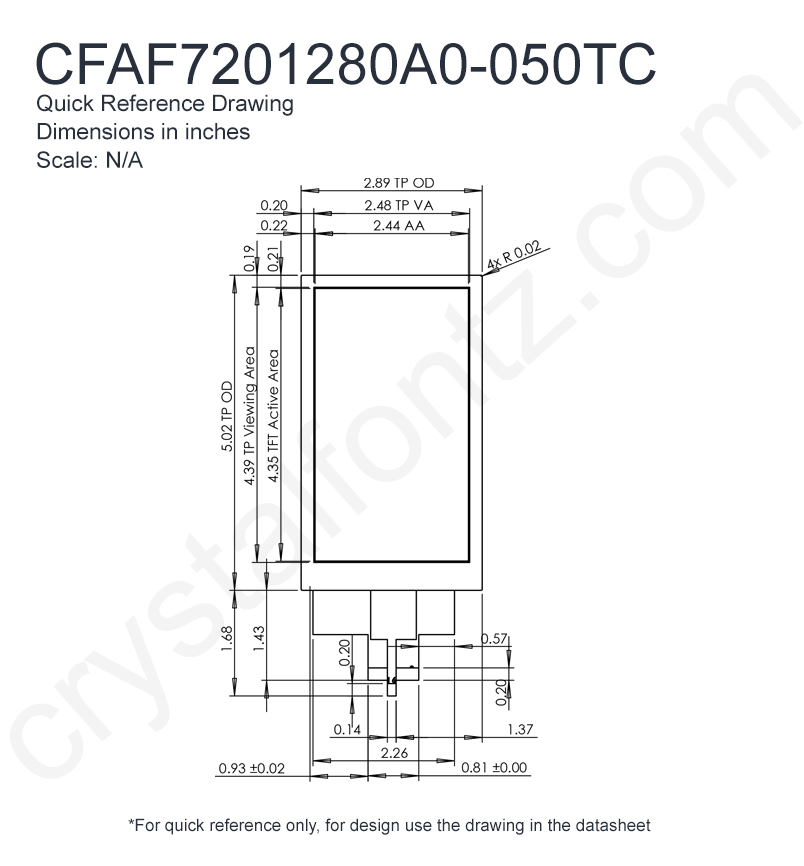

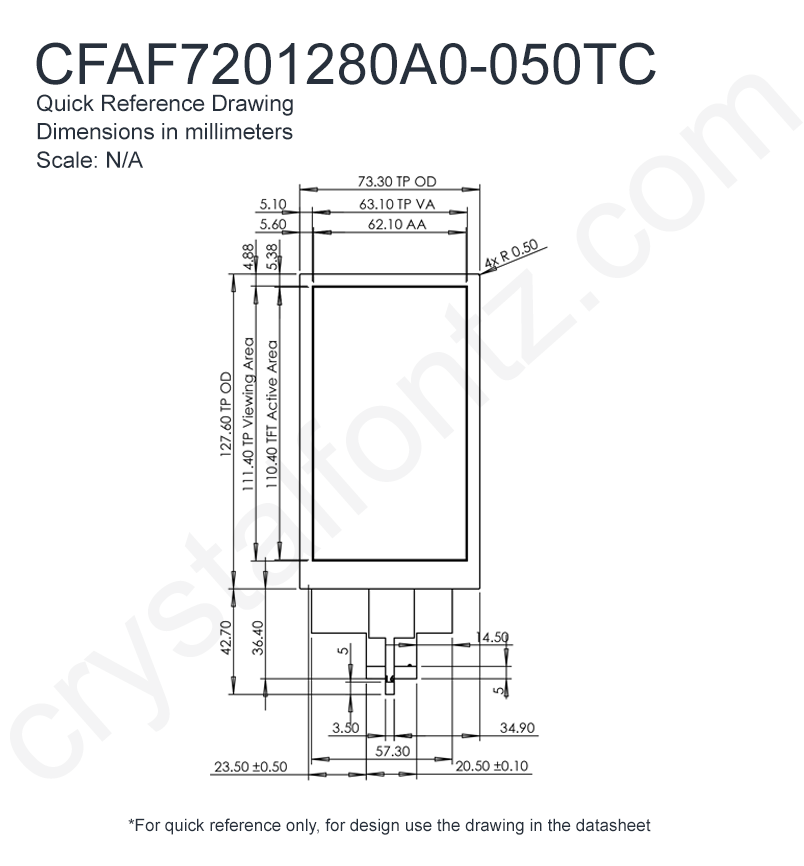

  Module Overall	width	height	depth
  millimeters	73.3	127.6	3.45
  inches	2.886	5.024	0.136

  Diagonal Dimension

  5"

  Active Area	Width	Height
  millimeters	62.1	110.4
  inches	2.445	4.346

  Dot Pitch	Width	Height
  millimeters	0.08625	0.08625
  inches	0.0034	0.0034

  Weight	66g
  Pin Count	40

• visibility Optical Characteristics

  Optical Characteristics

  Glass Type	TFT - IPS
  Polarizer	Transmissive
  View Angle	160°

  Backlight Color	White
  Backlight Type	LED
  Foreground Color	RGB
  Background Color	Dark

• electric_bolt Electrical Specification

  Electrical Specifications

  Supply Voltage for Logic Minimum	1.65V
  Supply Voltage for Logic Maximum	3.6V

  Supply Voltage for Logic Typical	1.8V
  Supply Current Typical	44mA

• electric_bolt Backlight Specification

  Backlight Electrical Specifications

  Forward Voltage Minimum	19.6V
  Forward Voltage Maximum	23.8V

  Forward Current Typical

  40mA

• nature Enviromental

  Environmental

  Operating Temperatures	min	max
  Celsius	-20°	70°
  Fahrenheit	-4°	158°

  Storage Temperatures	min	max
  Celsius	-30°	80°
  Fahrenheit	-22°	176°

• cable Electronics

  Electronics

  Controller Documents	Ilitek ILI9881C Amorphous TFT LCD Single-Chip Driver 800(RGB) x 1280 Resolution, 16.7M-color Without Internal GRAM
  Interface	MIPI DSI

• picture_as_pdf Datasheets
  picture_as_pdf

  CFAF7201280A0-050TC Datasheet


• download Files and Downloads
  folder_zip Hardware Design - 3D Model


  link Raspberry Pi Linux Drivers on Github

• assured_workload Compliance Documents
  picture_as_pdf Declaration of Conformity RoHS2

  picture_as_pdf Declaration of Conformity REACH
