In order to keep this display in production over the long term, we are revising it to the CFAF800480E1-050SC-A2-2. Please contact sales@crystalfontz.com with any questions.

800x480 EVE Development Platform

Part Number: CFAF800480E1-050SC-A1-2

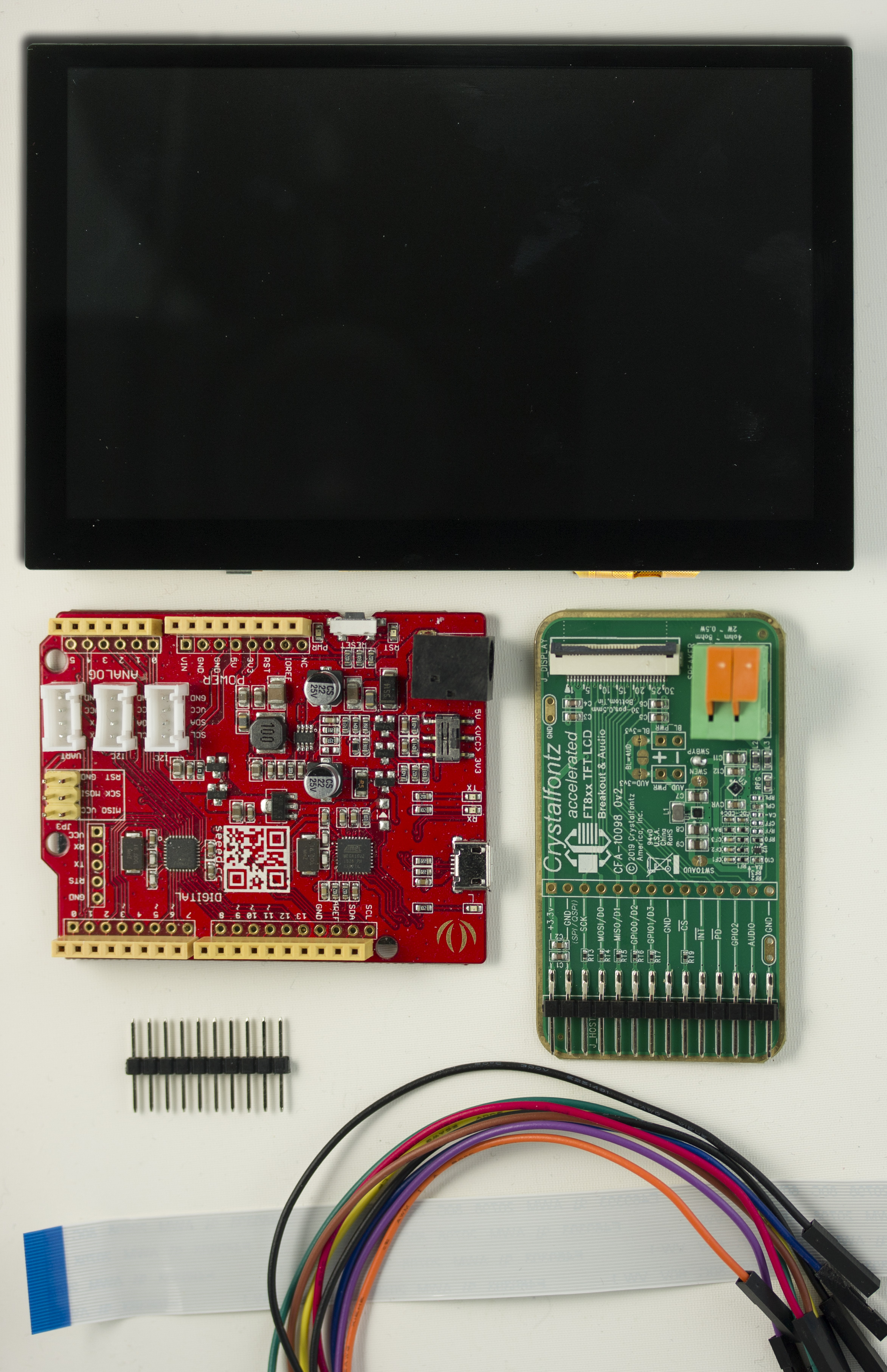

This is a complete development kit for the CFAF800480E1-050SC. It includes a high-end 800x480 TFT, an EVE graphic accelerator board, an adapter board, and a Seeduino. This kit has everything you need to start developing with the FTDI/Bridgetek FT813 / EVE (Embeddeded Video Engine) platform.

This kit includes everything that the CFAF800480E1-050SC-A1-1 PLUS a Seeeduino V4.2 and breakout board pre-configured and ready to demonstrate.

This bundle boasts a revolutionary new 5", 800x480 TFT with sunlight readable high-brightness, in-plane switching for viewing at any angle, and capacitive touch. This module also has an FTDI/BridgeTek FT813 Embedded Video Engine (EVE) integrated. This means the display, touch sensing, backlight, and audio features are all controlled via the EVE. The MCU appears to be hosted as a memory-mapped SPI device. The host MCU sends commands and data over the EVE SPI serial protocol. The included breakout board makes it simple to wire to the controller of your choice, it also includes audio outputs via pluggable terminals. Plus, the Seeeduino (a 3.3v Arduino clone) comes ready to show off. All you have to do is plug in the flex cable, hook up some power, and enjoy your new display.

For detailed information on the EVE, please see the FTDI FT81x Datasheet.
Further information including programming examples, interface design software, and more can be found on FTDI’s website here: https://www.ftdichip.com/Support/Utilities.htm

TFT Display Module Features:

  • 5-inch 800x480 TFT LCD with in-plane switching for viewing at any angle
  • Sunlight readable at 800 nits
  • 5-point capacitive touch sensing screen
  • FTDI/BridgeTek FT813 EVE graphics accelerator
  • SPI/QSPI
  • Single +3.3V power supply (backlight supply van be 3.3v to 6v)
  • Threaded mounting standoffs for simple mechanical design

EVE Graphics Accelerator Features

  • Support multiple widgets for simplified design implementation
  • User interface design software (PC) simplifies the design process
  • Hardware engine can recognize touch tags and track touch movement
  • Enhanced sketch processing
  • Anti-aliasing of primitive displayed objects for higher-quality graphics
  • Assorted graphical effects such as alpha-blending, shadows, transitions, wipes, etc.
  • Programmable interrupt controller provides interrupts to host MCU
  • Support playback of motion-JPEG encoded AVI videos
  • Mono audio channel output with wave playback and built-in sound synthesizer
  • PWM output for display backlight dimming control
  • square_foot Physical Characteristics

    Physical Characteristics

    Column Dots x Row Dots 800 x 480
    Module Overall width height depth
    millimeters 120.7 76.3 10.75
    inches 4.75 3.00 0.42
    *width / height does not include Foldable Tab
    Diagonal Dimension 4.96"
    Viewing Area Width Height
    millimeters 109 65.8
    inches 4.29 2.59
    Active Area Width Height
    millimeters 108 64.8
    inches 4.25 2.55
    Dot Pitch Width Height
    millimeters 0.135 0.135
    inches 0.0053 0.0053
    Flexible Cable (FFC/FPC) length
    millimeters 51.78
    inches 2.039
    Weight 158.7g
    Pin Count 40
  • visibility Optical Characteristics

    Optical Characteristics

    View Direction All o'clock
    View Angle >160°
    Sunlight Readable Yes
    Backlight Color White
    Backlight Type LED
    Foreground Color RGB
    Background Color Black
  • electric_bolt Electrical Specification

    Electrical Specifications

    Supply Voltage for Logic Minimum 3.3V
    Supply Voltage for Logic Maximum 3.6V
    Supply Voltage for Logic Typical 3.3V
    Supply Voltage for Driving Panel Typical 3.3V
    Supply Current Typical 140mA
  • electric_bolt Backlight Specification

    Backlight Electrical Specifications

    Forward Voltage Minimum 10.8V
    Forward Voltage Maximum 13.2V
    Forward Voltage Typical 12:00V
    Forward Current Maximum 140mA
  • nature Environmental

    Environmental

    Operating Temperatures min max
    Celsius -20° 70°
    Fahrenheit -4° 158°
    Storage Temperatures min max
    Celsius -30° 80°
    Fahrenheit -22° 176°
  • cable Electronics

    Electronics

    Interface SPI
  • picture_as_pdf Datasheets
  • download Files and Downloads

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAF800480E1-050SC-A1-2 or RSS RSS feed for changes to CFAF800480E1-050SC-A1-2
  • text_snippet
    Part Change Notice #11076: FTDI Chip Upgrade to FT817
    Products Affected: CFAF800480E1-050SC-A1-1, CFAF800480E1-050SC-A1-2, CFAF800480E1-050SN-A1-1, CFAF800480E1-050SN-A1-2
    Date Issued: February 10, 2021
    Summary: FTDI Chip Upgrade to FT817
    Description: We are changing this product by upgrading the FTDI chip to an FT817 and adding external flash to support storing image data. Changing to the new controller will require some slight software modifications for the touch versions.

    In addition, we will be adding a resistive touch option as well as a cap touch option with glass that exceeds the frame of the display for an extended mounting surface.

    Current PCB Version: h0v2
    Current Firmware Version: f0v0
    Reason: Upgrade the EVE chip and add compatibility with the resistive touch display.
    Availability: First Quarter of 2021
    Price Change: Price is subject to change.
