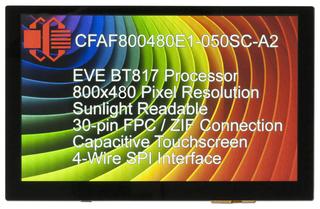

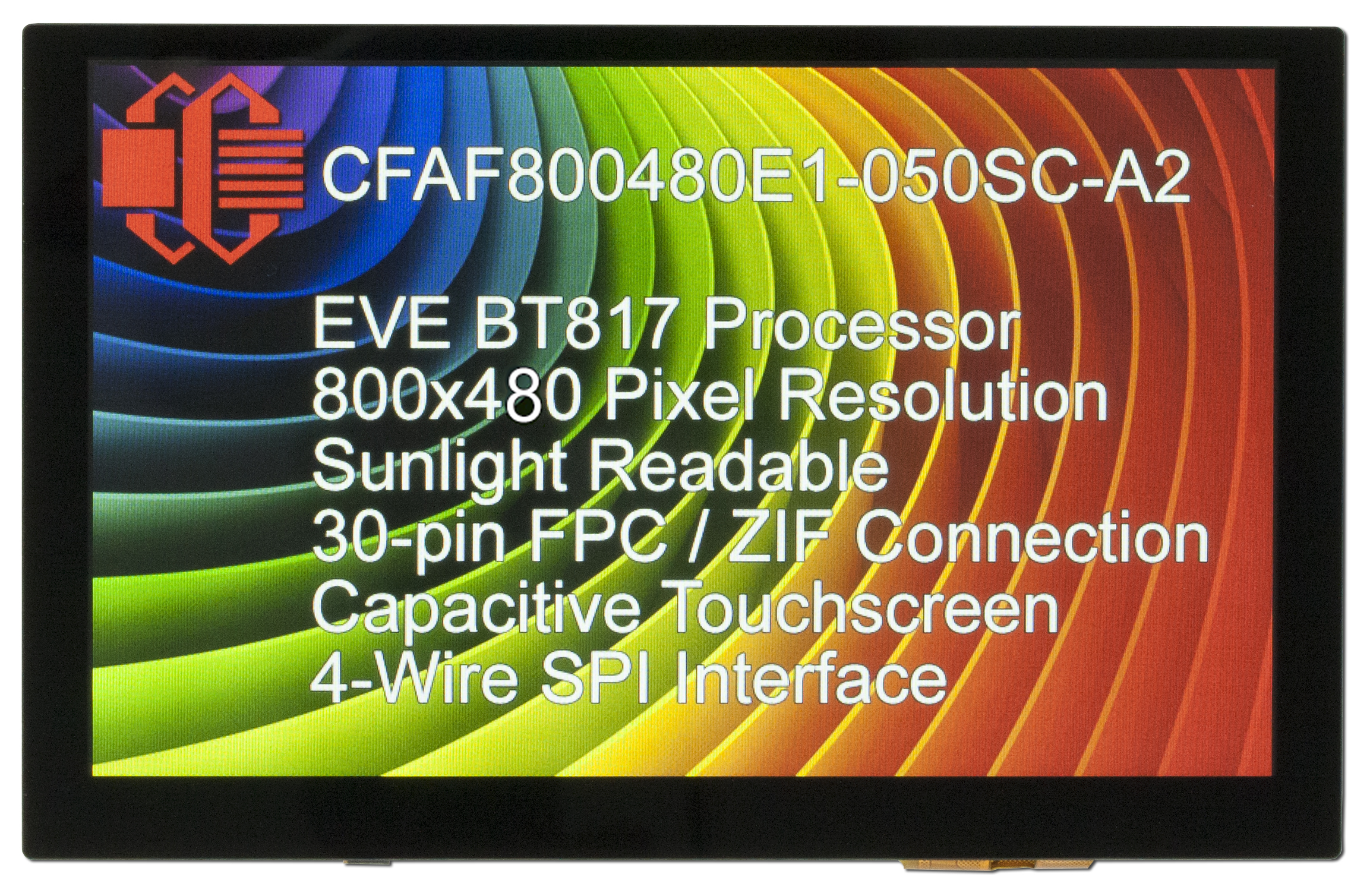

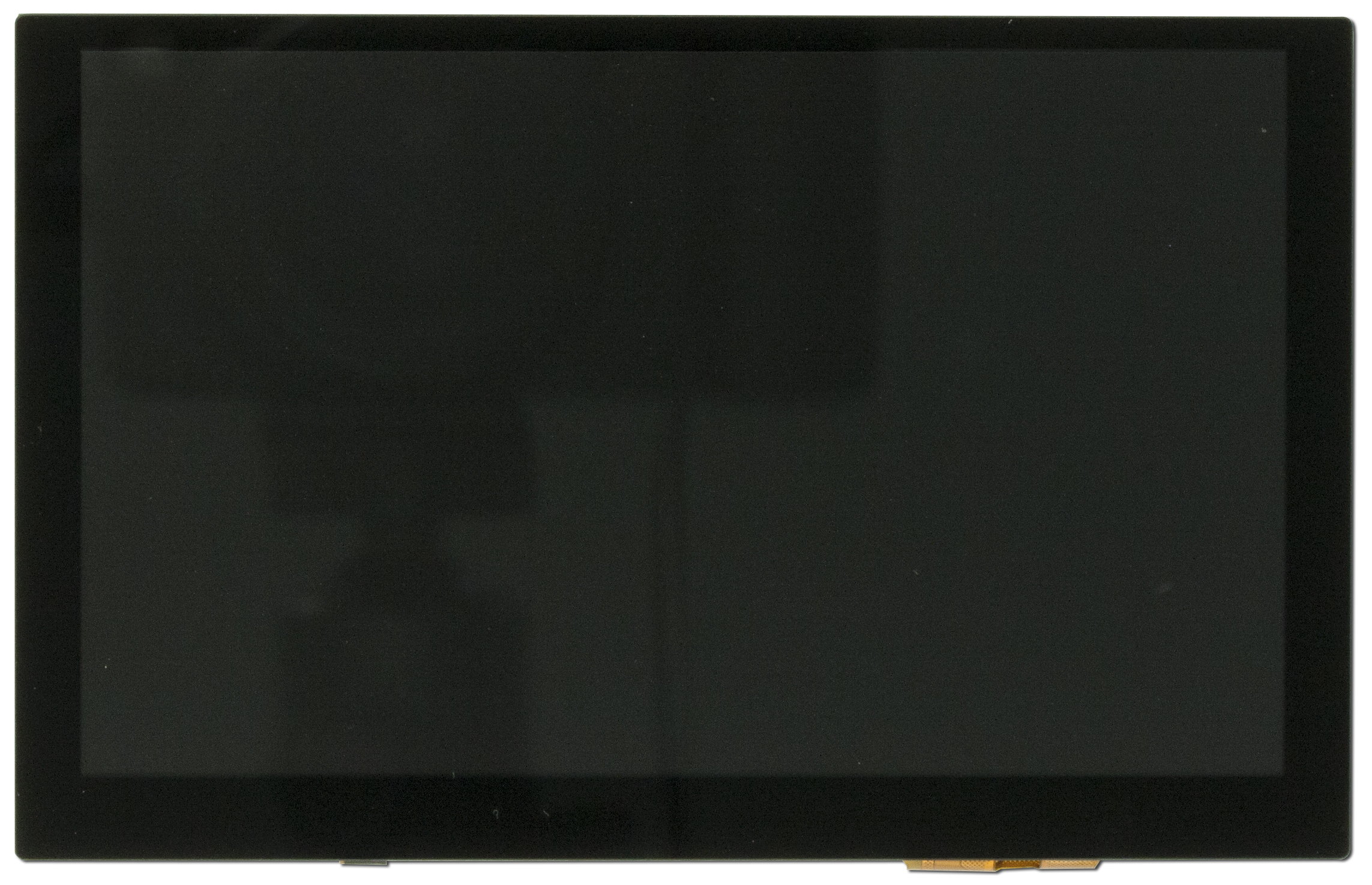

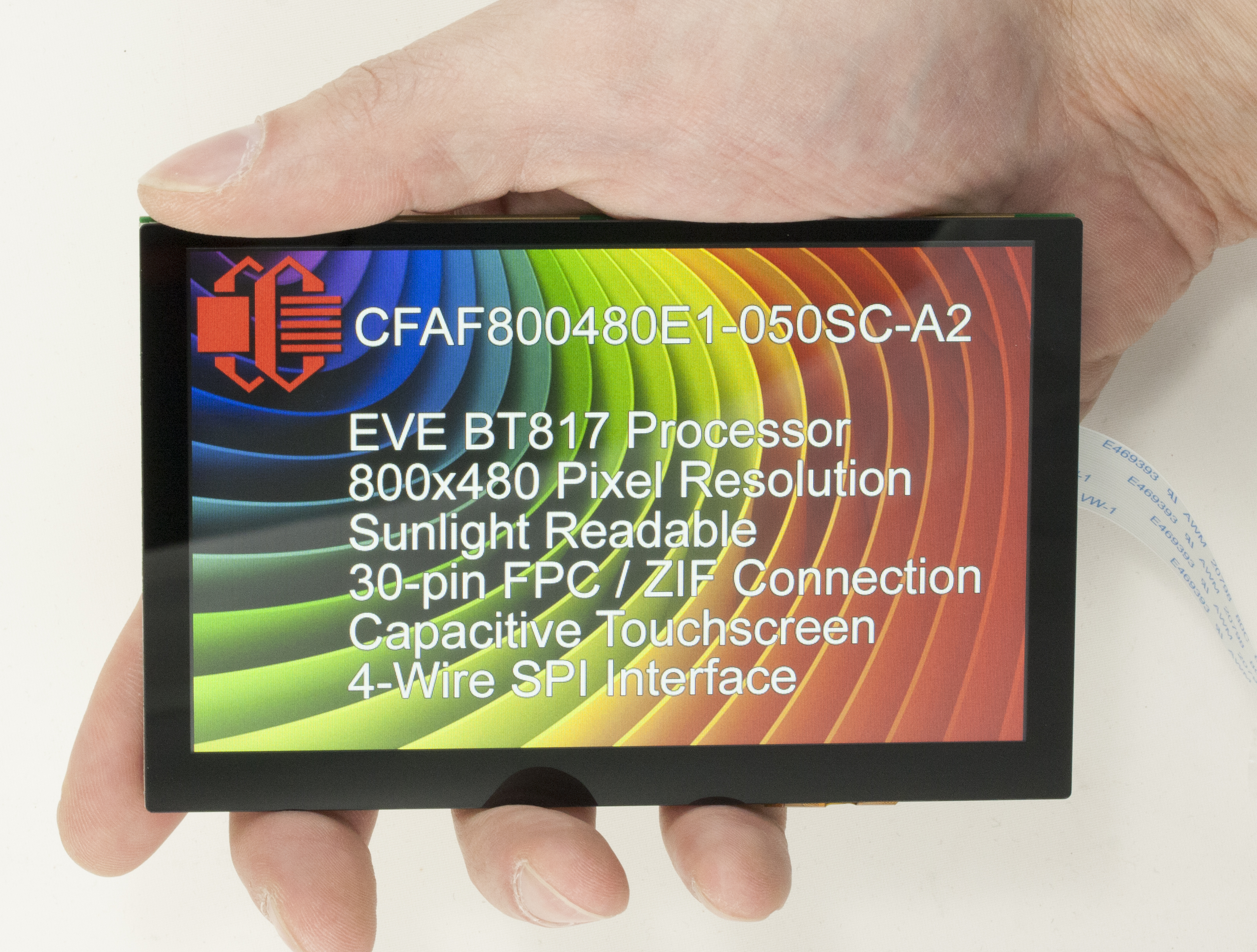

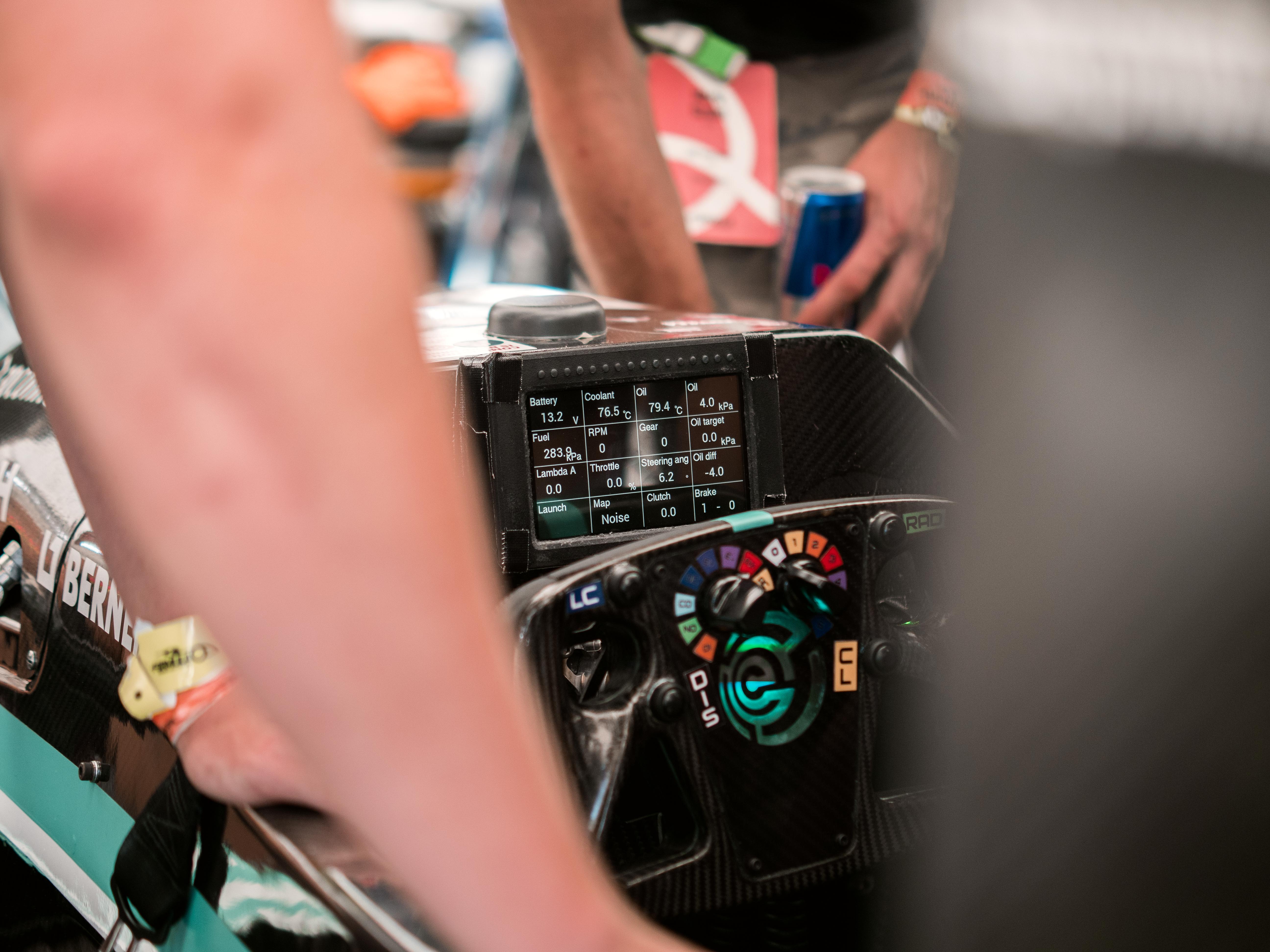

800x480 Capacitive Touchscreen EVE TFT Module
Part Number: CFAF800480E1-050SC-A2
If you're looking for a powerful display module, you've come to the right place. This 5" display has extremely wide viewing angles, is
sunlight-readable, and supports 5-point
capacitive touch. Not only is the
TFT display wonderful, it is powered by the BT817
EVE chip. The EVE chip enables exceptional graphics control, backlight control, touch sensing, and audio - all mapped as
SPI devices making communications with this module a breeze.

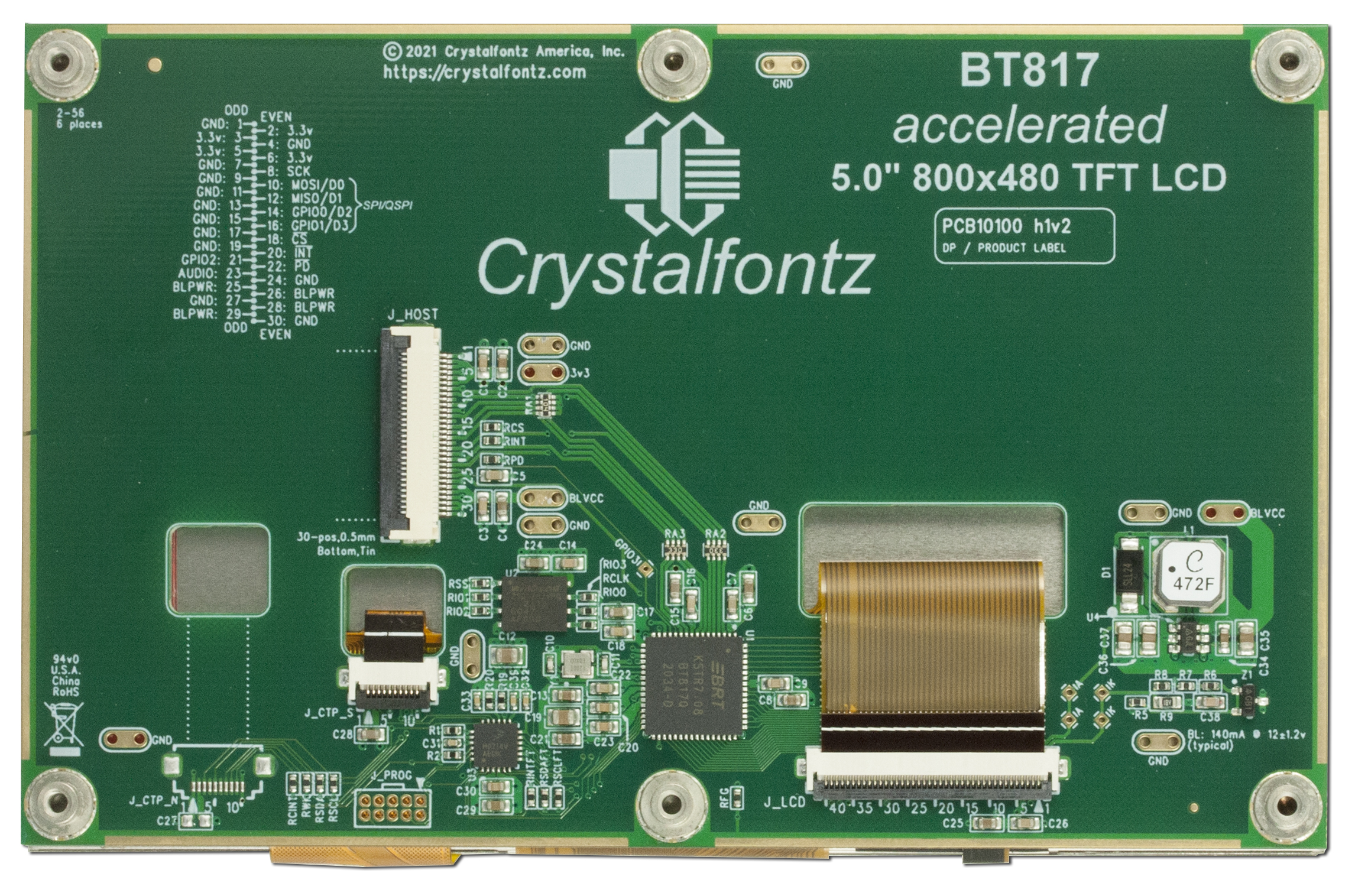

This module comprises the
5" TFT display (CFAF800480E1-050SC), mounted on an EVE accelerator PCB (CFA10100).
This module replaces the
CFAF800480E1-050SC-A1-1, per
PCN #11076. The change is to the CFA10100 board, upgrading from the FT813 EVE chip to the BT817.
Key Features:
- 5" Diagonal Display Area
- Sunlight Readable - 800nits
- Free Viewing Angle (IPS)
- TFT
- Capacitive Touch
- 16 million colors
- Bridgetek's BT817 EVE
- 4-wire SPI / Quad SPI
- Can be powered off of a single voltage source
EVE Graphics Accelerator Features
- Support multiple widgets for simplified design implementation
- User interface design software (PC) simplifies the design process
- Hardware engine can recognize touch tags and track touch movement
- Enhanced sketch processing
- Anti-aliasing of primitive displayed objects for higher-quality graphics
- Assorted graphical effects such as alpha-blending, shadows, transitions, wipes, etc.
- Programmable interrupt controller provides interrupts to host MCU
- Support playback of motion-JPEG encoded AVI videos
- Mono audio channel output with wave playback and built-in sound synthesizer
- PWM output for display backlight dimming control
Looking for accessories for your EVE TFT display module? We have 2 sizes of
FFC cables
6-inch 30-pin FFC cables and
12-inch 30-pin FFC cables, plus a
EVE breakout board. Or get everything you need in the
5" EVE Development Kit.
Currently Shipping: HW Version 1v2, Firmware Version: 1v0
Pixel Grid
| Column Dots |
800 px |
| Row Dots |
480 px |
| Module | Metric | Imperial |
| Overall Width |
120.70 mm |
4.752 in |
| Overall Height |
76.30 mm |
3.004 in |
| Overall Depth |
10.65 mm |
0.419 in |
| Diagonal Dimension |
5 in |
| Weight |
211.4 g |
| Display Area | Metric | Imperial |
| Active Area Width |
108.00 mm |
4.252 in |
| Active Area Height |
64.80 mm |
2.551 in |
| Viewing Width |
109.00 mm |
4.291 in |
| Viewing Height |
65.80 mm |
2.591 in |
| Dot Geometry | Metric | Imperial |
| Dot Pitch Width |
0.14 mm |
0.005 in |
| Dot Pitch Height |
0.14 mm |
0.005 in |
| Dot Size Width |
0.14 mm |
0.005 in |
| Dot Size Height |
0.14 mm |
0.005 in |
Technology
| Display Technology |
EVE TFT |
| Glass Type |
IPS |
Viewing
| View Angle |
>160° |
| Brightness Rating |
Sunlight |
Display Colors
| Foreground Color |
RGB |
| Background Color |
Dark |
Backlight
| Backlight Type |
LED |
| Backlight Color |
White |
| Display | Min | Typ | Max | Unit |
| Supply Voltage - Logic |
| Supply Voltage for Logic |
3.0 |
3.3 |
3.6 |
V |
| Supply Current |
— |
20 |
— |
mA |
| Backlight | Min | Typ | Max | Unit |
| Voltage |
| Forward Voltage |
2.7 |
5.0 |
5.5 |
V |
Available Interfaces
| Standard Interface(s) |
SPI |
Temperature
| Min (°C) | Max (°C) | Min (°F) | Max (°F) |
| Operating Temperature |
-20°C |
70°C |
-4°F |
158°F |
| Storage Temperature |
-30°C |
80°C |
-22°F |
176°F |
Controller
| Built-in Controller |
Bridgetek BT817 |
-
DatasheetsDocuments & Files
-
| Products Affected: |
CFAF800480E1-050SC, CFAF800480E1-050SC-A1-1, CFAF800480E1-050SC-A1-2, CFAF800480E1-050SR, CFAF800480E1-050SR-A2-2, CFAF800480E1-050SR-A2, CFAF800480E1-050SC-A2, CFAF800480E1-050SC-A2-2, CFAF800480H0-043SN, CFAF800480H0-043SR, CFA800480E3-050SC, CFA800480E3-050SC-KIT, CFA800480E3-050SN, CFA800480E3-050SN-KIT, CFA800480E3-050SR, CFA800480E3-050SR-KIT, CFA800480E3-050SW, CFA800480E3-050SW-KIT, CFAF800480E3-050SN, CFAF800480E3-050SW, CFA800480E0-043SN, CFA800480E0-043SN-KIT, CFA800480E0-043SR-KIT, CFA800480E0-043SR |
| Date Issued: |
September 1, 2026 |
| Summary: |
Controller Change |
| Description: |
Controller changes ST7262 to ST7265 |
| Reason: |
EOL Controller. |
| Impact: |
No known impact at this time. |
| Availability: |
Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com. |
| Response: |
Old controller replaced with new. |
-
| Products Affected: |
CFAF800480E1-050SN-A2-2, CFAF800480E1-050SN-A2, CFAF800480E1-050SR-A2-2, CFAF800480E1-050SR-A2, CFAF800480E1-050SC-A2, CFAF800480E1-050SC-A2-2, CFAF800480E2-050SC-A2, CFAF800480E2-050SC-A2-2 |
| Date Issued: |
March 2, 2023 |
| Summary: |
PCB Change |
| Description: |
The PCB is changing due to a critical component going EOL. The new PCB design will not affect the functionality of the product and it will continue to use the same BT817Q graphical processor. Additional hardware features are added to the new design including land patterns for an ESP32 or XIAO to remove the need for an external processor to drive the EVE4 chip.
The part numbers will be updated as follows to reflect this change.
CFAF800480E1-050SC-A2 -> CFA800480E3-050SC
CFAF800480E1-050SC-A2-2 -> CFA800480E3-050SC-KIT
CFAF800480E1-050SN-A2 -> CFA800480E3-050SN
CFAF800480E1-050SN-A2-2 -> CFA800480E3-050SN-KIT
CFAF800480E1-050SR-A2 -> CFA800480E3-050SR
CFAF800480E1-050SR-A2-2 -> CFA800480E3-050SR-KIT
CFAF800480E2-050SC-A2 -> CFA800480E3-050SW
CFAF800480E2-050SC-A2-2 -> CFA800480E3-050SW-KIT |
| Reason: |
The helper processor on this display has gone EOL and needed to be replaced. |
| Availability: |
Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.
|
