This 5" Capacitive Touchscreen EVE Development Kit is End-Of-Life and has been replaced with the CFA800480E3-050SC-KIT. Contact support@crystalfontz.com with any questions.

5" Capacitive Touchscreen EVE Development Kit [EOL]

Part Number: CFAF800480E1-050SC-A2-2

This kit demonstrates a 5" EVE display module with a capacitive touchscreen. The TFT module uses the BT817 EVE chip for accelerated graphics, touch interpretation, and audio control.

Simply check the connections and plug this kit in to see this display module working.

Key Features:
  • 5" Diagonal Display Area
  • Sunlight readable at 800nits
  • IPS (in-plane switching) for wider viewing angles
  • TFT
  • Capacitive Touch Screen
  • Capable of 16 million colors
  • Bridgetek's BT817 EVE integrated
  • 4-wire SPI / Quad SPI interface
  • Needs only an external 5V supply to function out of the box
  • This full demonstration EVE kit replaces the previous A1-2 version.

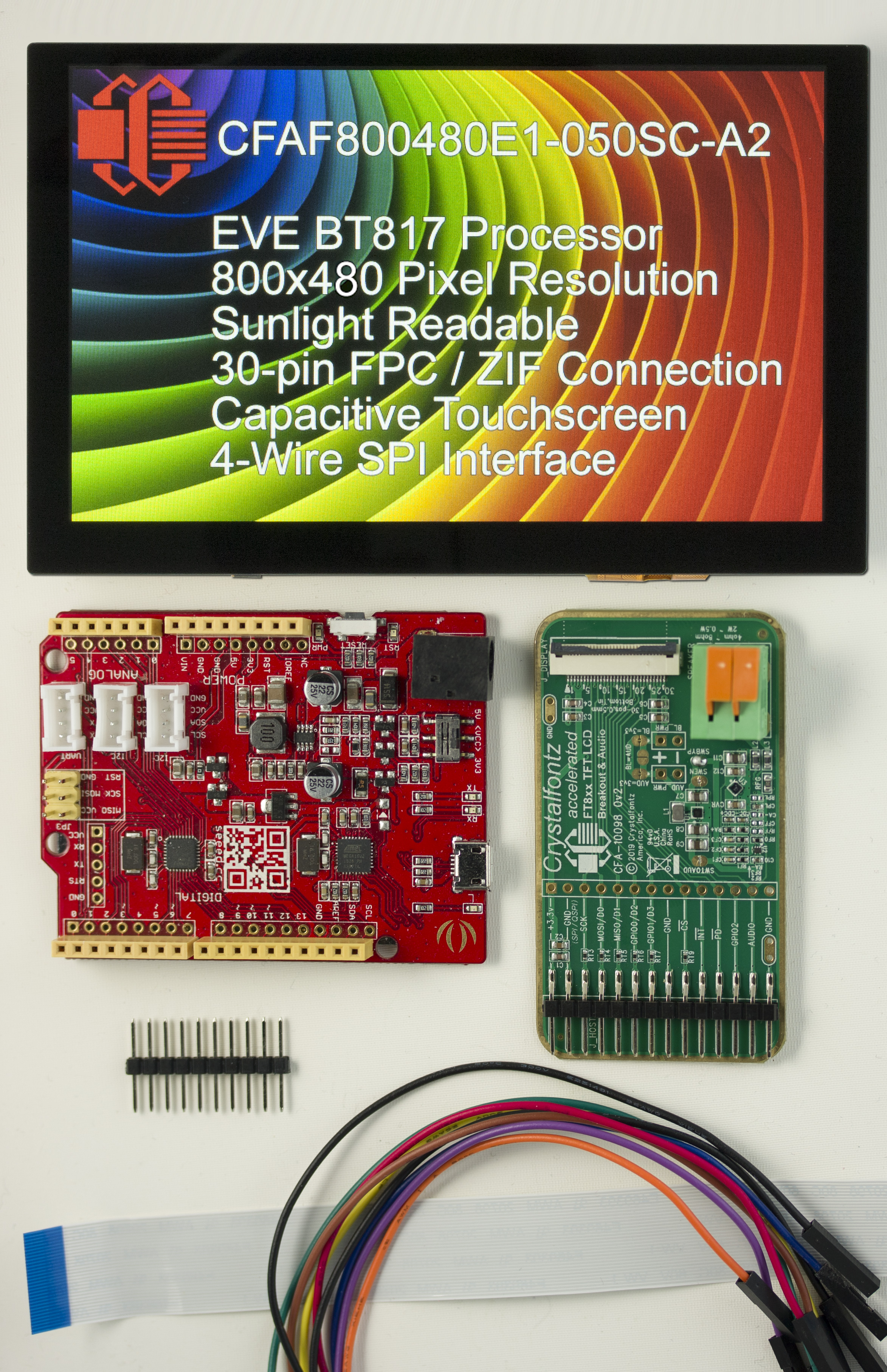

Included in this kit:
  • square_foot Physical Characteristics

    Physical Characteristics

    Column Dots x Row Dots 800 x 480

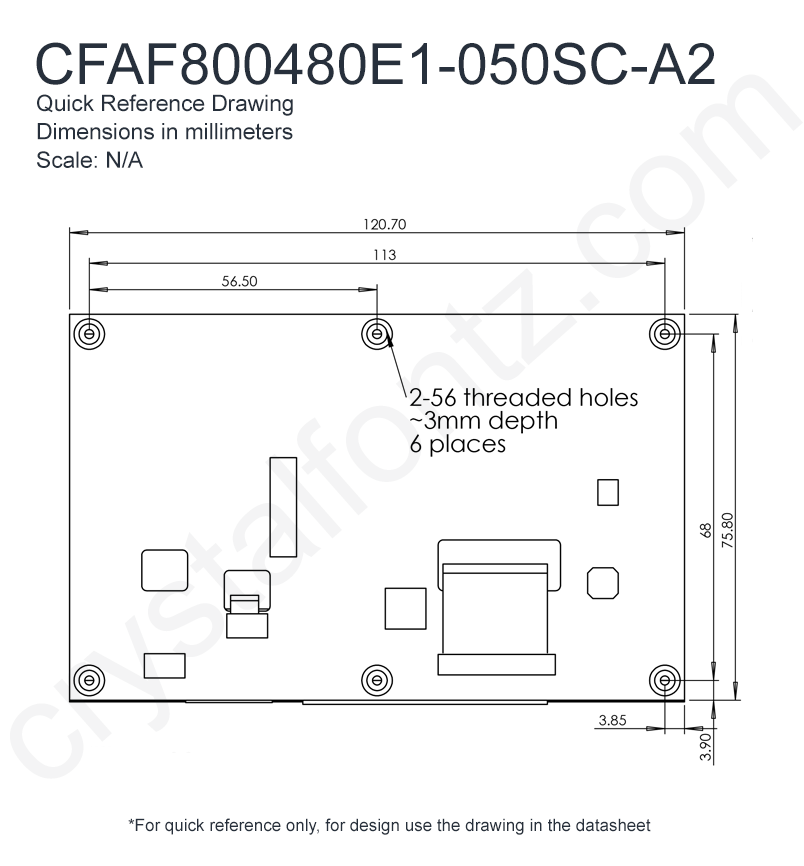

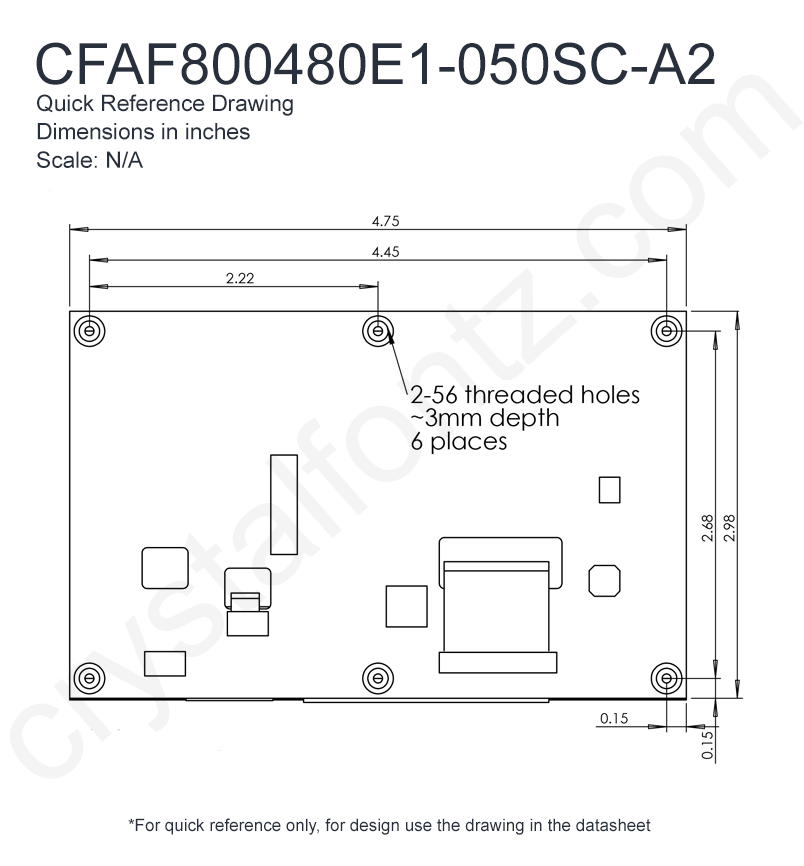

    Module Overall width height depth
    millimeters 120.7 76.3 10.65
    inches 4.75 3.00 0.42
    Diagonal Dimension 5"
    Viewing Area Width Height
    millimeters 109 65.8
    inches 4.29 2.59
    Active Area Width Height
    millimeters 108 64.8
    inches 4.25 2.55
    Dot Pitch Width Height
    millimeters 0.135 0.135
    inches 0.0053 0.0053
    Weight 220.5g
    Pin Count 30
  • visibility Optical Characteristics

    Optical Characteristics

    Polarizer Transmissive
    View Angle >160°
    Sunlight Readable Yes
    Backlight Color White
    Backlight Type LED
    Foreground Color RGB
    Background Color Dark
  • electric_bolt Electrical Specification

    Electrical Specifications

    Supply Voltage for Logic Minimum 3V
    Supply Voltage for Logic Maximum 3.6V
    Supply Voltage for Logic Typical 3.3V
    Supply Voltage for Driving Panel Typical 5V
    Supply Current Typical 20mA
  • electric_bolt Backlight Specification

    Backlight Electrical Specifications

    Forward Voltage Minimum 2.7V
    Forward Voltage Maximum 5.5V
    Forward Voltage Typical 5.0V
  • nature Environmental

    Environmental

    Operating Temperatures min max
    Celsius -20° 70°
    Fahrenheit -4° 158°
    Storage Temperatures min max
    Celsius -30° 80°
    Fahrenheit -22° 176°
  • cable Electronics

    Electronics

    Interface SPI
  • picture_as_pdf Datasheets
  • download Files and Downloads
Other components worth considering
4701 MicroSD Card Reader
Add SD Card Reader? $9.89 ea.
4665 Assorted Imperial Screws
Need mounting screws? $3.08 ea.
4607 12-inch 30-pin FFC
Add another cable? $2.30 ea.
4707 800x480 Capacitive Touchscreen EVE TFT Module
Additional display module? $90.31 ea.

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAF800480E1-050SC-A2-2 or RSS RSS feed for changes to CFAF800480E1-050SC-A2-2
  • text_snippet
    End-Of-Life #11178: PCB Change
    Products Affected: CFAF800480E1-050SN-A2-2, CFAF800480E1-050SN-A2, CFAF800480E1-050SR-A2-2, CFAF800480E1-050SR-A2, CFAF800480E1-050SC-A2, CFAF800480E1-050SC-A2-2, CFAF800480E2-050SC-A2, CFAF800480E2-050SC-A2-2
    Date Issued: March 2, 2023
    Summary: PCB Change
    Description: The PCB is changing due to a critical component going EOL. The new PCB design will not affect the functionality of the product and it will continue to use the same BT817Q graphical processor. Additional hardware features are added to the new design including land patterns for an ESP32 or XIAO to remove the need for an external processor to drive the EVE4 chip.

    The part numbers will be updated as follows to reflect this change.
    CFAF800480E1-050SC-A2 -> CFA800480E3-050SC
    CFAF800480E1-050SC-A2-2 -> CFA800480E3-050SC-KIT
    CFAF800480E1-050SN-A2 -> CFA800480E3-050SN
    CFAF800480E1-050SN-A2-2 -> CFA800480E3-050SN-KIT
    CFAF800480E1-050SR-A2 -> CFA800480E3-050SR
    CFAF800480E1-050SR-A2-2 -> CFA800480E3-050SR-KIT
    CFAF800480E2-050SC-A2 -> CFA800480E3-050SW
    CFAF800480E2-050SC-A2-2 -> CFA800480E3-050SW-KIT
    Reason: The helper processor on this display has gone EOL and needed to be replaced.
