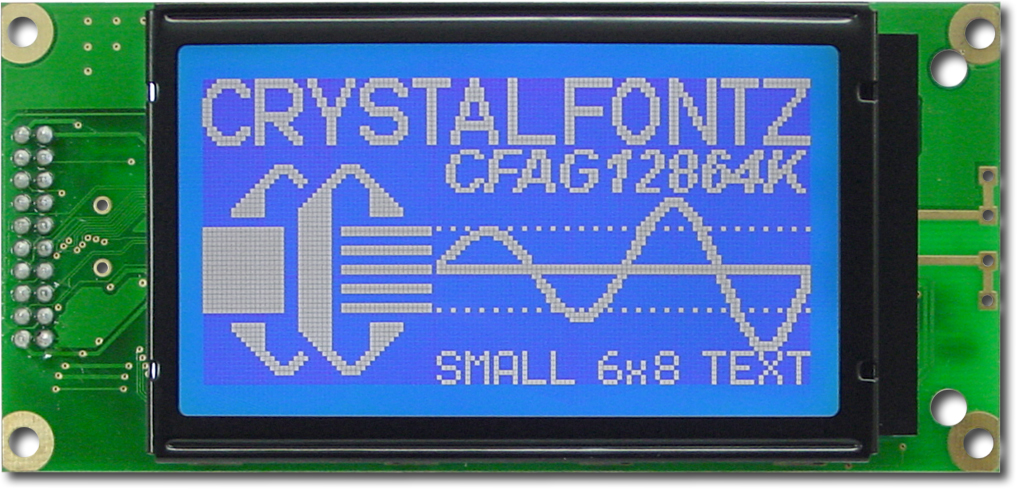

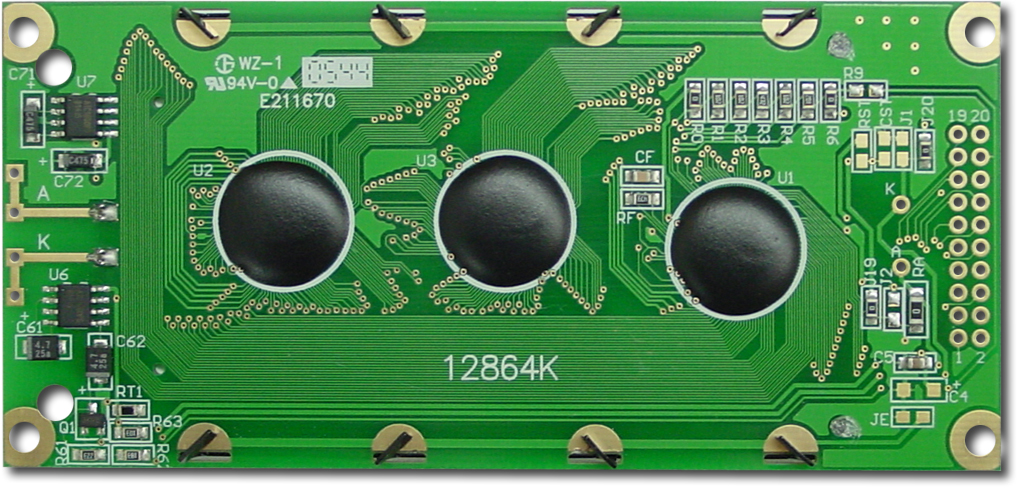

White on Blue 128x64 Graphic LCDPart Number: CFAG12864K-TMI-TNWhite on blue 128x64 graphic LCD with on-board negative voltage generator and temperature compensation.
Glass: STN Negative, Transmissive
Resolution: 128x64 pixels
Controller: Neotec NT7108 (Samsung KS0107/KS0108 Compatible)
Operating Temp:  -20°C to +70°C
Optics: 6:00 viewing direction
Compliance: RoHS Compliant
Product VariationsColorsDark on Yellow-Green
Yellow-Green LED BacklightWhite on Blue
White LED BacklightWhite on Dark
White LED Backlight

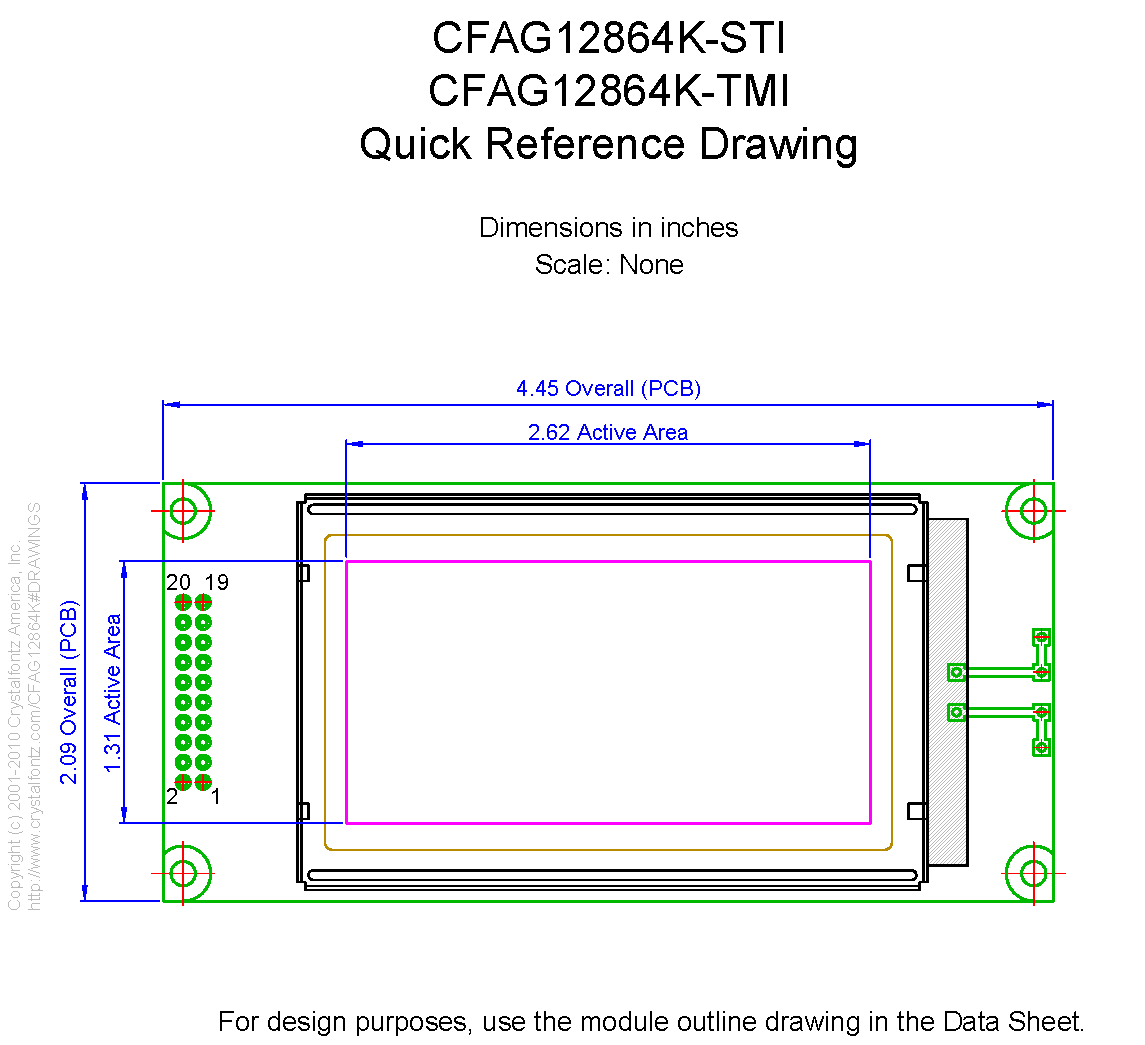

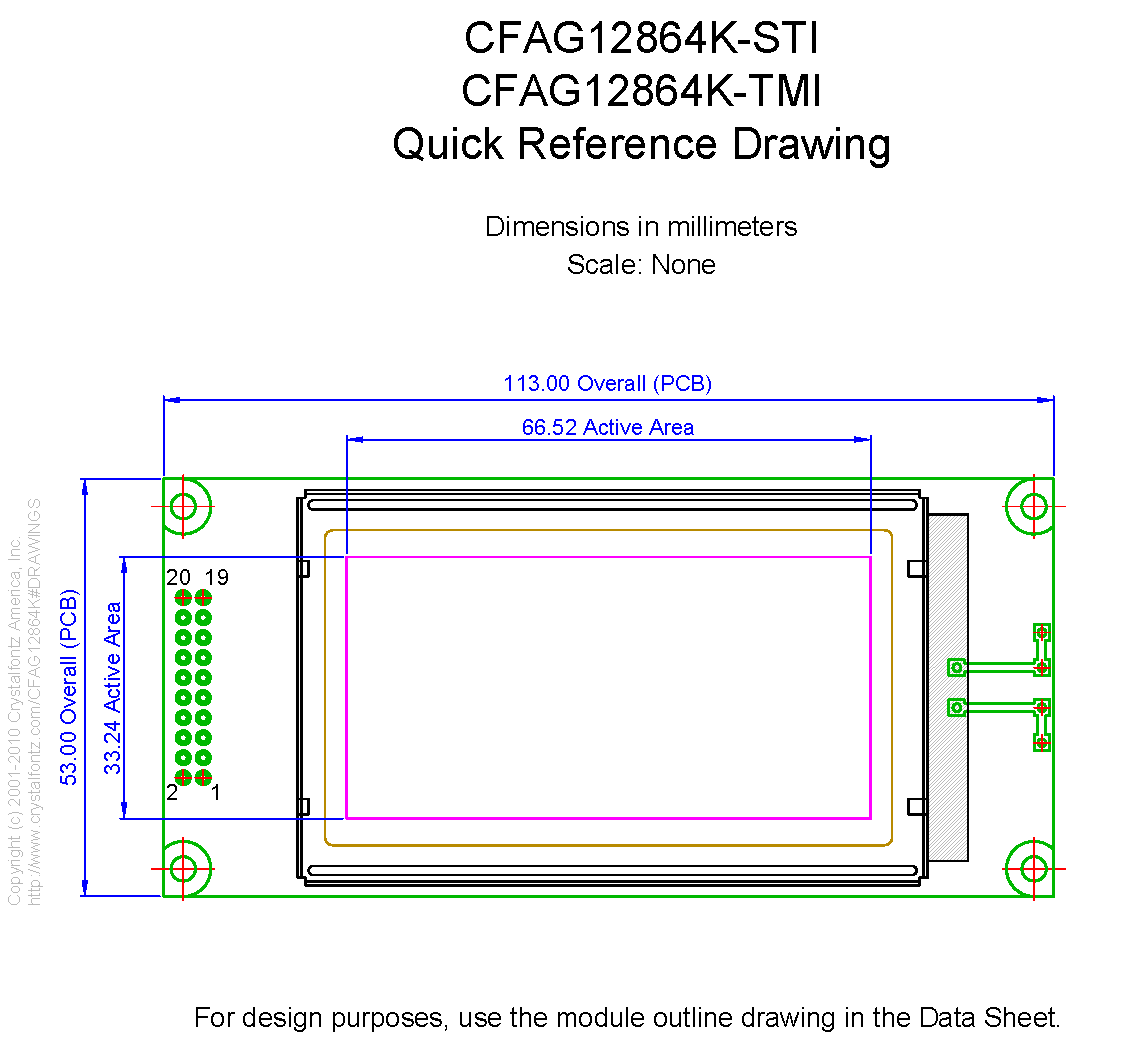

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            128 x 64


    Module Overall        width
        height
        depth


        millimeters
        113
        53
        13.6


        inches
        4.45
        2.09
        0.54



    PCB Outline        width
        height
        depth


        millimeters
        113
        53
        13.6


        inches
        4.45
        2.09
        0.54



        Diagonal Dimension
            2.93"


    Viewing Area        Width
        Height


        millimeters
        72
        40


        inches
        2.84
        1.58



    Active Area        Width
        Height


        millimeters
        66.52
        33.24


        inches
        2.62
        1.31



    Dot Size        Width
        Height


        millimeters
        0.48
        0.48


        inches
        0.019
        0.019



    Dot Pitch        Width
        Height


        millimeters
        0.52
        0.52


        inches
        0.020
        0.020



        Weight
            75g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Blue
Polarizer
            Transmissive
View Direction
            6 o'clock


        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            White
Background Color
            Blue

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            4.5V
Supply Voltage for Logic Maximum
            5.5V
Supply Voltage for Logic Typical
            5V


        Supply Voltage for Driving Panel Typical
            8.75V
Supply Current Typical
            8.28mA
Module Connector Pitch
            0.1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Neotec NT7108
NT7108

LCD Driver
Interface
            8-bit Parallel

picture_as_pdf Datasheets
picture_as_pdfCFAG12864KTMITN Datasheet

download Files and Downloads
folder_zip CAD Export - CFAG12864K-STI-TMI 2D CAD
picture_as_pdf 1 to 1 Template - CFAG12864K-STI-TMI 1 TO 1.PDF
link Demo Code Repository on Github
assured_workload Compliance Documents

picture_as_pdf Declaration
                                    of Conformity RoHS2
picture_as_pdf Declaration
                                    of Conformity REACH











Need a written quote? Add to cart, then enter
                            your email address in the "request a quote" box.
Quantity:


Price:



            Quantity
            Unit Price


            1
            $23.01

            10
            $20.22

            20 *
            $19.67

            50 *
            $18.95

            100 *
            $18.71

            200 *
            $18.56

            300 *
            $17.51

            500 *
            $17.43

            1000 *
            $16.10

11 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth
                    considering


						LCD Starter Kit with Potentiometer
Everything you need to connect $11.06 ea.






						72 Pin Header
Add (5) 72-pin headers?  $0.66 ea.





Colors	Dark on Yellow-Green Yellow-Green LED Backlight White on Blue White LED Backlight White on Dark White LED Backlight

Module Overall	width	height	depth
millimeters	113	53	13.6
inches	4.45	2.09	0.54

PCB Outline	width	height	depth
millimeters	113	53	13.6
inches	4.45	2.09	0.54

Viewing Area	Width	Height
millimeters	72	40
inches	2.84	1.58

Active Area	Width	Height
millimeters	66.52	33.24
inches	2.62	1.31

Dot Size	Width	Height
millimeters	0.48	0.48
inches	0.019	0.019

Dot Pitch	Width	Height
millimeters	0.52	0.52
inches	0.020	0.020

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%
