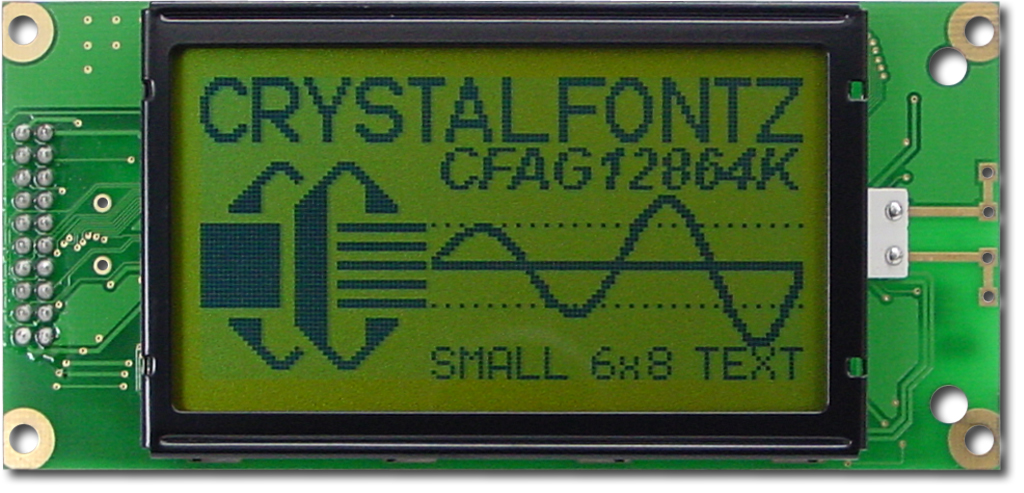

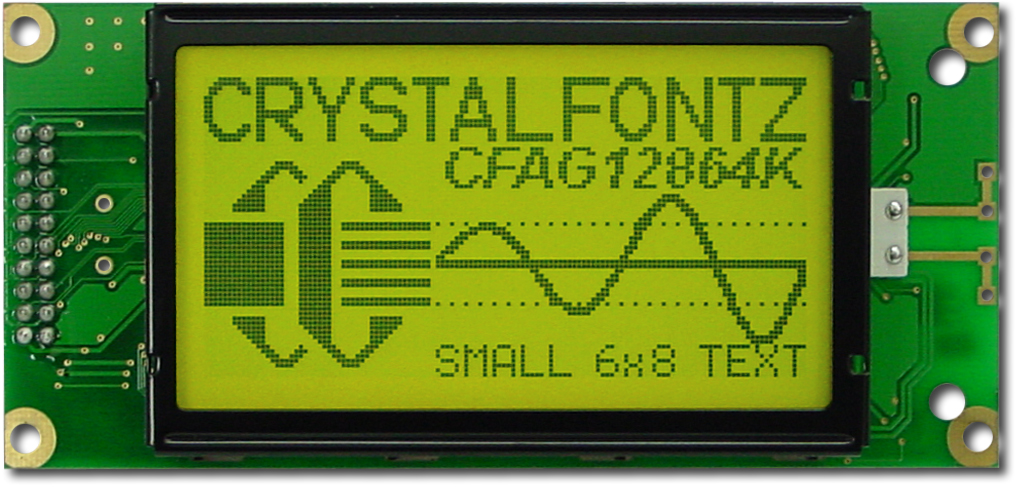

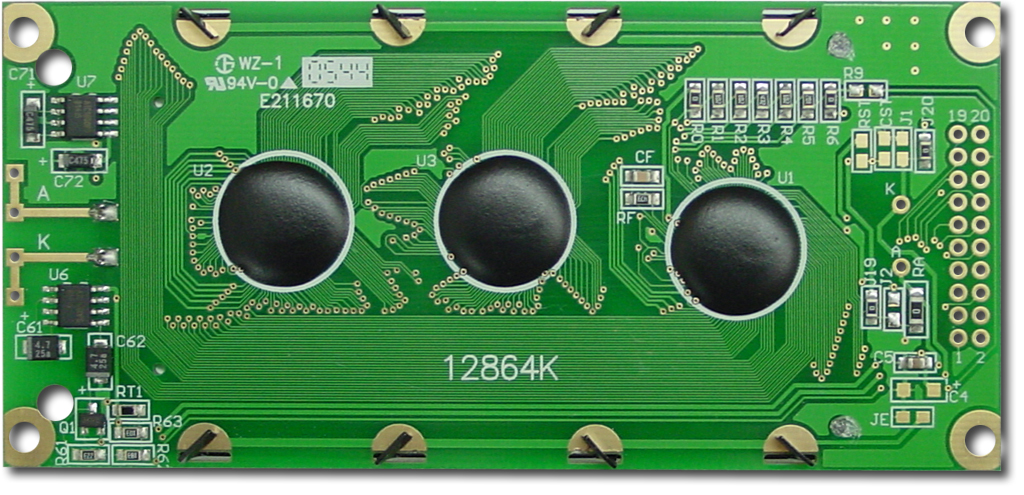

Sunlight Readable 128x64 Graphic LCDPart Number: CFAG12864K-YYH-TNSunlight readable 128x64 Dark on yellow-green graphic LCD with temperature compensation and on-board negative voltage generator.
Readability: Sunlight readable
Glass: STN Positive, Transflective
Backlight: Yellow-Green LED
Resolution: 128x64 pixels
Controller: Neotec NT7108 (Samsung KS0107/KS0108 Compatible)
Operating Temp:  -20°C to +70°C
Optics: 6:00 viewing direction
Compliance: RoHS Compliant
Product VariationsColorsDark on Yellow-Green
Yellow-Green LED BacklightWhite on Blue
White LED BacklightWhite on Dark
White LED Backlight

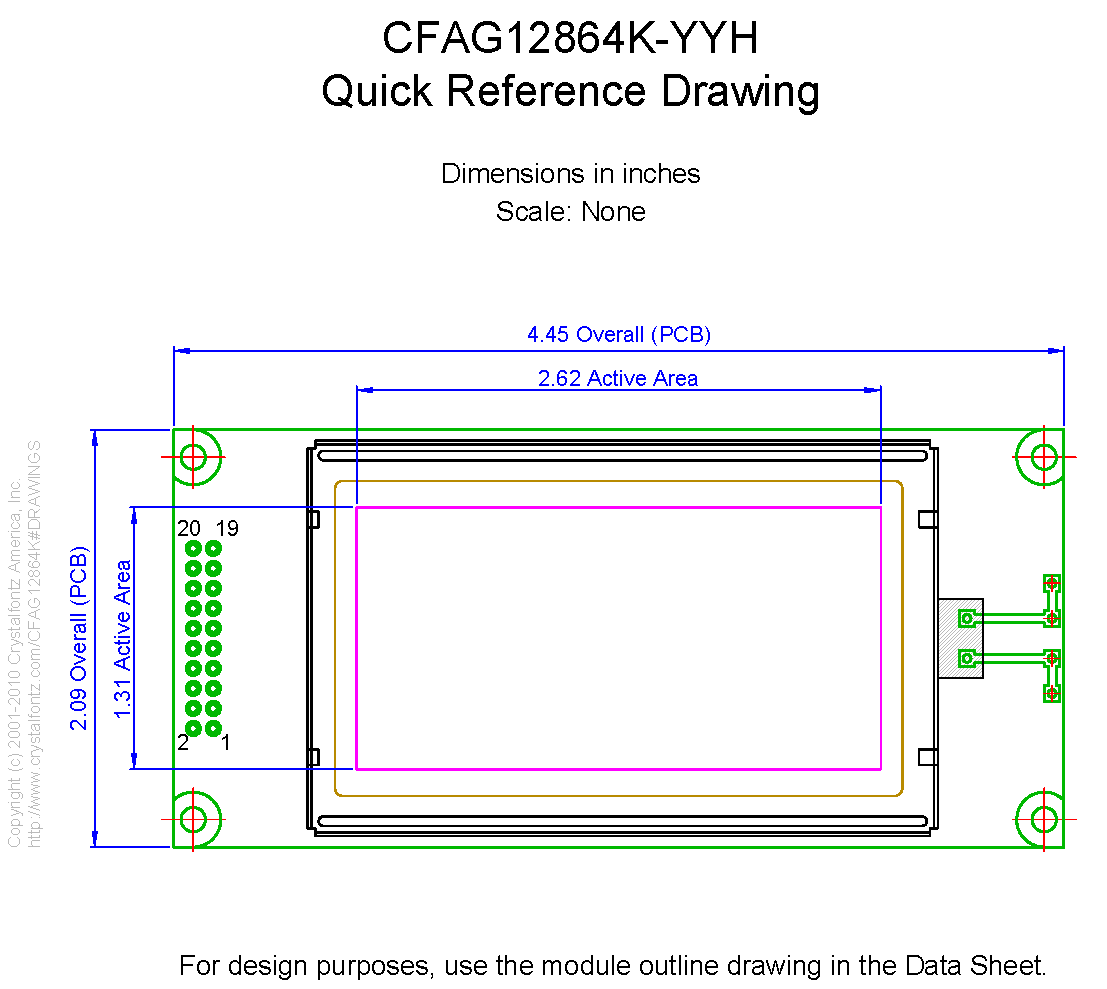

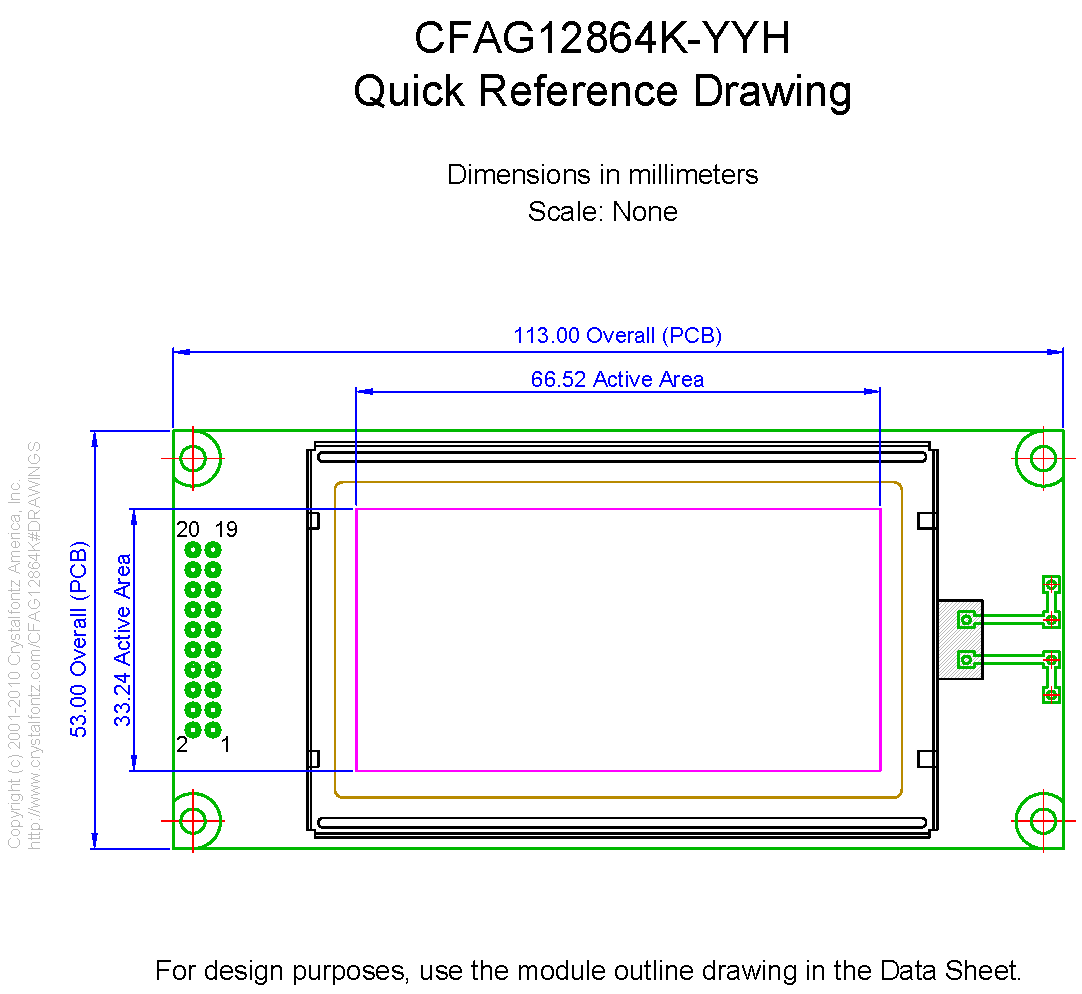

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            128 x 64

    Module Overall        width
        height
        depth

        millimeters
        113
        53
        13.6

        inches
        4.45
        2.09
        0.54

    PCB Outline        width
        height
        depth

        millimeters
        113
        53
        13.6

        inches
        4.45
        2.09
        0.54

        Diagonal Dimension
            2.93"

    Viewing Area        Width
        Height

        millimeters
        72
        40

        inches
        2.84
        1.58

    Active Area        Width
        Height

        millimeters
        66.52
        33.24

        inches
        2.62
        1.31

    Dot Size        Width
        Height

        millimeters
        0.48
        0.48

        inches
        0.019
        0.019

    Dot Pitch        Width
        Height

        millimeters
        0.52
        0.52

        inches
        0.020
        0.020

        Weight
            69g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Yellow-Green
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes

        Backlight Color
            Yellow-Green
Backlight Type
            LED
Mode
            Positive
Foreground Color
            Dark
Background Color
            Yellow-Green

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Neotec NT7108
NT7108

LCD Driver
Interface
            8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAG12864KYYHTN Datasheet

 download Files and Downloads
folder_zip CAD Export - CFAG12864K-YYH 2D CAD
picture_as_pdf 1 to 1 Template - CFAG12864K-YYH 1 TO 1.PDF
link Demo Code Repository on Github
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH

Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:

Price:

            Quantity
            Unit Price

            1
            $27.36

            10 *
            $26.57

            20 *
            $22.77

            50 *
            $20.19

            100 *
            $17.89

            200 *
            $16.25

            500 *
            $15.97

            1000 *
            $13.08

5 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth considering

						LCD Starter Kit with Potentiometer
Everything you need to connect $11.06 ea.

						72 Pin Header
Add (5) 72-pin headers?  $0.66 ea.

Colors	Dark on Yellow-Green Yellow-Green LED Backlight White on Blue White LED Backlight White on Dark White LED Backlight

Module Overall	width	height	depth
millimeters	113	53	13.6
inches	4.45	2.09	0.54

PCB Outline	width	height	depth
millimeters	113	53	13.6
inches	4.45	2.09	0.54

Viewing Area	Width	Height
millimeters	72	40
inches	2.84	1.58

Active Area	Width	Height
millimeters	66.52	33.24
inches	2.62	1.31

Dot Size	Width	Height
millimeters	0.48	0.48
inches	0.019	0.019

Dot Pitch	Width	Height
millimeters	0.52	0.52
inches	0.020	0.020

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Quantity	Unit Price
1	$27.36
10 *	$26.57
20 *	$22.77
50 *	$20.19
100 *	$17.89
200 *	$16.25
500 *	$15.97
1000 *	$13.08

Part Change Notices

Subscribe to Part Change Notices by
email or RSS for CFAG12864K-YYH-TN

Sunlight Readable 128x64 Graphic LCD

Part Number: CFAG12864K-YYH-TN

Product Variations

Colors

Physical Characteristics

Optical Characteristics

Electrical Specifications

Environmental

Electronics

Part Change Notices

LCD Software

User Forum

Tech Support

Glass Type/Glass Color	STN/Yellow-Green
Polarizer	Transflective
View Direction	6 o'clock
Sunlight Readable	Yes

Backlight Color	Yellow-Green
Backlight Type	LED
Mode	Positive
Foreground Color	Dark
Background Color	Yellow-Green

Controller Documents	Neotec NT7108 NT7108 LCD Driver
Interface	8-bit Parallel
