Low Power Transflective Graphic LCD Module

Part Number: CFAG12864T3-NFH-E1-1

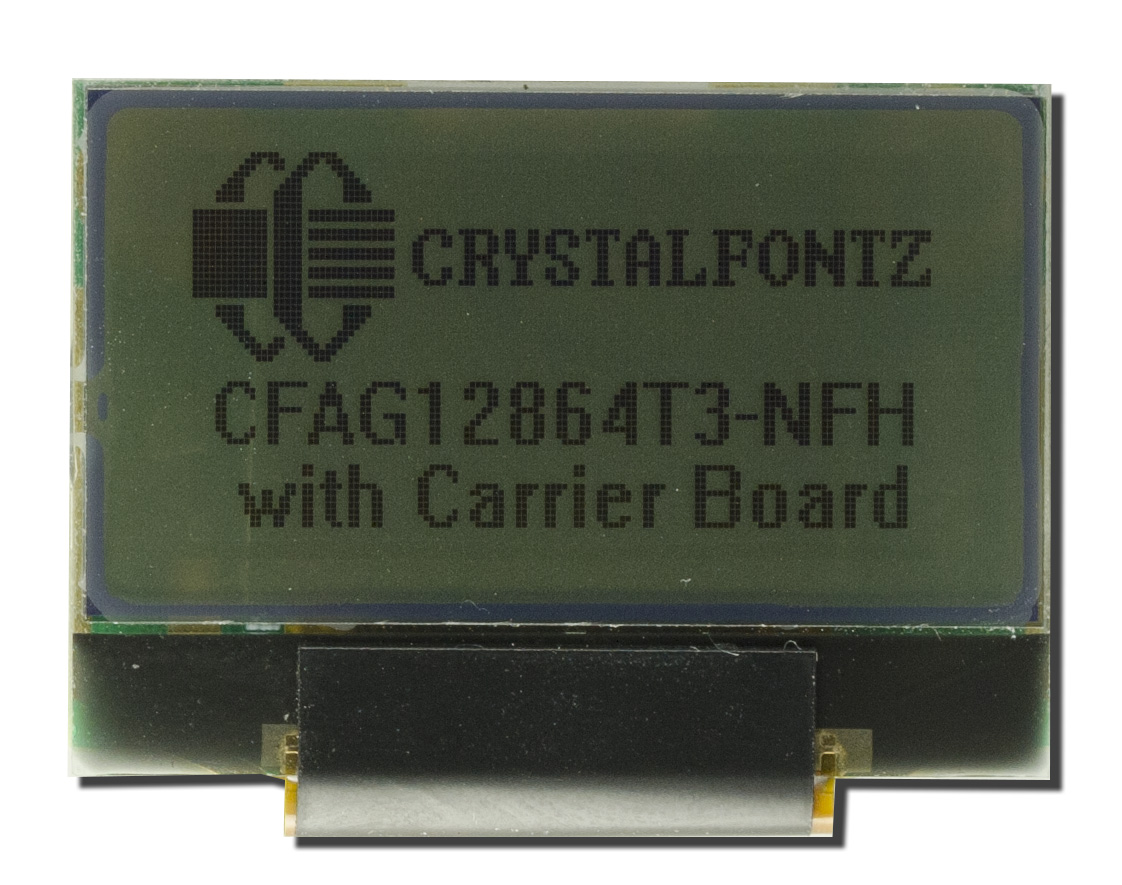

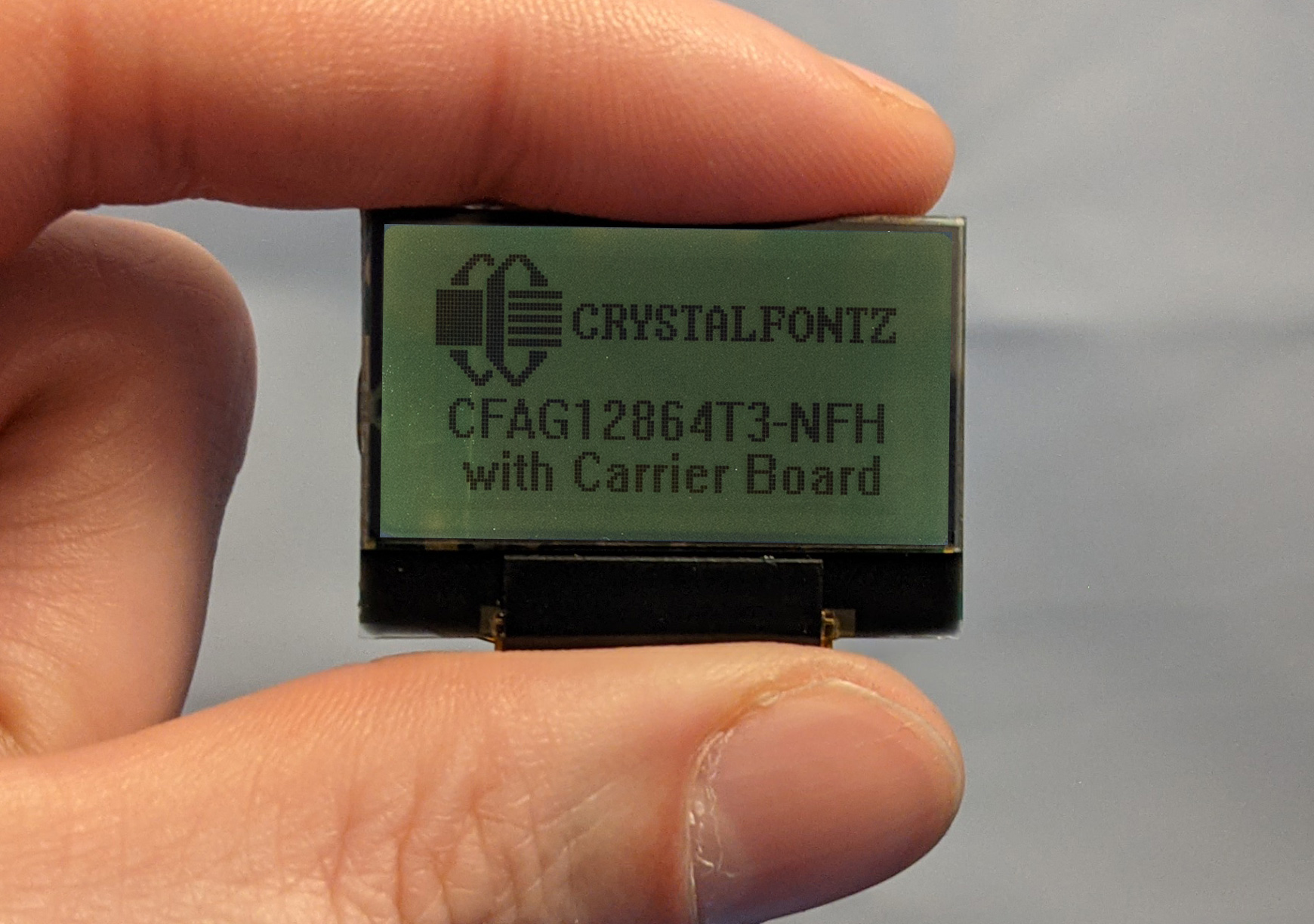

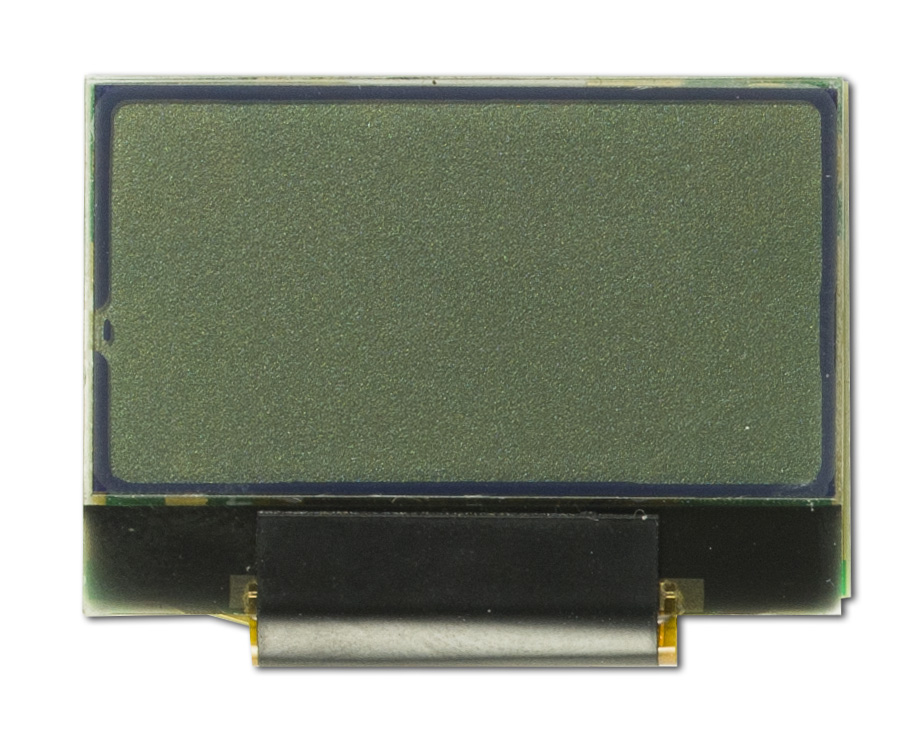

This transflective LCD display module comprises the low power small graphic LCD on an adapter board. The CFAG12864T3-NFH is small (1.1" diagonal), thin, and low power. This display module does not have a backlight but is easily readable in direct sun due to it's transflective polarizer.

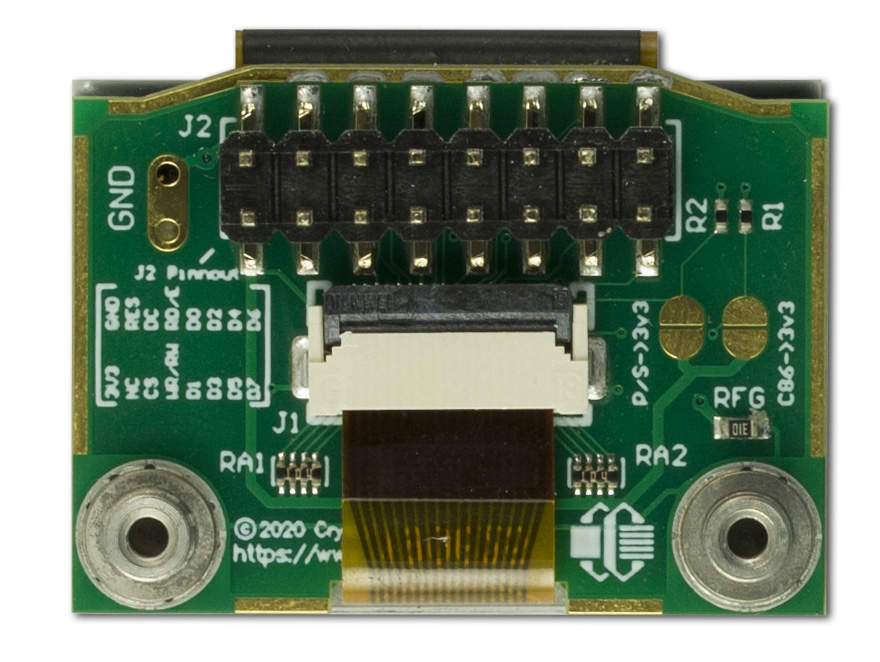

The adapter board simplifies integrating the display into a product or bringing up a demonstration of the display. The board breaks the ZIF tail out into a 10 position 0.1" header. This makes wiring the display simple and solder-free. The 2x2-56 threaded standoffs on the adapter board enable the entire assembly to be mounted into a final design.

Display Module Characteristics:
  • Wide temperature range: -20°C to 70°C (-4°F to 158°F)
  • Utilizes the popular Sitronix ST7565P controller
  • Ultra-Low power consumption
  • Transflective & Monochrome for easy readability
  • Great for battery operated devices
  • 4-wire, 8-bit SPI or 8-bit parallel interface
Check out our blog post for help getting started with this small graphic LCD.

  • square_foot Physical Characteristics

    Physical Characteristics

    Column Dots x Row Dots 128 x 64
    Module Overall width height depth

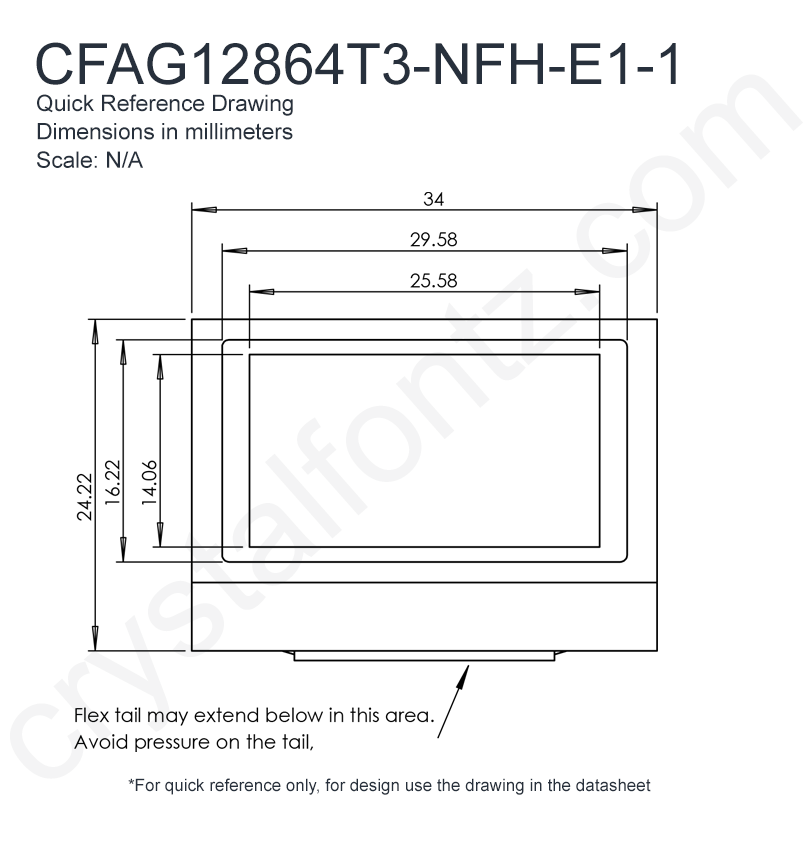

    millimeters 34 24.22 4.6

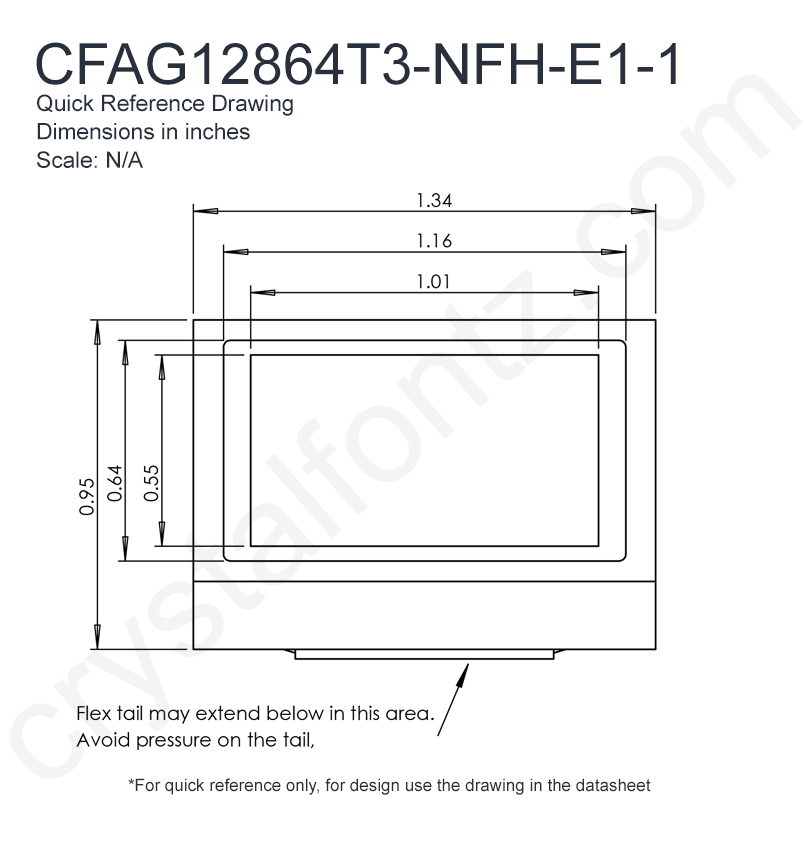

    inches 1.34 0.95 0.18
    Viewing Area Width Height
    millimeters 29.58 16.22
    inches 1.17 0.64
    Active Area Width Height
    millimeters 25.58 14.06
    inches 1.01 0.55
    Dot Pitch Width Height
    millimeters 0.2 0.22
    inches 0.008 0.009
    Weight 7.6g
    Pin Count 16
  • visibility Optical Characteristics

    Optical Characteristics

    Glass Type/Glass Color FSTN/Light-Gray
    Polarizer Transflective
    View Direction 6 o'clock
    View Angle 60°
    Sunlight Readable Yes
    Mode Positive
    Foreground Color Dark
    Background Color Light Gray
  • electric_bolt Electrical Specification

    Electrical Specifications

    Supply Voltage for Logic Minimum 3V
    Supply Voltage for Logic Maximum 3.3V
    Supply Current Typical 2mA
  • nature Enviromental


    Operating Temperatures min max
    Celsius -20° 70°
    Fahrenheit -4° 158°
    Storage Temperatures min max
    Celsius -30° 80°
    Fahrenheit -22° 176°
  • cable Electronics


    Controller Documents Sitronix ST7565P
    65 x 132 Dot Matrix LCD Controller/Driver
    Sitronix ST7565P
    ST7565P is a single-chip dot matrix LCD driver which incorporates LCD controller and common/segment drivers.

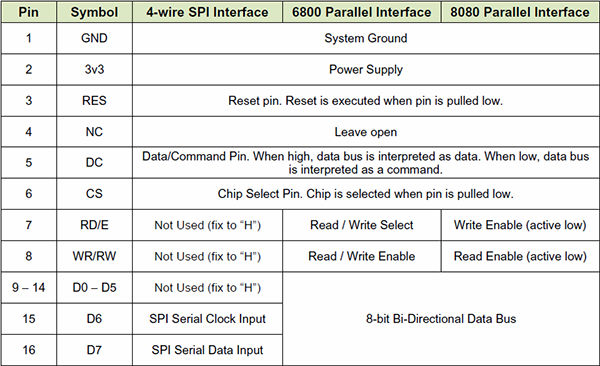

    Interface 8-bit Parallel, SPI
  • picture_as_pdf Datasheets
  • download Files and Downloads
  • assured_workload Compliance Documents

Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
Quantity Price
1 $18.15
10 $14.28
20 $13.82
50 $13.36
100 * $13.17
200 * $13.08
300 * $12.98
500 * $12.89
1000 * $12.80
* Pricing is subject to change. Contact us about potential lead times.
